Legion CSG41-7 Combi-Pan Braising Pans & Tilt Skillets
Description

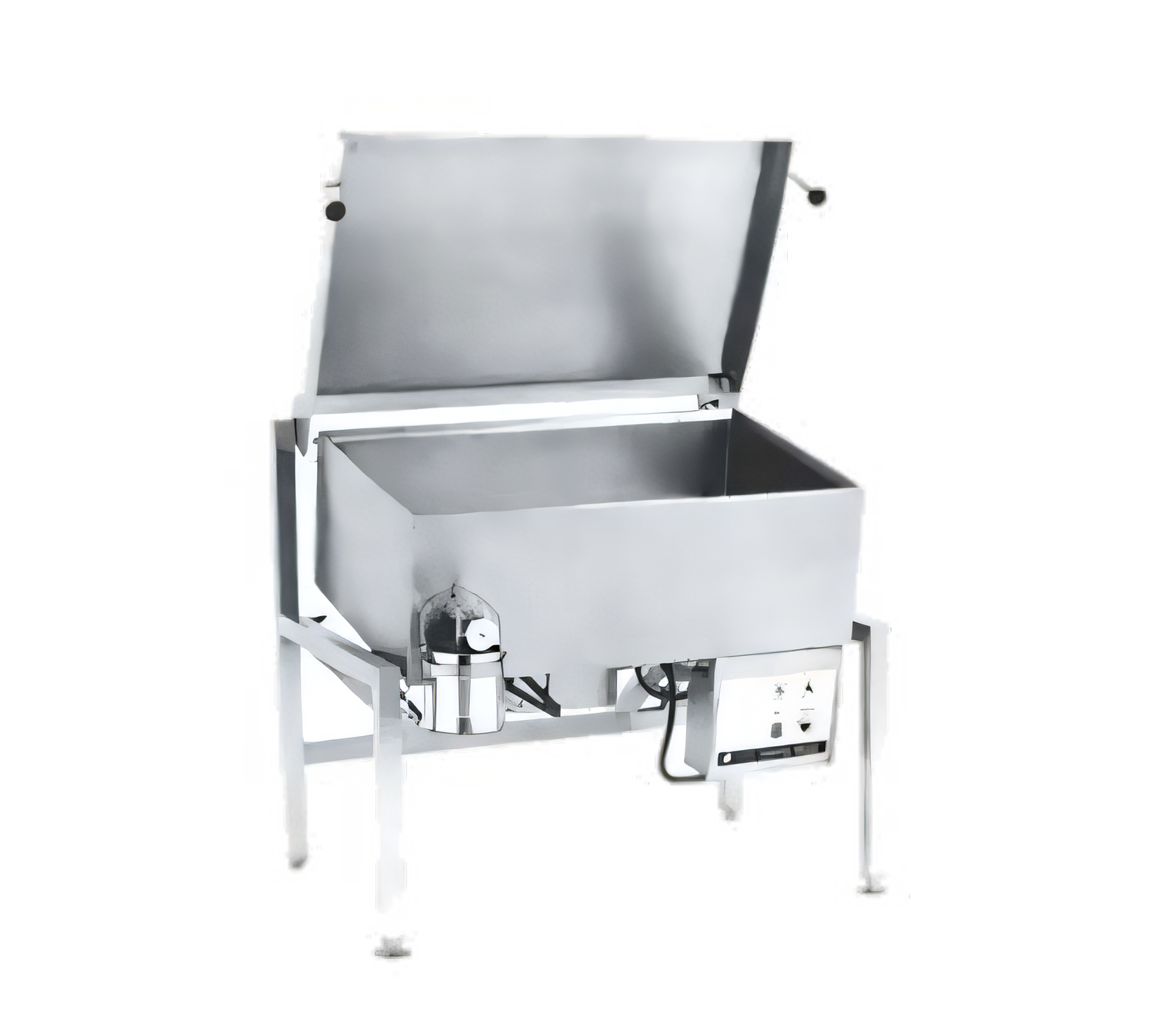

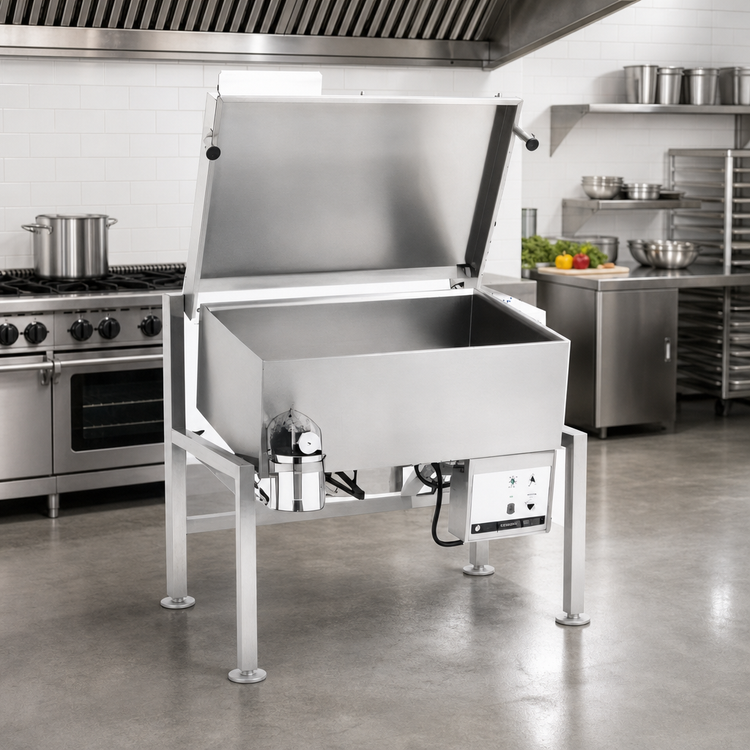

Legion Combi-Pan® Gas Tilting Skillet – 31.2 gal (Model CSG41-7)
High-capacity braising pan, fryer & grill in one insulated, USA-built unitDesigned for demanding commercial kitchens, the Legion Combi-Pan® combines the power of a skillet, kettle and griddle in a single footprint. A 132,000 BTU gas system and precision 10° tilting pan let you sear, braise, shallow-fry or simmer up to 31 gallons with ease—while heavy 304 stainless construction and factory insulation keep operators safe and energy costs down.
Key features
- 31.2 gal seam-welded 304 SS pan with ergonomic 31" working height
- 10° manual tilt for fast, controlled pouring & batch transfer
- Actuator-assisted, counter-balanced stainless lid with full-width condensate drip shield & rear steam vent
- 132,000 BTU burners, electronic ignition & thermostat adjustable 175 °F–400 °F
- High-limit safety thermostat prevents overheating
- 1 ½" compression draw-off valve with food-pan holder & rear drip collector

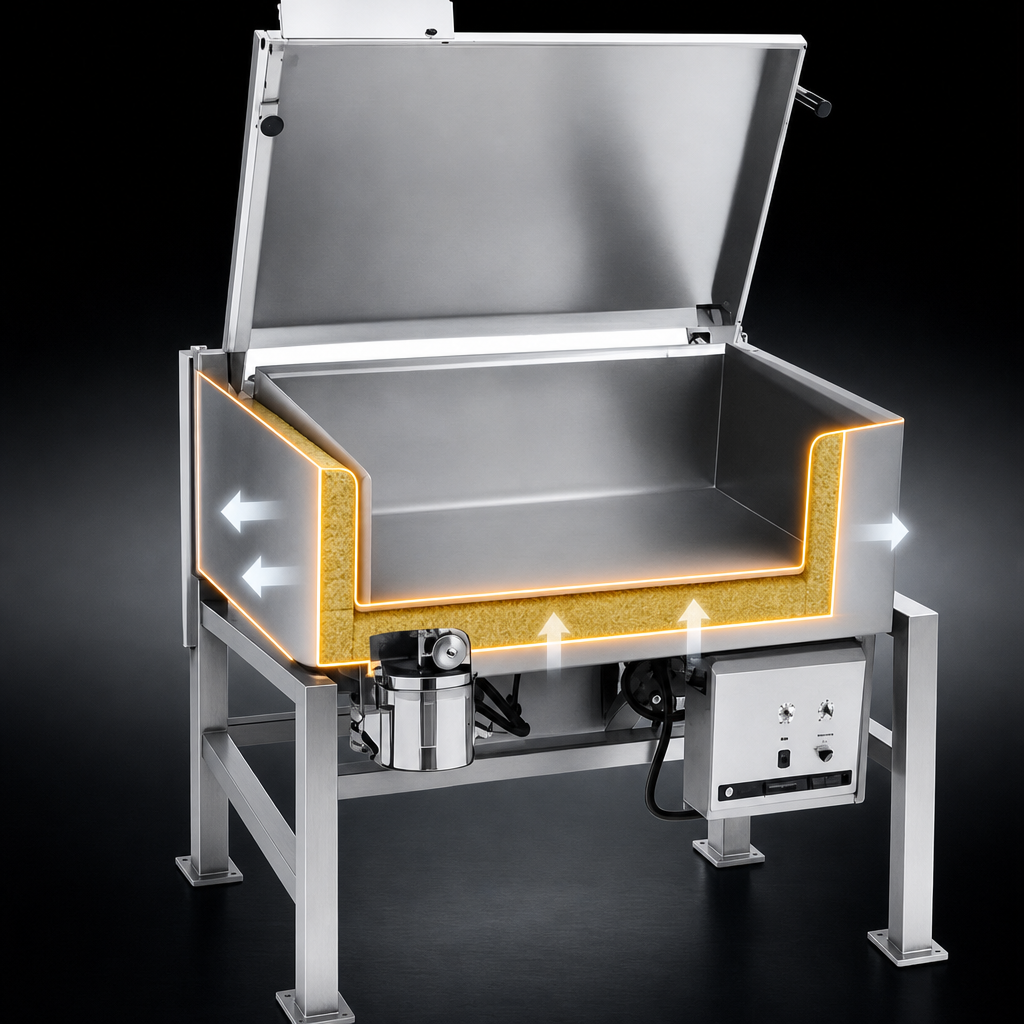

- “Insulated for Safety™” sides & bottom for cooler kitchens and lower energy use
- Open tubular frame with flanged front feet & bullet rear feet for rigid installation
- 120 V, single-phase control circuit (plug-ready)
- NSF/ASME/CSA compliant—approved for fryer use
Popular applications
- Searing & braising roasts, stews and chili
- Scratch-made soups, sauces & gravies
- Shallow-frying cutlets, veggies or tortillas
- Batch browning ground meats or poultry
- Grilling pancakes, burgers & grilled cheeses
Specifications
| Model | CSG41-7 |
|---|---|
| Capacity | 31.2 gal | 105 lb frying oil | 4.2 ft³ oven volume |
| Pan interior (W × L × D) | 41" × 38" × 7" |
| Heat source | Natural or LP gas, 132,000 BTU/hr |
| Gas connection | ¾" IPS – 5-7" w.c. (NG) / 12-14" w.c. (LP) |
| Electrical | 120 V, 1 Ø (controls & ignition) |
| Thermostat range | 175 °F – 400 °F |

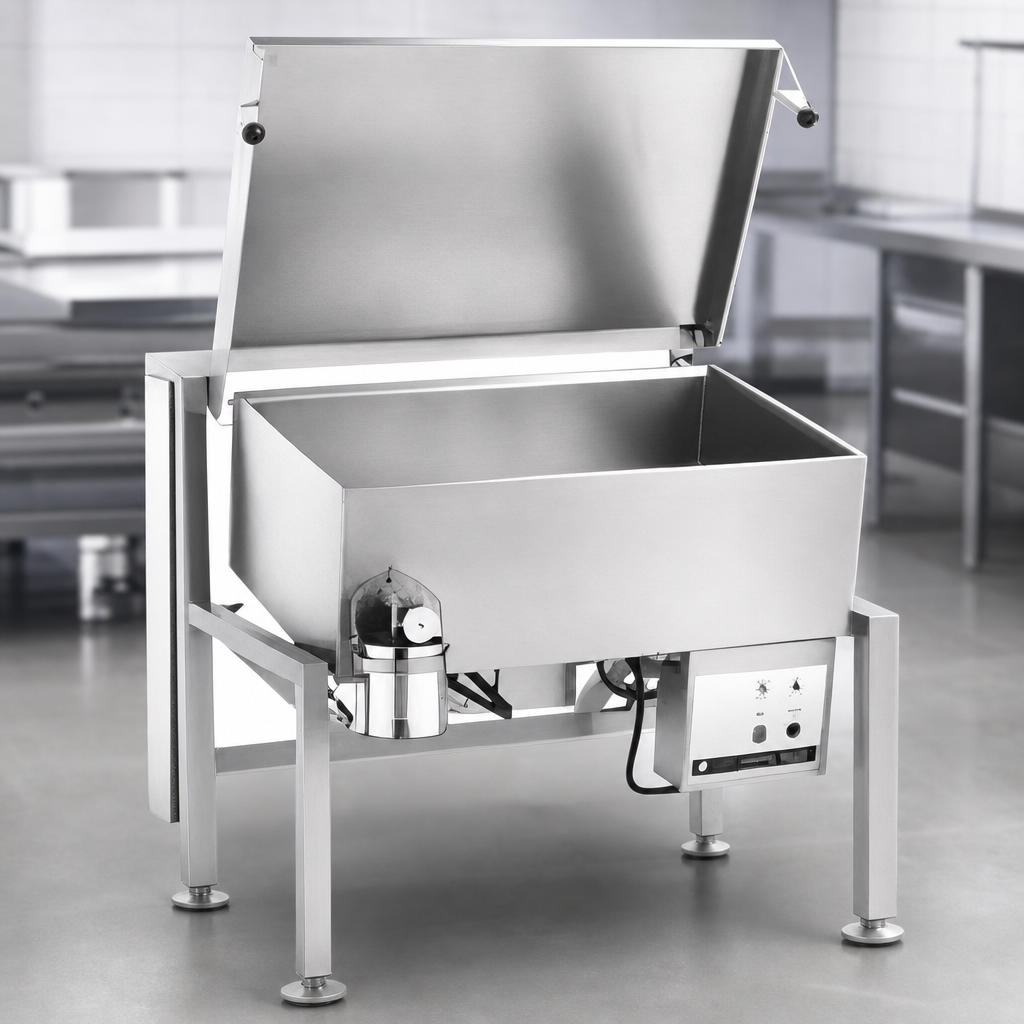

| Construction | All 304 SS – pan, lid, frame & enclosure |
| Overall size (W × D × H) | 53" × 70.8" × 40 ¾" (lid closed) |
| Shipping weight | ≈ 810 lb |
What’s included
- Actuator-assisted stainless lid
- 1 ½" compression draw-off valve with pan holder
- Adjustable front flanged feet & rear bullet feet
- Operator’s manual & 12-month parts-and-labor warranty
Optional accessories
- Perforated/solid 12 × 20 pans (2 ½", 4", 6" deep)
- 11 × 20 ½" steaming basket
- Vinyl or stainless 48" spray-rinse hose assembly
- Automatic water-fill meter
- Draw-off strainer, hose & spout kits
- Flat-bottom & fry scoops, 3-part cleaning tool
- Lockable lid or control cover for high-security sites
- Casters & gas quick-disconnect kit
Need sizing or utility guidance? Our equipment specialists are ready to help.
