Legion CSG41-5 Combi-Pan Braising Pans & Tilt Skillets
Description

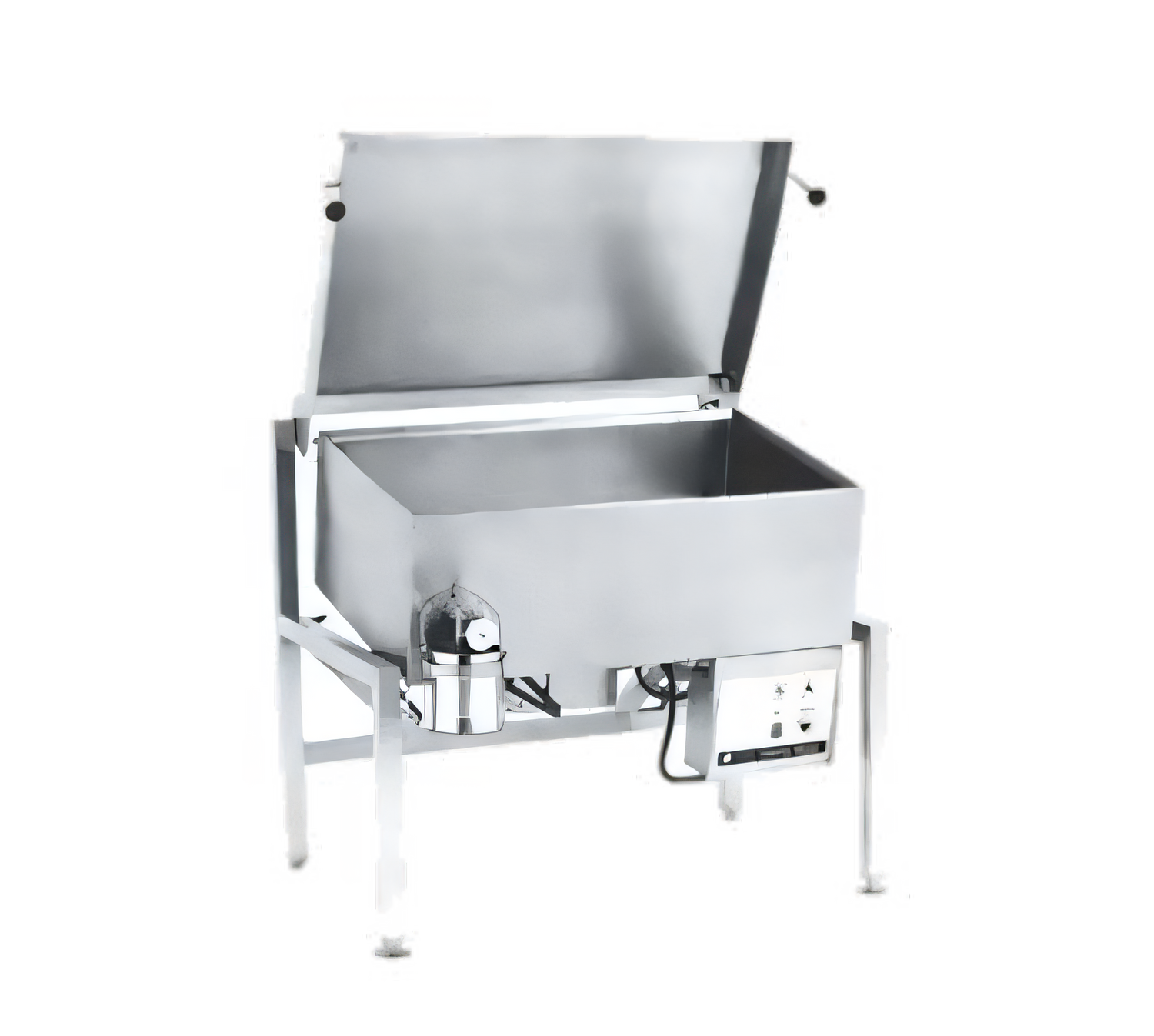

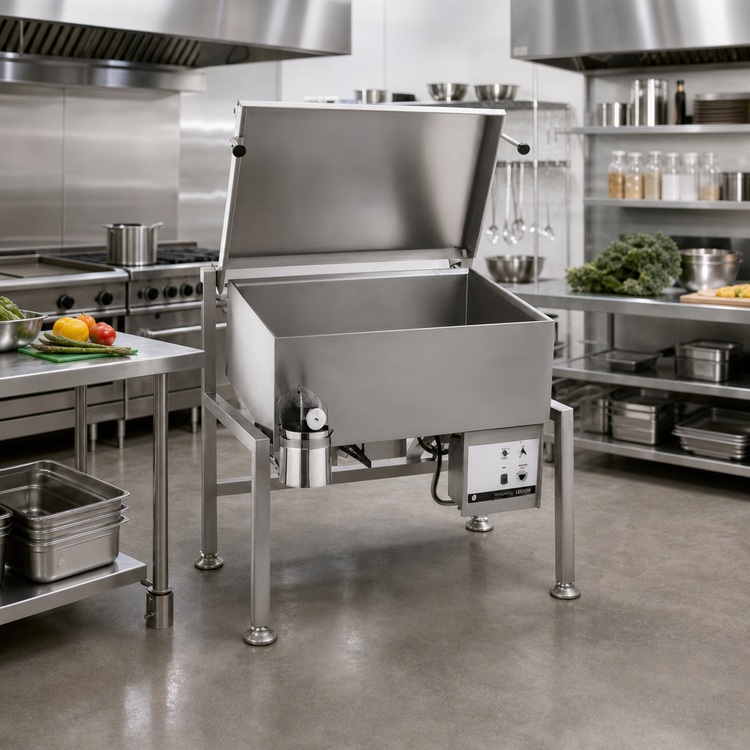

Combi-Pan® Gas Tilting Skillet – 22.3 Gal
Legion Model CSG41-5 | 132,000 BTU | Made in USAEngineered for busy kitchens that demand versatility, Legion’s Insulated for Safety™ Combi-Pan® lets you braise, sauté, simmer, fry and hold large batches in one rugged, easy-to-clean vessel.
Key Features

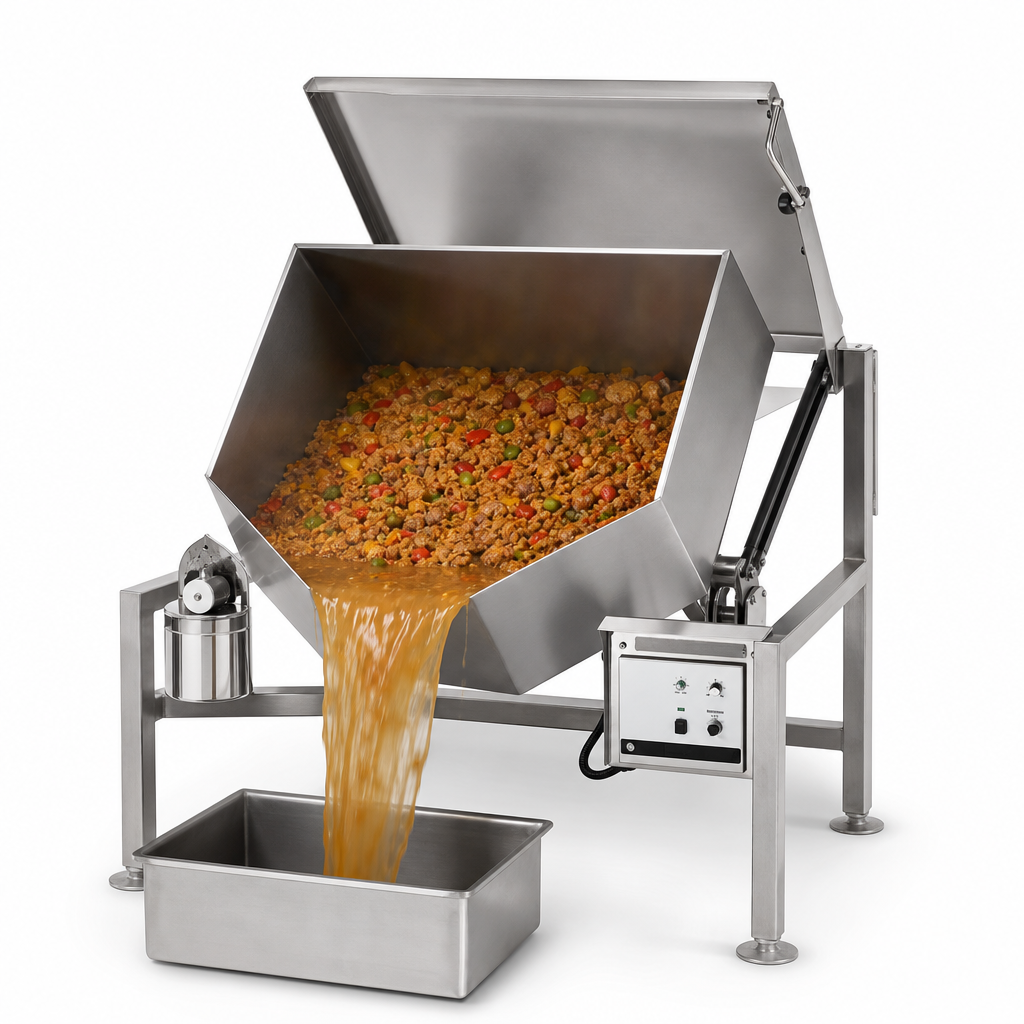

- 22.3-gallon (105 lb) capacity, 304 SS pan with built-in 10° tilt for fast draining
- Actuator-assisted, counter-balanced stainless lid with full-width drip shield & rear steam vent
- Electronic ignition and adjustable thermostat 175 °F – 400 °F with high-limit safety cut-off
- 1-½″ compression draw-off valve plus food-pan hanger for mess-free transfers
- Insulated sides & bottom reduce energy use and operator burn risk
- Open 304 SS tubular frame; flanged front feet & bullet rear feet for secure, level installation
- Approved for light-duty frying—handles up to 105 lb of oil
- NSF/ASME compliant and proudly built in the USA
Performance Highlights
- Gas-fired 132,000 BTU burner heats quickly and evenly across the entire cooking surface
- Seam-welded 10 ga pan resists warping and speeds clean-up
- Rear drip collector keeps floors safe and dry during service
- 120 V, single-phase connection powers controls—no special electrical service required
Specifications
| Capacity | 22.3 gal (84 L) |
|---|---|
| Pan Interior (L × W × D) | 41″ × 28″ × 5″* |
| Energy Source | Natural Gas, 132,000 BTU/hr LP model available — 149,000 BTU/hr |
| Thermostat Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Electrical | 120 V, 1-Phase, 1 A (controls & ignition) |
| Draw-off Valve | 1-½″ stainless compression type |
| Working Height | 31″ to pan rim |

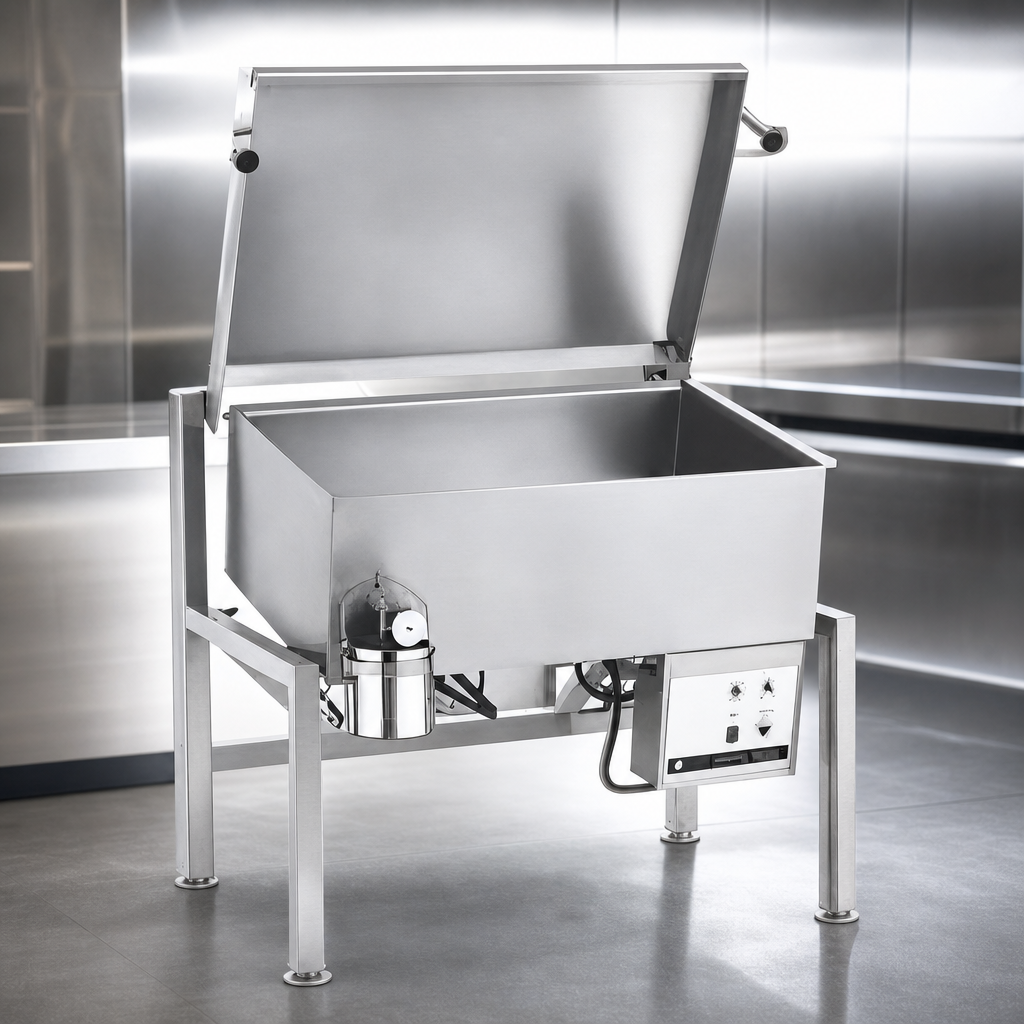

| Construction | All 304 SS; insulated pan sides & bottom |
| Agency Approvals | NSF, ASME, CSA |
*Dimensional data is nominal. Contact us for detailed drawings or clearance requirements.
Popular Accessories ( sold separately )
- 48″ flexible spray-hose assembly
- Perforated or solid 12 × 20 food pans (2½″, 4″ or 6″ deep)
- Automatic water-fill meter
- Draw-off strainer & drain hose
- Lockable control cover for correctional applications
Upgrade to a single piece of equipment that can keep pace with your busiest meal periods—choose the Legion Combi-Pan® today.
