Legion CSG41-14 Combi-Pan Braising Pans & Tilt Skillets
Description

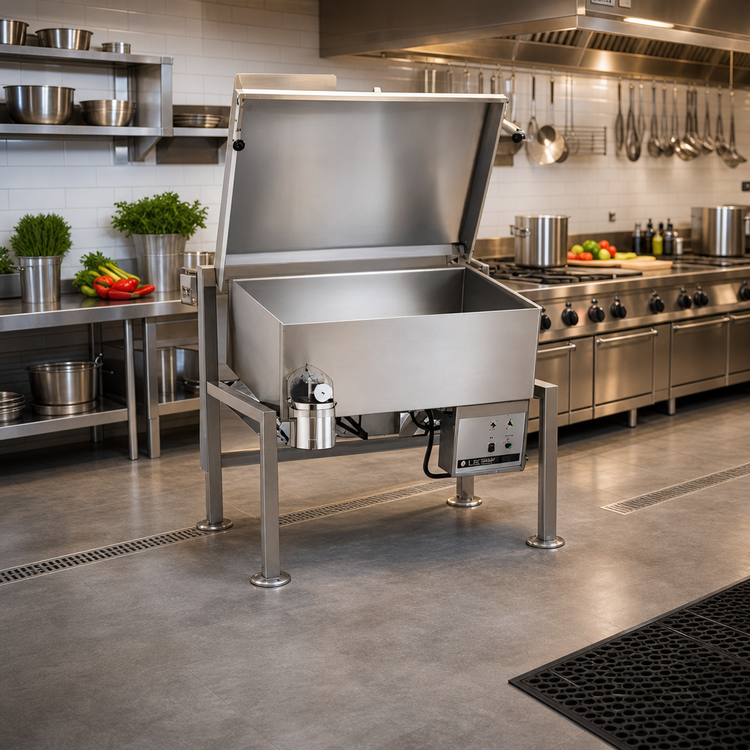

Legion Combi-Pan® Gas Tilting Skillet – 62.4 gal (Model CSG41-14)
Insulated for Safety™ | Made in USAHandle your biggest batches with confidence. Legion’s 62.4-gallon Combi-Pan® brings braising, simmering, shallow-frying, grilling, and holding together in one rugged, highly efficient tilting skillet built for demanding commercial kitchens.

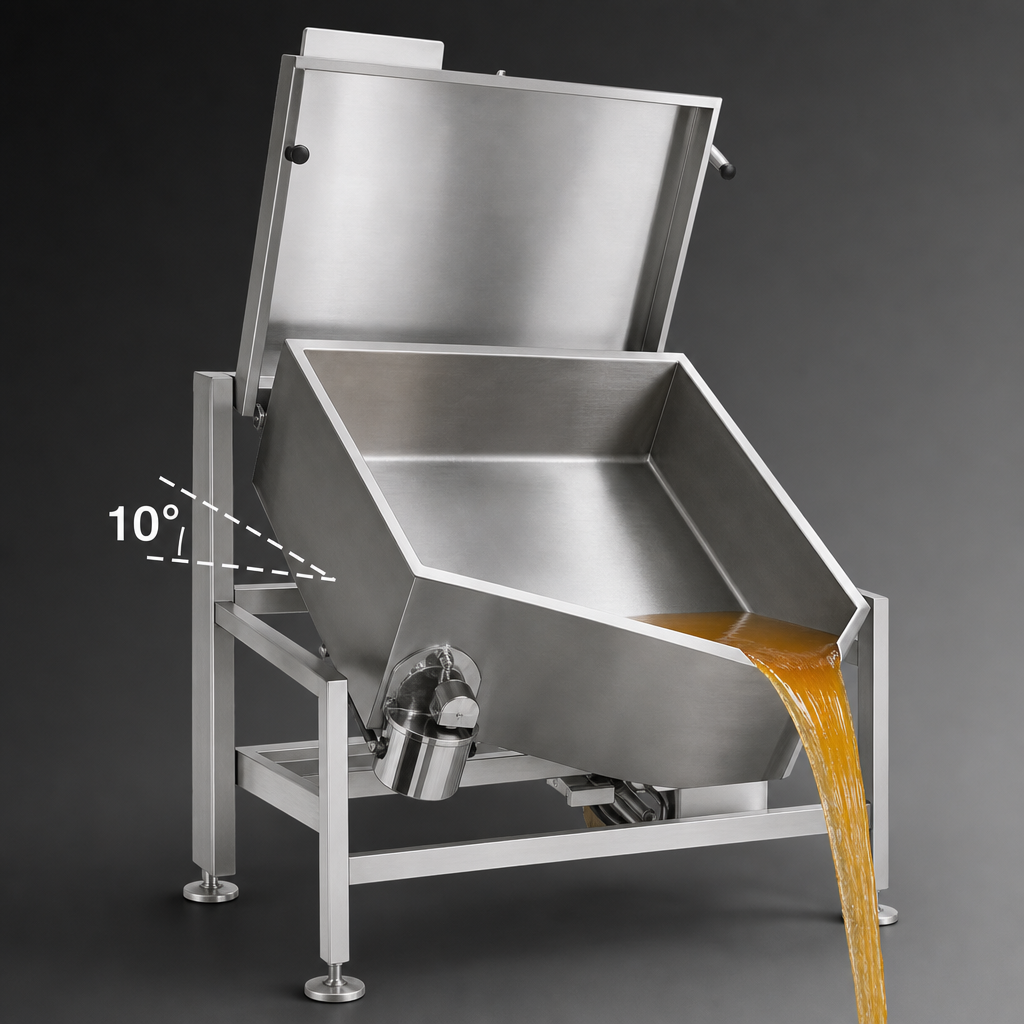

- 10° manual hand-tilt for smooth, controlled pour-off
- 132,000 BTU gas-fired burner system with electronic ignition
- Accurate thermostat adjustable from 175 °F – 400 °F plus high-limit safety
- Fully insulated 304 SS pan sides & bottom – cooler exterior, higher efficiency
- Actuator-assisted, counter-balanced 304 SS lid with condensate drip shield & rear steam vent
- 1 ½" compression draw-off valve with food-pan holder & rear drip collector
- Open 304 SS frame with flanged front feet & bullet rear feet for secure leveling
- Approved for use as a fryer – 9 in deep cooking surface handles up to 105 lb of oil
- Built to NSF, ASME, CSA & UL standards
Versatile Performance

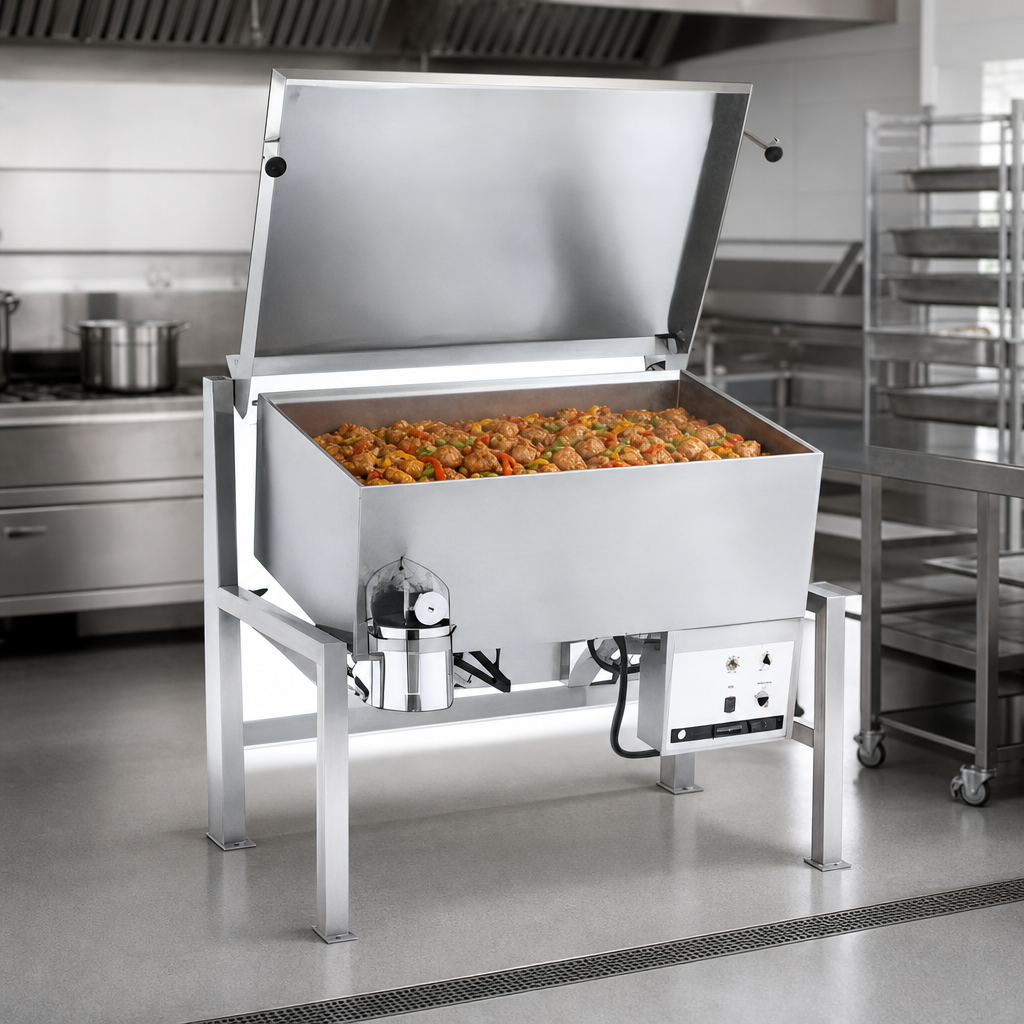

- Braise, stew, or simmer up to 62.4 gal of product
- Sear or grill on the expansive 1,029 in² cooking surface
- Shallow-fry chicken, fish, or cutlets with fast recovery and even heat
- Hold and serve at precise temperatures without scorching
Key Specifications
| Item | Details |
|---|---|
| Model | CSG41-14 (Leg-Mounted) |
| Pan Capacity | 62.4 gal / 8.4 ft³ |
| Cooking Surface | 41 in × 45 in (1,029 in²) |
| Pan Depth | 14 in |
| Tilt Angle | 10° manual hand tilt |
| Gas Input | 132,000 BTU/hr (Natural or LP) |
| Gas Connection | ¾" NPT – 5–7" w.c. (Natural) / 12–14" w.c. (LP) |
| Electrical | 120 V, 1 Ø (controls & ignition) |
| Thermostat Range | 175 °F – 400 °F |
| Draw-off Valve | 1 ½" compression type, 304 SS |
| Lid | 304 SS, actuator-assisted & counter-balanced |
| Construction | 304 SS pan, lid & tubular frame; insulated sides/bottom |
| Working Height | 31 in to pan rim |
| Certifications | NSF, ASME, CSA, UL |
Popular Accessories
- 48" flexible spray hose or faucet with automatic fill meter
- Perforated or solid food baskets & pans (12 × 20, 2.5–6 in deep)
- Draw-off hose, spout, or strainer for mess-free transfers
- Casters, lockable lid, control cover & restraining devices
- Electric timer with buzzer
Standard warranty: 1 year parts & labor. Extended coverage available. Specifications are subject to change without notice.
