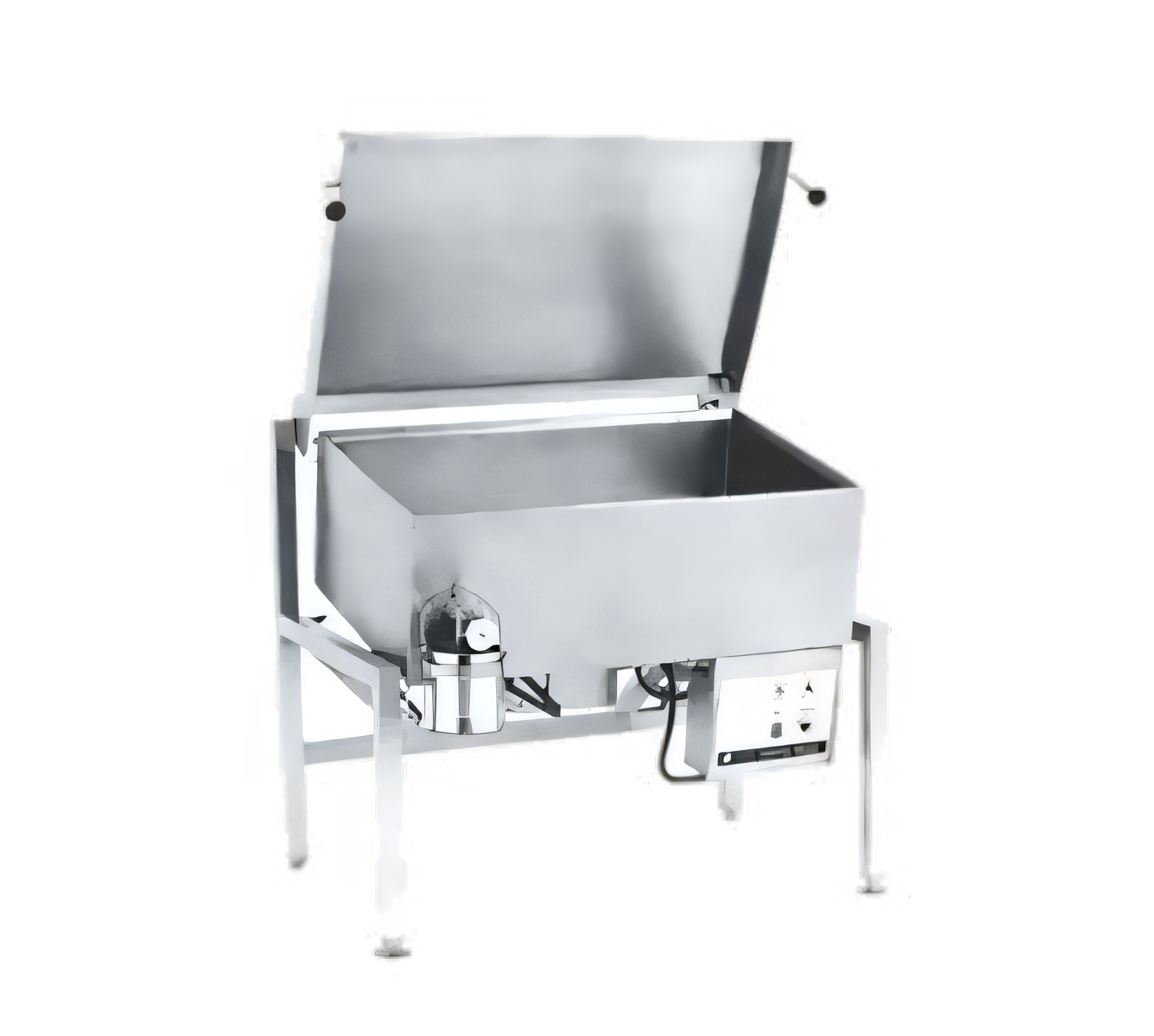

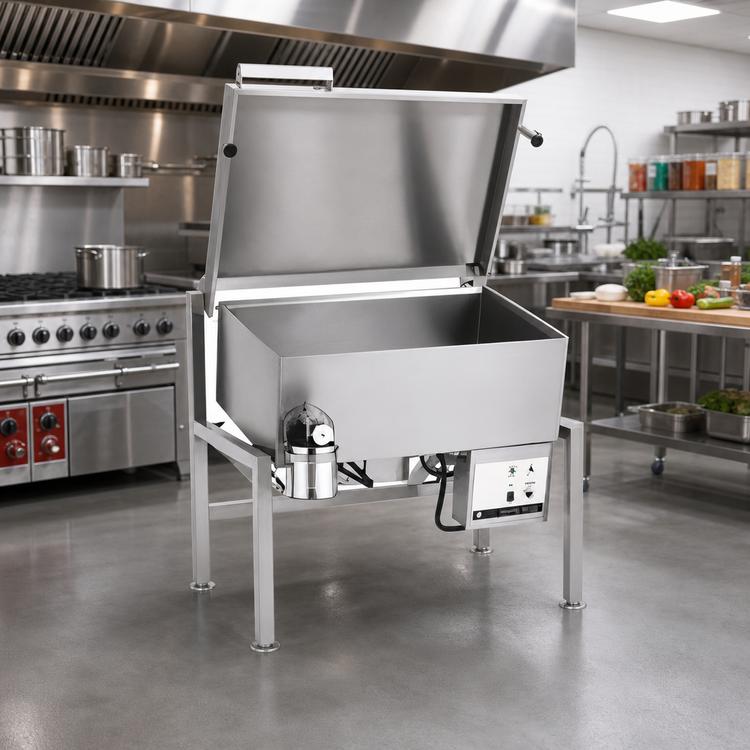

Legion Combi-Pan CSG41-11 Gas-Fired Insulated Tilting Skillet, 49-Gallon, 10° Tilt

SKU: CSG41-11
$17,090.45
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment Legion New Arrivals Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment

Legion Combi-Pan CSG41-11 Gas-Fired Insulated Tilting Skillet, 49-Gallon, 10° Tilt

304 Stainless Steel Construction, Adjustable Thermostat, Counterbalanced Safety Lid

Built for high-volume kitchens, this 49-gallon gas tilting skillet combines insulated stainless steel construction, precise heat control, and an easy-drain 10° tilt for efficient batch cooking.

  • 49-gallon capacity handles large-batch braising, simmering, and sautéing.
  • 10° tilting pan and 1-1/2" draw-off valve simplify draining and product transfer.
  • 304 stainless steel food-contact zones, pan body, lid, and frame support durability and sanitation.
  • Insulated sides and bottom help retain heat and improve operator safety.
  • Adjustable thermostat provides a 175°F to 400°F cooking range with a high-limit safety thermostat.
  • Patented stainless steel safety lid includes actuator-assisted counterbalance, drip shield, steam vent, and safety handles.
  • Electronic ignition and 120V single-phase standard power support reliable operation.
  • Approved for use as a fryer for added versatility.

Product Weight:

704.0 lb

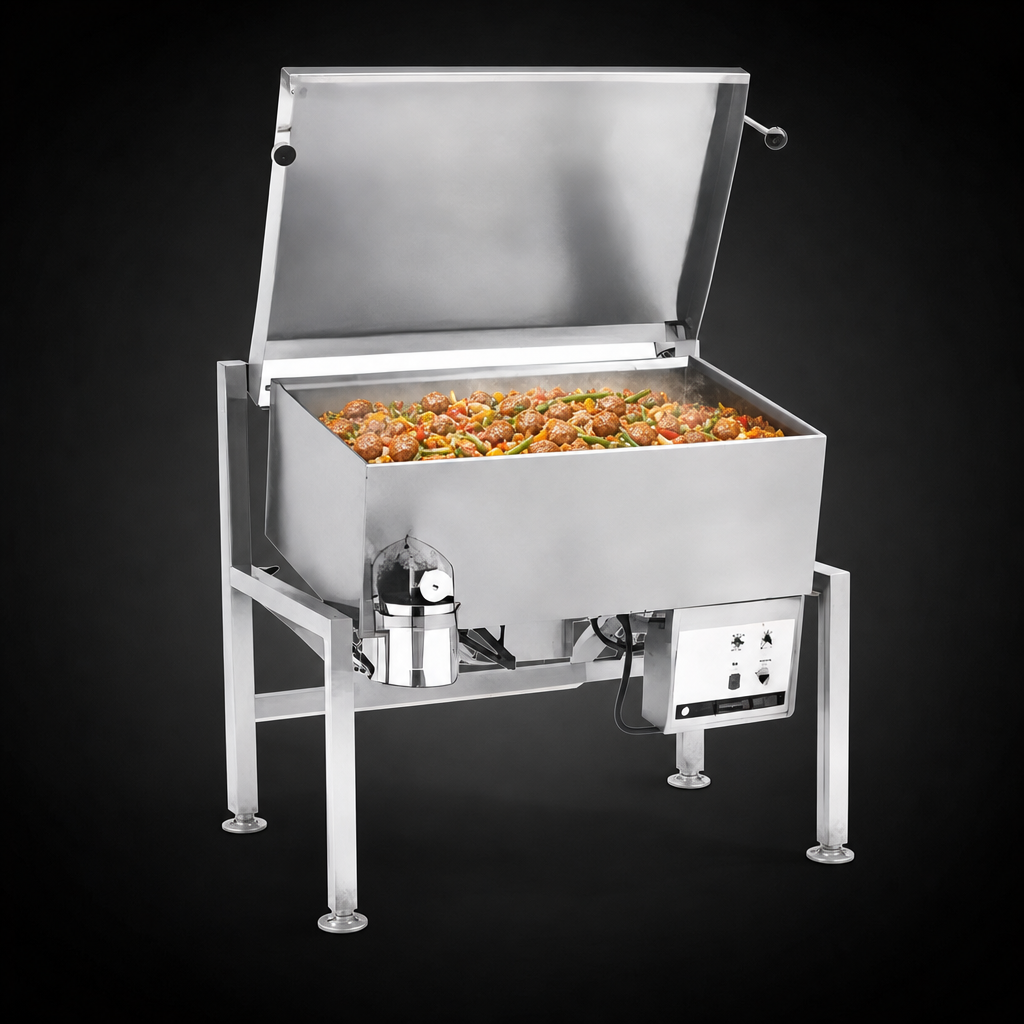

49-Gallon Capacity

Large-capacity tilting skillet designed for high-volume commercial cooking.

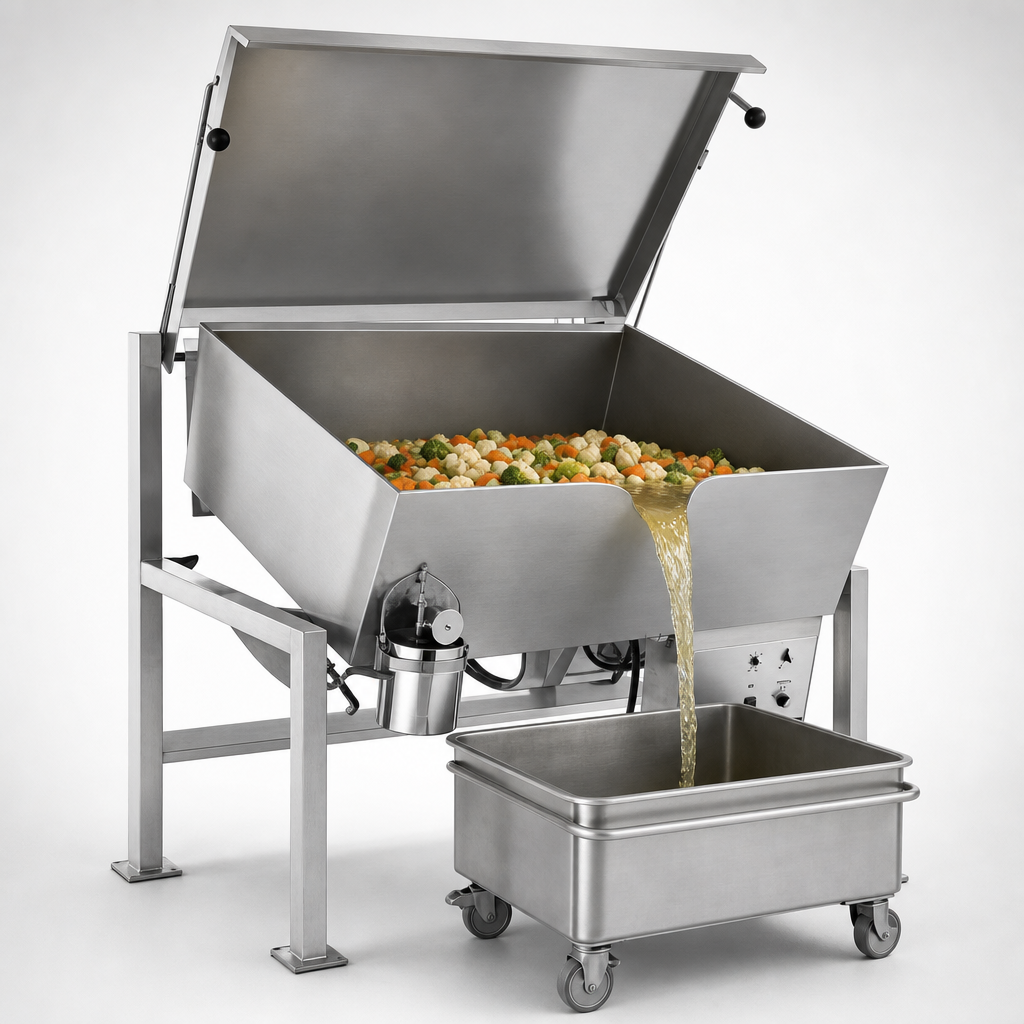

10° Tilting Pan

Tilting design makes it easier to drain liquids and transfer finished food.

304 Stainless Steel Construction

Food-contact zone, pan body, safety lid, enclosure, and tubular frame are stainless steel for durability and easy cleaning.

Insulated Sides And Bottom

Helps improve heat retention and adds a layer of safety during operation.

Adjustable Thermostat

Thermostatic control offers a 175°F to 400°F temperature range.

High-Limit Safety Thermostat

Adds over-temperature protection for safer operation.

Patented Safety Lid

Counterbalanced lid is actuator-assisted and includes a condensate drip shield, rear steam vent, and safety handles.

1-1/2" Compression Draw-Off

Standard draw-off valve supports controlled draining, with a food pan holder located under the draw-off.

Electronic Ignition With 120V Power

Standard ignition setup uses 120V, single-phase power.

Approved For Frying

Unit is approved for use as a fryer.

Type Tilting Skillet
Style Insulated
Installation Type Floor Model
Capacity 49 Gallons
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Controls Adjustable Thermostat
Temperature Range 175°F to 400°F
BTU 132,000 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch IPS
Gas Inlet Pressure 5.0 - 7.0 Inches W.C.
Voltage 120 Volts
Phase 1-Phase
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 704 lb.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has a 49-gallon capacity.
The adjustable thermostat is designed for a temperature range of 175°F to 400°F.
For natural gas, the inlet pressure range is 5.0 to 7.0 inches W.C.; propane models use 12.0 to 14.0 inches W.C.
The standard unit uses 120V, single-phase power for electronic ignition.
The standard setup includes a 1-1/2" compression draw-off, and 2" or 3" draw-off options are also available.
Yes, the unit is approved for use as a fryer.
