Legion CSG28-9 Combi-Pan Braising Pans & Tilt Skillets
Description

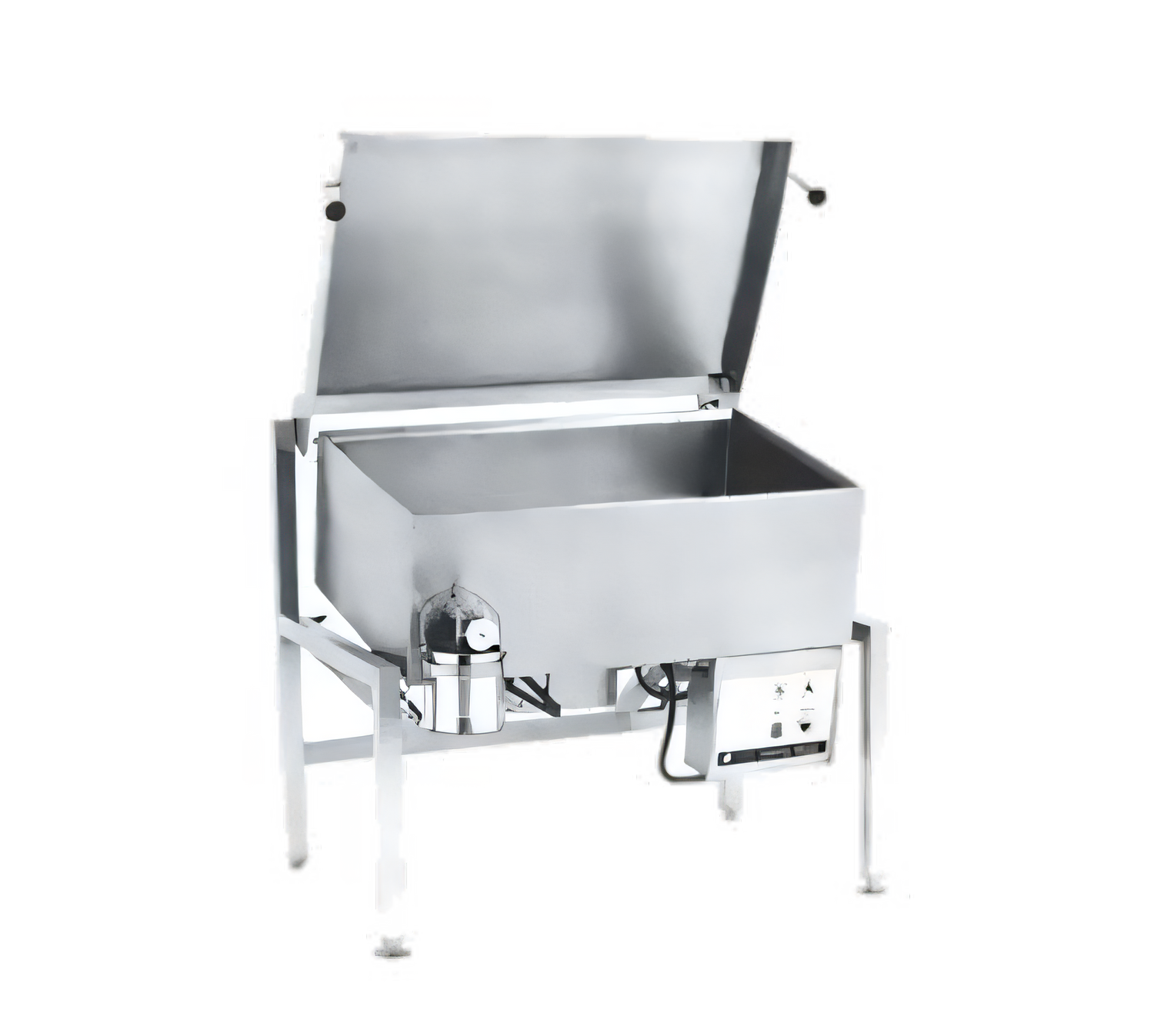

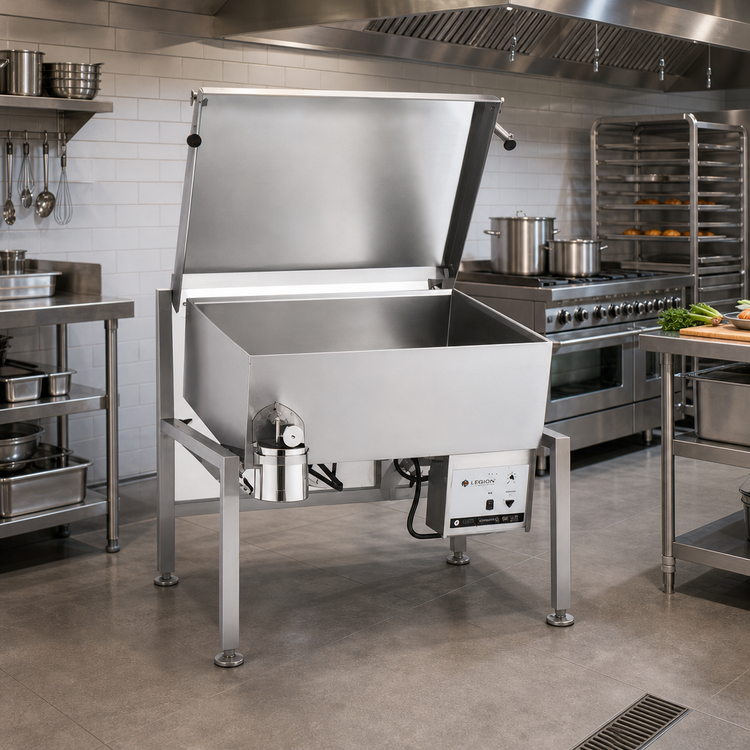

Legion Combi-Pan® CSG28-9 Gas Tilting Skillet – 27.4 Gal / 100,000 BTU
Insulated for Safety™ • Made in USAConsolidate braising pans, stock kettles, fryers and ovens into one rugged workhorse. The 27.4-gallon Combi-Pan® delivers 703 in² of evenly-heated cooking surface, fast 10° tilting and Legion’s patented safety features—boosting production while protecting your crew.
Why You’ll Love It
- 304 stainless seam-welded pan, lid & open frame—built for decades of service.

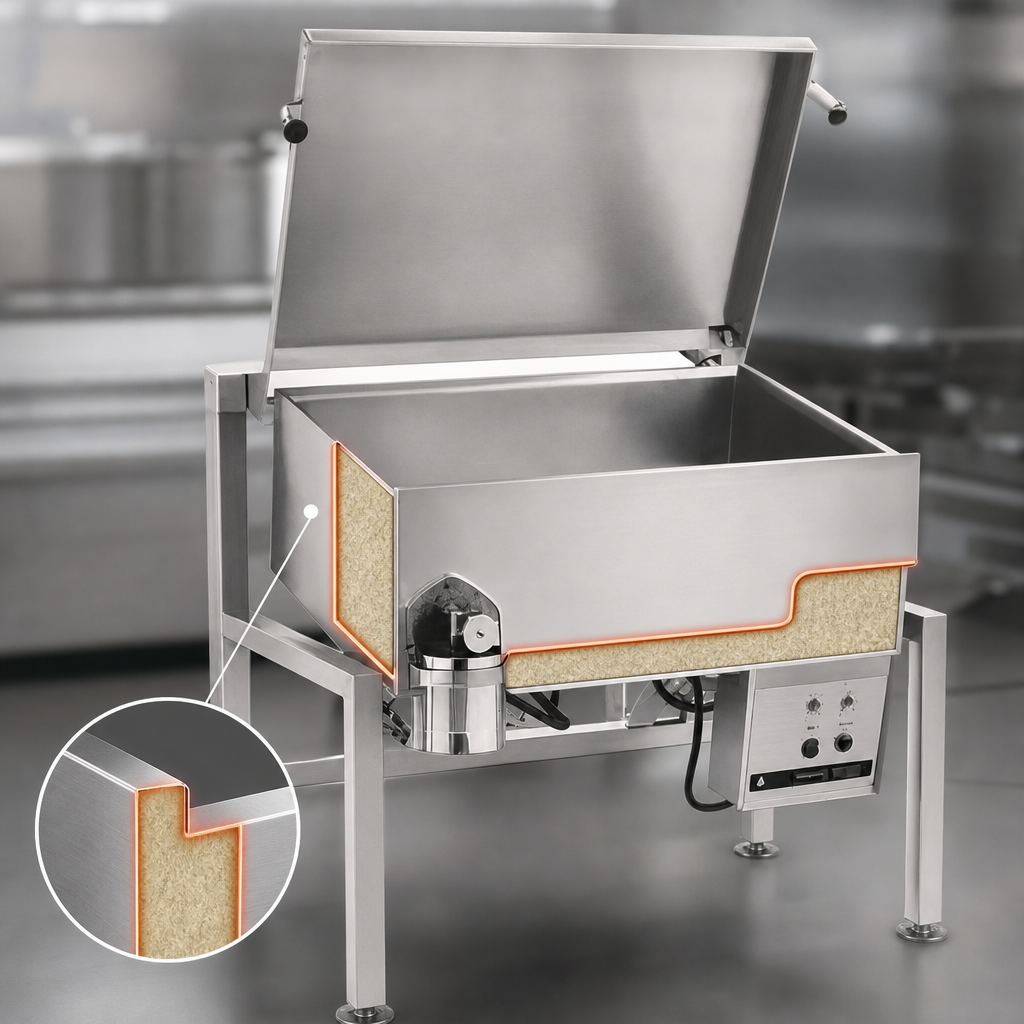

- Full insulation on pan sides & bottom reduces radiant heat up to 60 % for a cooler kitchen.
- Actuator-assisted counter-balanced lid with integrated condensate drip shield & rear steam vent.
- Electronic ignition and adjustable thermostat (175 °F – 400 °F) for accurate, repeatable results.
- 1 ½" compression draw-off valve with food-pan holder speeds portioning & clean-out.
- High-limit safety thermostat prevents overheating; approved for use as a fryer.
- Leg-mounted frame with flanged front feet and bullet back feet for rock-solid anchoring.
- 31" working height and tapered access rim promote ergonomic loading & stirring.
Technical Specifications
| Model | CSG28-9 |
|---|---|
| Capacity | 27.4 gal | 103 L |
| Cooking Area | 703 in² (approx. 28" × 25") |
| Pan Depth (inside) | 9" |

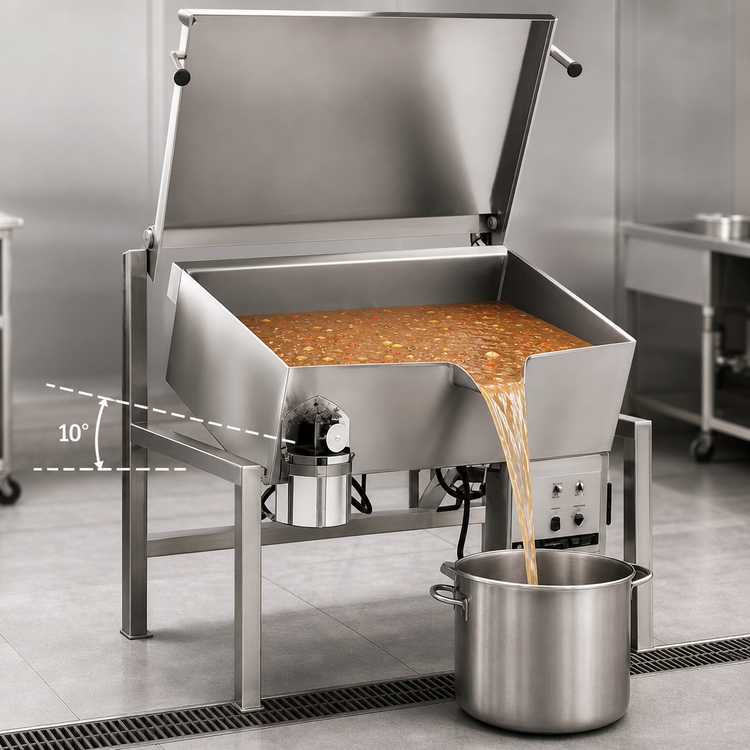

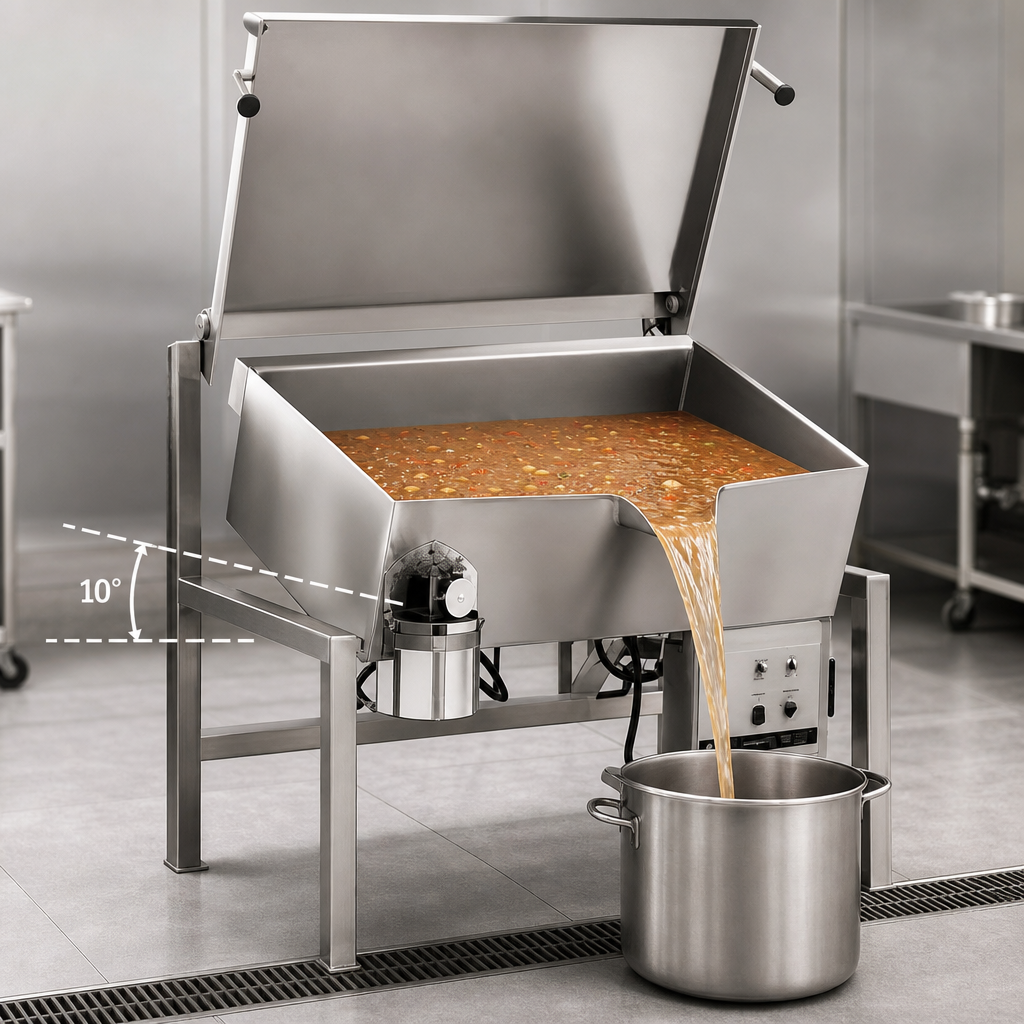

| Tilt | Manual 10° with positive stop |
| Gas Input | 100,000 BTU/hr – Natural or LP, 3/4" NPT connection |
| Electrical | 120 V, 1 Ø (controls & ignition) |
| Thermostat Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Working Height | 31" |
| Certifications | NSF, ETL, ASME & CSA compliant |
Standard Features
- Insulated pan sides & bottom
- Rear drip collector & tapered rim
- Dual side-mounted safety handles plus full-width front handle
- Seam-welded 304 stainless component enclosure
- High-limit safety thermostat and indicator lights
- Open tubular frame for easy floor wash-down
Popular Accessories (Sold Separately)
- Perforated or solid 12 × 20 food pans (2½", 4" or 6" deep)
- Perforated cooking/steaming basket (11" × 20½" × 5")
- Flexible spray hose assembly (48")
- Automatic water fill meter
- Draw-off strainer or drain hose
- Lockable control cover for high-security installations
Legion reserves the right to modify specifications to improve the product. All capacities and dimensions are nominal.
