Legion Combi-Pan Insulated Gas Tilting Skillet, 21.3-Gallon, 10° Tilt, Open Frame

SKU: CSG28-7
$14,045.77
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment Legion New Arrivals Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment

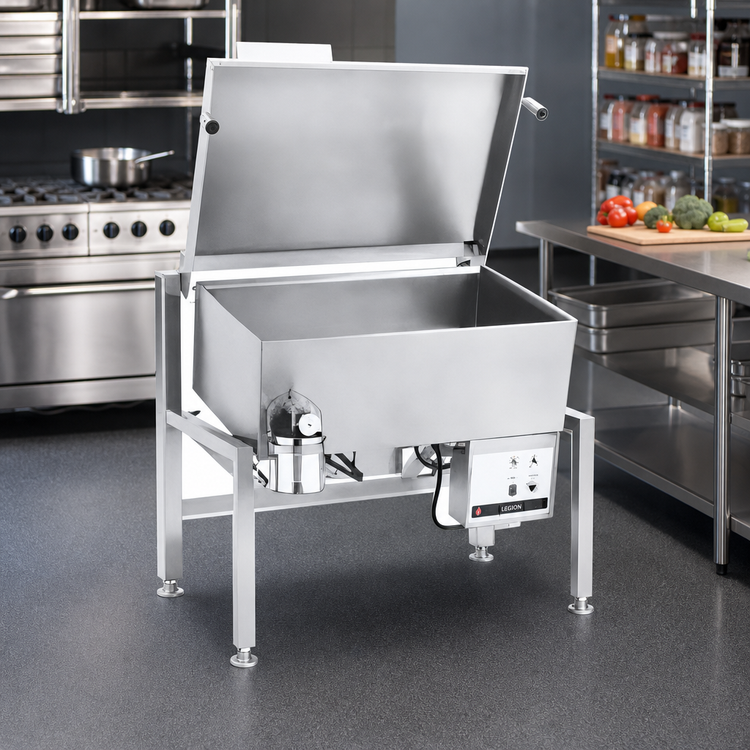

Legion Combi-Pan Insulated Gas Tilting Skillet, 21.3-Gallon, 10° Tilt, Open Frame

100,000 BTU, 120V, Adjustable Thermostat, Stainless Steel

Built for high-volume kitchens, this gas-fired tilting skillet combines a 21.3-gallon capacity, insulated stainless-steel construction, and a 10° tilt for efficient batch cooking and easy draining.

  • 21.3-gallon gas tilting skillet designed for braising, simmering, sautéing, and batch cooking.
  • 10° tilting pan and standard 1-1/2 inch draw-off valve make draining and transfer easier.
  • Insulated sides and bottom help improve heat retention and operator safety.
  • 304 stainless steel construction supports durability in demanding commercial kitchens.
  • Adjustable thermostat from 175°F to 400°F provides flexible cooking control.
  • Actuator-assisted stainless safety lid and open-frame floor design simplify daily use.
  • Approved for use as a fryer, with 70 lb frying oil capacity listed for the CSG28 family.

Product Weight:

490.0 lb

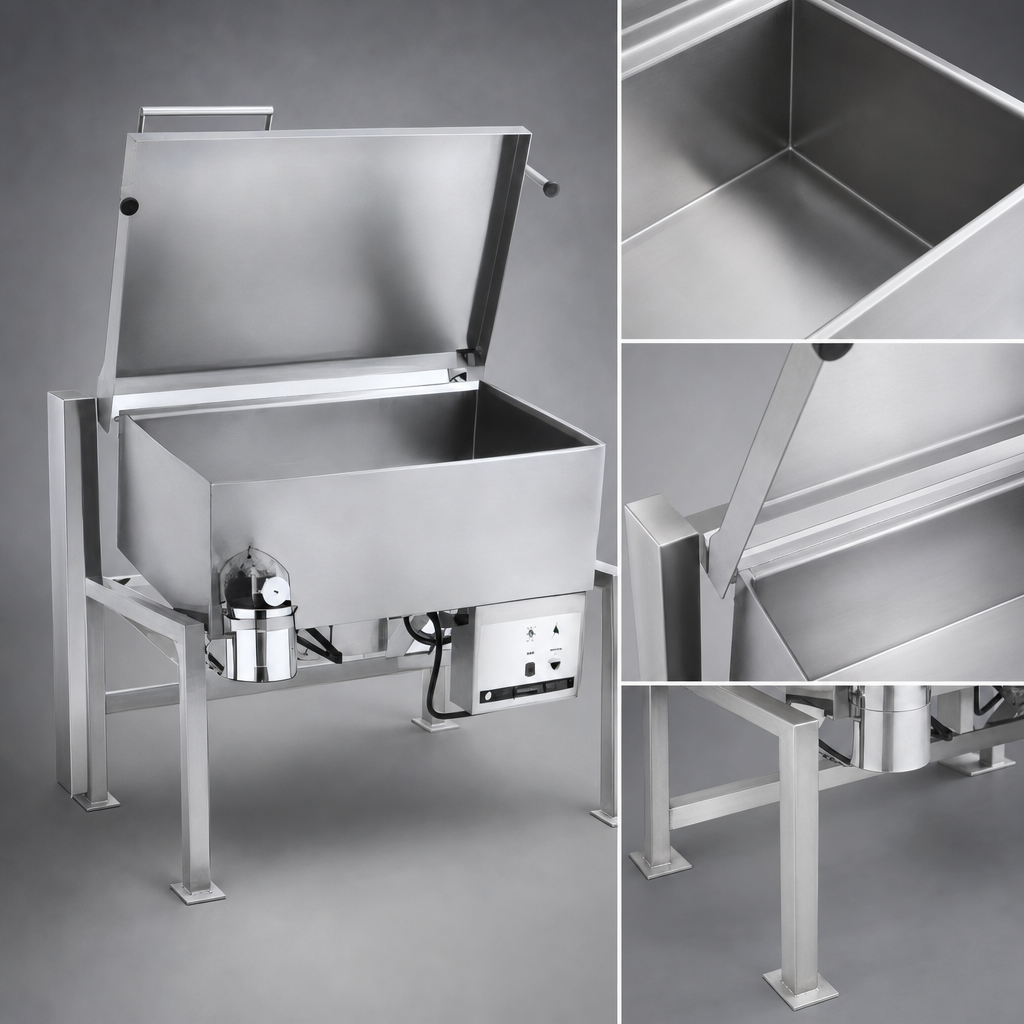

304 Stainless Steel Construction

Seam-welded 304 stainless steel is used in the food-contact zone, pan body, lid, enclosure, and tubular frame for durability and easier cleaning.

304 Stainless Steel Construction

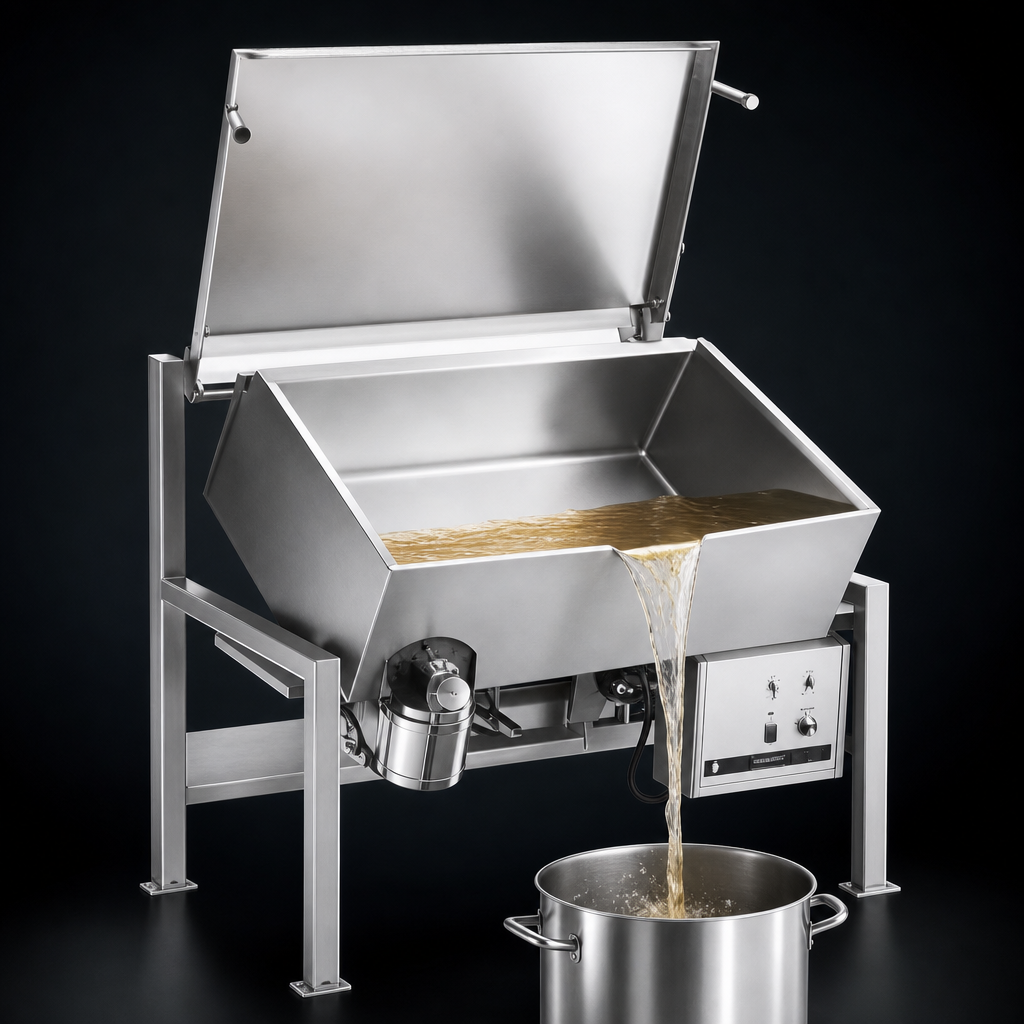

10° Tilting Pan

The pan tilts 10 degrees to simplify draining, dumping, and product transfer.

10° Tilting Pan

Insulated Safety Design

Insulated sides and bottom help retain heat while improving operator safety.

Adjustable Thermostat

Thermostat adjusts from 175°F to 400°F for flexible braising, simmering, and other batch cooking tasks.

Safety Lid With Counterbalance

Patented stainless lid includes actuator-assisted counterbalance, a full-width condensate drip shield, a rear steam vent, and dual side-mounted safety handles.

Standard Draw-Off Valve

The unit includes a 1-1/2 inch compression draw-off valve for draining liquids.

Electronic Ignition

Gas-fired electronic ignition is standard, with 120V, single-phase power noted in the standard features.

Open Frame Base

Leg-mounted open-frame construction includes adjustable flanged front feet and bullet rear feet for stable floor installation.

Fryer Approved

The unit is approved for use as a fryer.

Type Tilting Skillet
Style Insulated
Installation Type Floor Model
Capacity 21.3 Gallons
Cooking Surface Width 28 Inches
Cooking Surface Depth 7 Inches
BTU 100,000 BTU
Voltage 120 Volts
Phase 1-Phase
Controls Adjustable Thermostat
Temperature Range 175°F to 400°F
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Gas Connection Size 3/4 Inch IPS
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 490 lb.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The CSG28-7 has a 21.3-gallon capacity.
The adjustable thermostat ranges from 175°F to 400°F.
The standard draw-off valve is 1-1/2 inches and uses a compression fitting.
The standard features list electronic ignition with 120V, single-phase power.
The documentation lists 120V, 208V, and 240V options, along with natural gas, LP, and other gas options.
Yes, the documentation says it is approved for use as a fryer.
