Legion CSG28-5 Combi-Pan Braising Pans & Tilt Skillets
Description

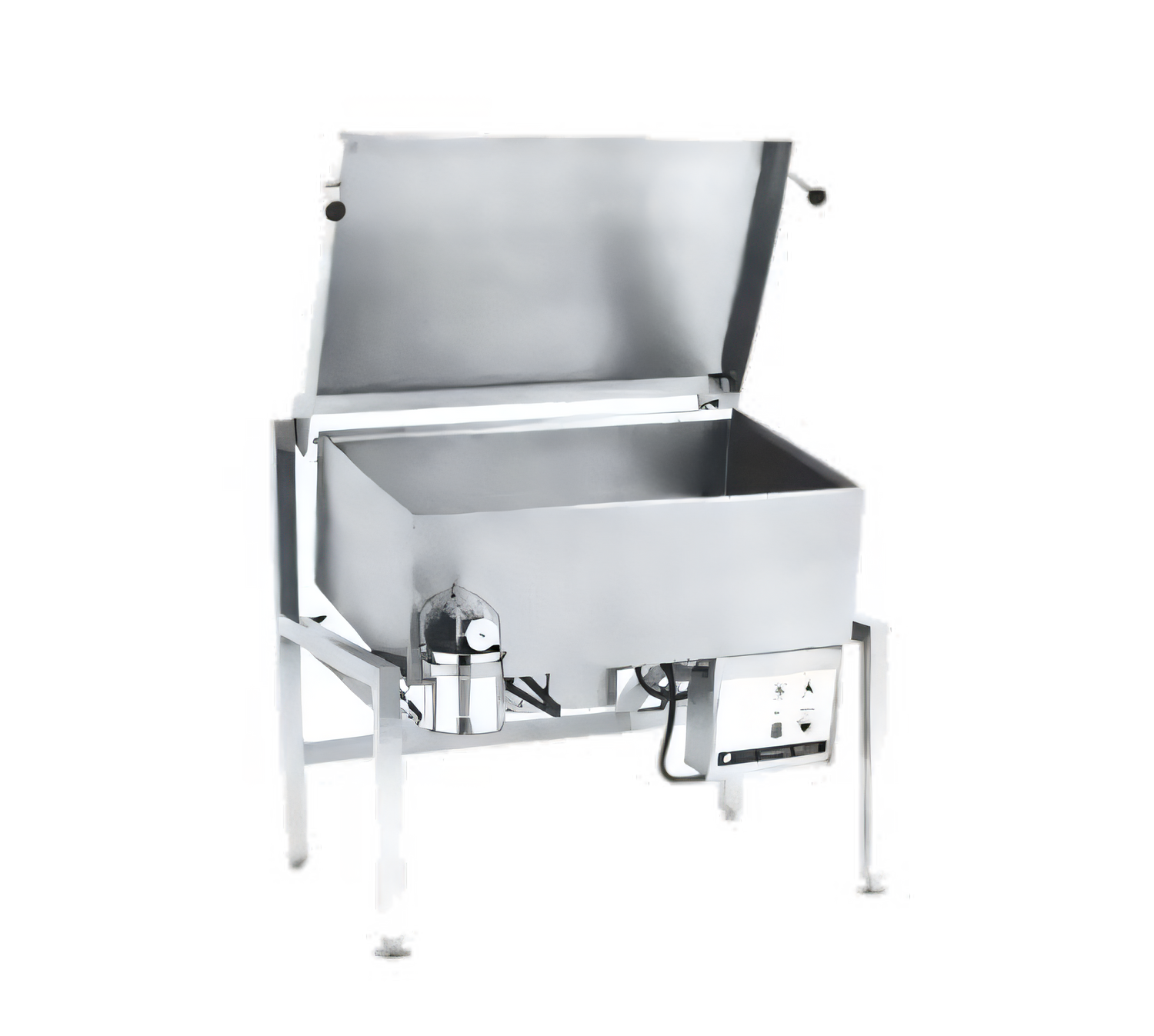

Legion Combi-Pan® Gas Tilting Skillet – 15.2 gal
Model CSG28-5 | “Insulated for Safety™” SeriesEngineered for demanding commercial kitchens, the 15.2-gallon Combi-Pan® gives you the power of a braising pan, griddle and fryer in one rugged, fully-insulated appliance. 304 stainless construction, a counter-balanced lid and a smooth 10° tilt make high-volume cooking safer, faster and easier.
Key features & benefits
- 15.2 gal (58 L) capacity handles up to 70 lb of food per batch.
- 100,000 BTU atmospheric burner with electronic ignition for rapid heat-up.
- 10° manual tilt and 1-½″ compression draw-off valve for controlled pouring and draining.
- Precise thermostat from 175 °F to 400 °F plus high-limit safety cut-off.
- Patented actuator-assisted lid with full-width drip shield and rear steam vent keeps condensation off the product.
- Fully insulated sides & bottom—cooler exterior, lower energy costs.
- Open tubular frame with flanged front feet & bullet rear feet for secure, code-compliant installation.
- NSF/ASME/CSA certified and approved for use as a fryer.
- Made in the USA; backed by Legion’s 12-month parts & labor warranty.
Technical specifications
| Pan capacity | 15.2 gal (58 L) |
|---|---|
| Usable cooking surface | 703 in² (4 529 cm²) |
| Heat input | 100 000 BTU/hr – Natural Gas |
| Gas connection | ¾″ NPT (IPS) |
| Electrical | 120 V, 1 Ø, 60 Hz (electronic ignition & controls) |
| Thermostat range | 175 °F – 400 °F (79 °C – 204 °C) |
| Pan interior (W × D × H) | 28″ × 25 ⅛″ × 5″ |
| Working height | 31″ |
| Overall footprint (W × D × H) | ≈ 40″ × 36″ × 41″ |
| Draw-off valve | 1-½″ 304 SS compression type (standard) |
| Construction | 304 SS pan, lid, frame & component enclosure |
Ideal for
- Batch cooking sauces, soups & stews
- Braising meats or vegetables
- Shallow frying and sautéing
- Griddle-style breakfast items
- Holding or finishing pasta, rice and casseroles
Popular accessories (sold separately)
- Perforated or solid 12 × 20 food pans – 2½″, 4″ or 6″ deep
- Perforated cooking/steaming basket (11″ × 20 ½″ × 5″)
- 48″ vinyl or stainless spray-hose assembly
- Automatic water-fill meter
- #10 can holder, draw-off strainers, hoses & spouts
- Rear flanged feet kit or caster set with restraining device
- Electric timer with buzzer
Need more capacity? Legion Combi-Pan® skillets are available up to 62 gallons—contact us for a custom quote.
