Legion CSG28-14 Combi-Pan Braising Pans & Tilt Skillets
Description
Legion Combi-Pan® Gas Tilting Skillet
42.6-Gallon (160 L) | Model CSG28-14 | 100,000 BTUTurn any high-volume kitchen into a flexible cooking center. With a single piece of equipment you can braise, grill, simmer, fry, sauté, proof, or hold—all while enjoying best-in-class safety and efficiency from Legion’s Insulated for Safety™ Combi-Pan® design.
Built-in Advantages
- 42.6-gallon (160 L) capacity—perfect for schools, hotels, commissaries & correctional facilities.
- Gas-fired burner delivers 100,000 BTU for rapid heat-up and even, edge-to-edge searing.

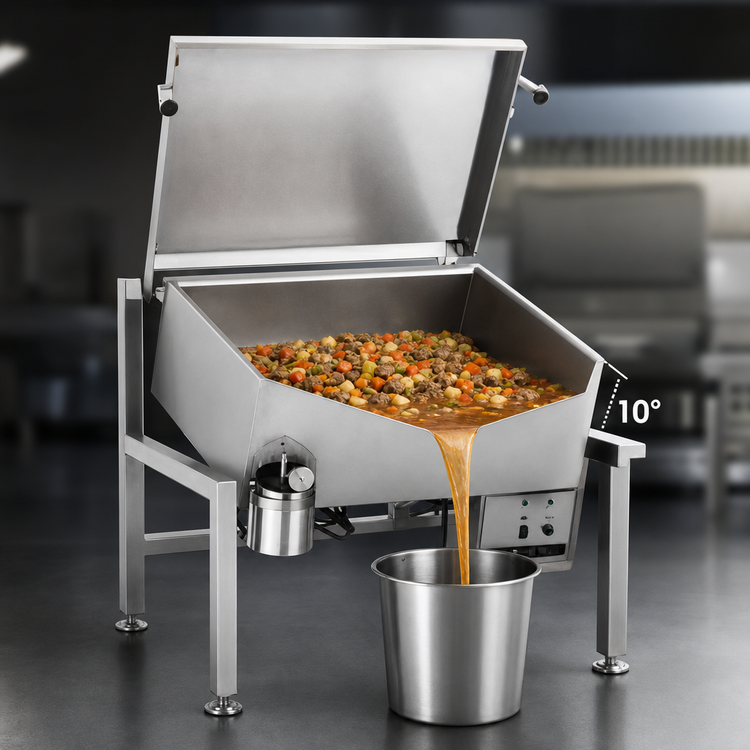

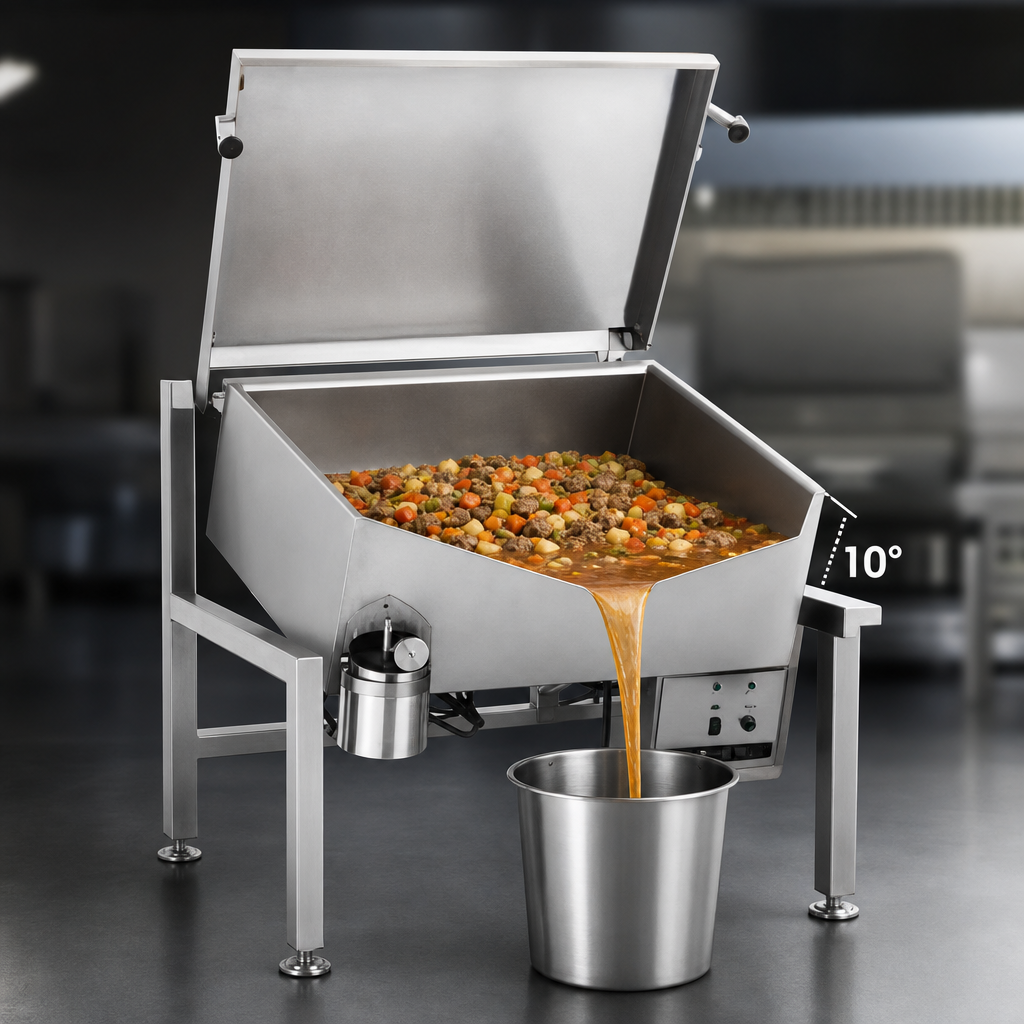

- 10° tilting pan (manual worm-gear) provides fast, controlled pouring with minimal product loss.
- Adjustable thermostat 175 °F – 400 °F (79 °C – 204 °C) plus high-limit safety cut-off.

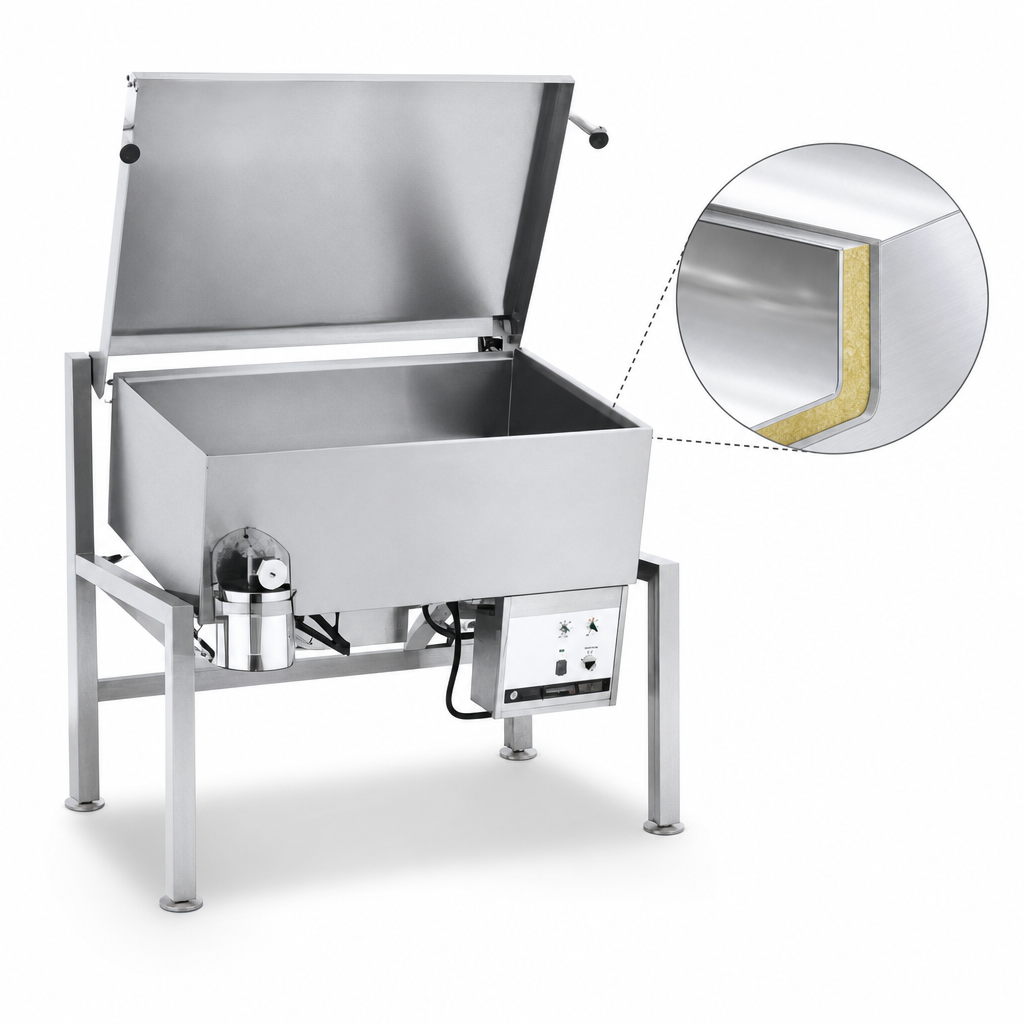

- 304 SS, seam-welded pan body with insulated sides & bottom keeps heat where you need it.
- Patented actuator-assisted safety lid—easy one-hand lift, full-width condensate drip shield & rear steam vent.
- 1 ½ in. compression draw-off valve with built-in food-pan holder for mess-free dispensing.
- Electronic ignition (120 V, 1 Ø) for quick, reliable starts—no pilot to waste energy.
- Open stainless tubular frame, flanged front feet & bullet rear feet simplify level installation and cleaning.
- NSF & ASME compliant; approved for use as a fryer, kettle, griddle or oven.
One Skillet, Many Tasks
- Braise up to 350 lb of beef tips in a single batch.
- Pan-fry 70 lb of chicken with 2½ in. of oil.
- Griddle 700+ sq in. of pancakes or burgers.
- Steam vegetables with optional perforated baskets.
- Hold sauces or soups at safe-serve temperatures.
Technical Specifications
| Model | CSG28-14 (leg-mounted) |
|---|---|
| Capacity | 42.6 gal / 160 L |
| Pan Interior (W × D) | 28 in. × 40 in. (703 in²) |
| Heat Source | Natural or LP Gas, 100,000 BTU |
| Electrical | 120 V, 1 Ø, 1.5 A (electronic ignition & controls) |
| Temperature Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Tilting Angle | 10° (manual worm-gear) |
| Draw-off Valve | 1 ½ in. compression-type, 304 SS |
| Overall Height | 31 in. working height |
| Construction | All 304 stainless steel, seam-welded & insulated |
| Agency Approvals | NSF, ASME, CSA/AGA |
| Origin | Made in the USA |
Popular Options & Accessories
- 48 in. spray hose & faucet assemblies (single or dual fill)
- Perforated or solid 12 × 20 food pans (2½ ", 4 " or 6 " deep)
- Perforated cooking/steaming basket (11 " × 20 ½ " × 5 ")
- Automatic water-fill meter
- Casters with restraint kit
- Lockable lid & control covers for high-security installations
Includes Legion’s standard 12-month parts & labor warranty from date of installation. Extended coverage is available—contact us for details.
