Legion CSG28-11 Combi-Pan Braising Pans & Tilt Skillets
Description

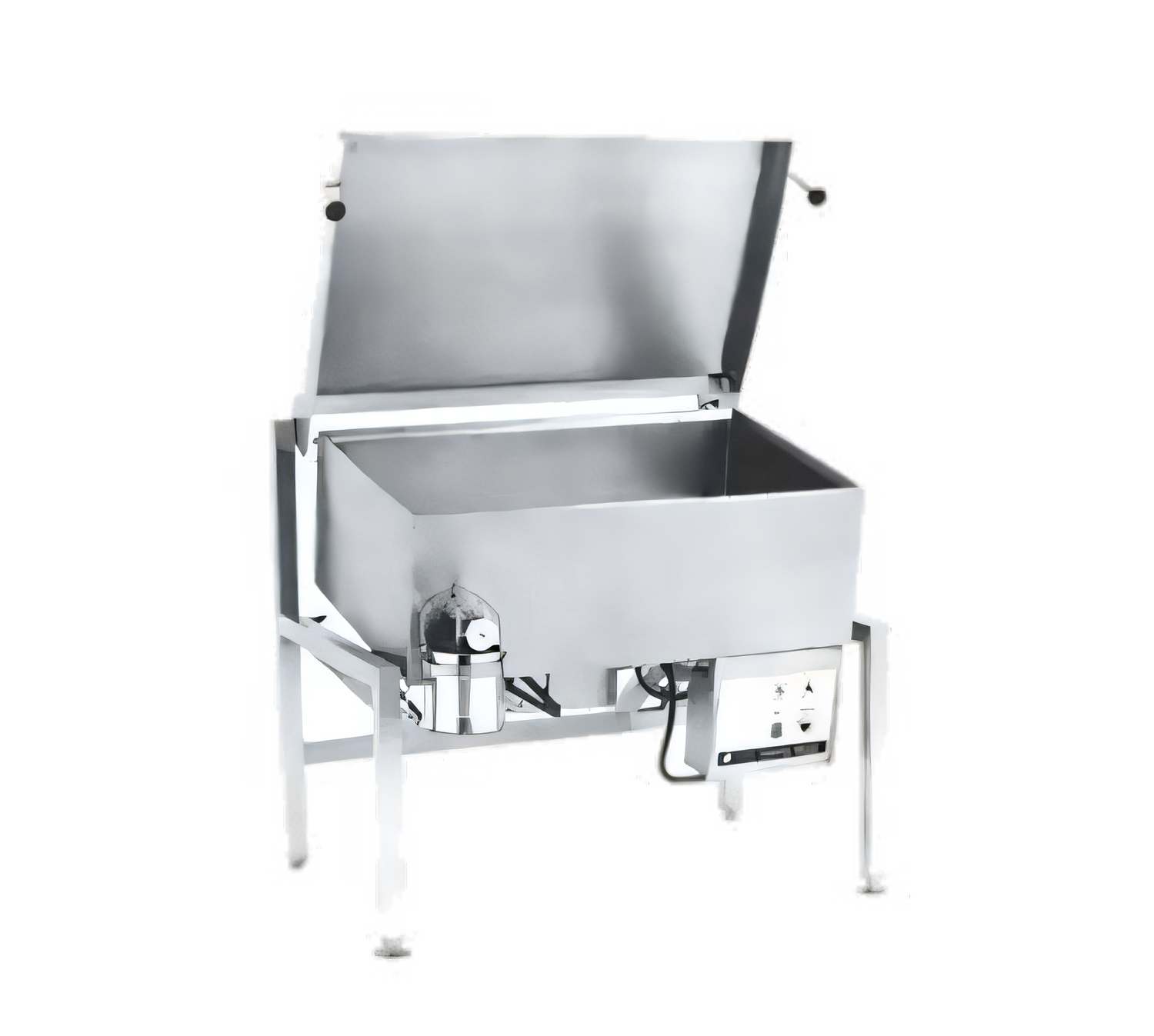

Legion Combi-Pan® Gas Tilting Skillet – 33.5 Gal (Model CSG28-11)
Insulated for Safety™ • Made in USAReplace multiple pieces of kitchen equipment with one powerhouse. The Legion Combi-Pan® 10° Tilting Skillet sautés, braises, steams, poaches, grills, or even deep-fries up to 33½ gallons of product with precise thermostat control and rapid recovery. Built entirely of 304 stainless steel and insulated on all sides, it delivers exceptional durability, energy efficiency, and operator safety in the busiest commercial kitchens.
Key Benefits
- 33.5 gal capacity (≈128 L) handles up to 450 servings per batch.
- 10° manual tilt lets you skim, pour, or decant without breaking the cooking surface.
- Accu-Temp thermostat (175 °F – 400 °F) with electronic ignition for fast startup & tight temperature control.

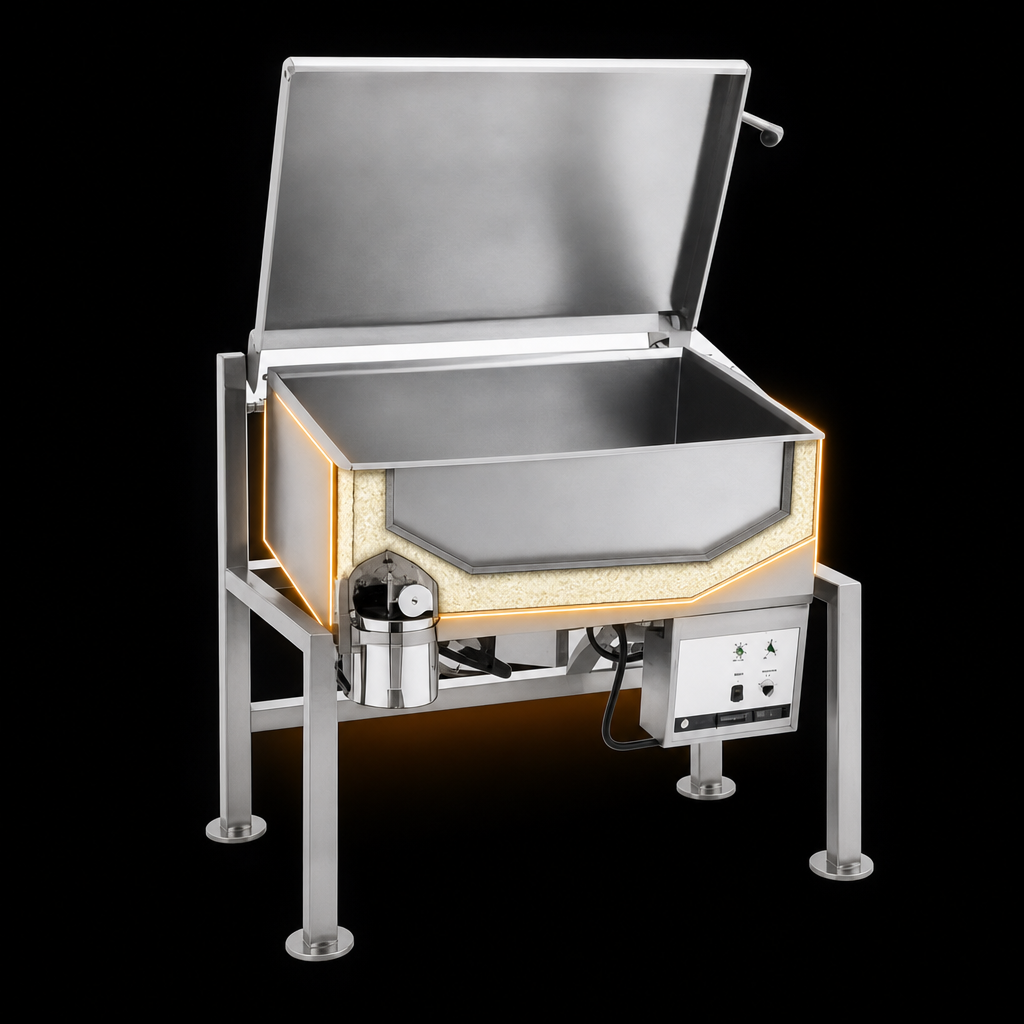

- Insulated sides & bottom cut energy loss and keep exterior surfaces cooler for staff safety.
- Patented stainless safety lid with actuator-assisted counterbalance requires minimal effort to open or close.
- Full-width condensate drip shield and rear steam vent reduce mess and moisture on the line.
- 1 ½" compression draw-off valve drains product quickly; built-in food-pan holder lets you stage hotel pans beneath.

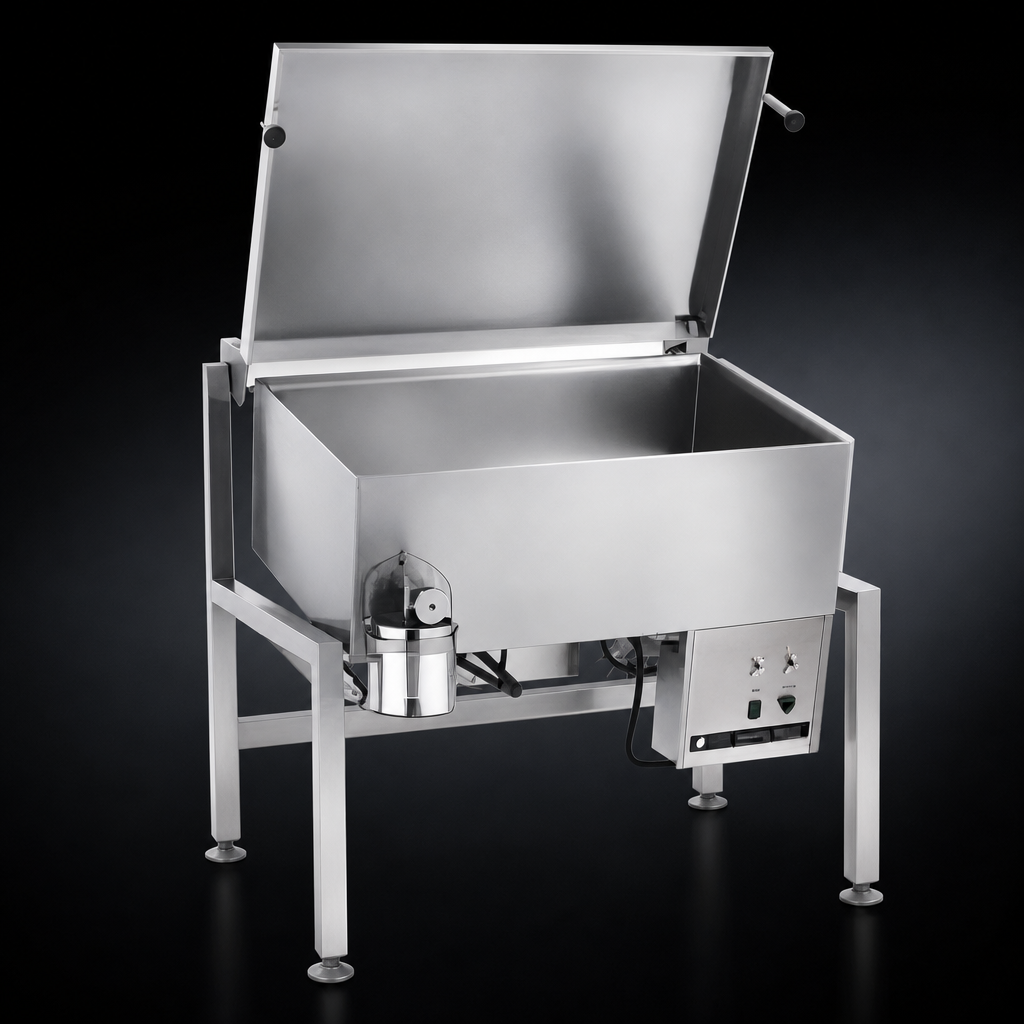

- All-welded 304 SS pan, frame, and component enclosure withstand heavy daily use and harsh cleaners.
- Flanged front feet & bullet back feet provide rock-solid, code-approved floor mounting.
- Approved for use as a deep fryer—great for small-batch frying without dedicated equipment.
Technical Specifications
| Model | CSG28-11 |
|---|---|
| Capacity | 33½ gal (127 L) |
| Pan Interior (W × L × D) | 28 in × 40 in × 11 in (711 × 1016 × 279 mm) |
| Working Height | 31 in (787 mm) |
| Tilt Range | 10° manual tilt with positive stop |
| Heat Input | 100,000 BTU/hr (Natural) • 111,000 BTU/hr (LP) |
| Gas Connection | ¾" NPT (inlet pressure 5–7" W.C. Natural / 12–14" W.C. LP) |
| Electrical | 120 V, 1 Ø, 0.5 A for ignition & controls |
| Temperature Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Safety Features | High-limit thermostat, flame-failure protection, insulated shell |
| Construction | All-welded 304 SS pan & frame; seam-welded safety lid |
| Certifications | NSF, ASME, UL/ETL gas & electrical |
| Origin | Manufactured in Waynesboro, GA USA |
Popular Options & Accessories
- 48" flexible spray-hose fill faucet (single or dual)
- Automatic water fill meter
- Perforated steam/cooking baskets (11 × 20 × 5")
- #10 can holder for draw-off valve
- Lockable lid & control cover for correctional facilities
- Casters with restraining device for mobile installations
Covered by Legion’s standard 12-month parts & labor warranty (registration required). See full warranty statement in the downloads section or contact us for details.
