Legion CS41-9 Combi-Pan Braising Pans & Tilt Skillets
Description

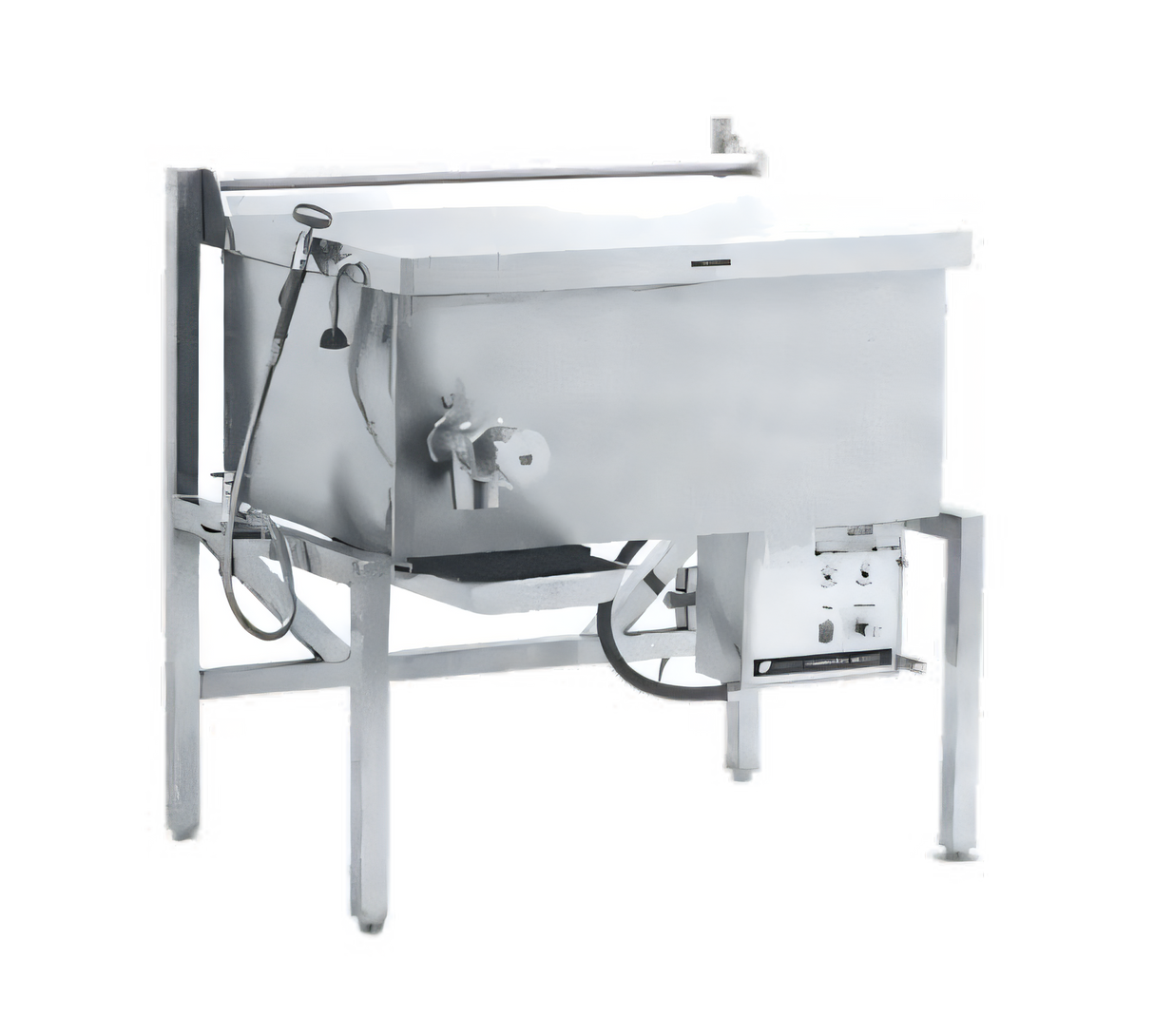

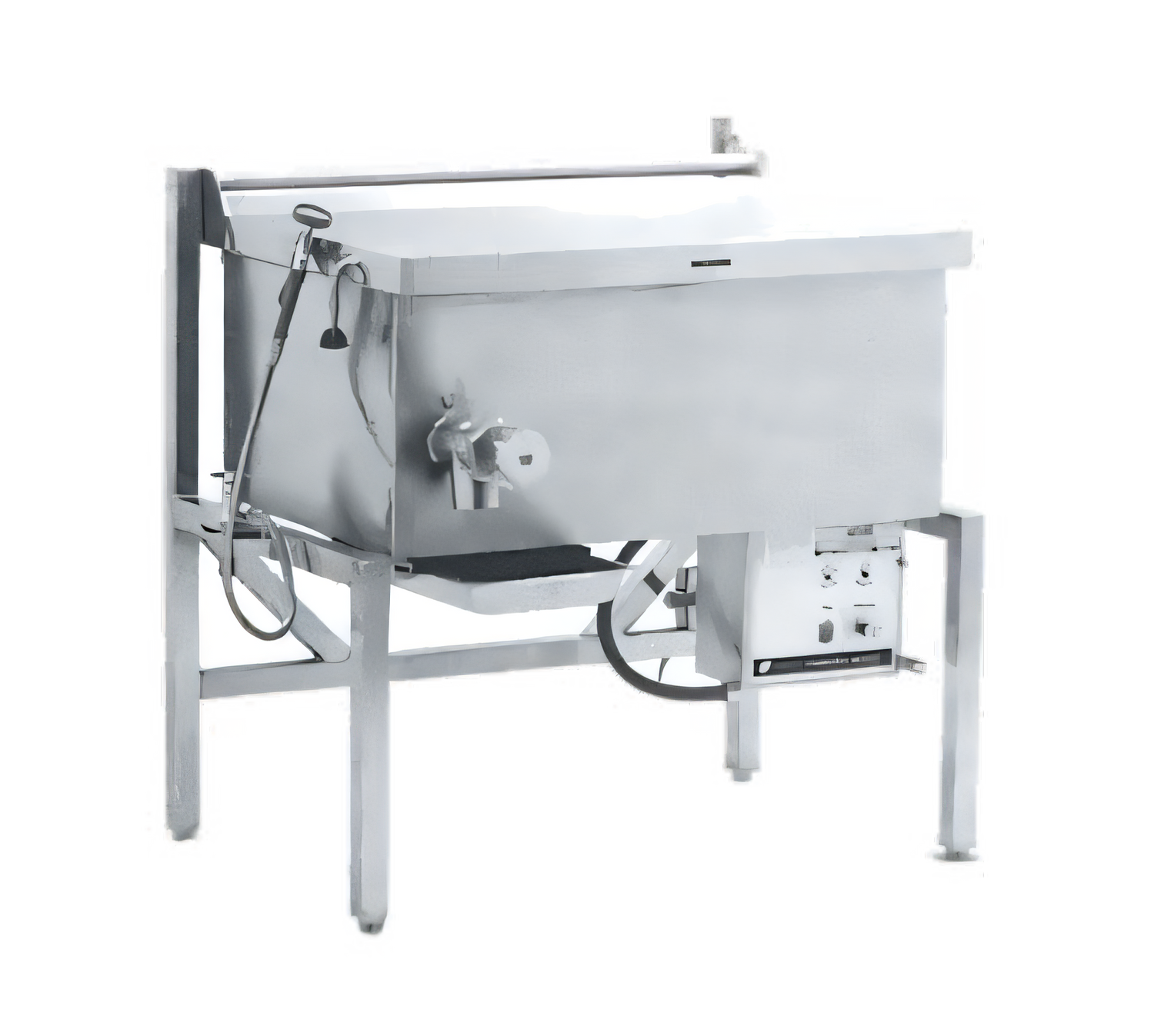

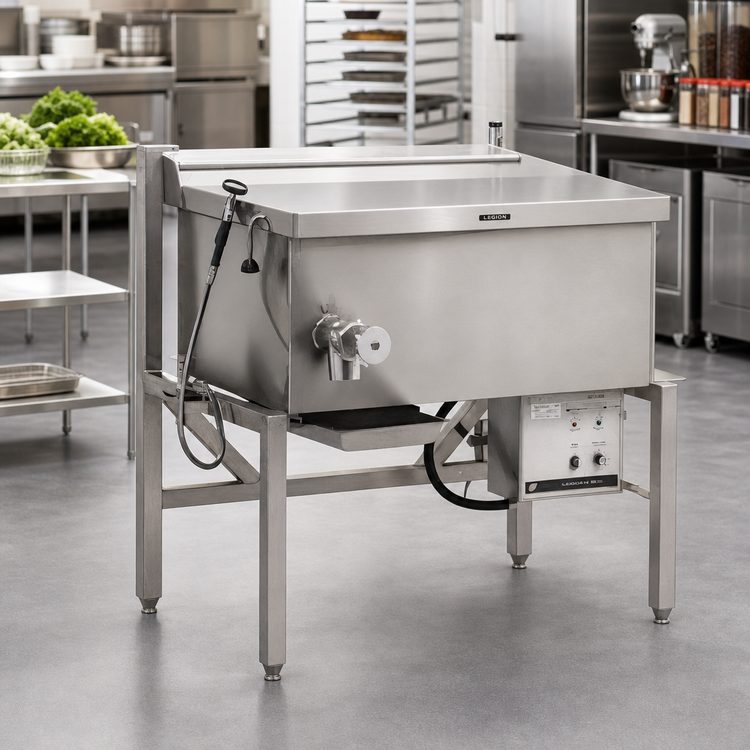

Legion Combi-Pan® CS41-9 Insulated Tilting Skillet – 40 Gal
Electric • 17.7 kW • 10° Manual Tilt • Made in USATransform high-volume prep into a one-pan process. The Legion Combi-Pan® CS41-9 gives you the broad cooking surface of a griddle, the depth of a kettle and the convenience of a tilt skillet—all wrapped in heavy-gauge 304 stainless steel. Braise, sauté, simmer or deep-fry up to 40 gallons of product, then tilt a smooth 10° or drain through the built-in 1 ½″ valve. Fewer transfers, faster cleanup, more profit.
Key Features

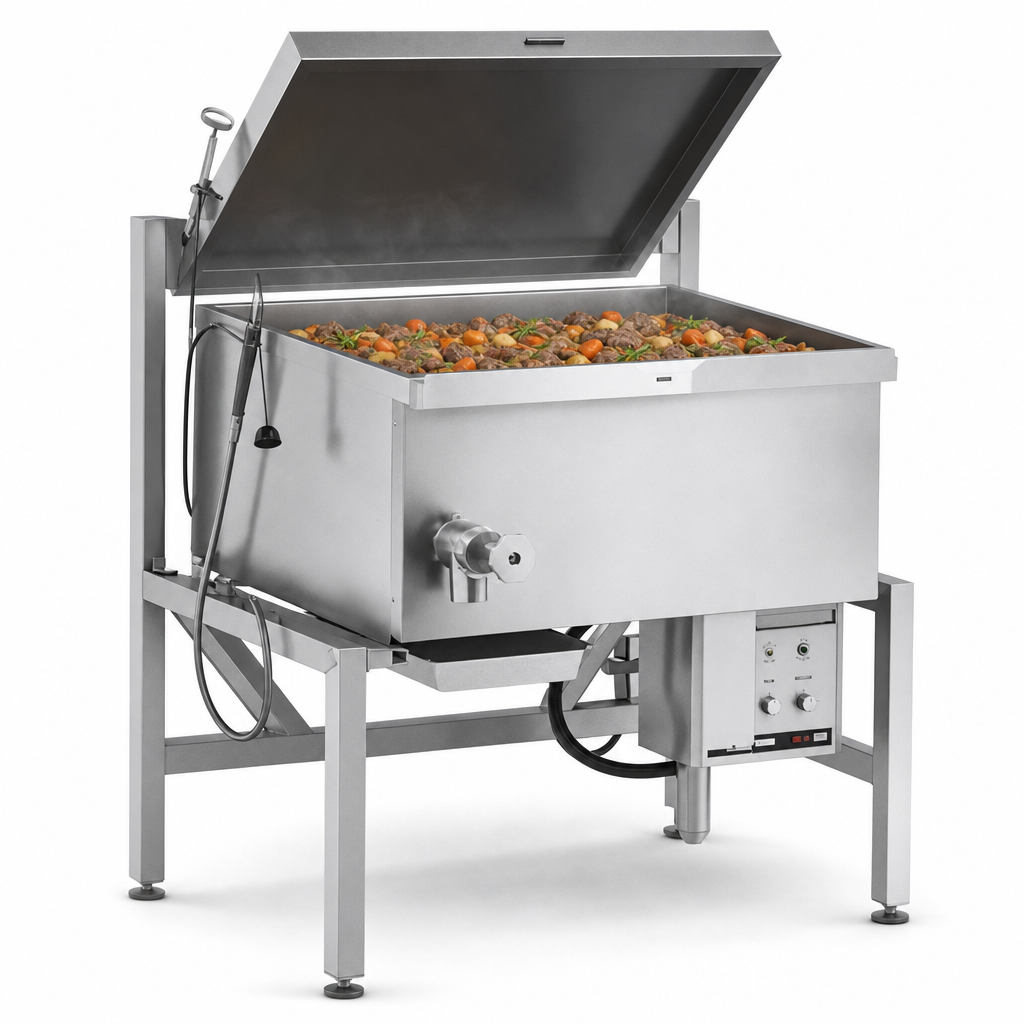

- 40.1-gallon (151.8 L) capacity—ideal for batch cooking & institutional service

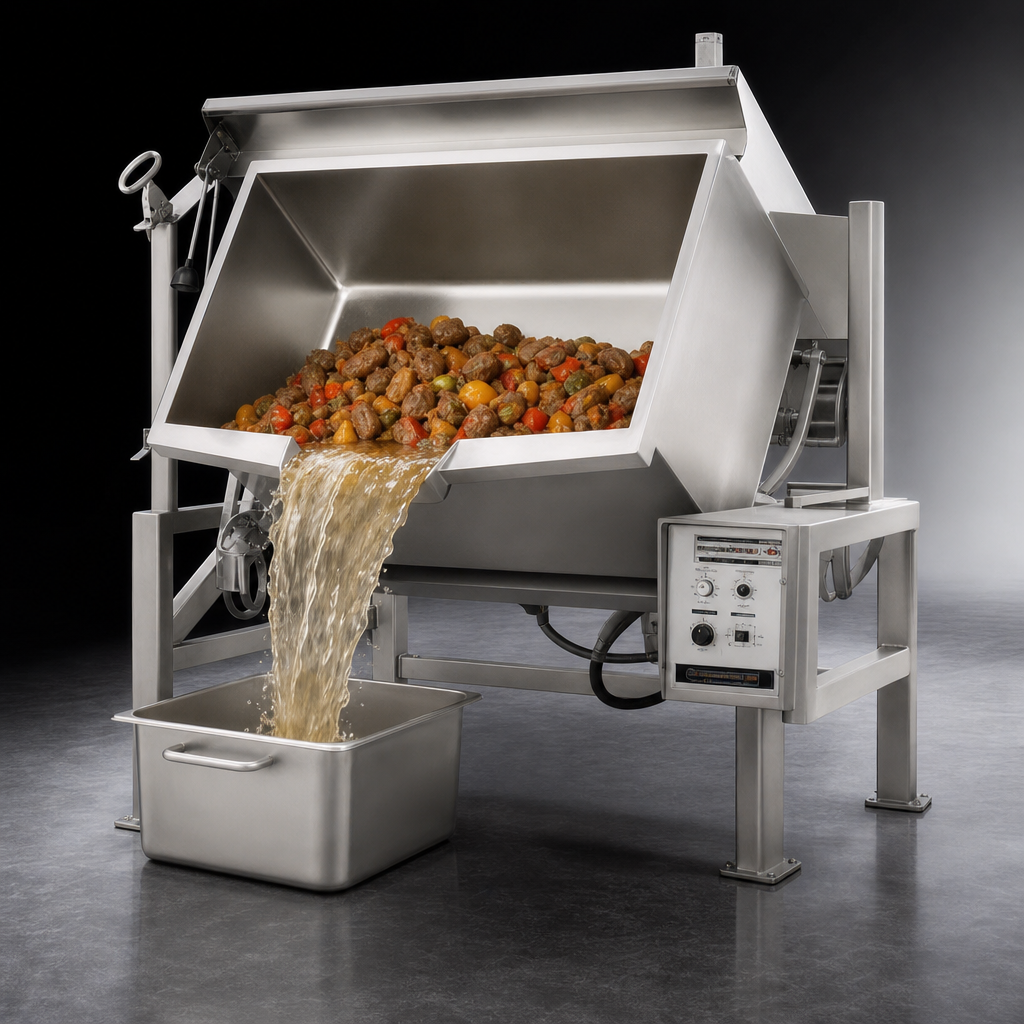

- 10° controlled manual tilt for safe, precise pour-off
- Insulated pan sides & bottom keep exterior surfaces cooler and cut energy loss
- Adjustable thermostat 175 – 400 °F (79 – 204 °C) with high-limit safety
- Patented counterbalanced lid with full-width condensate drip shield & rear steam vent
- 1 ½″ 304 SS compression draw-off valve plus food-pan holder
- Seam-welded 304 SS pan, frame & component enclosure—built to last
- Approved for use as a fryer (1029 in² surface, 105 lb oil rating)
- Adjustable flanged front feet & bullet rear feet for easy leveling & anchoring
- Meets NSF, UL, ASME and other major agency standards
Typical Menu Applications
- Braise 185 lb of beef tips in a single load
- Pan-fry up to 250 pieces of chicken
- Simmer 160 qt of soup, chili or stock
- Griddle 600 portions of scrambled eggs
- Hold sauces, gravy or queso without scorching
Specifications
| Model | CS41-9 (leg mounted) |
|---|---|
| Liquid Capacity | 40.1 gal / 151.8 L |
| Cooking Surface Area | 1,029 in² |
| Pan Depth (inside) | 9 in / 229 mm |
| Thermostat Range | 175 – 400 °F / 79 – 204 °C |
| Power Rating | 17.7 kW electric |
| Standard Electrical | 240 V, 3-phase (other voltages available) |
| Current Draw @ 240 V 3Φ | 42.7 A |
| Tilt Angle | 10° manual with positive stop |
| Draw-off Valve | 1 ½″ compression-type 304 SS |
| Overall Footprint | Approx. 41″ W × 40″ D × 53″ H (see cutsheet for details) |
| Construction | Seam-welded 304 SS pan, lid, frame & enclosure |
| Certifications | NSF, UL, ASME and others |
| Country of Origin | USA |
Popular Options & Accessories
- 48″ vinyl or stainless spray hose with single or dual fill faucet
- Automatic water fill meter
- Perforated steaming/cooking baskets (11″ × 20 ½″ × 5″)
- Perforated or solid 12 × 20 pans—2 ½″, 4″ or 6″ deep
- 2″ or 3″ ball-type draw-off valves
- Lockable lid & control cover for correctional facilities
- Casters with restraining device kit
- Electric timer with buzzer
- Knock-down shipping for 26″ × 66″ doorway clearance
Looking for a different capacity or a turnkey accessory package? Reach out and we’ll build a custom quote to fit your kitchen.
