Legion CS41-7 Combi-Pan Braising Pans & Tilt Skillets
Description

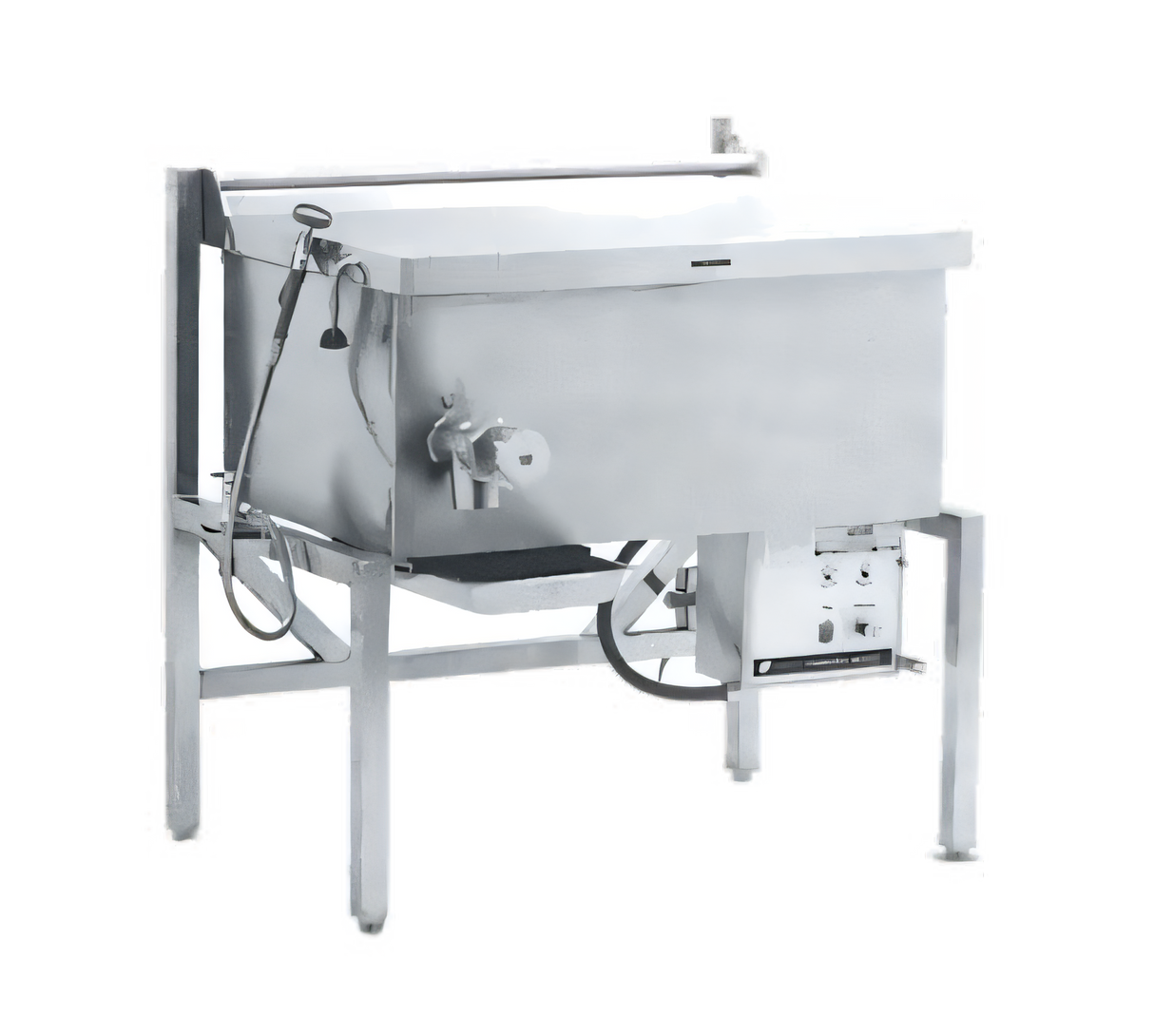

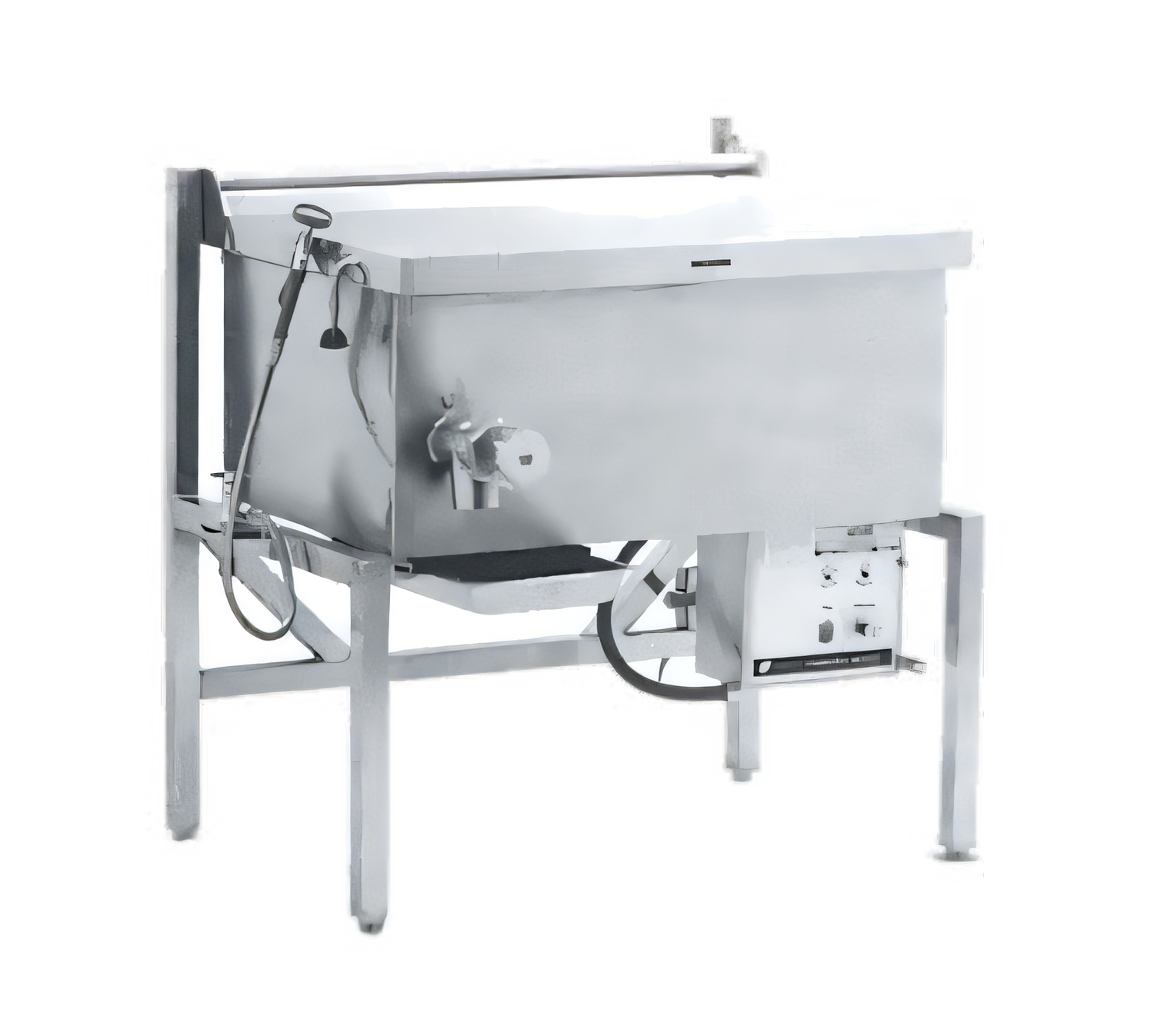

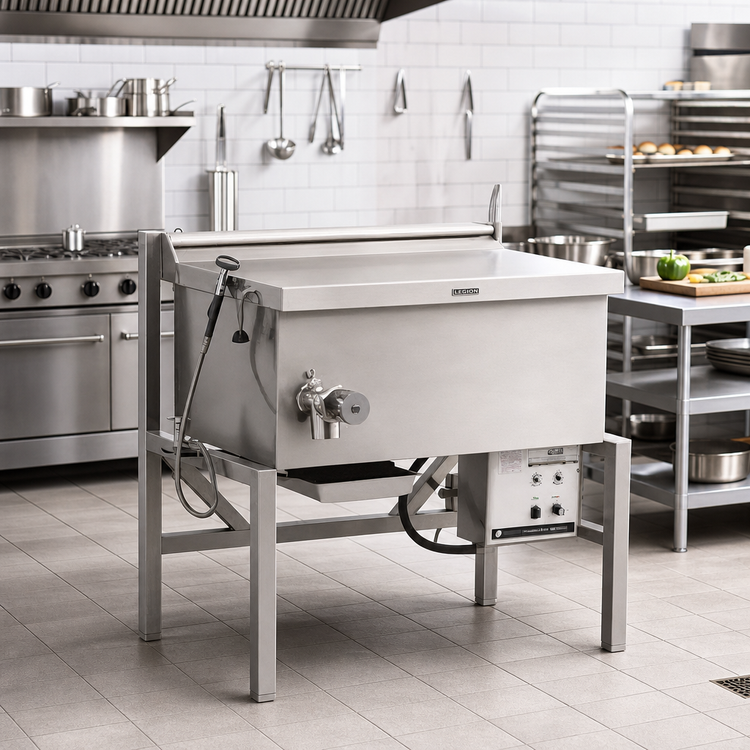

Legion Combi-Pan® Electric Tilting Skillet – 31.2 Gal
Model CS41-9 | 17.7 kW | Made in USAEngineered for high-volume commercial kitchens, the Combi-Pan® CS41-9 delivers the versatility of a skillet, griddle, braising pan and fryer in one space-saving, insulated package. A seamless 304 stainless steel pan, rapid 17.7 kW electric heat, and a gentle 10° tilt make batch cooking, plating, and cleaning faster and safer than ever.
Top Features & Benefits

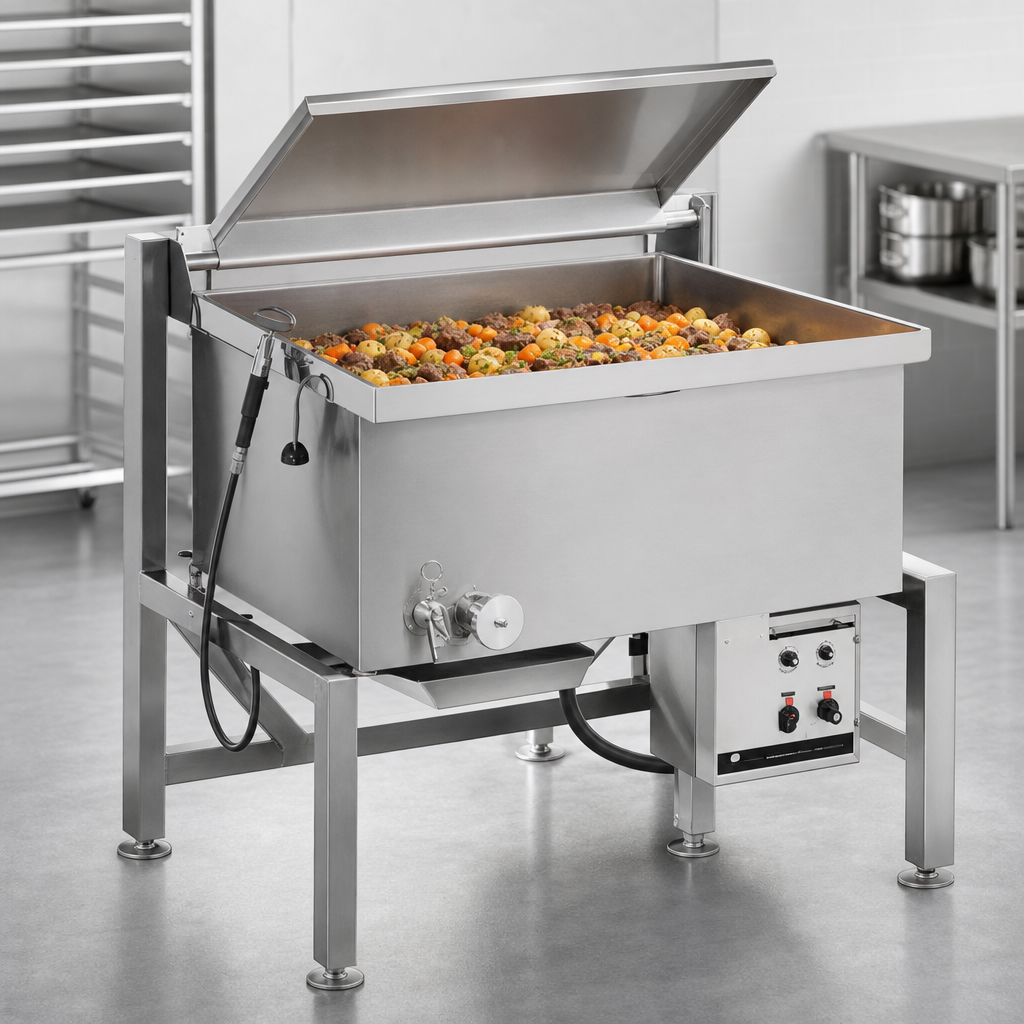

- 31.2-gallon / 118 L capacity – sear, braise, simmer or fry up to 105 lb (48 kg) of product at once.
- Seam-welded 304 stainless steel pan with Insulated for Safety™ sides & bottom for cooler exterior surfaces and reduced energy loss.
- Actuator-assisted, counter-balanced stainless lid with full-width condensate drip shield and rear steam vent.

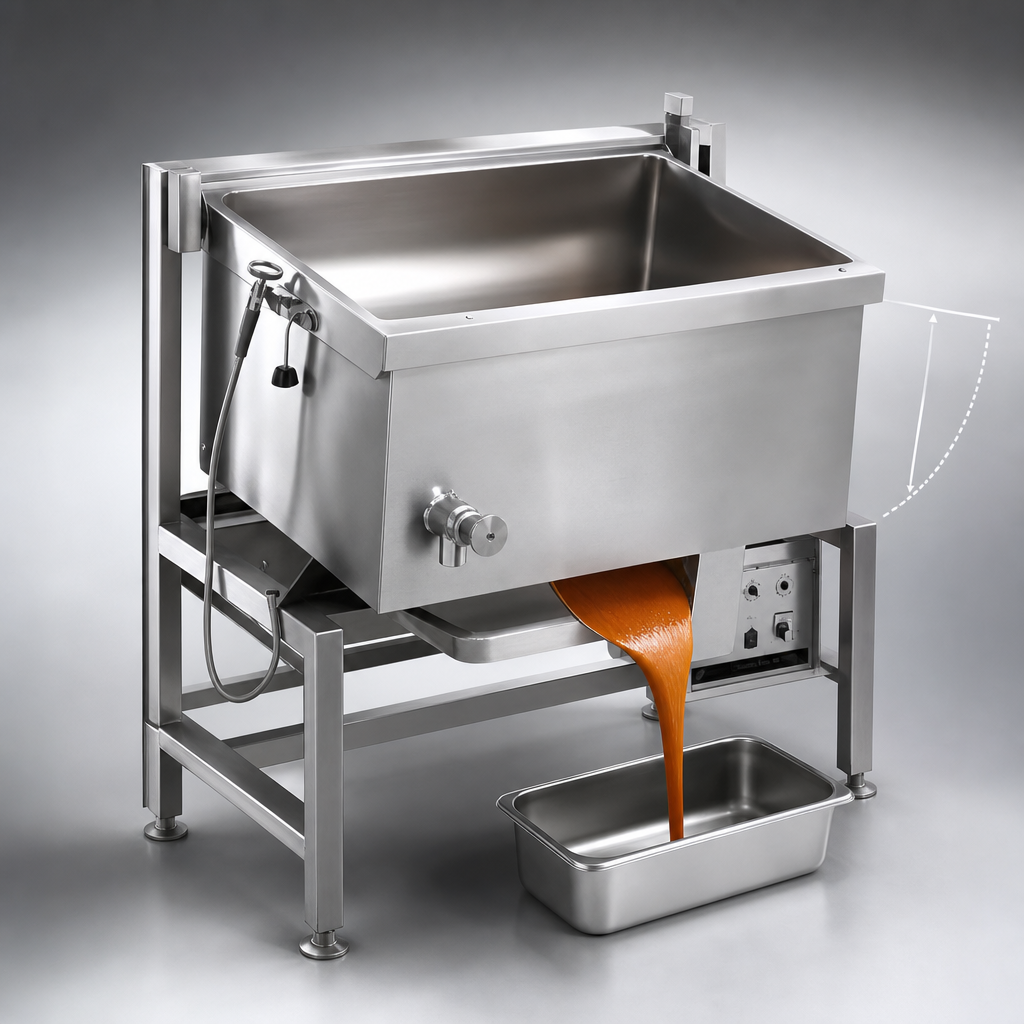

- 10° manual tilting pan at a comfortable 31" (787 mm) working height for controlled pouring or plate-out.
- 1 ½" compression draw-off valve with food-pan holder and rear drip collector – perfect for stocks, sauces and grease removal.
- Adjustable thermostat 175 °F – 400 °F (79 °C – 204 °C) plus high-limit safety cut-out.
- 17.7 kW heavy-duty heating elements; 240 V, 3-phase standard (208 V–480 V, 1 Φ/3 Φ optional).
- Open, tubular 304 stainless frame with flanged front feet & bullet rear feet for secure floor mounting and easy leveling.
- NSF-Listed, UL-Certified & approved for use as a fryer—swap from burgers to donuts without extra equipment.
Key Specifications
| Capacity | 31.2 gal | 118 L |
|---|---|
| Usable Cooking Area | 1,029 in² | 0.66 m² |
| Pan Interior (L × W × D) | 41" × 40" × 9" (1,041 × 1,016 × 229 mm) |
| Working Height | 31" (787 mm) to pan rim |
| Heat Input | 17.7 kW electric |
| Electrical (Std.) | 240 V, 3-phase, 44 A/leg |
| Thermostat Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Draw-off Valve | 1 ½" compression, 304 SS |
| Construction | All-welded 304 SS pan, lid, enclosure & frame |
| Certifications | NSF, UL, ASME §IV |
| Country of Origin | USA |
Popular Options & Accessories (sold separately)
- Flexible spray-rinse hose (48")
- Ball-type draw-off valve (1 ½", 2", or 3")
- Automatic water-fill meter
- Perforated steaming baskets & 12 × 20 food pans (2 ½", 4", 6")
- Lockable lid & control-cover kit for correctional facilities
- Rear casters & restraining device kit
- Electric timer with audible buzzer
Warranty
Includes Legion’s 12-month parts & labor warranty (15 months from ship date when registered). See full terms for covered components and exclusions.
Need a different voltage, drain size, or security package? Contact our sales team for factory-configured options to match your facility.
