Legion CS41-5 Combi-Pan Braising Pans & Tilt Skillets
Description

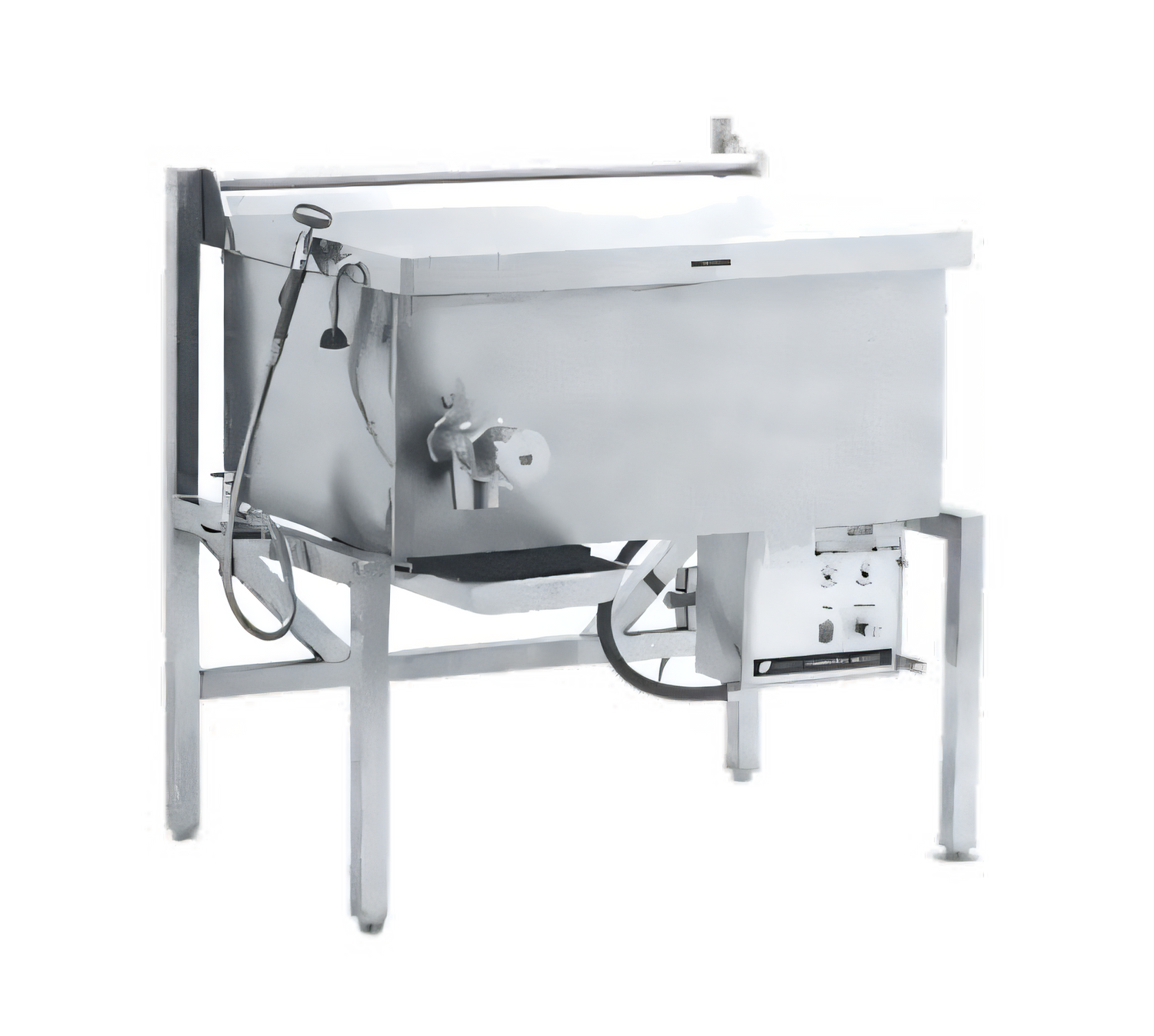

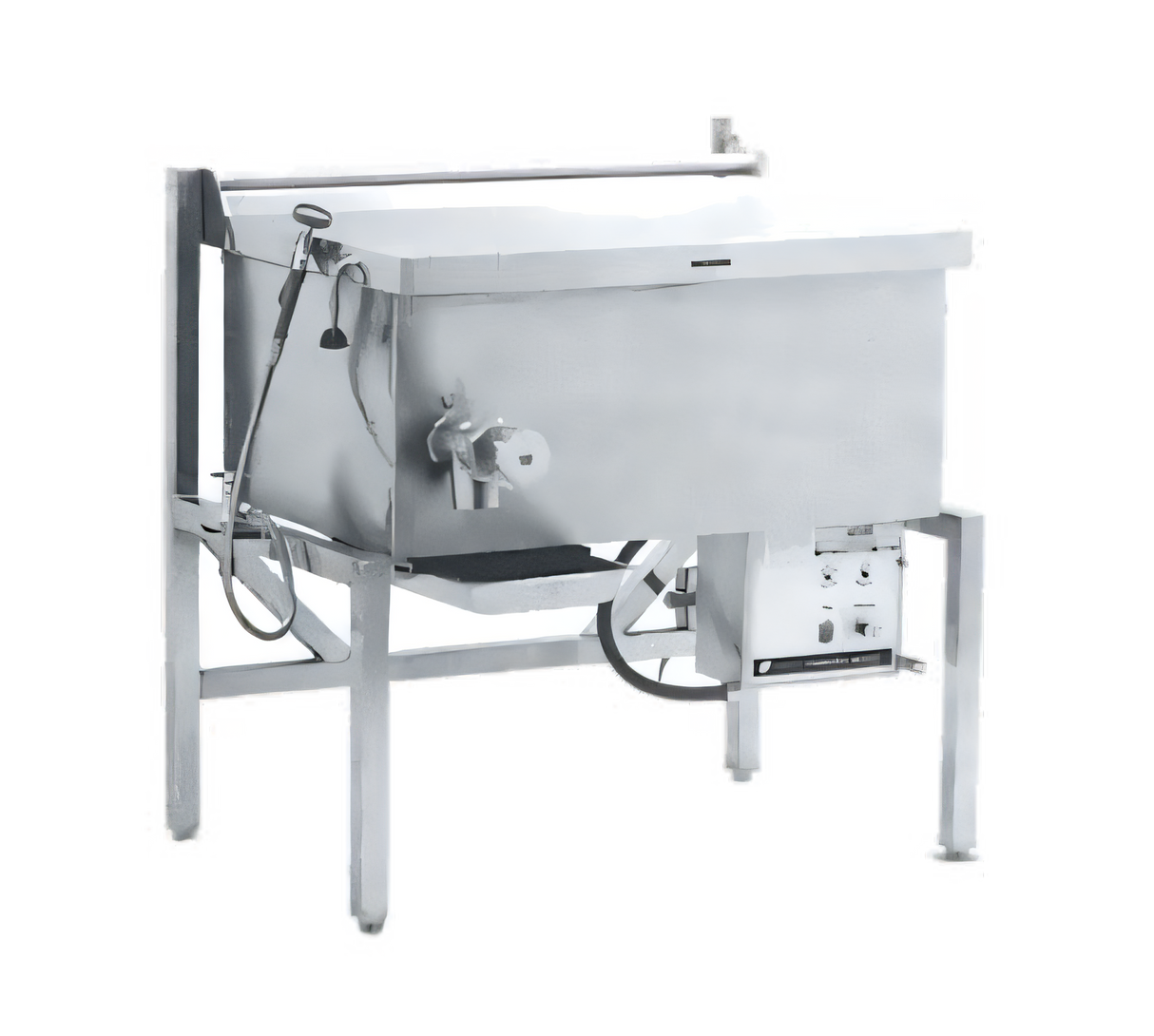

Legion Combi-Pan® Electric Tilting Skillet – 22.3 Gal (Model CS41-5)
10° Insulated Tilting • 17.7 kW • Leg-Mounted • Made in USAEngineered for high-volume, high-versatility kitchens, the Combi-Pan® CS41-5 delivers 22.3 gallons of evenly-heated cooking surface in a compact, fully insulated braising pan. Whether you’re browning 105 lb of ground meat, flash-frying cutlets, simmering sauces or holding food for service, this 304-stainless powerhouse gives you the consistency, safety and efficiency demanded by today’s commercial operations.
Standard Features
- 22.3 gal / 1,029 in² cooking surface with 5 in. pan depth – approved for frying, braising, sautéeing & holding
- 304 stainless, seam-welded pan body with complete side & bottom insulation (Insulated for Safety™)

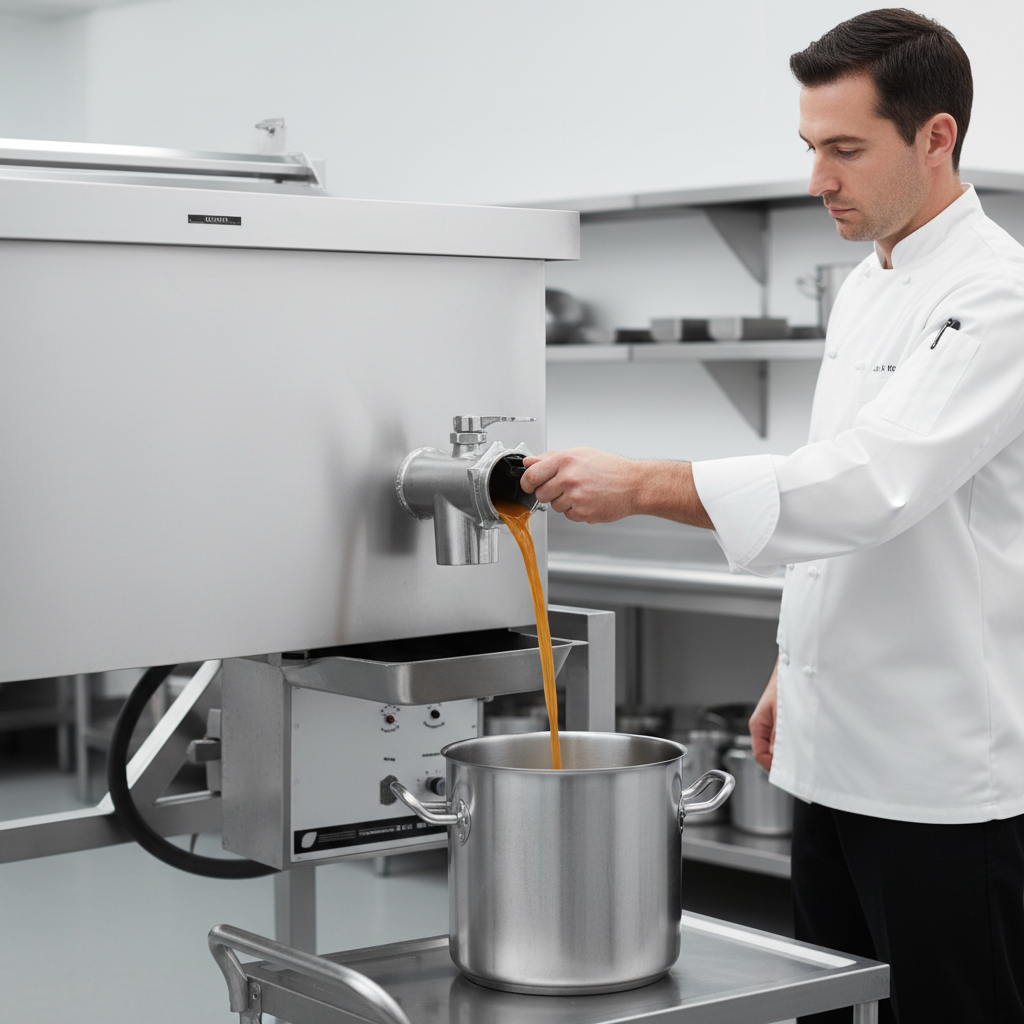

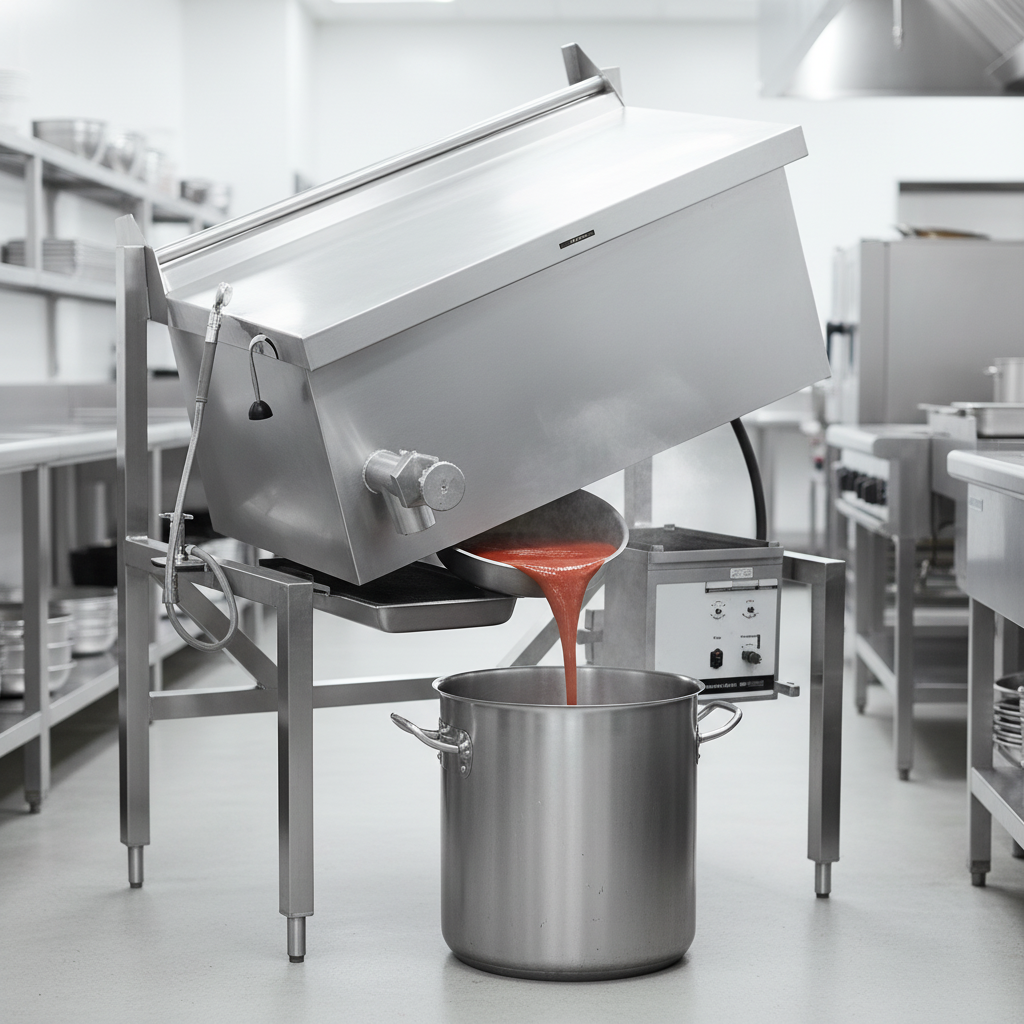

- 10° manual tilt for fast, controlled pours; 1 ½″ compression draw-off valve with food-pan holder below
- Actuator-assisted counter-balanced lid with full-width condensate drip shield & rear steam vent

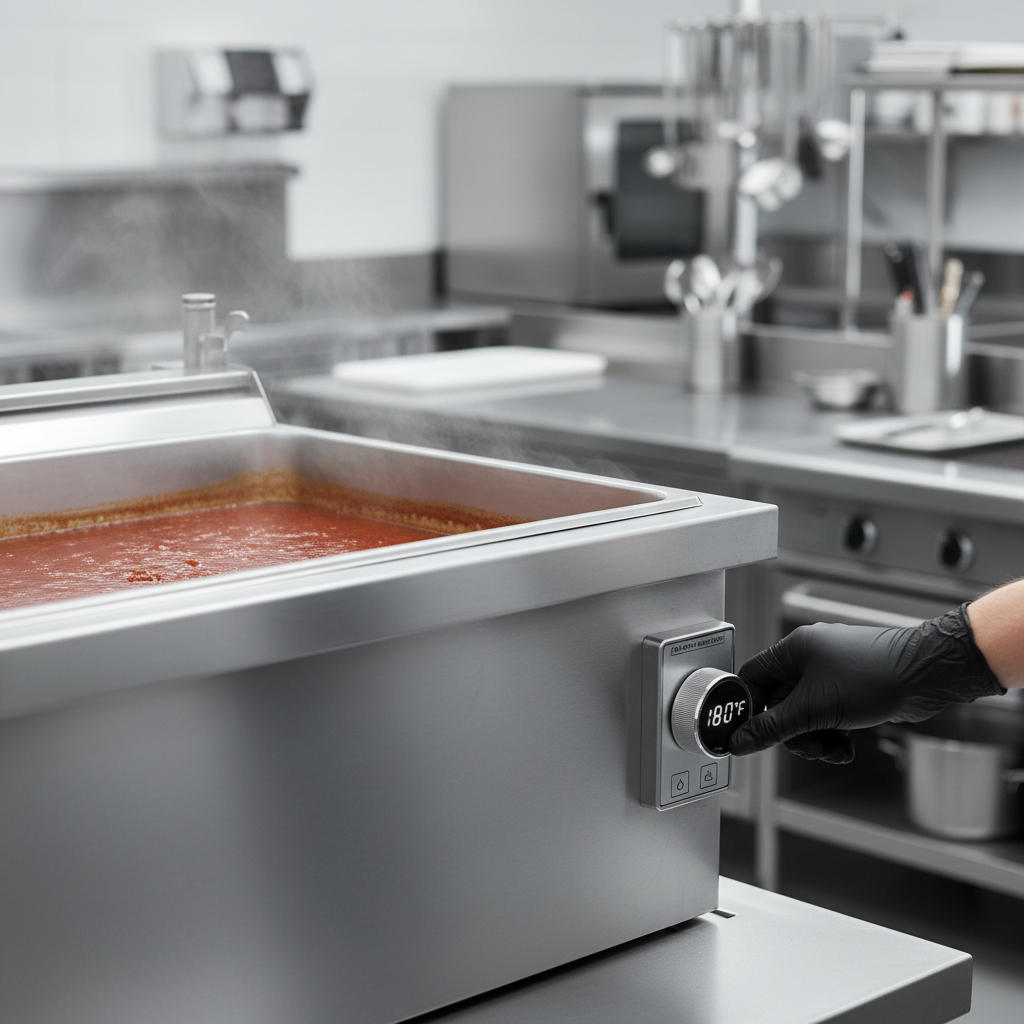

- Adjustable thermostat 175 °F – 400 °F + independent high-limit safety thermostat
- 17.7 kW incoloy sheathed elements mounted to pan exterior for even, responsive heating
- 304 stainless, seam-welded open frame with flanged front feet & rear bullet feet (bolt-down ready)
- Rear drip collector, tapered access rim and dual side-mounted safety handles for cleaner, safer operation
- Legion quality – ASME / NSF / UL compliant; built & serviced in the USA
Technical Specifications
| Model | CS41-5 |
|---|---|
| Pan Capacity | 22.3 gal | 85 L |
| Pan Depth (Internal) | 5 in | 127 mm |
| Cooking Area | 1,029 in² | 0.66 m² |
| Tilt Angle | 10° manual lever |
| Temperature Range | 175 °F – 400 °F (79 °C – 204 °C) |
| Heating Power | 17.7 kW |
| Standard Electrical | 240 V, 3-phase, 44 A per leg (other voltages/phase available) |
| Draw-off Valve | 1 ½″ compression type (2″ & 3″ options available) |
| Construction | 304 stainless pan, lid, enclosure & tubular frame |
| Overall Height | 31 in. working height to pan rim |
| Approvals | NSF, UL, ASME |
| Country of Origin | USA |
Popular Factory-Fit Options
- 48″ vinyl or stainless spray hose assembly
- Automatic water-fill meter
- Perforated or solid 12 × 20 food pans (2½″, 4″, 6″ deep)
- Draw-off strainer, drain hose or #10 can holder
- Lockable control or lid cover for correctional facilities
- Heavy-duty casters with restraining device
- Electric timer with buzzer
