Legion CS41-14 Combi-Pan Braising Pans & Tilt Skillets
Description

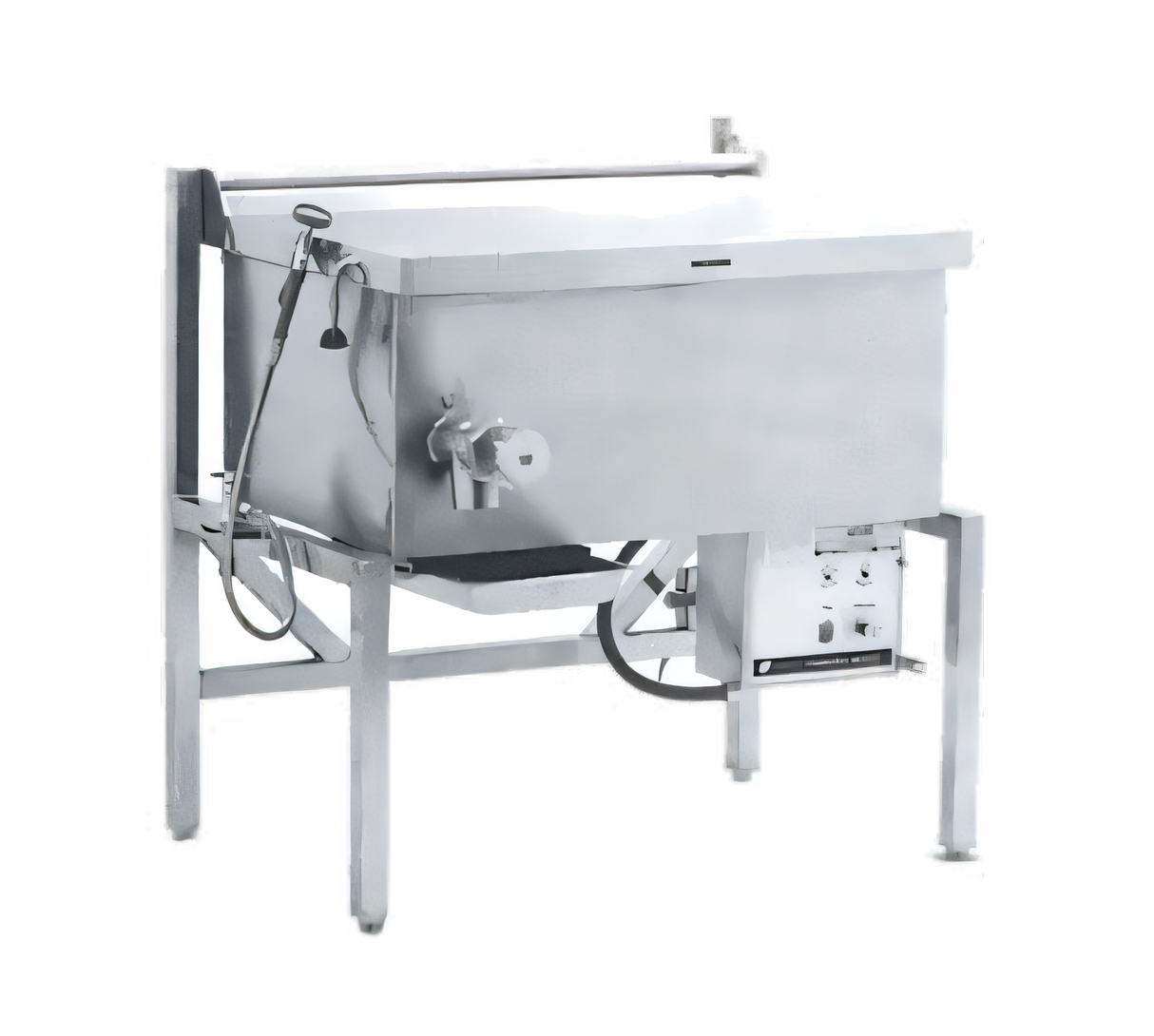

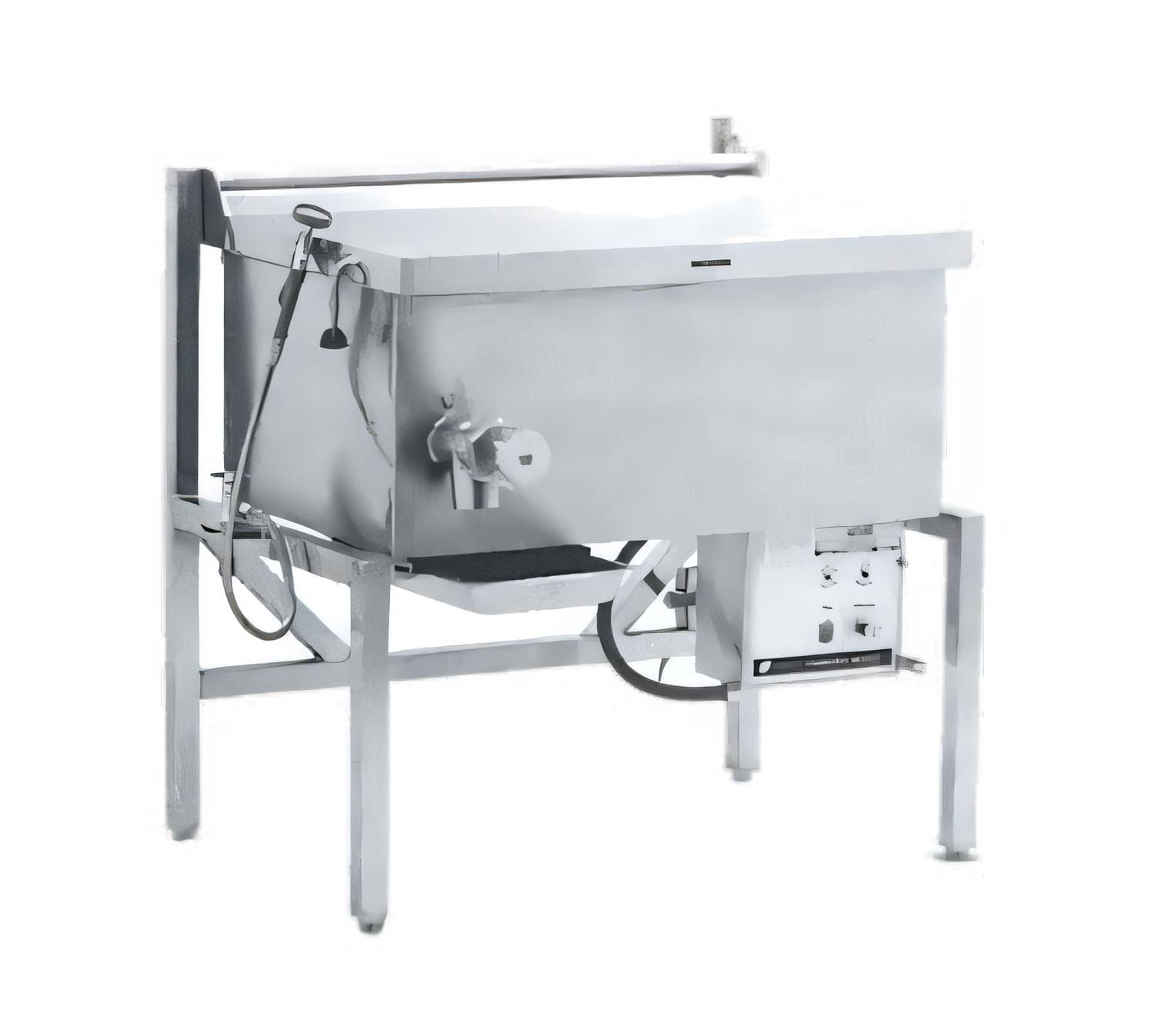

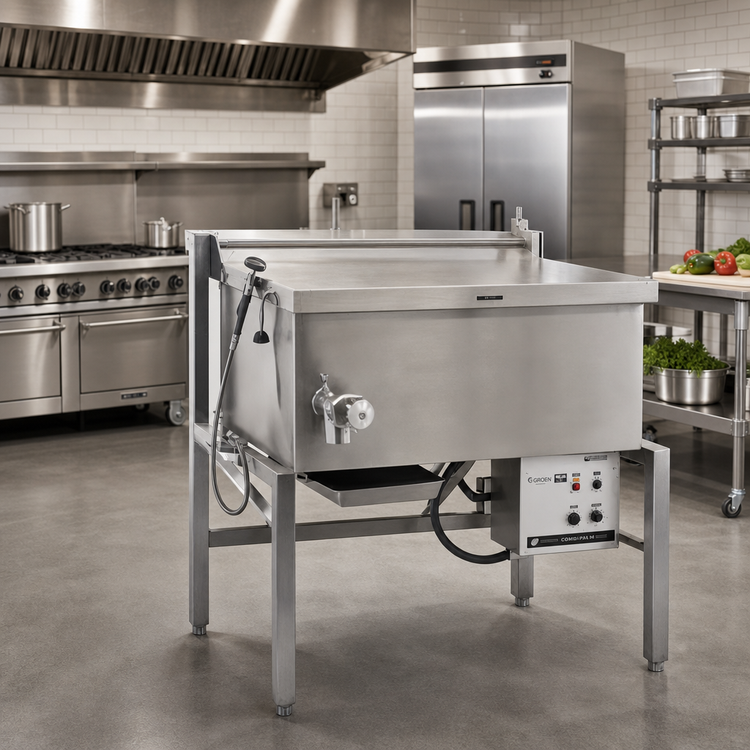

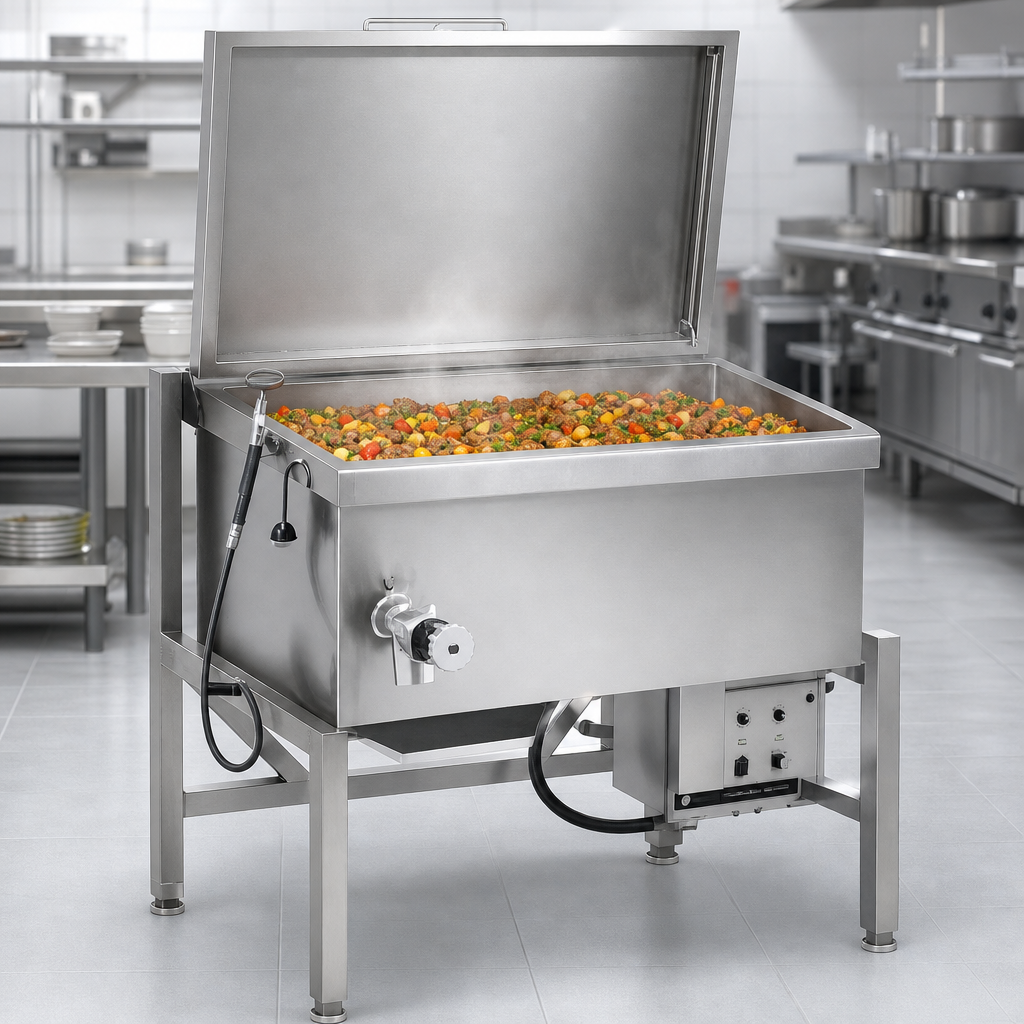

Legion Combi-Pan® Insulated Tilting Skillet – 62.4 Gallon
Model CS41-14 | 17.7 kW Electric | 10° Manual TiltReplace kettles, braising pans, griddles and fryers with one powerhouse. The 62.4-gallon Legion Combi-Pan® delivers fast, even heating, effortless tilting and industry-leading safety for high-volume kitchens that demand more output in less space.
Key Features & Benefits
- Insulated for Safety™ – double-wall 304 SS sides & bottom stay cooler and cut energy loss.
- 17.7 kW electric elements accelerate pre-heat and recovery; thermostat dial sets 175 – 400 °F.

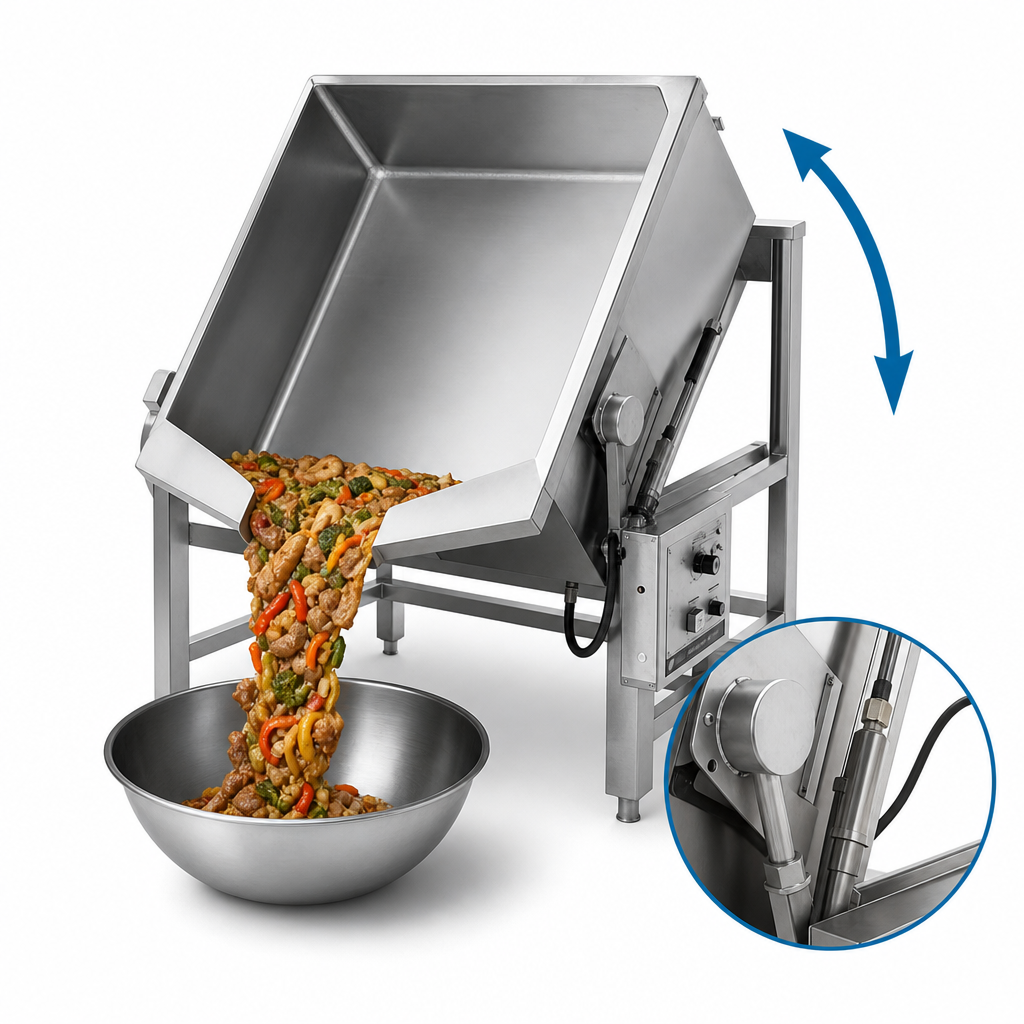

- 10° worm-gear tilt lets one person pour, plate or drain with exact control.
- Integrated 1 ½" compression draw-off with handy food-pan holder speeds soup, stock & sauce service.
- Patented counter-balanced lid lifts with one hand and includes a full-width condensate drip shield & rear steam vent.
- 14" deep, 1,029 in² cooking surface is NSF-approved for shallow-fat frying.
- All-304 stainless pan, lid & open tubular frame resist corrosion and wipe clean fast.
- Leg-mounted design with flanged front feet and bullet rear feet anchors securely to the floor.
- High-limit safety thermostat and insulated component enclosure protect staff and equipment.
- Made in the USA and backed by Legion’s 12-month parts & labor warranty.
Technical Specifications
| Capacity | 62.4 gal | 236 L |
|---|---|
| Cooking Surface Area | 1,029 in² | 6,641 cm² |
| Pan Depth (inside) | 14 in | 356 mm |
| Working Height | 31 in | 787 mm |
| Tilt Angle | 10° manual crank |
| Heating Power | 17.7 kW electric, incoloy sheathed elements |
| Thermostat Range | 175 – 400 °F | 79 – 204 °C |
| Electrical (std.) | 240 V, 3 Ø, 42.7 A (208–480 V options) |
| Draw-off Valve | 1 ½" 304 SS compression type |
| Lid Construction | 304 SS, actuator-assisted counter-balance drip shield & rear steam vent |
| Frame / Feet | 304 SS open tubular frame flanged front & bullet rear feet (adjustable) |
| Approvals | NSF, UL, ASME |
Need a different voltage, fill-faucet or spray-hose kit? Contact us for factory-installed options and accessories.
