Legion CS41-11 Combi-Pan Braising Pans & Tilt Skillets
Description

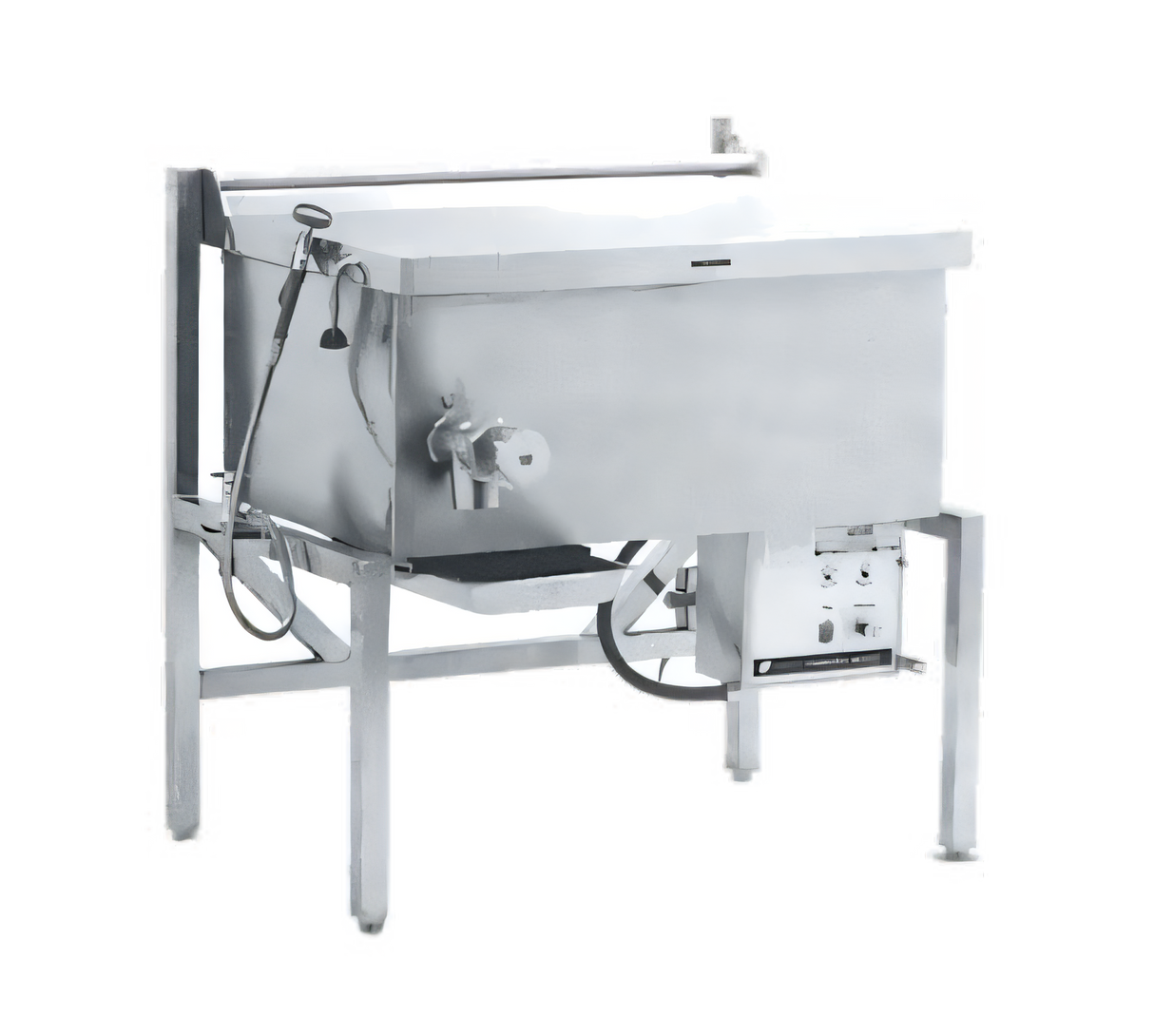

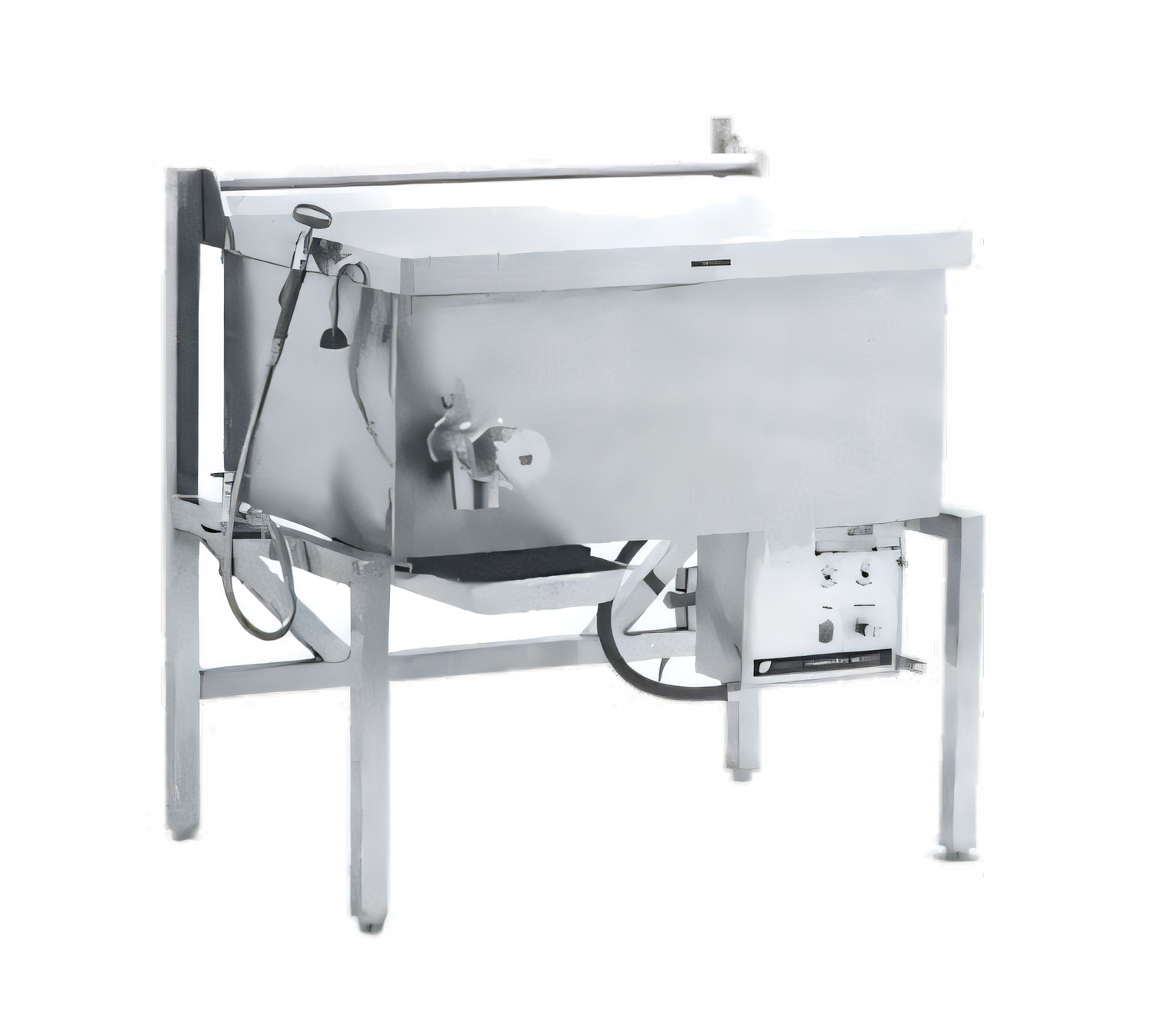

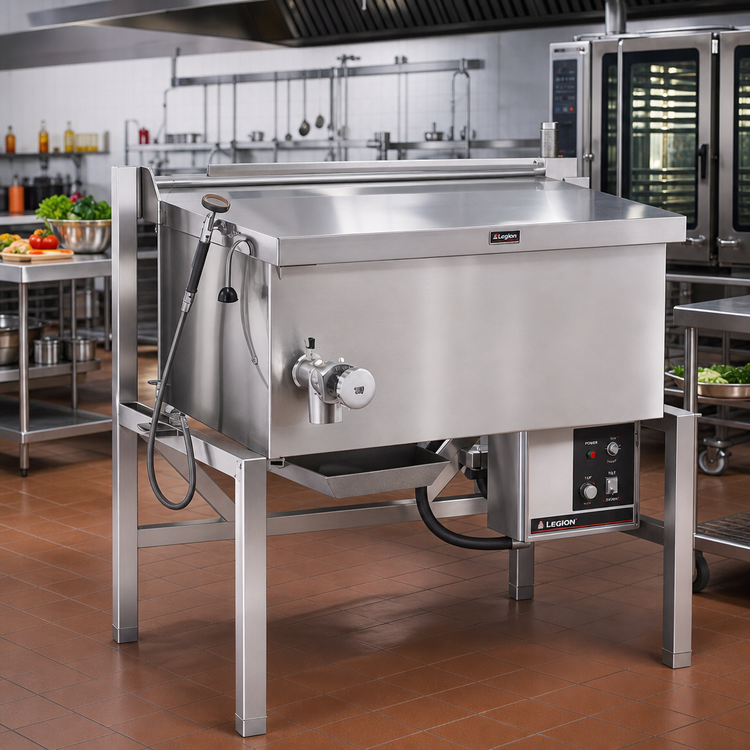

Legion Combi-Pan® CS41-11 Insulated Tilting Skillet – 49 gal / 17.7 kW
Electric • 10° Manual Tilt • Made in USAEngineered for high-volume kitchens, the Combi-Pan CS41-11 delivers the speed of a griddle, the depth of a kettle and the versatility of a braising pan in one space-saving footprint. Fully insulated and built entirely from 304 stainless steel, it keeps operators safe, floors dry and production on schedule.
Why You’ll Love It

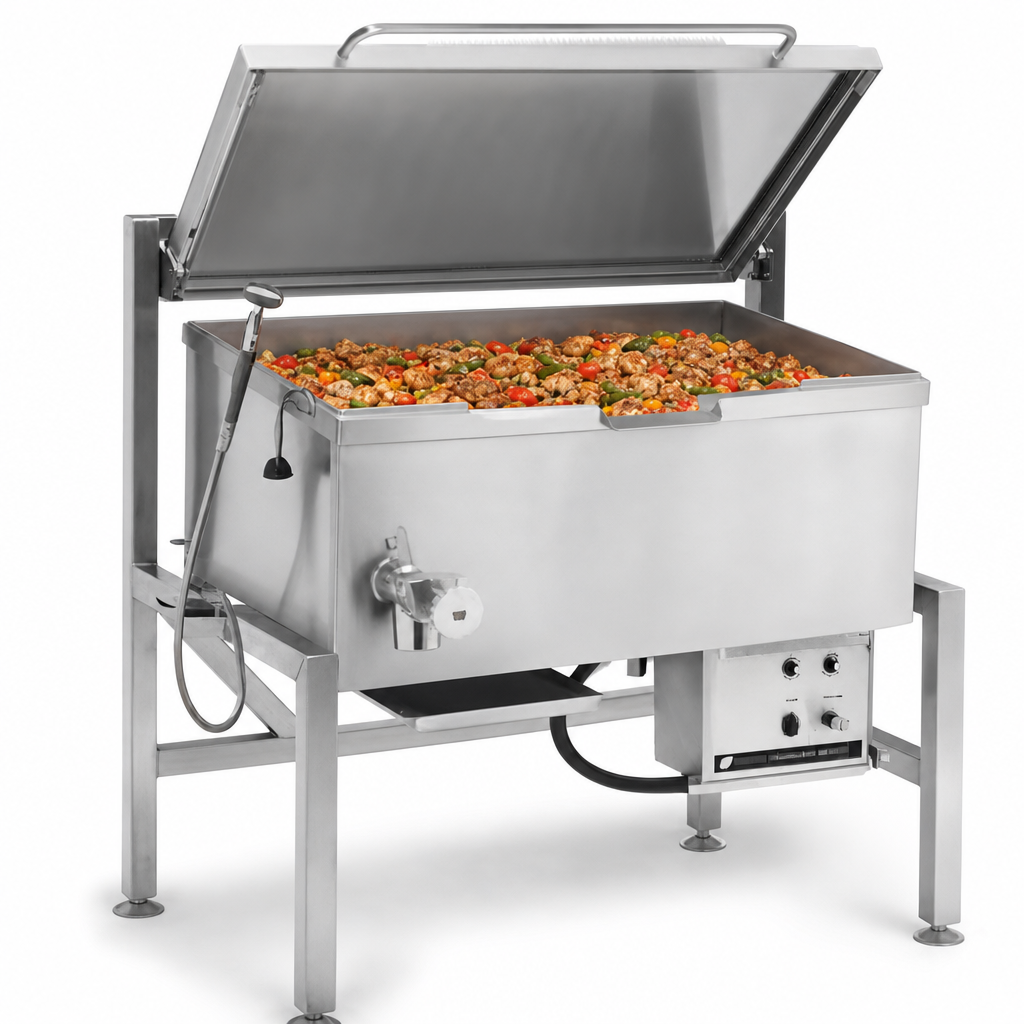

- Massive 49-gallon (185 L) capacity handles soups, sauces, pastas and more—or deep-fry up to 105 lb of product at once.

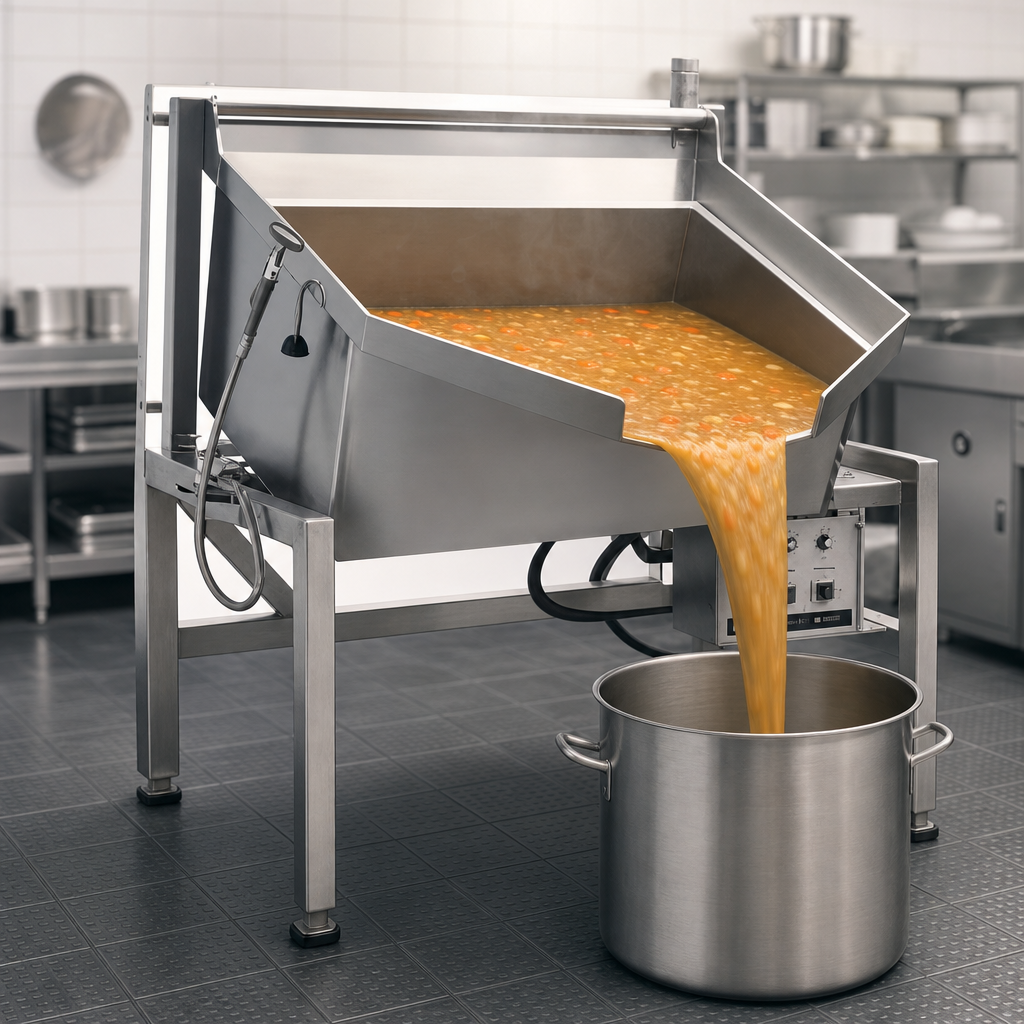

- 10° hand-crank tilt lets you portion or pour with surgical precision and minimal splash.
- Rugged 304 stainless steel pan, lid & frame are seam-welded for a lifetime of heavy use.
- Insulated sides and bottom keep exterior surfaces cooler and reduce energy loss.
- Actuator-assisted counter-balanced lid lifts effortlessly and stays wherever you place it.
- Accurate thermostat (175 °F – 400 °F) with high-limit cutoff maintains perfect cooking temps.
- 1½" compression draw-off valve plus built-in food-pan holder streamline draining and serving.
- Leg-mounted open frame with flanged front feet & bullet rear feet for secure, code-compliant installation.
- NSF, UL & ASME compliant—and officially approved for use as a fryer.
Quick Specs
| Model | CS41-11 Combi-Pan |
|---|---|
| Capacity | 49 US gal / 185 L |
| Cooking Surface | 1,029 in² |
| Oil Capacity (fryer) | 105 lb |
| Pan Depth (ID) | 11 in |
| Working Height | 31 in to rim |
| Tilt Angle | 10° manual crank |
| Heat Source | Electric – 17.7 kW |
| Standard Power | 240 V, 3 Ø (other voltages available) |
| Amps @ 240 V 3 Ø | 42.7 A |
| Draw-off Valve | 1½" compression style, front-mounted |
| Construction | 304 SS pan, lid, enclosure & tubular frame |
| Certifications | NSF, UL, ASME – Made in USA |
Included Highlights
- Full-width condensate drip shield keeps steam and moisture off the floor.
- Rear steam vent accelerates reductions and browning.
- Dual side-mounted safety handles plus centered lid handle.
- Rear drip collector captures runoff when tilting.
- Tapered access rim for easy stirring and utensil access.
Popular Options (Sold Separately)
- Flexible spray & fill hoses (vinyl or stainless)
- Perforated or solid 12 × 20 pan inserts, 2½-, 4- or 6-in deep
- Automatic water-fill meter
- 2" or 3" ball-type draw-off valves, drain hoses & strainers
- Lockable lid or lockable control cover for security installations
- Casters & restraining device kits for mobile setups
- Electric timer with buzzer
Need a different size? Combi-Pan models range from 15 gal to 62 gal—contact us for details.
