Legion CS28-7 Combi-Pan Braising Pans & Tilt Skillets
Description

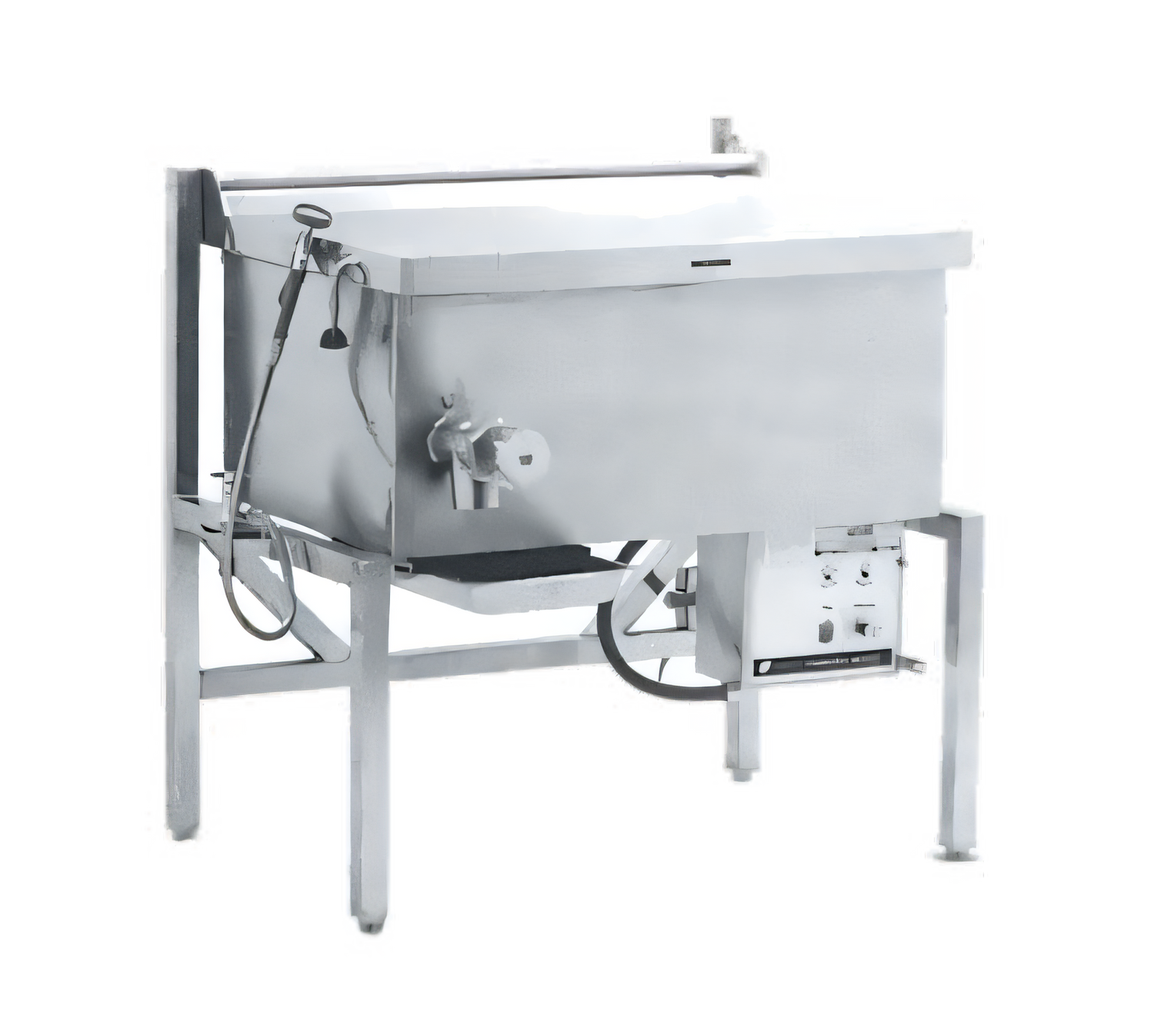

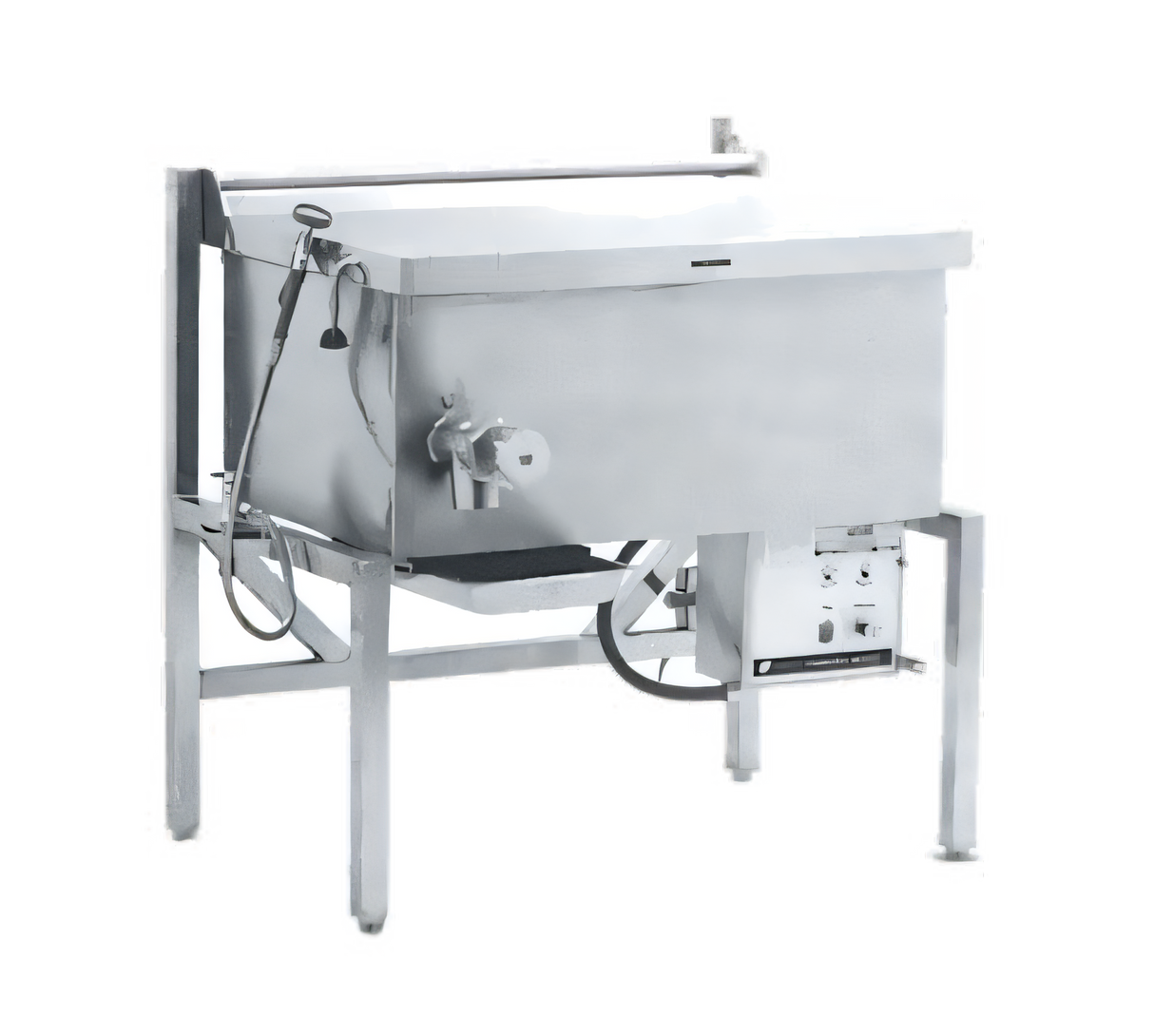

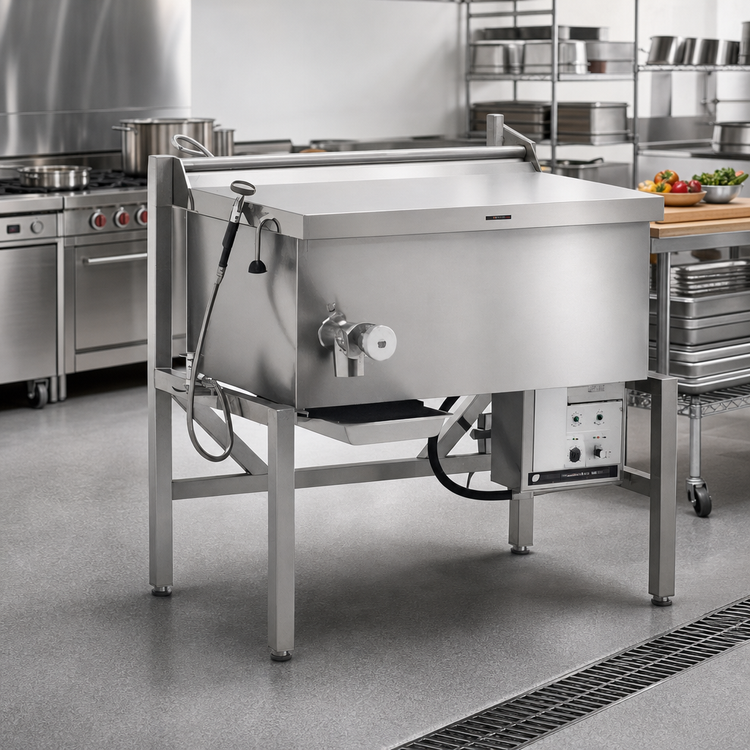

Legion Combi-Pan® Electric Tilting Skillet – 21.3 gal (Model CS28-7)
Insulated for Safety™ – Built for high-volume, multi-method cookingReplace braziers, fry pans, griddles and kettles with one American-made, 21.3-gallon workhorse. The Combi-Pan® CS28-7 delivers 11.8 kW of even, responsive heat inside a fully insulated 304 SS pan, giving chefs the freedom to braise, sauté, shallow-fry, grill or hold food with unbeatable efficiency.
Why this Combi-Pan®?
- 21.3 gal (≈80.6 L) capacity with generous 703 in² cooking surface.

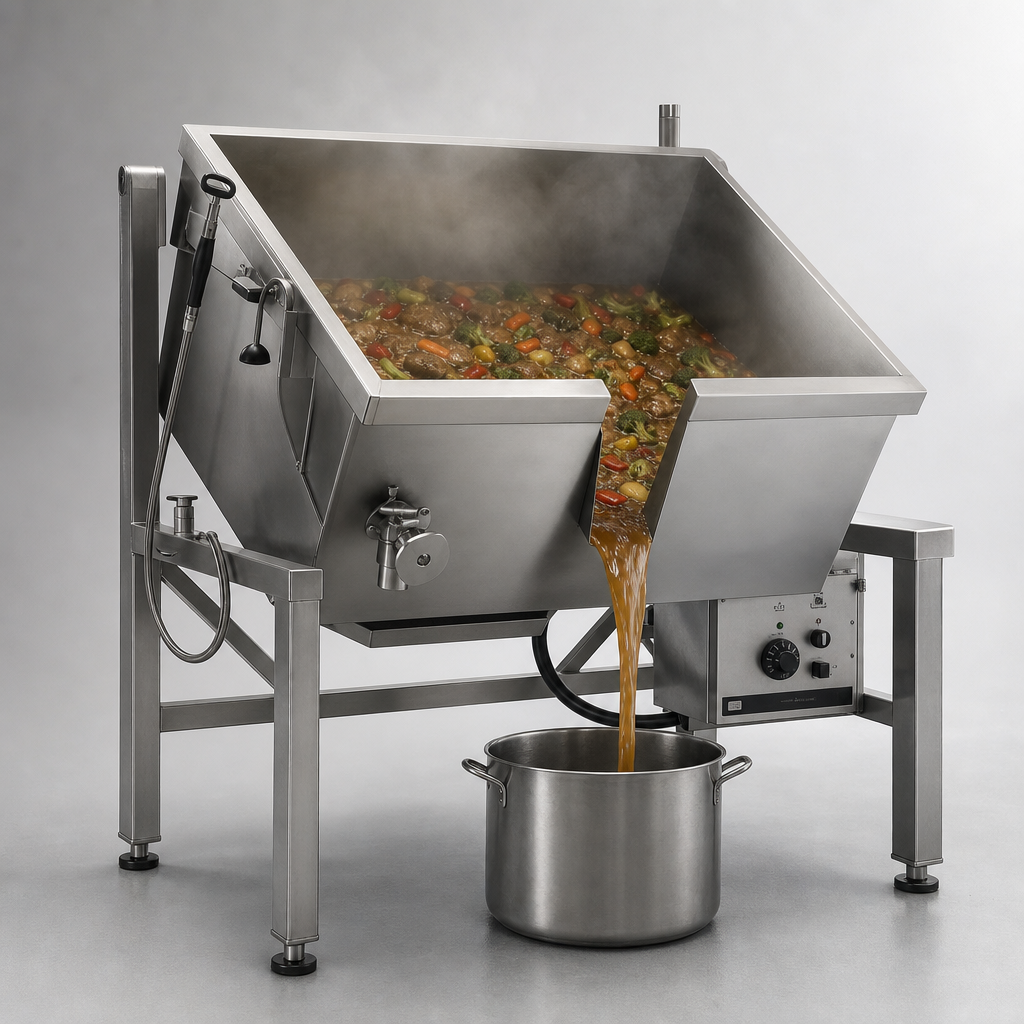

- 10° manual tilt plus 1 ½″ compression draw-off valve for controlled, splash-free product transfer.
- Seam-welded 304 SS pan, sides & bottom fully insulated to keep heat in and operators safe.
- Patented counter-balanced lid with full-width condensate drip shield and rear steam vent.
- Precision thermostat 175 – 400 °F (79 – 204 °C) with high-limit safety cut-off.
- Approved for use as a fryer—perfect for browning, stir-fry or small-batch deep frying.
- Durable open tubular frame with flanged front feet & bullet rear feet for easy bolting to the floor.
- Rear drip collector, tapered access rim and integrated food-pan holder speed clean-up & service.
- Made in Waynesboro, GA, USA; complies with NSF, UL, ASME and ETL standards.
Technical specifications
| Model | CS28-7 |
|---|---|
| Usable capacity | 21.3 gal | 80.6 L |
| Pan depth | 7″ (178 mm) |
| Cooking surface area | 703 in² (0.45 m²) |

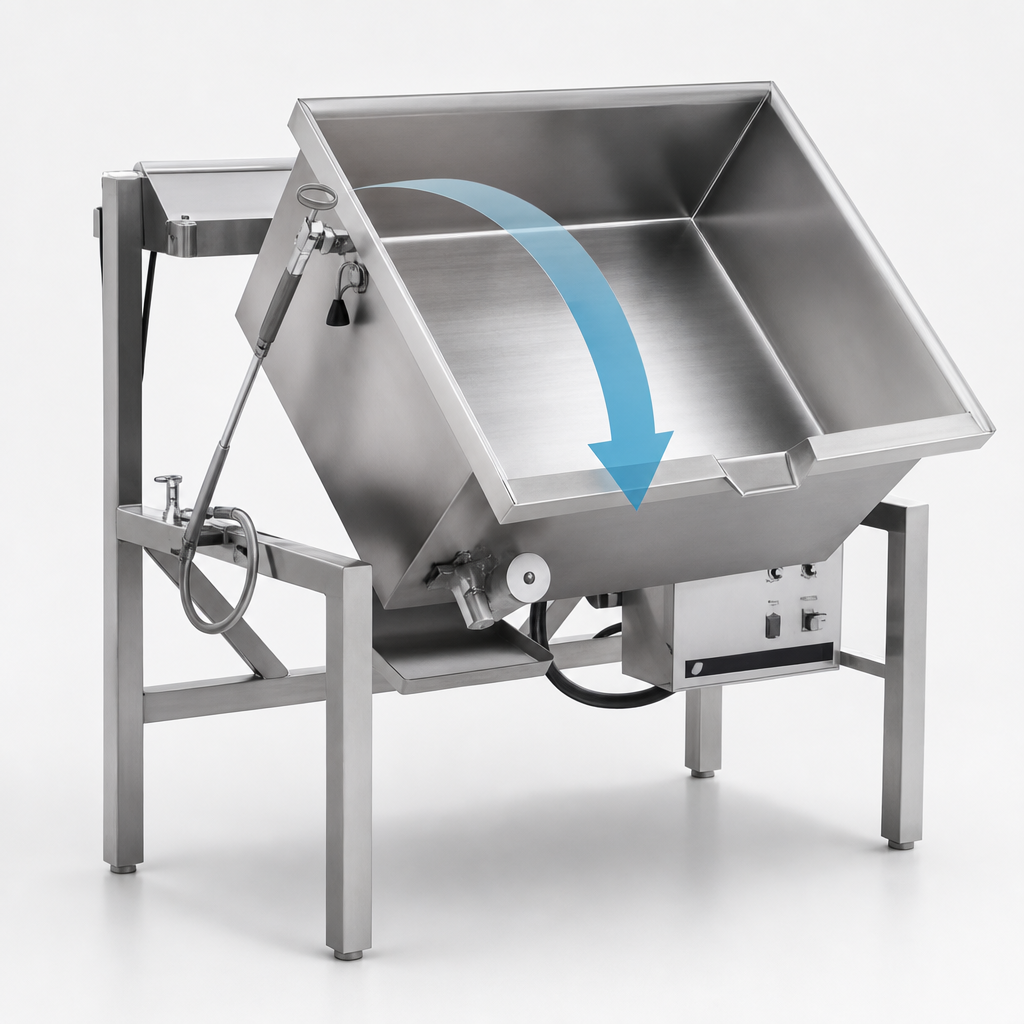

| Tilt angle / mechanism | 10° manual hand-tilt with safety interlock |
| Working height | 31″ (787 mm) to top of pan rim |
| Thermostat range | 175 – 400 °F (79 – 204 °C) |
| Heating input | 11.8 kW electric elements |
| Standard electrical | 240 V / 3 Ø / 28.4 A (208 V, 380–480 V & 1 Ø available) |
| Draw-off valve | 1 ½″ 304 SS compression type |
| Overall width (lid closed) | ≈40″ (1 016 mm) |
| Overall length | ≈70.8″ (1 798 mm) |
| Construction | 304 SS pan, lid, component enclosure & tubular frame |
| Listings | NSF, UL, ASME, ETL |
| Country of origin | USA |
Popular options & accessories
- 48″ spray-rinse hose assembly (vinyl or stainless)
- Automatic water-fill meter
- Perforated cooking/steaming baskets (11″ × 20½″ × 5″)
- Solid or perforated 12 × 20 pans (2 ½″, 4″ or 6″ deep)
- Draw-off strainer, spout or drain hose
- Lockable lid or control-cover kit
- Casters & restraining-device kit
- Electric timer with buzzer
Warranty
Backed by Legion’s 12-month parts & labor warranty from installation (15 months from ship date). Register your Combi-Pan® within 10 days of installation for full coverage. Extended warranty contracts are available—ask us for details.
Need a custom configuration or quick ship date? Contact our commercial equipment team—we’re here to help.
