Legion CS28-14 Combi-Pan Braising Pans & Tilt Skillets
Description

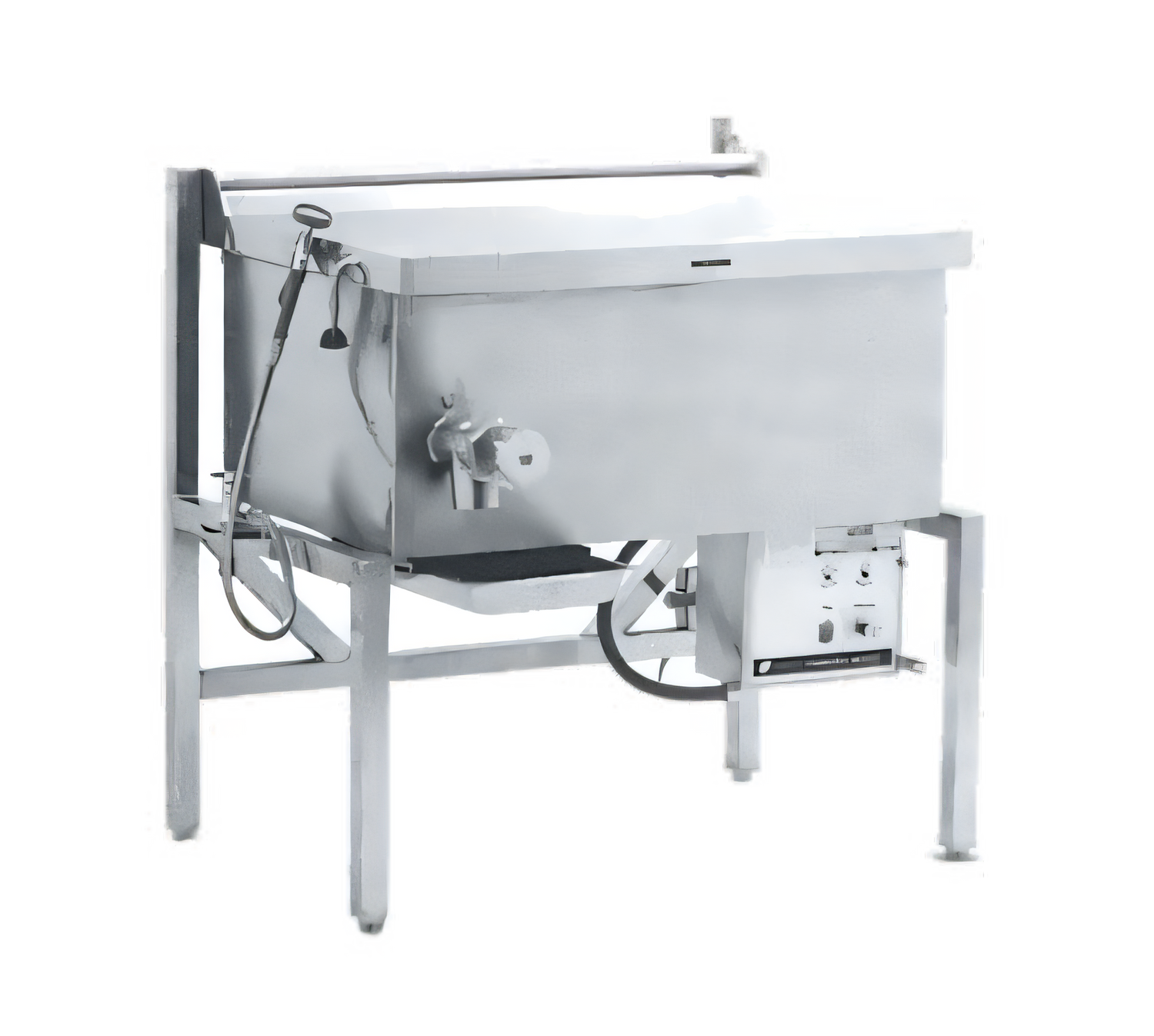

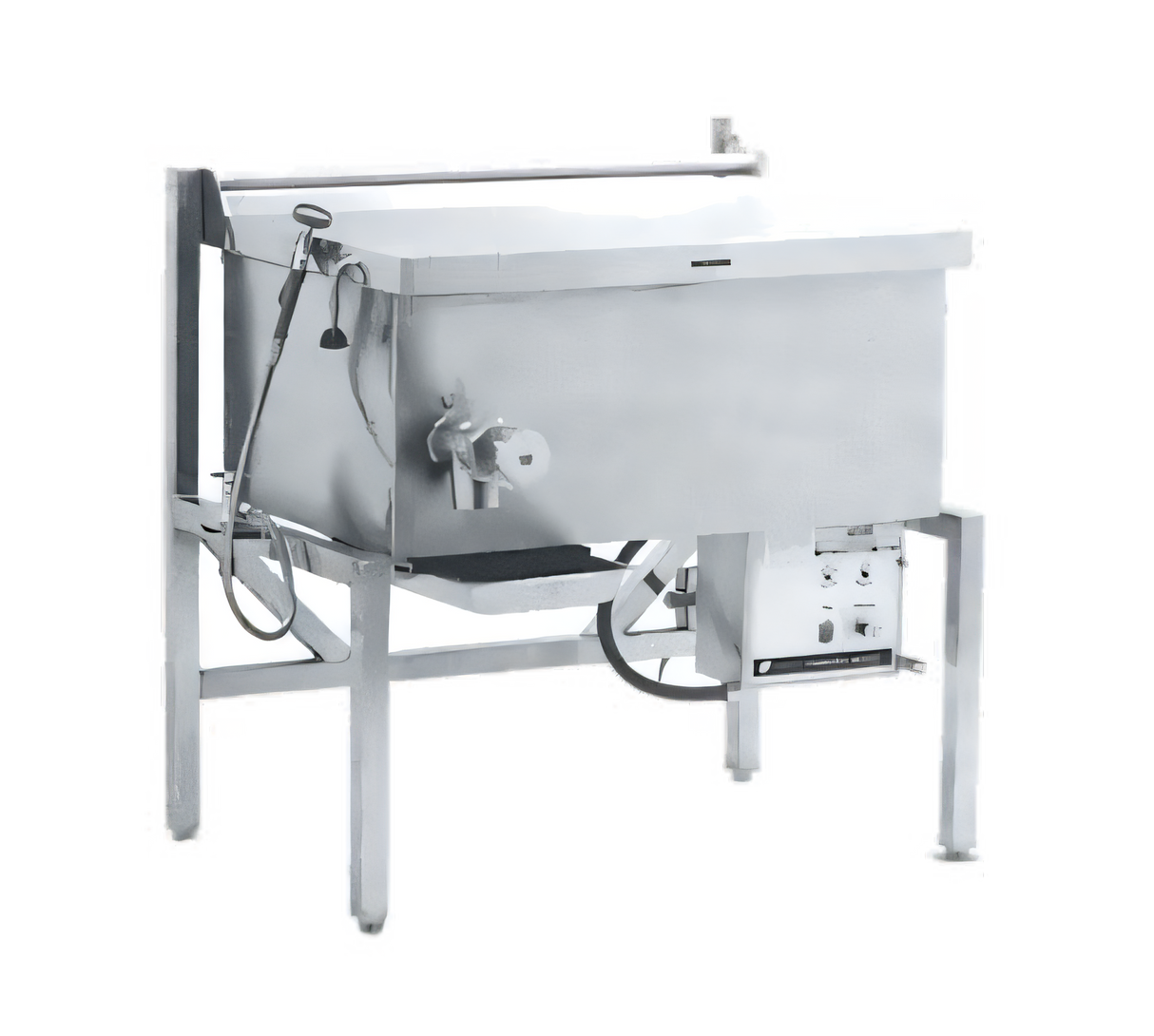

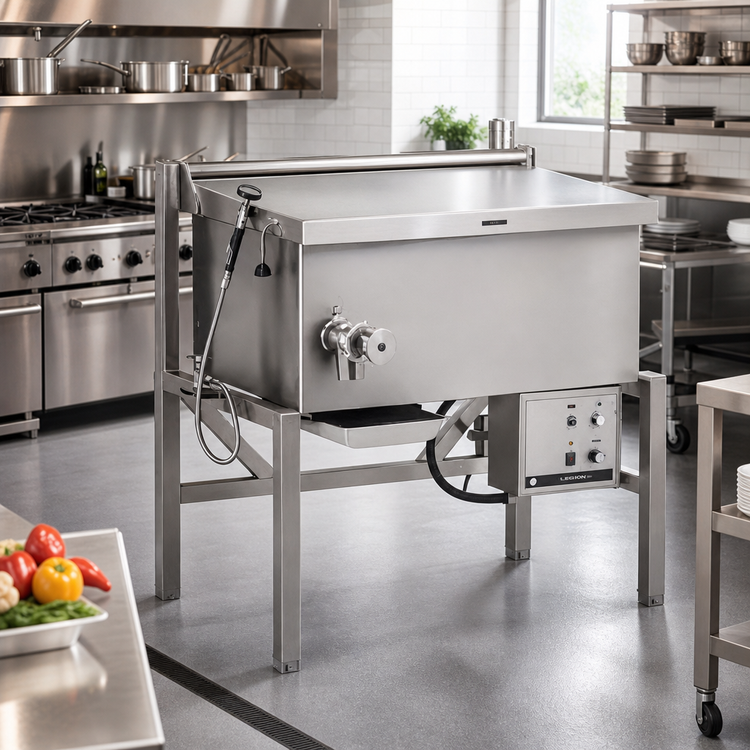

Legion Combi-Pan® Insulated Tilting Skillet – 42.6 gal (Model CS28-14)
Electric • 11.8 kW • Made in USAEngineered for high-volume, multi-mode cooking, the Legion Combi-Pan® CS28-14 combines the power of a griddle, kettle, fryer and oven in one heavy-duty, 42.6-gallon tilting skillet. Its insulated 304 stainless steel construction, patented safety lid and precise thermostat give you the productivity you need with the protection your kitchen demands.
Key Features

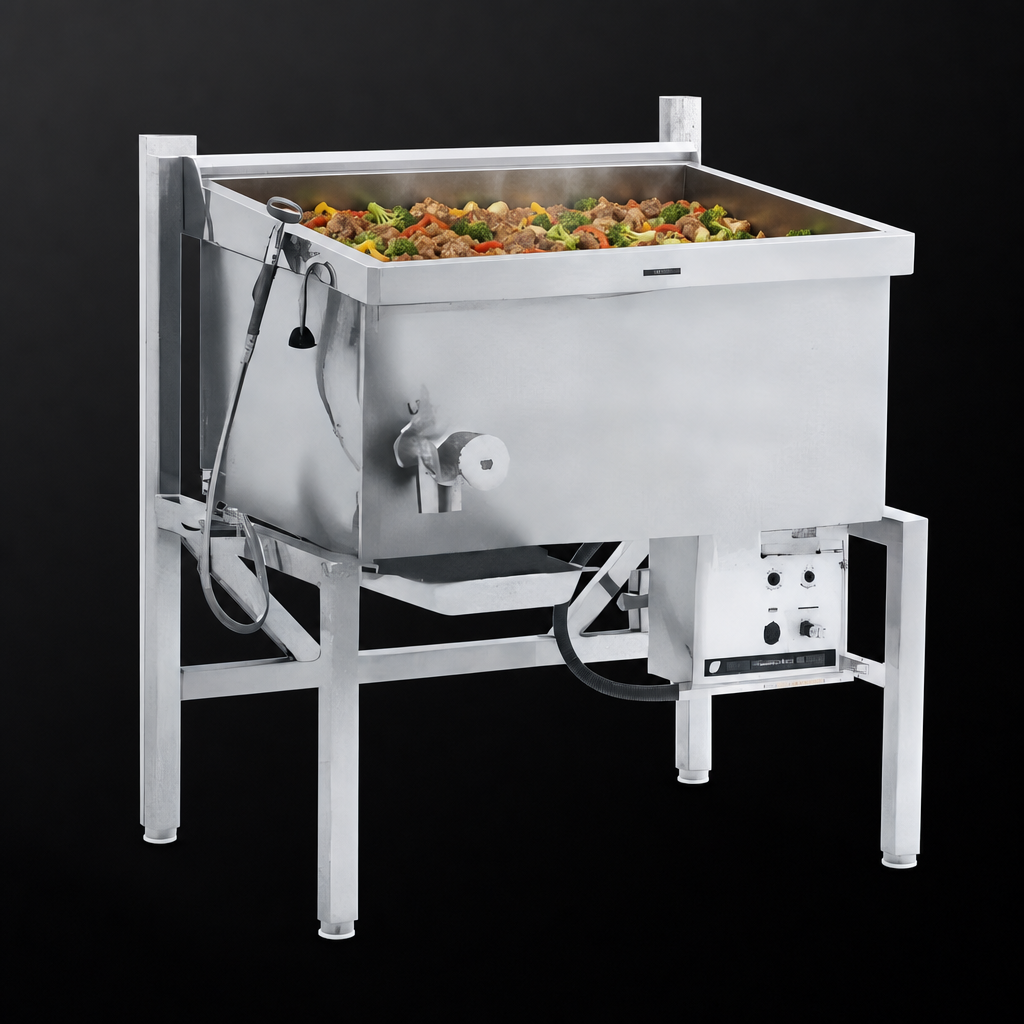

- 42.6 gal / 160 L capacity with 703 in² cooking surface – handle up to 70 lb of product per batch.

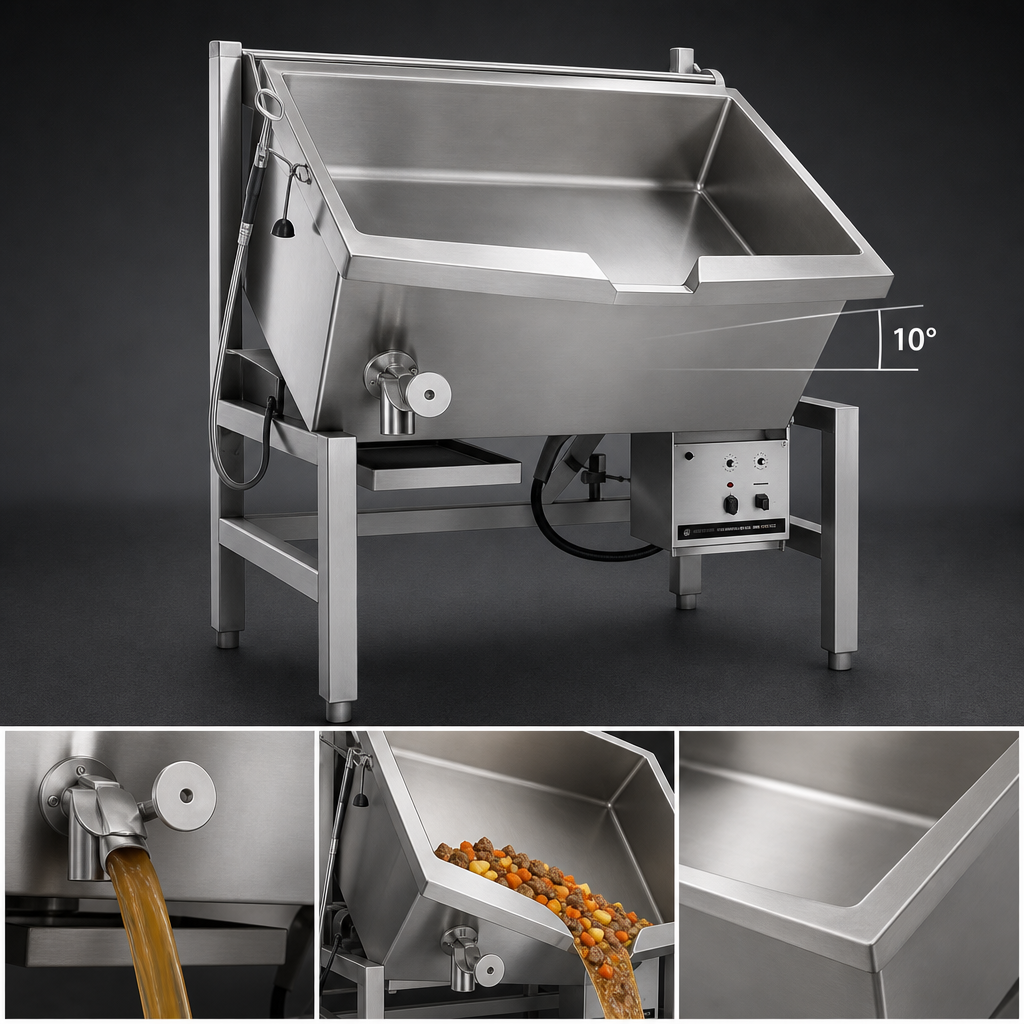

- 10° manual tilt for fast, controlled pouring at a comfortable 31" working height.
- 11.8 kW electric heating with adjustable thermostat (175 °F – 400 °F) & high-limit safety cut-off.
- Fully insulated sides & bottom reduce ambient heat and save energy (“Insulated for Safety™”).
- 304 stainless steel, seam-welded pan with tapered rim and rear drip collector.
- 1.5" 304 SS compression draw-off valve plus under-mount food-pan holder for easy draining & staging.
- Patented actuator-assisted counter-balance lid with full-width condensate drip shield & rear steam vent.
- Dual side-mounted safety handles and cool-touch front handle for secure operation.
- Open tubular frame, seam-welded component enclosure and adjustable feet (flanged front, bullet rear) for rock-solid installation.
- NSF-listed and approved for use as a fryer, griddle, braising pan, steamer or holding oven.
Specifications
| Model | CS28-14 |
|---|---|
| Capacity | 42.6 gal | 160 L |
| Cooking Surface Area | 703 in² (28" × 25⅛") |
| Pan Interior Depth | 14" |
| Tilt Range | 10° manual crank |
| Working Height | 31" |
| Power & Rating | 11.8 kW electric |
| Standard Voltage | 240 V, 3-phase (28.4 A) Other voltages: 208 V, 380 V, 415 V, 440 V, 480 V (consult factory) |
| Draw-Off Valve | 1 ½" 304 SS compression type |
| Lid | 304 SS, actuator-assisted counter-balance with condensate drip shield & steam vent |
| Construction | All 304 SS food-contact zone, insulated pan & frame, seam-welded throughout |
| Agency Approvals | NSF, UL, CSA, ASME and others, as applicable |
Popular Accessories (sold separately)
- Perforated or solid 12 × 20 food pans – 2½", 4" or 6" deep
- Flexible spray-rinse hose (48")
- Automatic water-fill meter
- Ball-type draw-off valve kit (single or dual)
- Perforated cooking / steaming baskets (11" × 20½" × 5")
- Lockable lid or control cover for security applications
- Drain hose, strainer & #10 can holder
- Casters with restraining devices for mobile units
Installation Note: This unit ships for bolt-down installation with flanged front feet. Electrical connections must be made by a qualified professional. Allow adequate clearance for 10° forward tilt and lid swing.
Legion Industries reserves the right to modify product design or specifications without notice.
