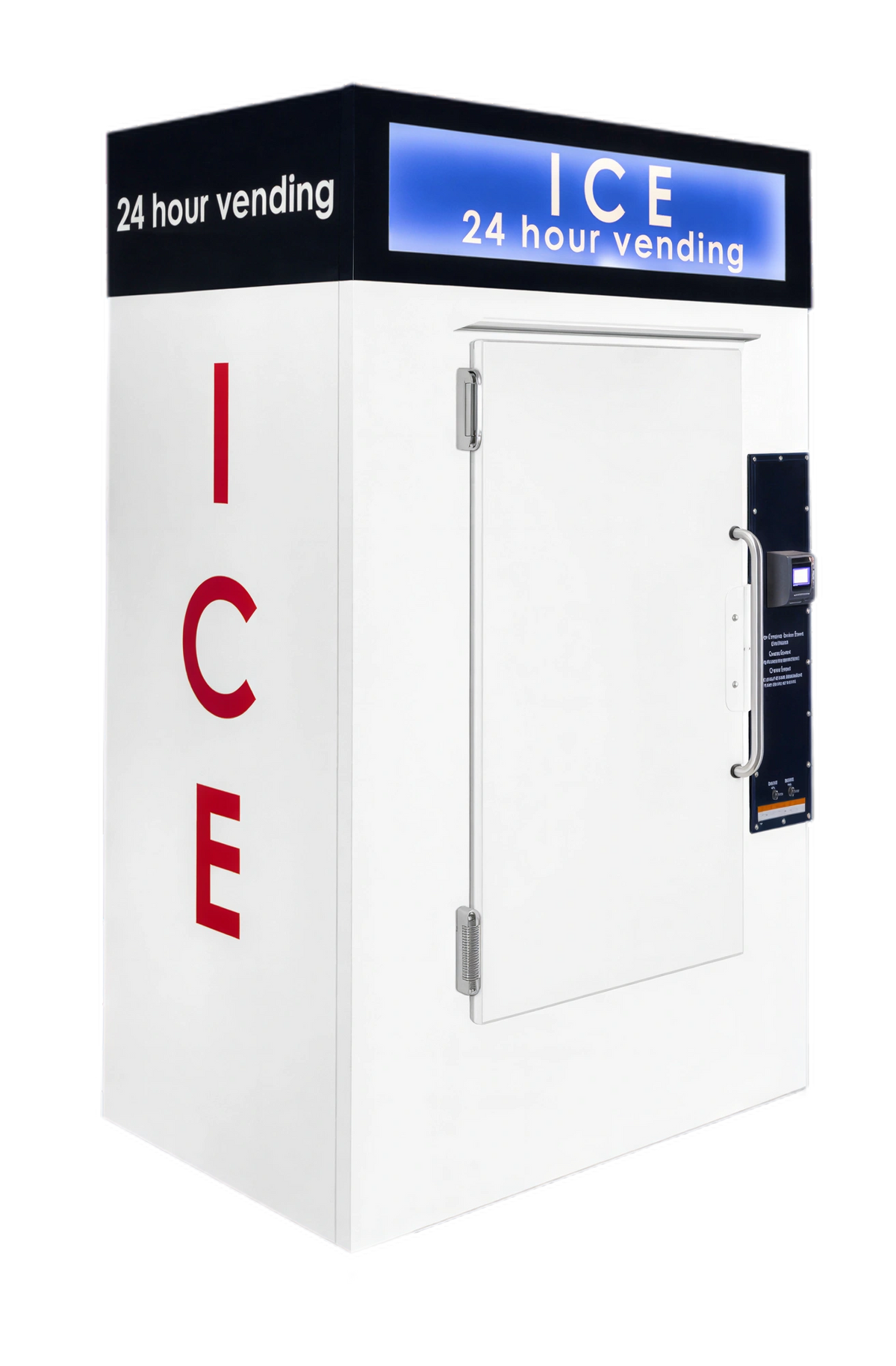

Leer 3524381 Ice Vending Machine, 40 cu. ft., Solid Door, Self-Contained Bottom-Mounted Refrigeration, Indoor
- Model designation
- VM40 Auto Defrost Solid Door - L040UASVPN
- Installation style
- Indoor
- Vending operation
- 24/7 unattended sales
- Storage capacity
- 40.0 cu. ft.
- Door type
- Solid
- Door material
- Galvanized steel
Specifications
Description
The Leer 3524381 is a VM40 ice vending machine for 24/7 unattended sales. It provides 40.0 cu. ft. of storage, a solid galvanized steel door, and self-contained bottom-mounted refrigeration.
- Temperature management: 16°F–24°F range, automatic defrost, and intelligent electronic controls.
- Construction: All-steel construction, high-performance insulation, and durable all-weather paint.
- Security: The door uses a 600 lb. electro-magnetic lock.
- Vending system: Integrated vending system for unattended operation.
- Refrigeration: R290 refrigerant with a 1/3 HP system rated at 115V/60/1-ph and 6.3 amps.
Overall Dimensions:
47.0"W x 34.62"D x 78.5"HProduct Weight:
435.0 lbUnattended vending
The integrated vending system supports 24/7 unattended sales.
Storage capacity
The machine provides 40.0 cu. ft. of storage with a large-capacity storage layout.
Temperature management
The specified temperature range is 16°F–24°F, with automatic defrost and intelligent electronic controls.
Self-contained refrigeration
Refrigeration is self-contained and bottom-mounted, using R290 refrigerant.

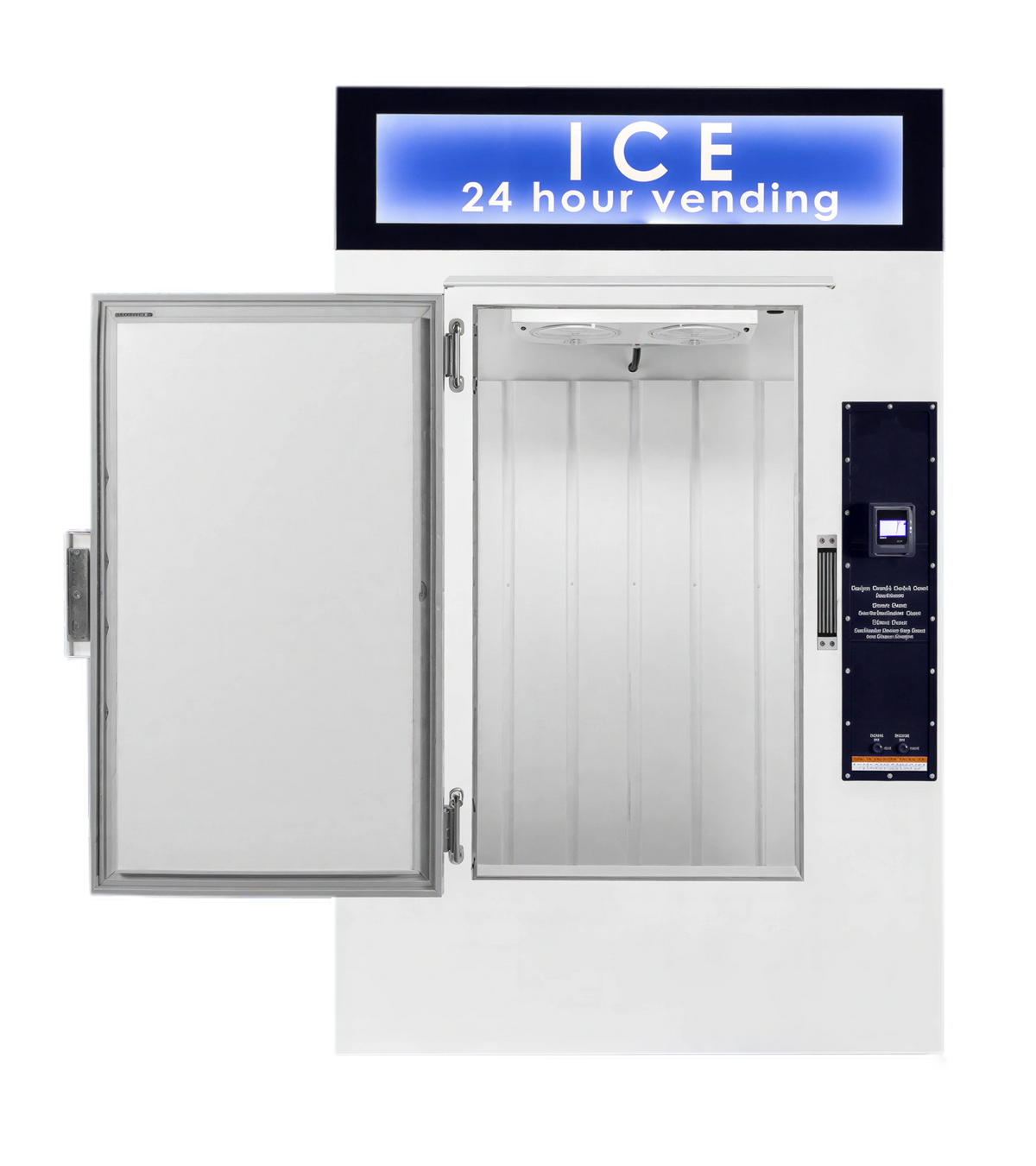

Solid galvanized steel door
The solid door measures 27.06 W x 46.06 H in.
Electro-magnetic lock
The door includes a 600 lb. electro-magnetic lock.
All-steel construction
The unit uses all-steel construction with high-performance insulation and durable all-weather paint.
Electrical specification
The unit is specified at 1/3 HP, 115V/60/1-ph, and 6.3 amps.
