Lang Manufacturing (Middleby) RI36C-ATE Induction Ranges
Description

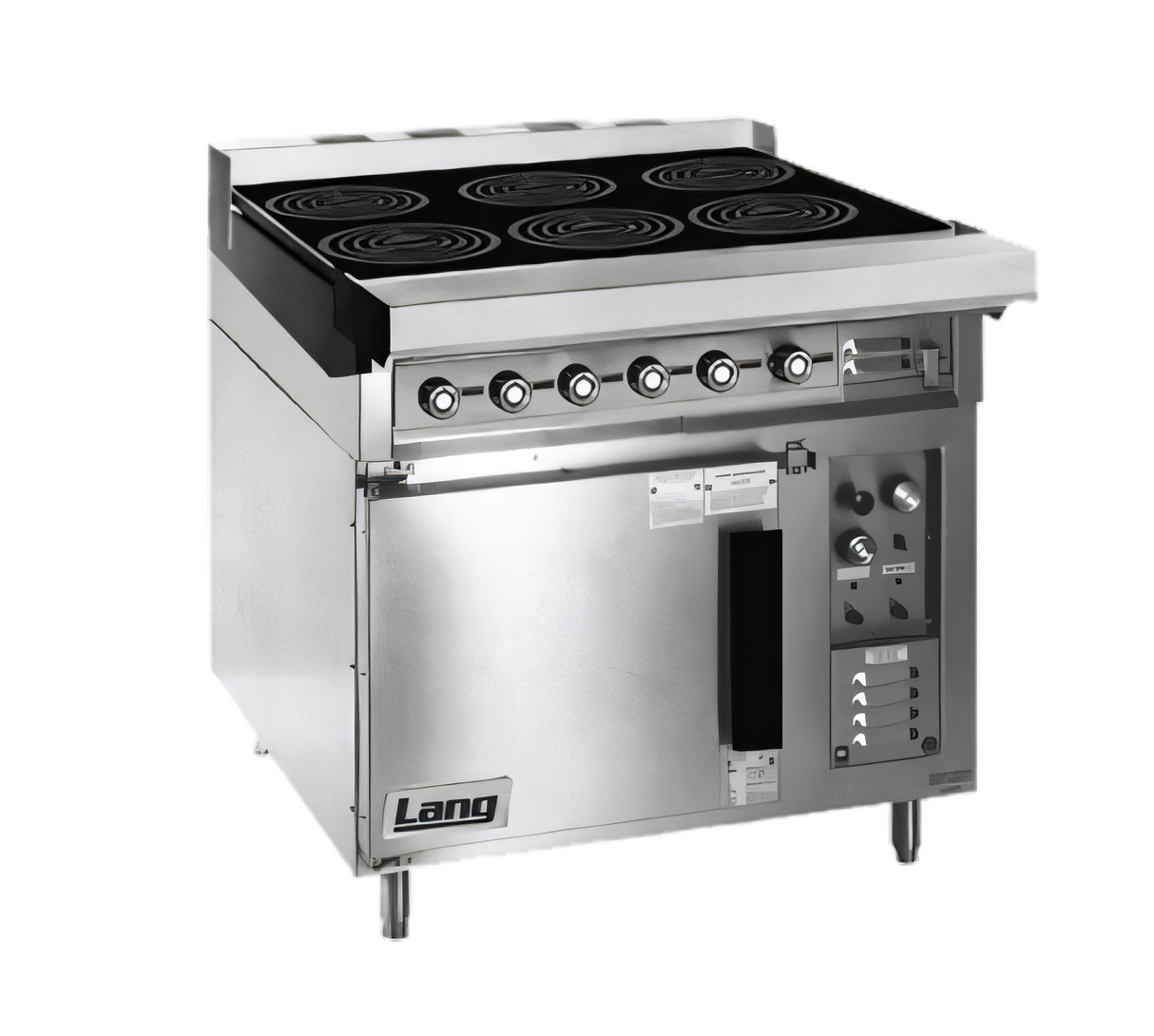

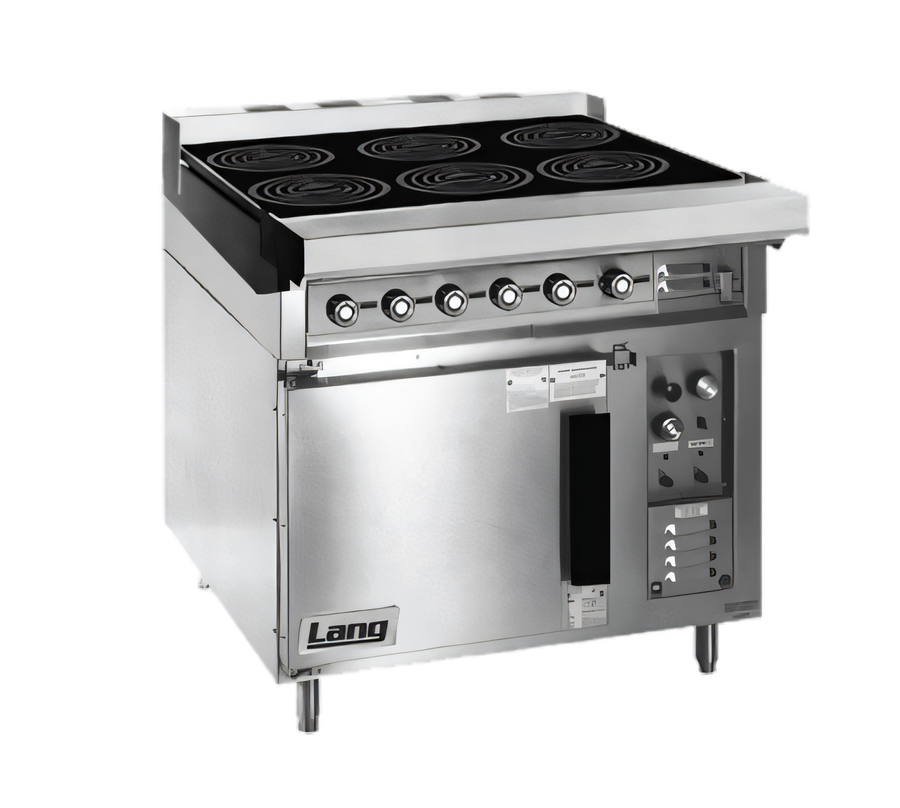

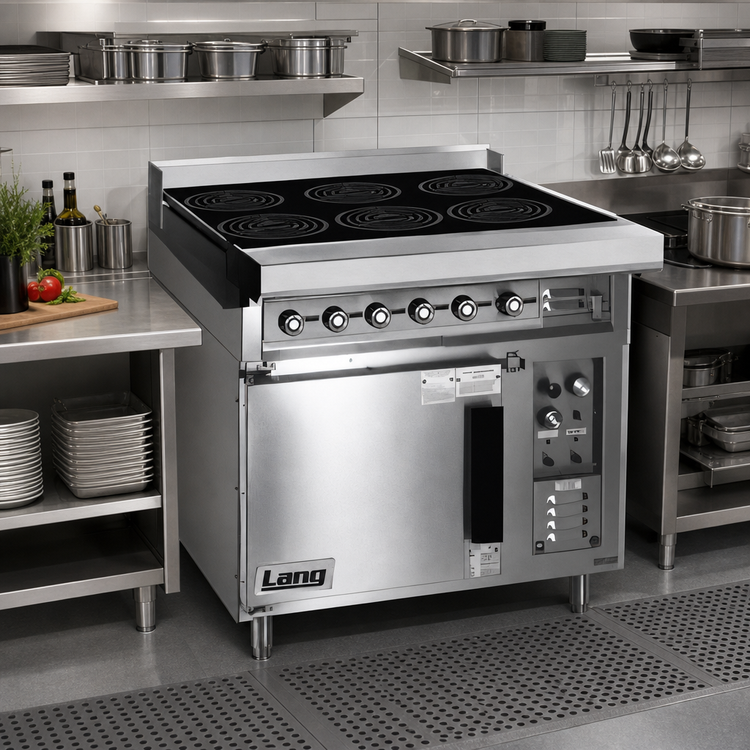

Lang RI36C-ATE 36" Electric Induction Range w/ Convection Oven Base
Six 8" glass induction hobs • 21.6 kW • cULus & NSF ListedGive your kitchen the speed, control and efficiency of induction with the durability chefs expect from Lang. The RI36C-ATE combines a high-output, 6-zone induction top with a full-size convection oven, packing serious performance into a 36" footprint that still fits through a standard doorway.
Key advantages
- Six independent 8" induction hobs deliver instant heat and up to 95 % cooking efficiency.
- 21.6 kW total power handles peak-hour production without breaking a sweat.

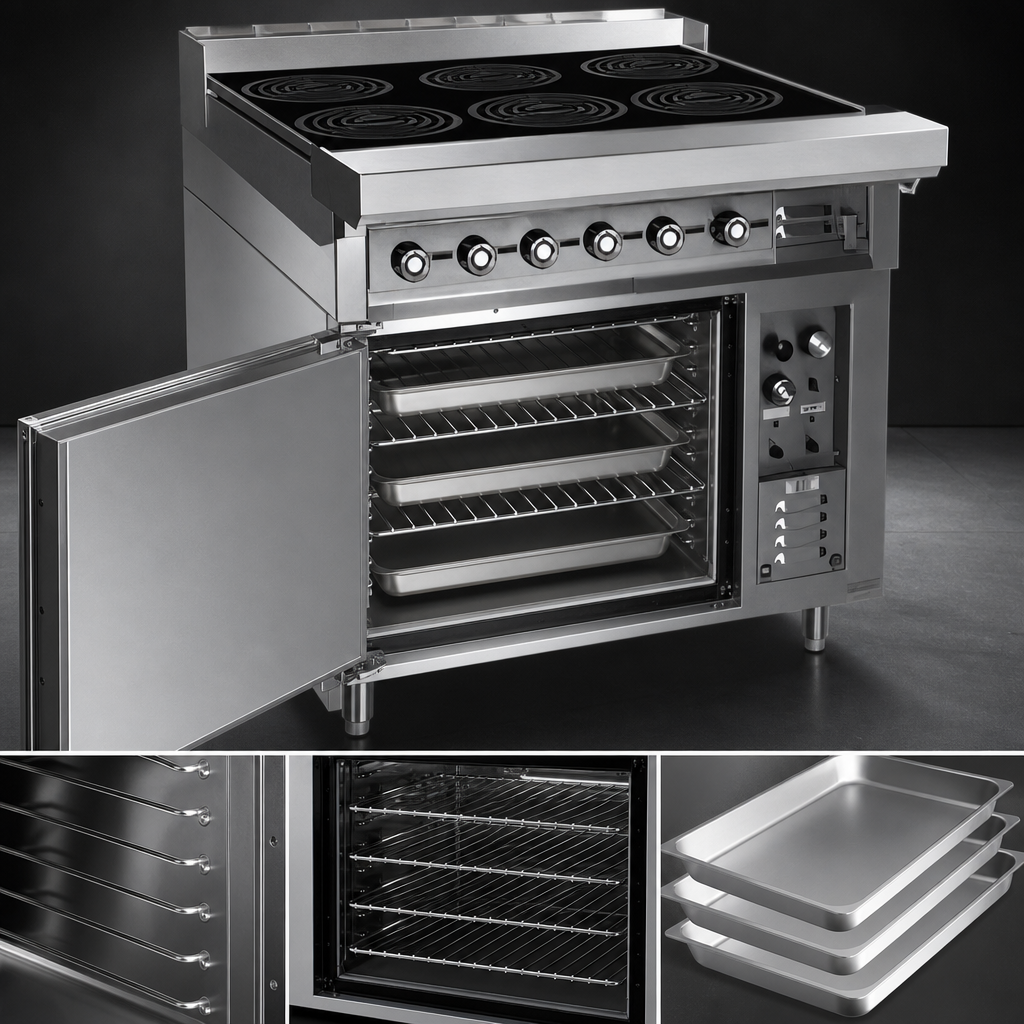

- Full-size convection oven accepts six 18" × 26" sheet pans and includes 3 chrome racks.
- Solid-state thermostat (150-450 °F) and 60-minute timer with audible alarm ensure precise results.
- One-piece 430 SS exterior, 6" adjustable legs and 2" stub back stand up to daily punishment.
- Front 3" grease trough, drain and full-width spillage drawers slash clean-up time.
- Ships in two sections—cooktop and oven base—for easy manoeuvring through 36" doorways.
- Backed by a 2-year parts & labour warranty plus lifetime oven-door mechanism coverage.
Performance & construction details

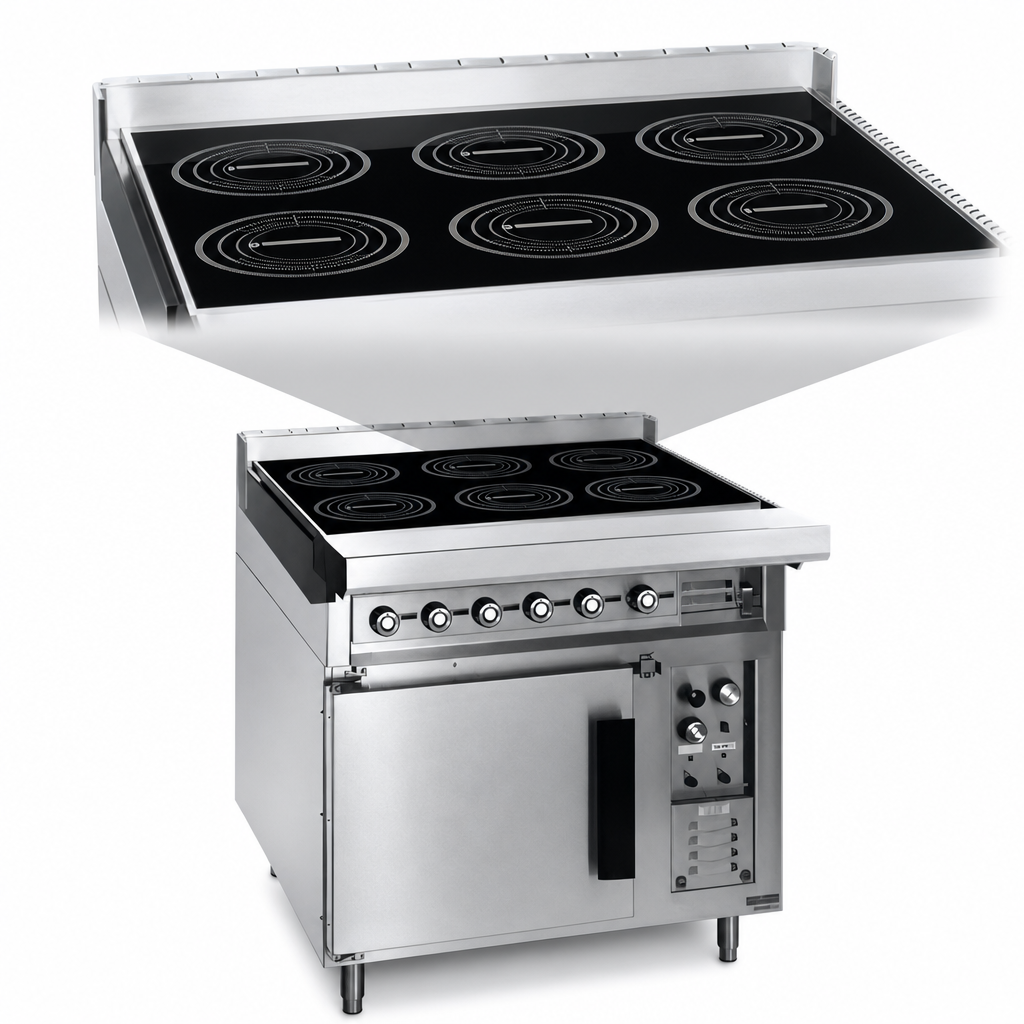

- 6 × 8" tempered-glass induction burners with individual thermostat controls.
- 17"-high aluminised steel oven cavity, fully insulated on six sides for energy savings.
- Heavy-duty right-hinged door with magnetic closure; field-proven for a lifetime of use.
- Six rack positions let you fine-tune airflow; three chrome racks included standard.
- 6" stainless landing ledge simplifies plating and holds finished dishes.
- Optional 6" locking casters and overhead storage rack available.
- Meets commercial sanitation & safety standards—NSF, cULus.
Technical specifications
| Model | RI36C-ATE |
|---|---|
| Range top | 6 × 8" glass induction hobs, individual controls |
| Oven type | Convection, 6 rack positions, 3 racks included |
| Oven temperature | 150 – 450 °F (solid-state thermostat) + 60-min timer & damper |
| Total power | 21.6 kW @ 208/240 V, single- or three-phase |
| Amps/line | 208 V 1 ph 103.8 A • 240 V 1 ph 90.0 A • 208 V 3 ph 69.2 A • 240 V 3 ph 59.9 A |
| Exterior dimensions | 36" W × 38" D × 38.2" H (with 6" legs) |
| Clearances | 4" sides & back (combustible surfaces) |
| Weight | 380 – 475 lb actual (430 – 525 lb shipping) |
| Certifications | cULus, NSF |
| Warranty | 2-year parts & labour; lifetime oven-door mechanism |
Ships from the factory in two pieces (cooktop & oven base). Installation under an approved vent hood, with electrical connection from the bottom of the unit, is required. Induction cookware with a magnetic base is necessary for operation.
Looking for added mobility? Ask about optional heavy-duty casters or extra oven racks.
