Lang Manufacturing (Middleby) R36S-ATFM Lang® Marine Electric Ranges
Description

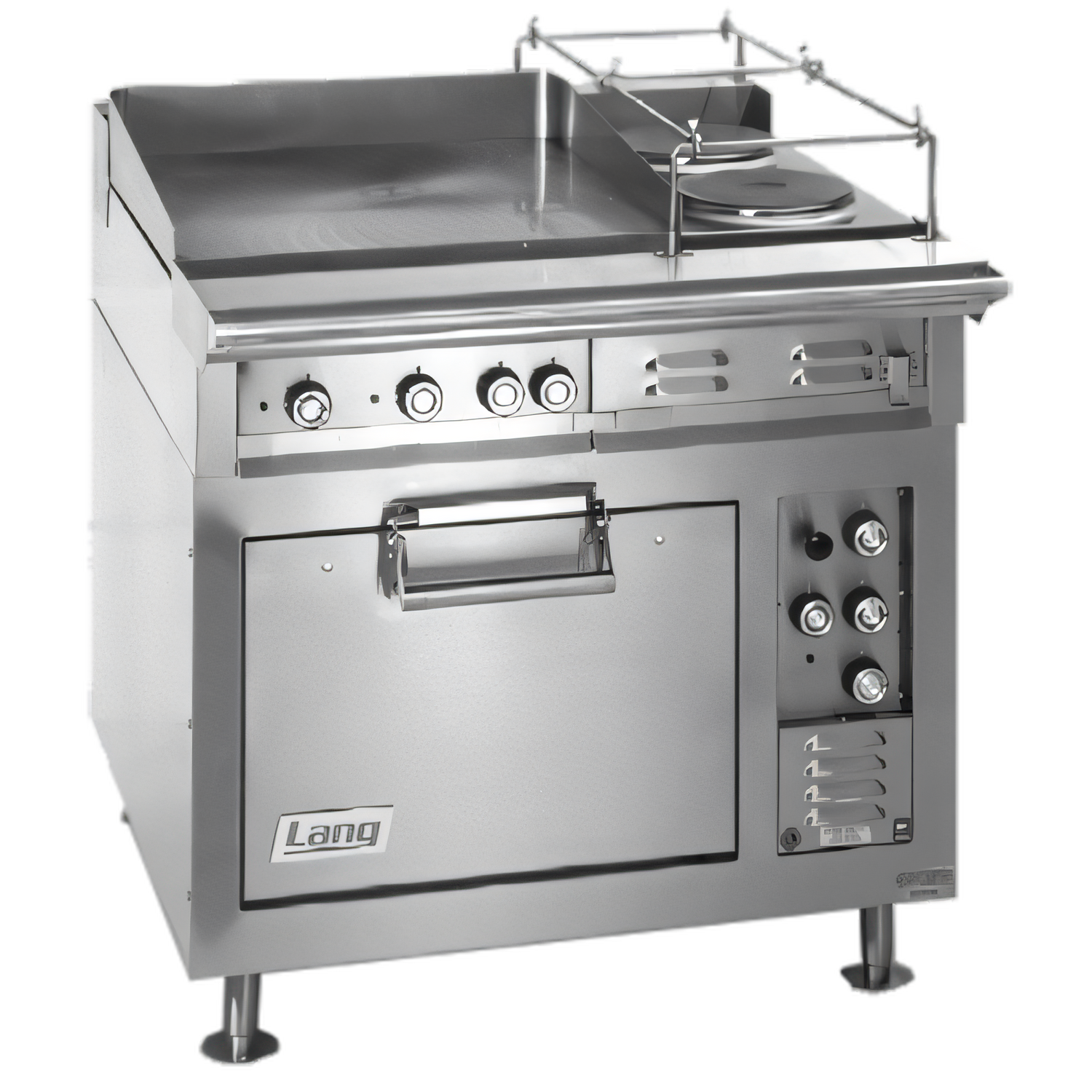

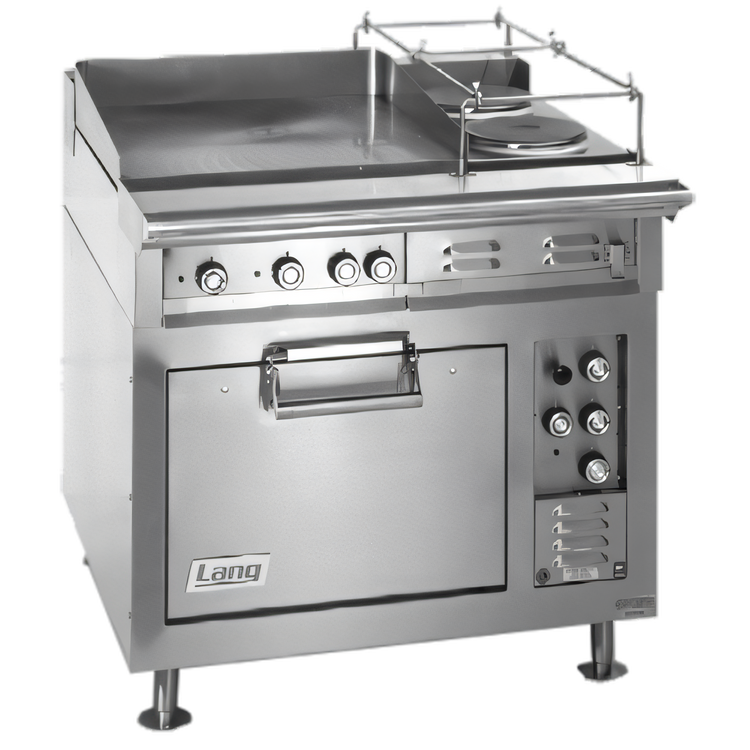

Lang® Marine 36" Electric Heavy-Duty Range
Model R36S-ATFM • 4 French Plates + 12" Hot Top • Standard Oven BasePurpose-built for today’s blue-water galleys, this two-piece, hatchable range delivers the robust cooking power Lang is famous for—without sacrificing the footprint every vessel fights for.
Galley-Grade Advantages

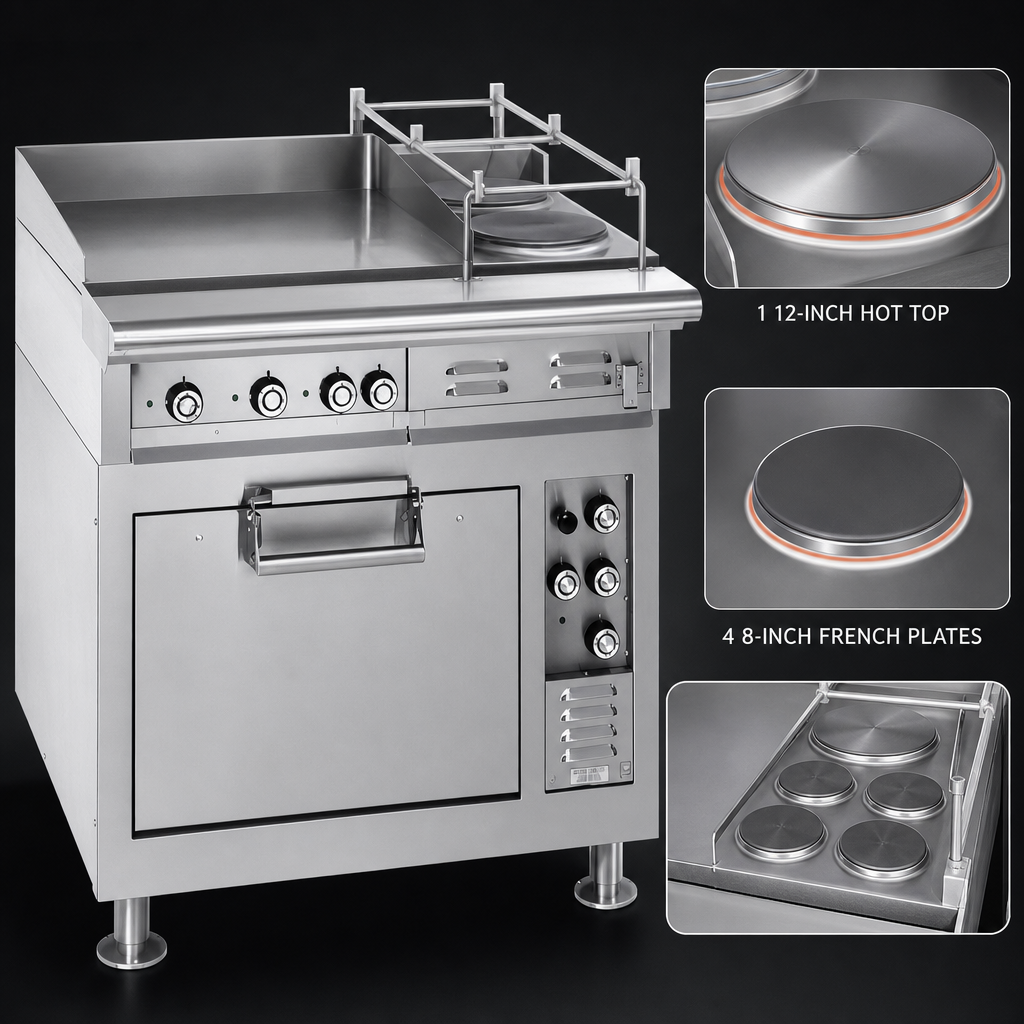

- Five-zone cast-iron surface: (4) 8" French plates + (1) 12" × 24" 850 °F hot top
- Standard oven base with 3 rack positions & 1 chrome rack included
- 150–450 °F solid-state oven thermostat with 60-minute timer & audible alarm
- 430 series stainless-steel exterior with No. 4 marine finish resists corrosion & spray
- Sea rail and full-width grab bar keep cookware secure in heavy seas

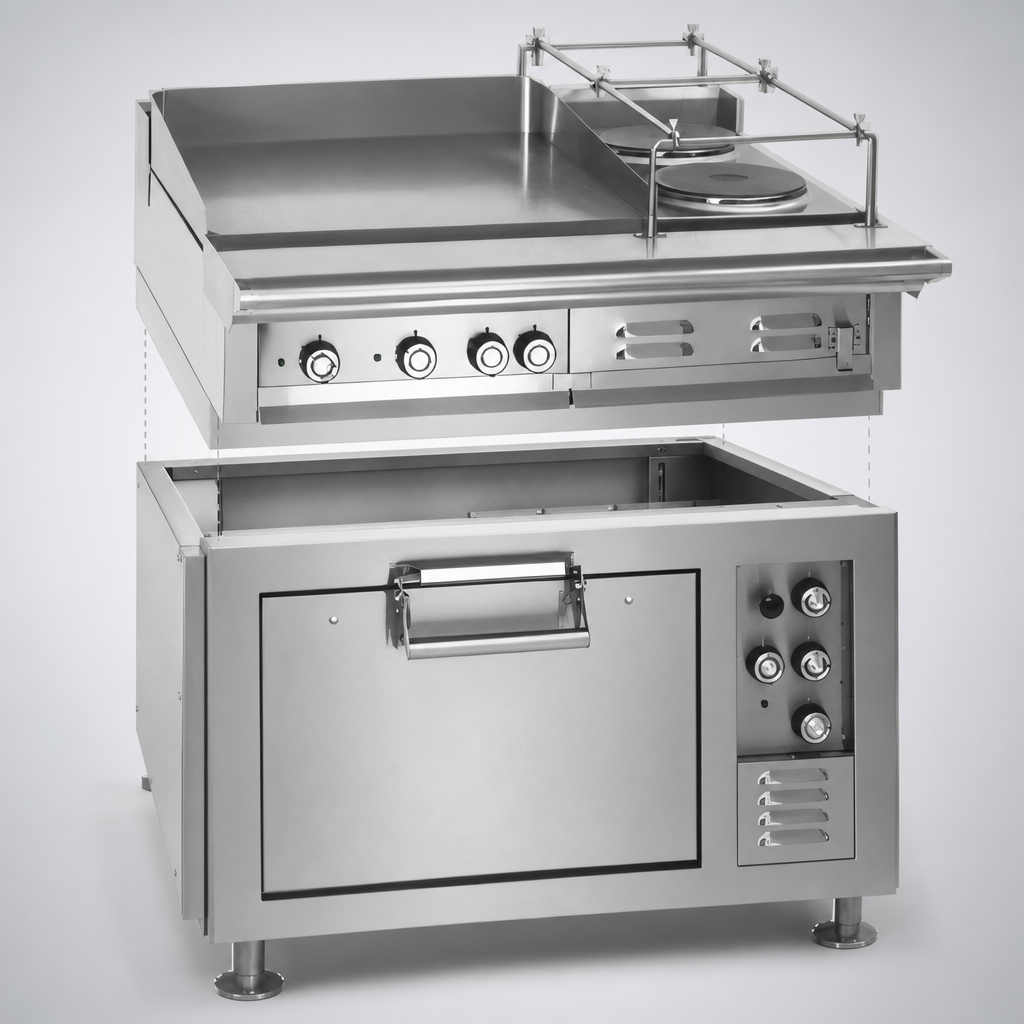

- 2-piece construction passes through a 26" × 66" watertight hatch for easy installs
- 2 ¾" full-width grease trough with drain and removable spillage drawers
- 6" flanged, bolt-down legs for rock-solid deck mounting
- Incoloy sheathed elements + 3" insulation on all oven sides for energy efficiency
- Certified UL Marine, NSF & cULus for global code compliance
Built to Weather Every Watch
- Independent controls let your crew sauté, simmer and sear simultaneously
- Broad 12" hot top handles stock pots or pan warming without open flames
- Oven accepts a full 18" × 26" sheet pan—perfect for batch baking and roasting
- All-electric design removes combustion gases and simplifies service parts
- Bright, front-mounted control graphics are intuitive—even on a rolling deck
Technical Specifications
| Overall width | 36" (914 mm) |
|---|---|
| Overall depth | 40.6" (1 031 mm) |
| Overall height (with legs) | 41.7" (1 059 mm) |

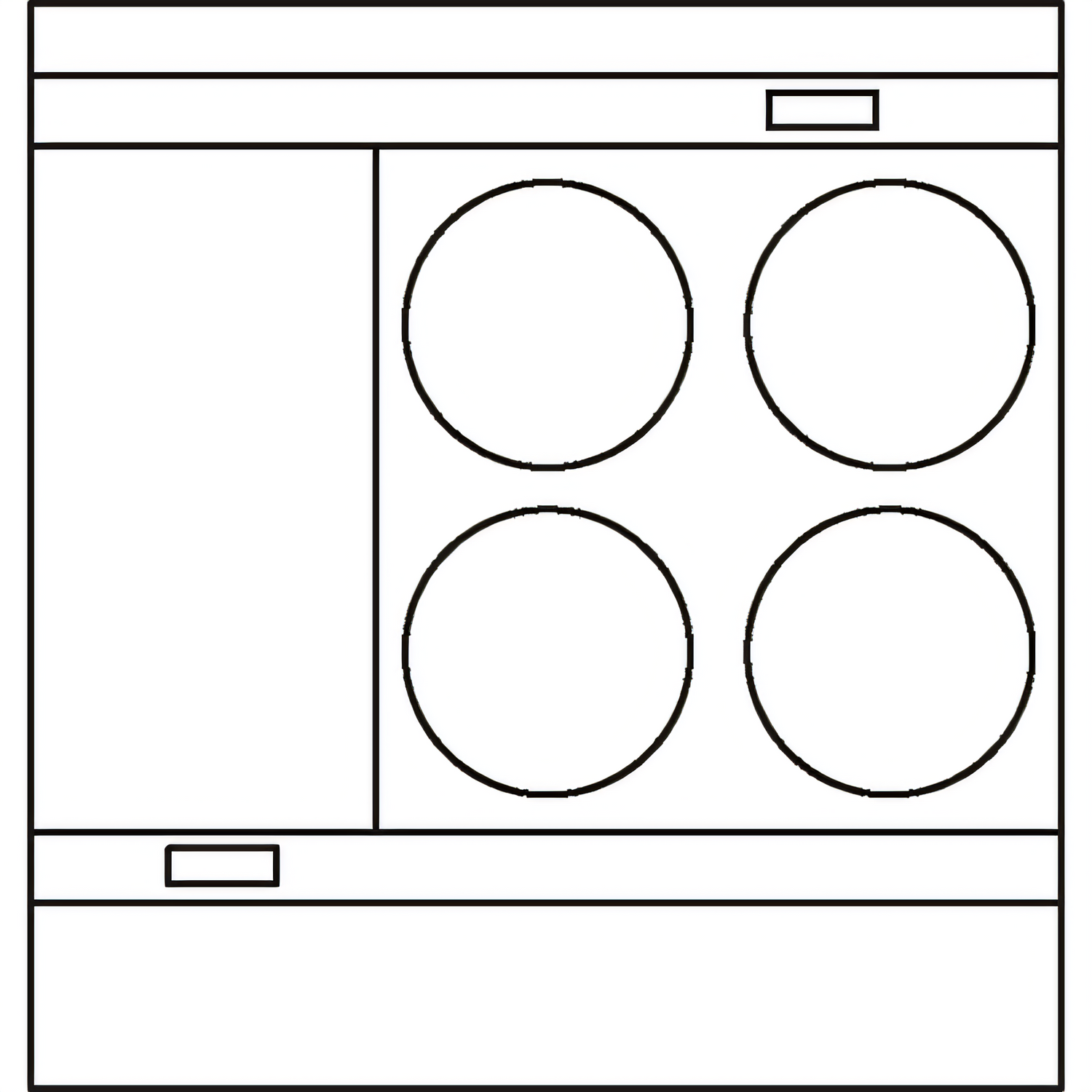

| Cooktop configuration | (4) 8" French plates & (1) 12" × 24" hot top |
| Oven interior | Fits 18" × 26" full sheet pan • 3 rack positions / 1 rack supplied |
| Temperature range | 150–450 °F (66–232 °C) oven |
| Total input | 21 kW |
| Electrical | 208 V or 240 V, 1- or 3-phase • 440/480 V 3-phase optional |
| Amperage @ 208 V | 101 A (1 φ) / 66.7 A (3 φ) |
| Construction | 430 SS exterior • aluminized-steel oven liner • Incoloy elements |
| Clearances | 4" (100 mm) sides & rear to combustibles |
| Approx. weight | 425–520 lb (193–236 kg) |
| Certifications | UL Marine, NSF, cULus Classified |
Need alternate voltages, thicker griddle plates or custom options? Contact us—Lang’s factory modifications ship fast.
From sunrise chow to midnight watch, count on the Lang® Marine 36" range to keep your crew fed and your galley ship-shape—no matter how rough the seas.
