Lang Manufacturing (Middleby) R36S-ATF Electric Ranges
Description

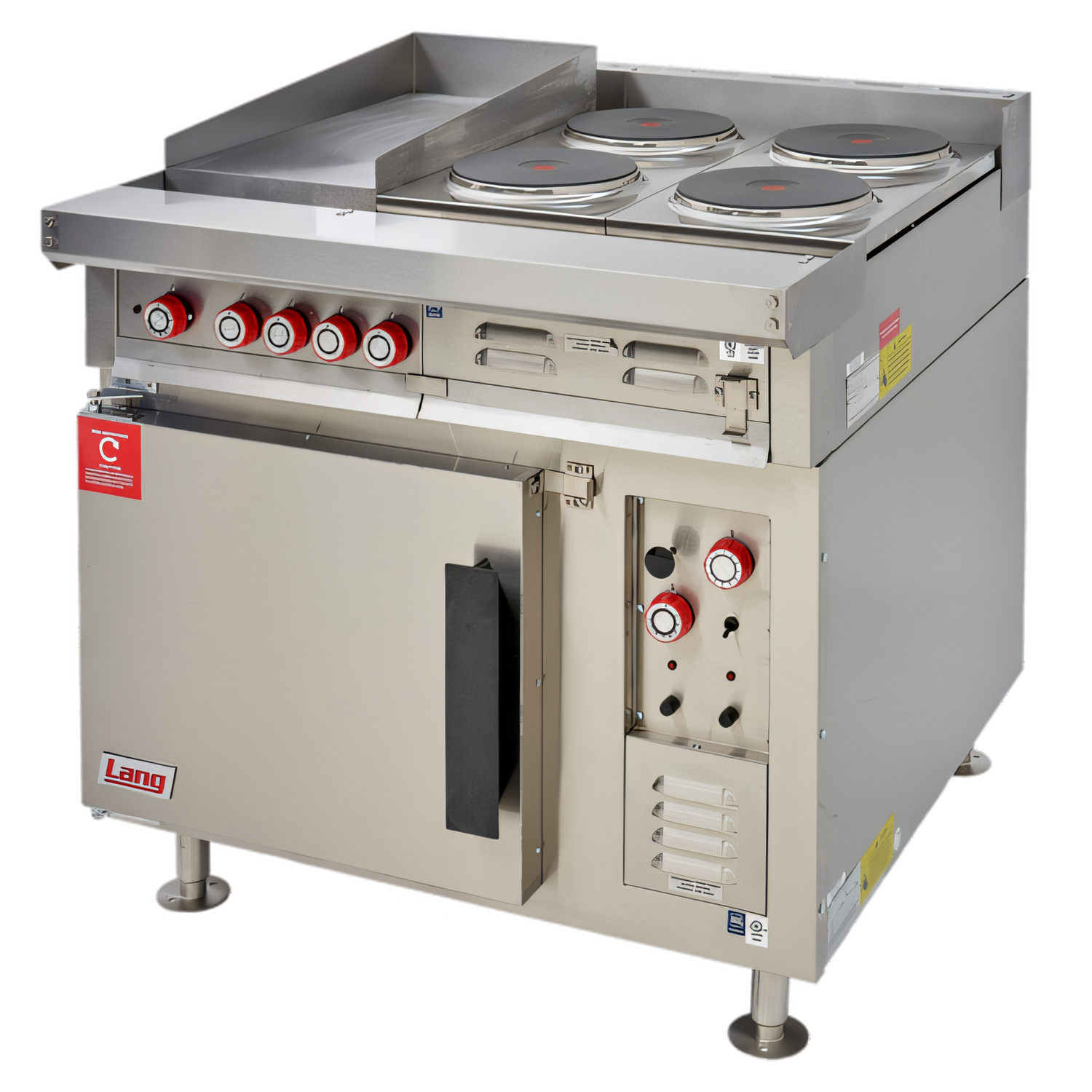

Lang R36S-ATF 36" Heavy-Duty Electric Range – 1 Hot Top & 4 French Plates with Standard Oven
21 kW total input | cULus & NSF ListedEngineered for demanding commercial kitchens, the Lang R36S-ATF combines a powerful multi-zone cooktop with a full-size oven in a compact 36-inch footprint. From searing in stock pots to finishing delicate sauces, this all-electric workhorse delivers the flexibility, durability and precision today’s chefs expect.
Top reasons to choose the R36S-ATF
- Versatile 5-zone surface – One 12" × 24" × 3/4" cast-iron hot top plus four 8" sealed French plates cover every cooking style.
- Precise, independent controls – Hot-top thermostat to 850 °F and individual 6-position switches for each French plate put exact temperatures at your fingertips.
- Full-size oven productivity – 150-550 °F thermostat, 60-minute timer and a chrome rack accommodate an 18" × 26" sheet pan.
- Built to last – Rugged 430-series stainless exterior, Incoloy sheathed elements and spring-assisted door withstand the toughest shifts.
- Fast, easy clean-up – 2-3/4" front grease trough, spillage drawer and smooth stainless surfaces slash downtime.
- Installation friendly – 2" vented stub back fits under low hoods; 6" adjustable legs with bolt-down flanges ensure rock-solid placement.
- Safety & compliance – cULus listed and NSF certified for worry-free operation in any regulated food-service environment.
Cooktop details

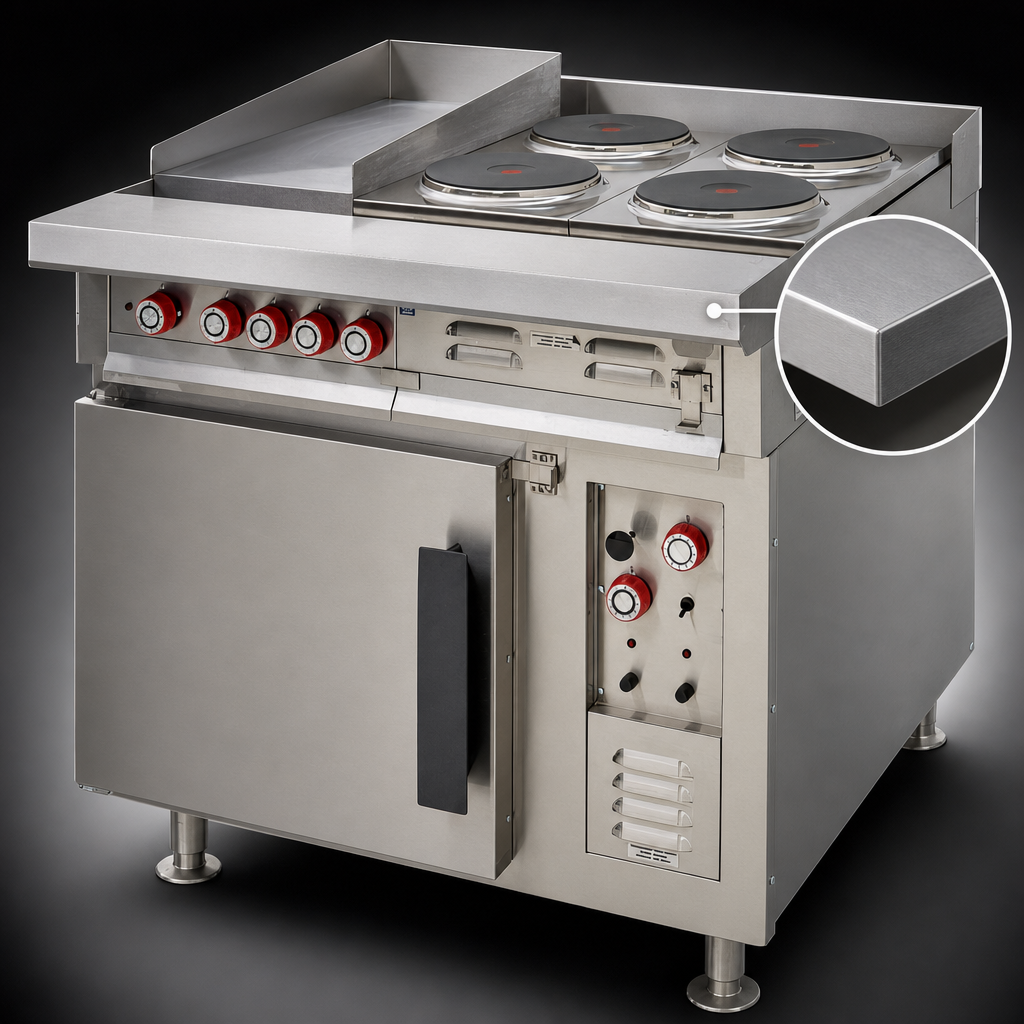

- 1 × 12" W × 24" D hot top, 3/4" thick cast iron
- 4 × 8" diameter, 2.6 kW French plates
- Individual indicator lights and front-mounted controls
- Full-width 2-3/4" grease trough with drain & removable drawer
Oven performance
- Standard bake oven, aluminized-steel interior
- 150-550 °F thermostat with separate top/bottom element selectors
- Holds one full sheet pan (18" × 26")
- Heavy-duty chrome rack supplied; 9 rack positions
- 60-minute electric timer with audible alarm
Specifications
| Overall dimensions (HxWxD) | 41.7" × 36" × 40.6" (with 6" legs) |
|---|---|
| Cooking height | ≈ 34" |
| Total power | 21 kW |
| Voltage options | 208 V or 240 V 1/3-phase; 440/480 V 3-phase |
| Amps @ 208 V | 101 A (1-phase) / 66.7 A (3-phase) |
| Amps @ 240 V | 87.5 A (1-phase) / 57.8 A (3-phase) |
| Clearances | 4" sides & rear from combustibles |
| Shipping weight | ≈ 475 lb (varies by options) |
| Exterior finish | 430-series stainless steel, No. 4 finish |
| Certifications | cULus, NSF |
| Warranty | 1-year parts & labor |
Need a thicker 1" griddle plate, marine sea rails or custom voltage? Our team can configure the R36S-ATF to match your exact spec.
Upgrade your line today—add the Lang R36S-ATF to your cart and give your kitchen uncompromising power, precision and longevity.
