Lang Manufacturing (Middleby)  |  Lang® Marine  |  SKU: R36S-ATEM

Lang Manufacturing (Middleby) R36S-ATEM Lang® Marine Electric Ranges

$19,306.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Warranty sheet
Related Searches
Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Lang® Marine 36" Heavy-Duty Electric Range

Model R36S-ATEM | Six 8" French Plates + Standard Oven Base

Built for blue-water galleys yet ready for any commercial kitchen, the Lang® Marine ATEM delivers uncompromising power, rugged marine construction, and precision cooking control in a compact, hatchable footprint.

Why you’ll love it

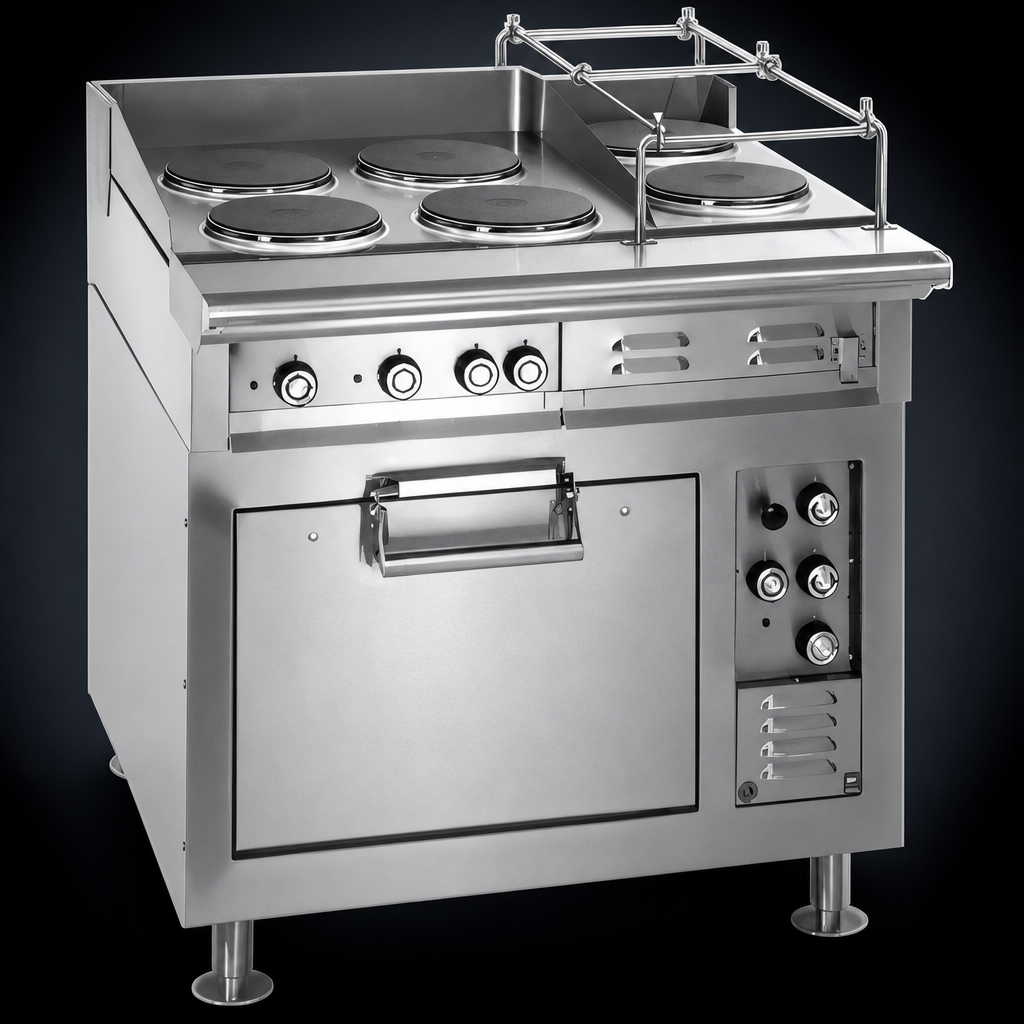

  • Six oversized 8" French plates with individual 6-heat switches for multi-zone sautéing, boiling, and searing.
  • Standard bake oven (18" × 26" sheet-pan capacity) with solid-state 150-450 °F thermostat and 1-hour timer.
  • Marine-ready: 430 series stainless exterior, full-width grab bar, sea rail, flanged bolt-down legs, and 2-piece hatchable design that fits through a 26" × 66" watertight hatch.
  • 3" high-density insulation plus Incoloy-sheathed elements for fast recovery and energy efficiency.
  • 2" vented stainless stub back keeps bulkheads clean while maintaining a low profile under overhead equipment.
  • UL Marine, NSF & cULus Classified for worry-free code compliance worldwide.

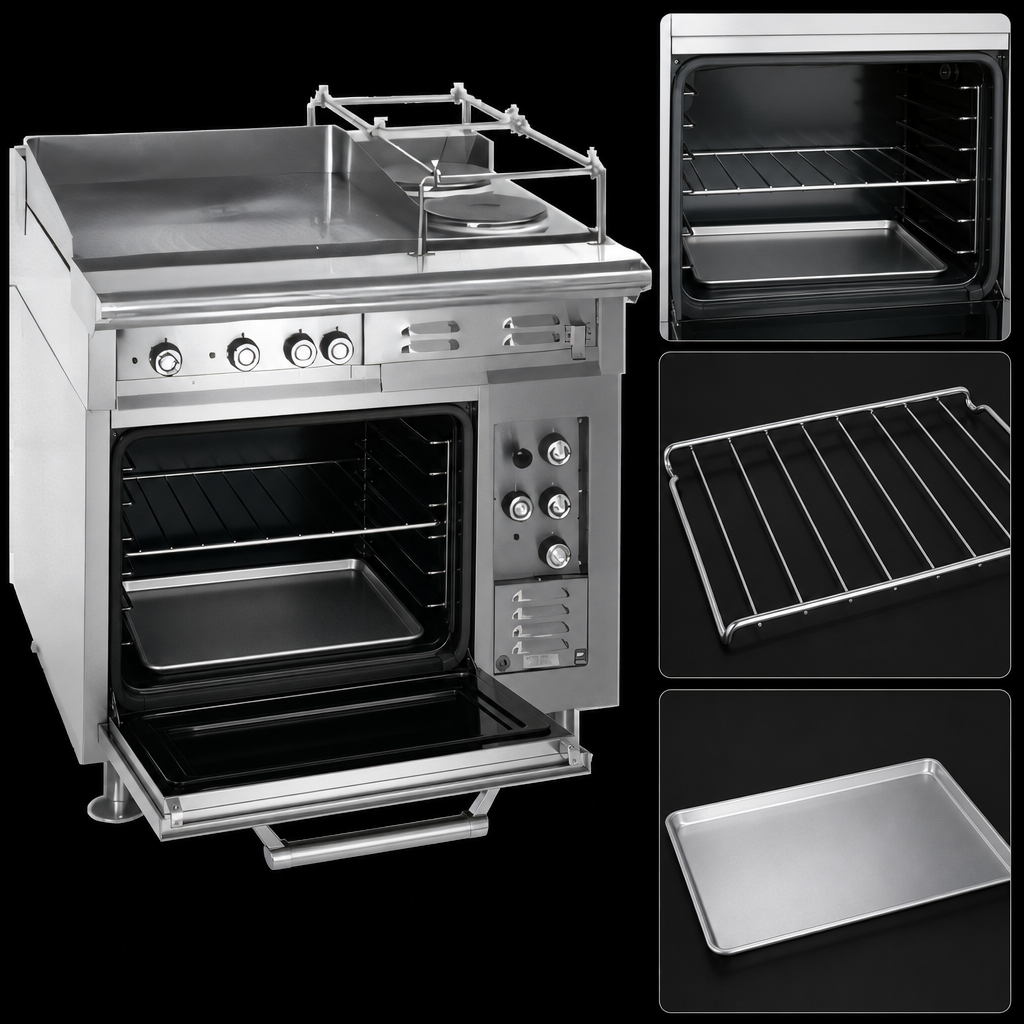

Oven performance
  • Three rack positions; one chrome rack included.
  • 12" high aluminized-steel cavity with spring-assisted, latch-secured door.
  • Independent top & bottom elements for even bake results.
  • Holds one full-size (18" × 26") sheet pan.
Built for the sea
  • Two-piece modular body simplifies on-board installation.
  • Full-width 2 ¾" front grease trough with drain and deep spillage drawers for quick cleanup.
  • Hinge-down cook-top for easy service access; no loose screws in rough seas.
  • 6" adjustable stainless legs with bolt-down flanges keep the range anchored in heavy weather.
Specifications
Cook-top (6) 8" diameter French plates, each with 6-heat switch
Oven capacity One 18" × 26" full sheet pan, 3 rack positions (1 rack included)
Thermostat range 150 °F – 450 °F (65 °C – 232 °C)
Electrical load 21 kW @ 208 V or 240 V; 17.6 kW @ 440 V; 21 kW @ 480 V
3-Phase Amps: 66.7 A (208 V) / 57.8 A (240 V) / 26.5 A (440 V) / 28.9 A (480 V)
1-Phase Amps: 101 A (208 V) / 87.5 A (240 V)
Dimensions (H × W × D) 41.7" × 36.0" × 40.6" (1053 × 914 × 1031 mm)
Shipping weight Approx. 475-570 lb (216-259 kg)
Certifications UL Marine, NSF, cULus Classified
Warranty 2-year parts & labor (Marine series)
Installation notice: This high-wattage appliance must be hard-wired by a qualified marine electrician in accordance with local and vessel codes and operated under an approved ventilation hood.

Need a different top configuration or thicker griddle plate? Contact us for custom options and lead times.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Brand_name

Lang® Marine

Certifications

NSF, cULus Classified, UL

Height

41.7in

Width

36.0in

Depth

40.6in

Shipping Weight

485.0lbs

Base

(1) standard oven

Top

(6) hotplates / french plates

Exterior Finish

all stainless steel exterior

Vent

backriser

Specifications

Lang® Marine Heavy Duty Range, electric, 36", (6) 8" French plates, standard oven base with (3) rack positions, (1) oven rack, 150-450°F solid state thermostat with 1-hour timer, 2" vented stainless steel stub back, 430 stainless steel exterior, flanged bolt-down legs, grab bar, sea rail, 2-piece hatchable construction, UL Marine, NSF, cULus Classified
