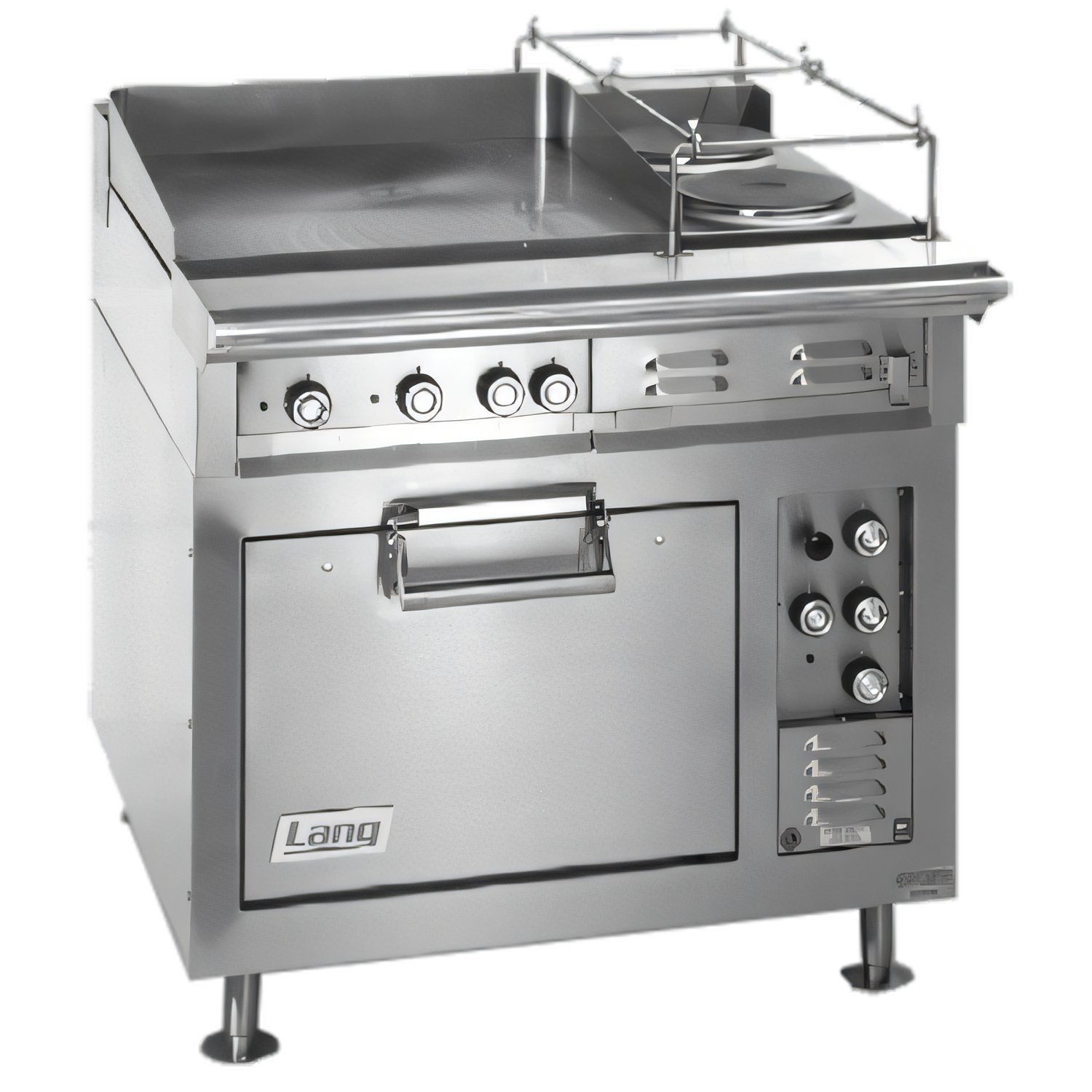

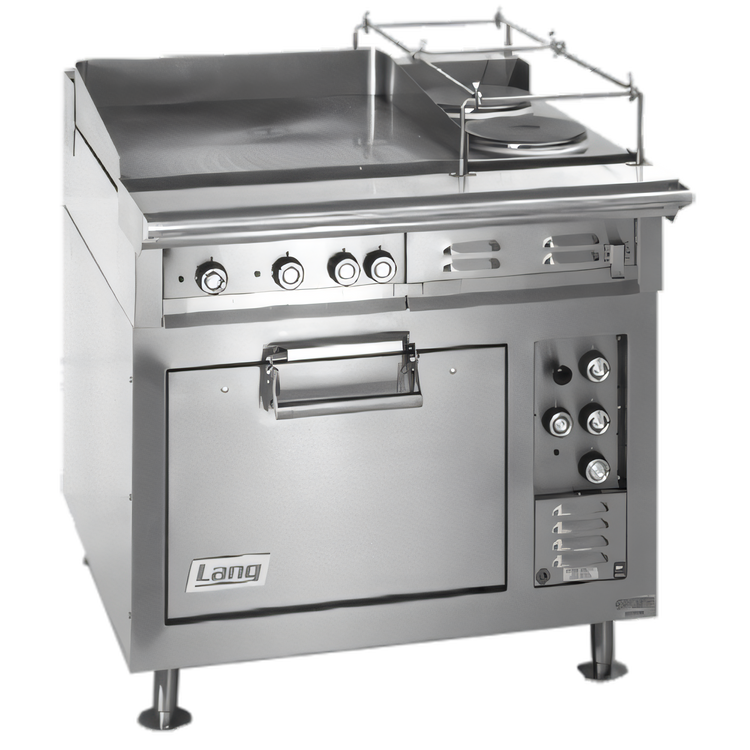

Lang Marine Heavy-Duty 36-Inch Electric Range with Snap-Action Griddle and Standard Oven Base

2-Piece Hatchable Construction, 430 Stainless Exterior, Sea Rails, Bolt-Down Legs

Purpose-built for marine galleys, this rugged 36-inch electric range pairs a snap-action griddle with a standard oven in a hatchable stainless steel design.

  • 36-inch electric marine range with a 36-inch x 24-inch x 1/2-inch snap-action griddle.
  • Standard oven base includes 3 rack positions and 1 oven rack for flexible baking and roasting.
  • Two-piece hatchable construction is designed to move through a 26-inch x 66-inch watertight hatch.
  • 430 stainless steel exterior, sea rails, front grab bar, and flanged bolt-down legs support demanding vessel use.
  • Independent oven and cooktop controls help deliver precise, multi-function cooking.
  • Grease trough, grease drain, and spillage drawers simplify cleanup and daily maintenance.

Overall Dimensions:

36.0"W x 40.6"D x 41.7"H

Product Weight:

500.0 lb

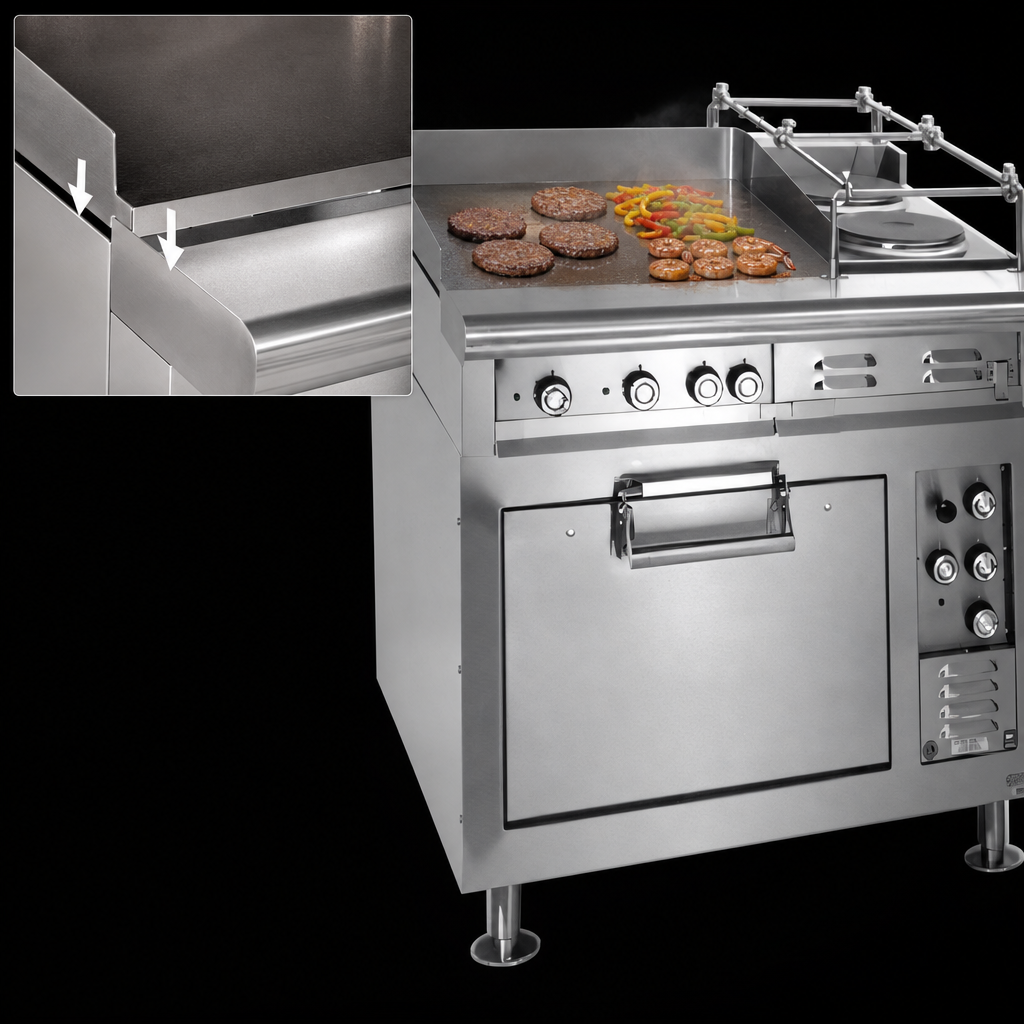

Snap-Action Griddle Top

The 36-inch wide, 1/2-inch thick griddle provides a durable flat-top cooking surface for high-volume service.

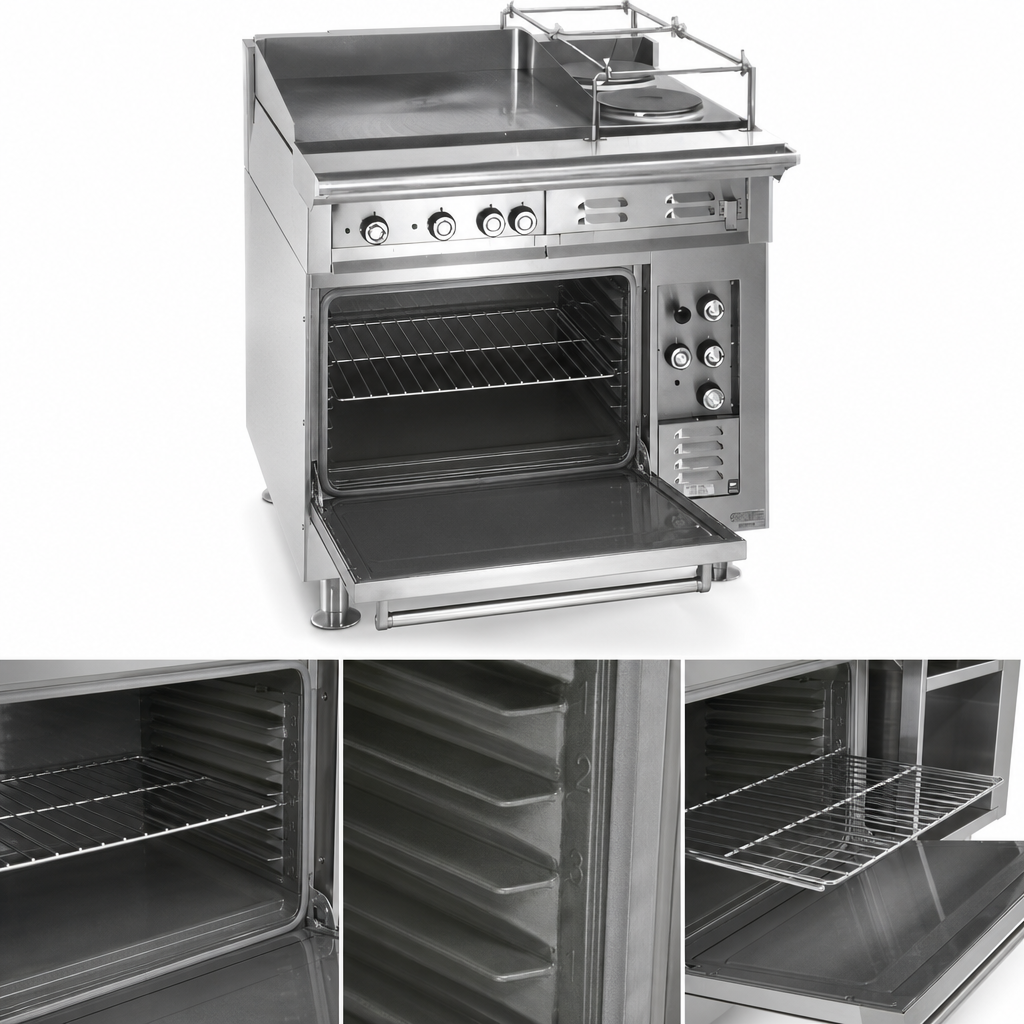

Standard Oven Base

Includes a single oven base with 3 rack positions and 1 oven rack for everyday roasting and baking.

Two-Piece Hatchable Construction

Modular construction helps the range fit through tight marine access points, including a 26-inch x 66-inch watertight hatch.

Marine-Ready Handling Hardware

Sea rails, a full-width front grab bar, and flanged bolt-down legs improve stability and handling aboard vessel installations.

Stainless Steel Exterior and Stub Back

A 430 stainless steel exterior with a 2-inch vented stainless steel stub back is built for marine duty and easier cleaning.

Solid-State Heat Control

Solid-state thermostat control with a 1-hour timer supports accurate temperature management during cooking.

Cleanup-Friendly Design

A full-width grease trough, grease drain, and spillage drawers help speed cleaning between shifts.

Insulated Oven Section

The oven compartment is fully insulated and features an aluminized steel interior for dependable heat retention.

Type Electric Range with Standard Oven Base
Style Marine
Installation Type Floor Model
Material 430 Stainless Steel
Finish No. 4 Finish
Interior Finish Aluminized Steel
Controls Solid State Thermostat with Timer
Temperature Range 150 to 450°F
Capacity 1 Full-Size Sheet Pan
Cooking Surface Width 36 Inches
Cooking Surface Depth 24 Inches
Shipping Width 36 Inches
Shipping Depth 41 Inches
Shipping Height 42 Inches
Shipping Weight 500 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

Warranty documentation conflicts: the cutsheet lists 1 year parts and labor, while the 2023 warranty sheet lists Lang Marine at 2 years parts and labor.

Frequently Asked Questions

It comes with a 36-inch wide, 1/2-inch thick snap-action griddle.
Yes. It has a standard oven base with 3 rack positions and 1 oven rack included.
Yes. The two-piece hatchable construction is designed to pass through a 26-inch x 66-inch watertight hatch.
The installation requirements list 208V or 240V, single- or three-phase, as well as 440V or 480V three-phase connections.
Yes. Installation under an approved vent hood is required.
