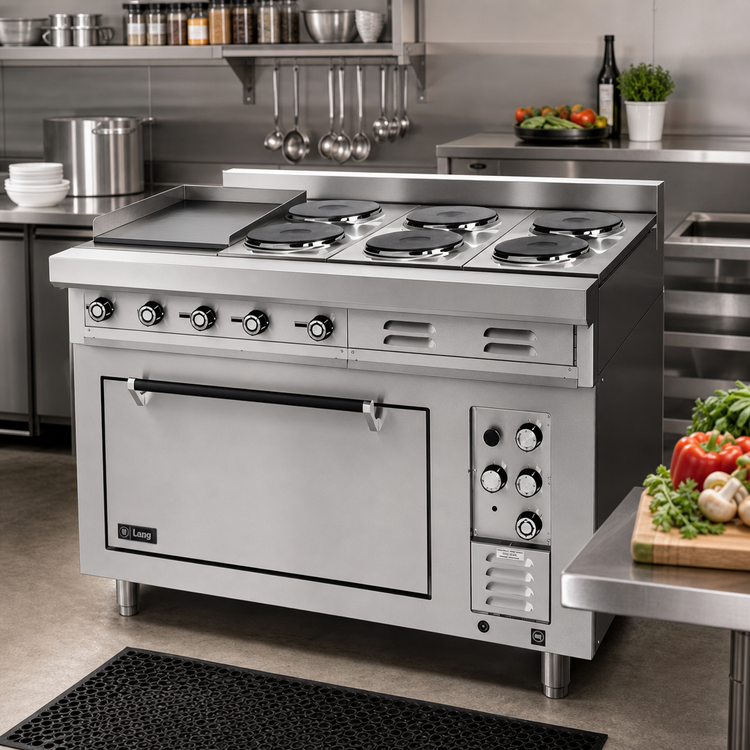

Lang Manufacturing (Middleby) R36S-ATD Electric Ranges

Lang 36" Heavy-Duty Electric Range w/ Full-Width Thermostatic Griddle & Standard Oven

Built for high-volume kitchens that need precision, power and durability, the Lang R36S-ATD combines a 36" three-zone griddle with a fully insulated standard oven—all in one rugged, stainless-steel platform.

Key benefits at a glance

• 36" x 24" griddle plate, 1/2" thick for fast recovery & even heat
• Three independent 450 °F thermostats—one every 12"—deliver multi-zone cooking flexibility

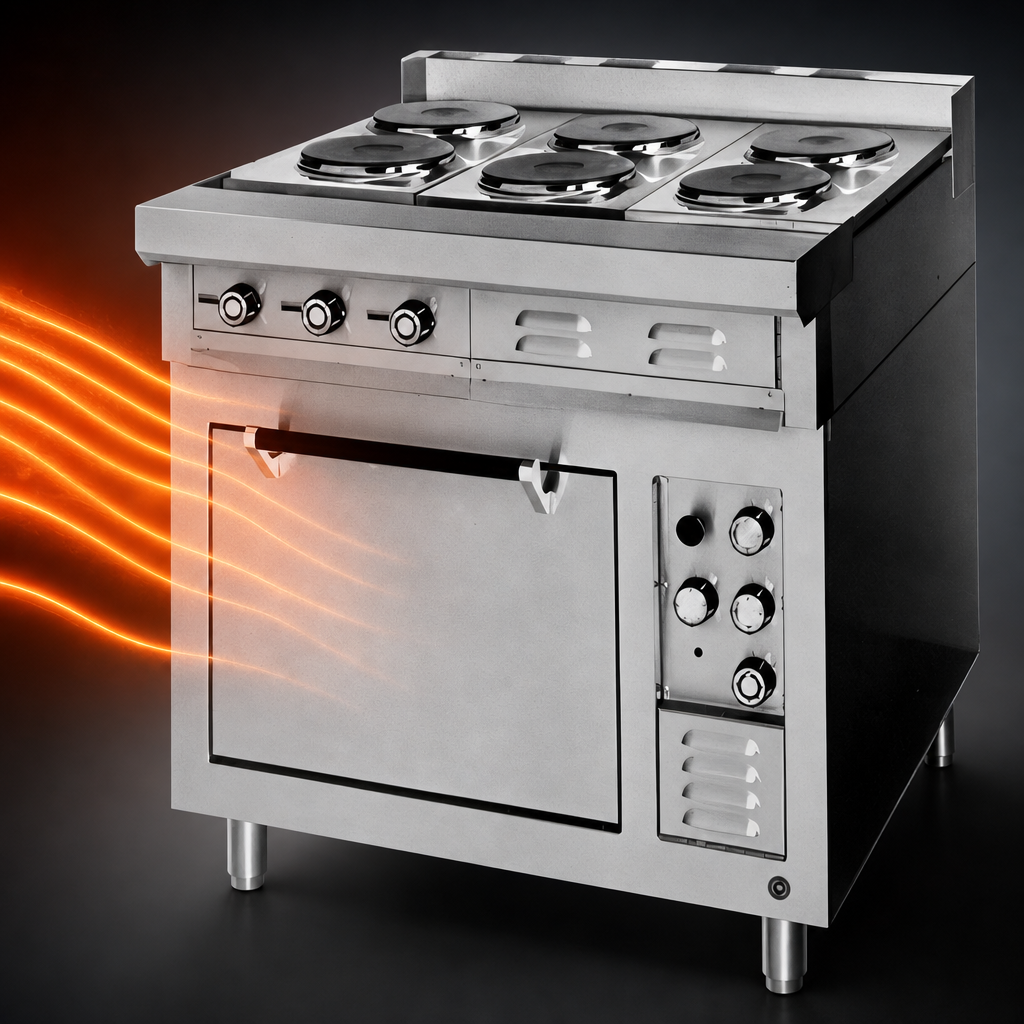

• 21 kW heavy-duty electric elements (208, 240 or 480 V models)
• Standard oven base fits one full-size 18" x 26" sheet pan & includes 1 chrome rack
• 60-minute timer with audible alarm keeps production on schedule
• 2" vented stainless-steel stub back—ideal when a full backsplash isn’t required
• All-stainless exterior, 6" adjustable legs & fully front-wide grease management for easy clean-up

Griddle performance

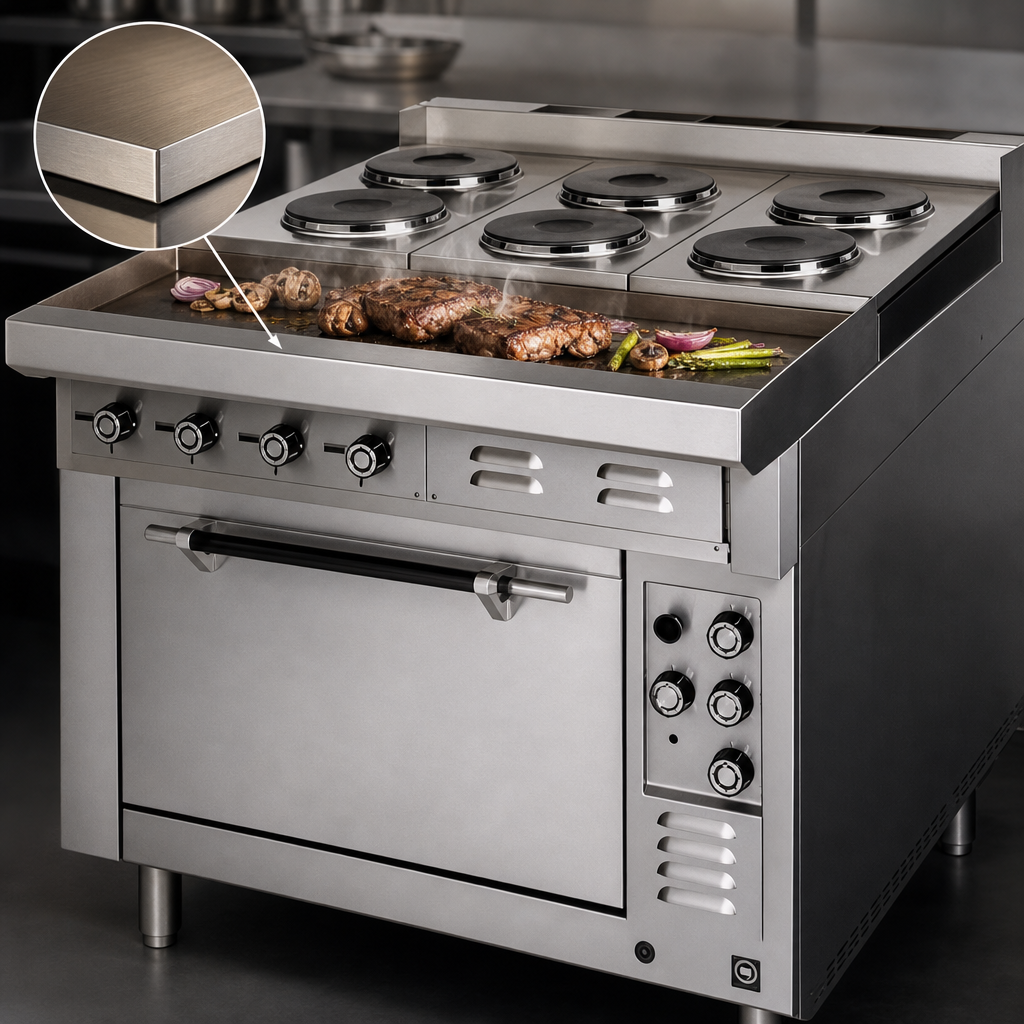

• 1/2" thick steel plate stores heat for consistent searing
• Full 36" width maximizes usable cooking space
• Built-in 2-3/4" wide grease trough with drain & extra-deep spill drawers

Standard oven features

• 150-550 °F thermostat for baking, roasting or holding
• Top & bottom element 3-heat switches for perfect browning control
• Aluminized 12"-high cavity insulated on all six sides
• Spring-assisted, hinge-down door with durable latch

Built to last

• Heavy-gauge stainless steel front, sides & stub back
• Incoloy-sheathed oven elements resist corrosion
• 3" thick insulation reduces energy loss & keeps the kitchen cooler
• One-year parts & labor warranty backed by Middleby

Technical specifications

Electrical connection is made from the bottom of the unit. Installation under an approved ventilation hood and in accordance with local electrical codes is required.
