Lang Manufacturing (Middleby) R36S-ATB Electric Ranges
Description

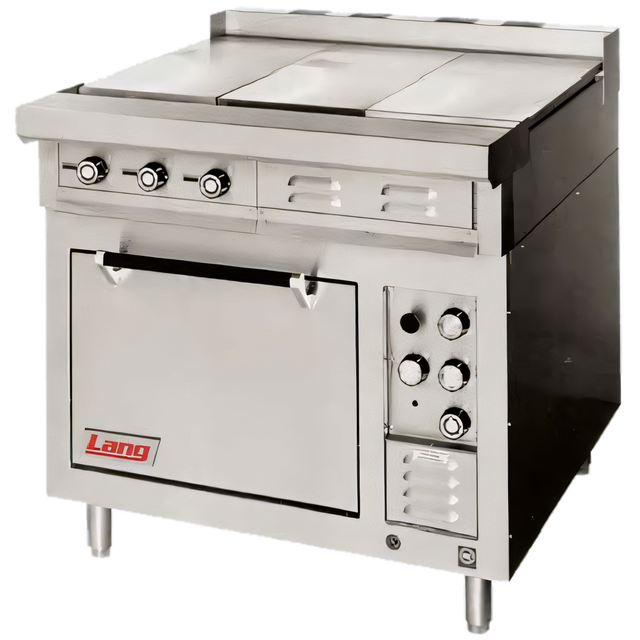

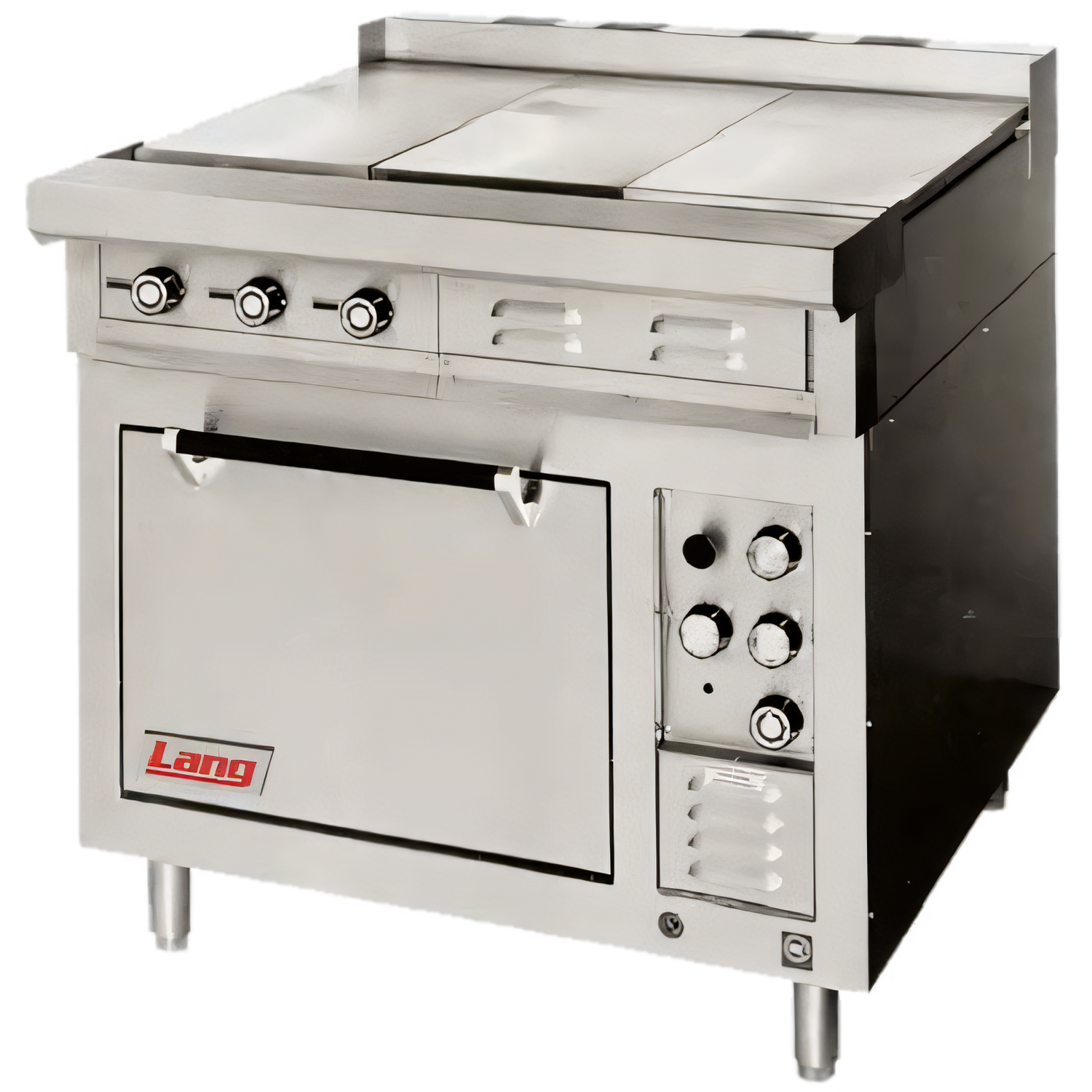

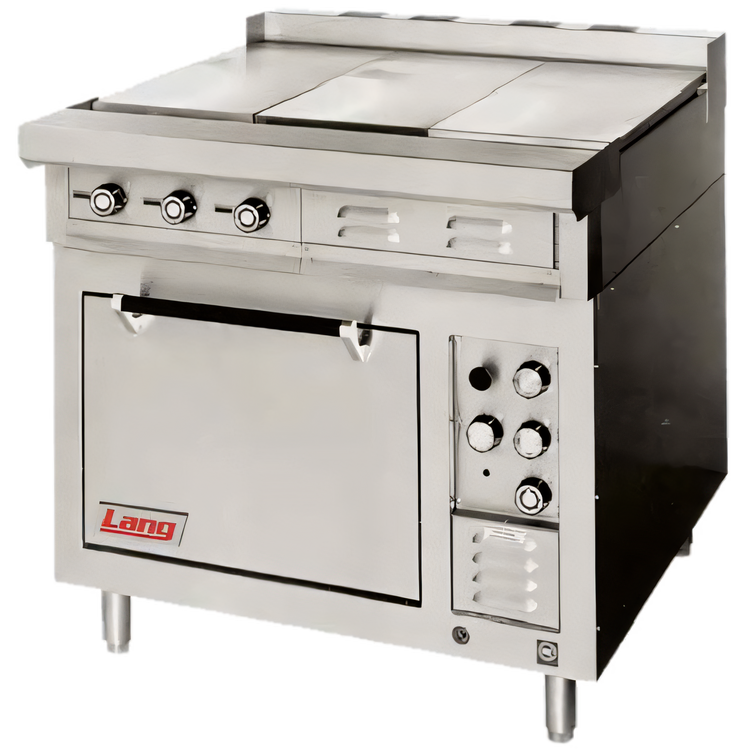

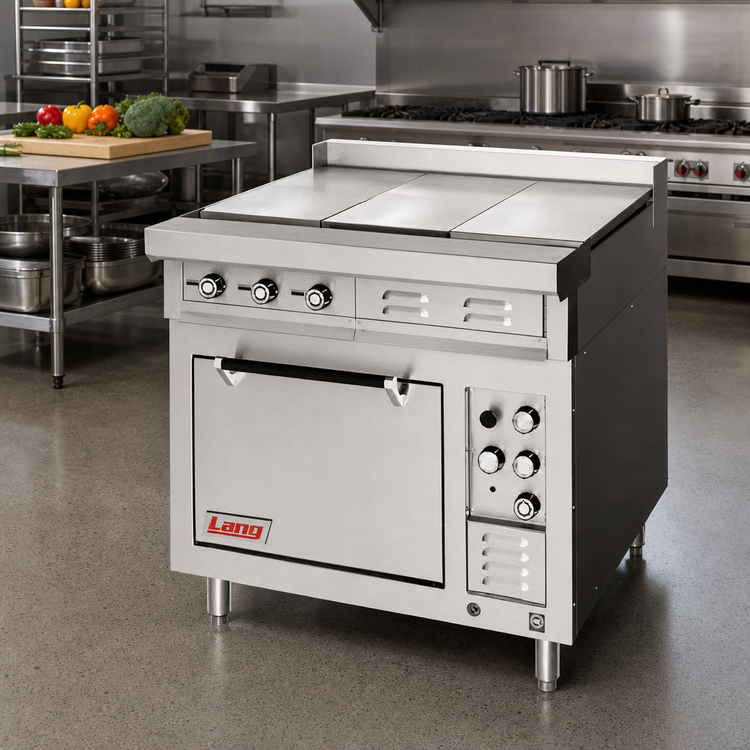

36" Heavy-Duty Electric Range – 3 Hot Tops & Standard Oven
Lang Manufacturing | Model R36S-ATBBuilt for high-volume restaurants, institutions and production kitchens, the Lang 36" Heavy-Duty Electric Range delivers robust hot-top performance with a full-size oven base – all inside a stainless-steel cabinet that stands up to daily punishment.
Key Features

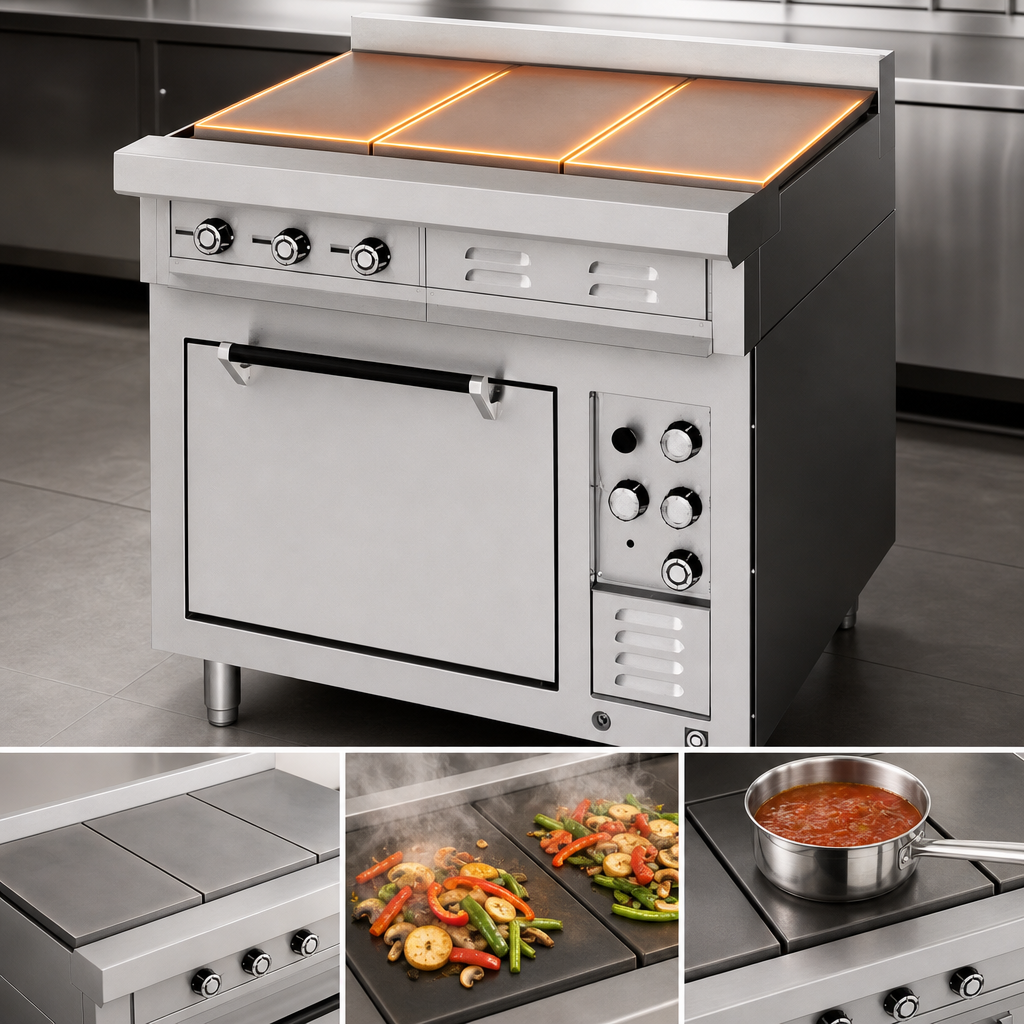

- Three 12" x 24" x ¾" thick cast-iron hot tops create a seamless cooking surface – slide stockpots anywhere without lifting.

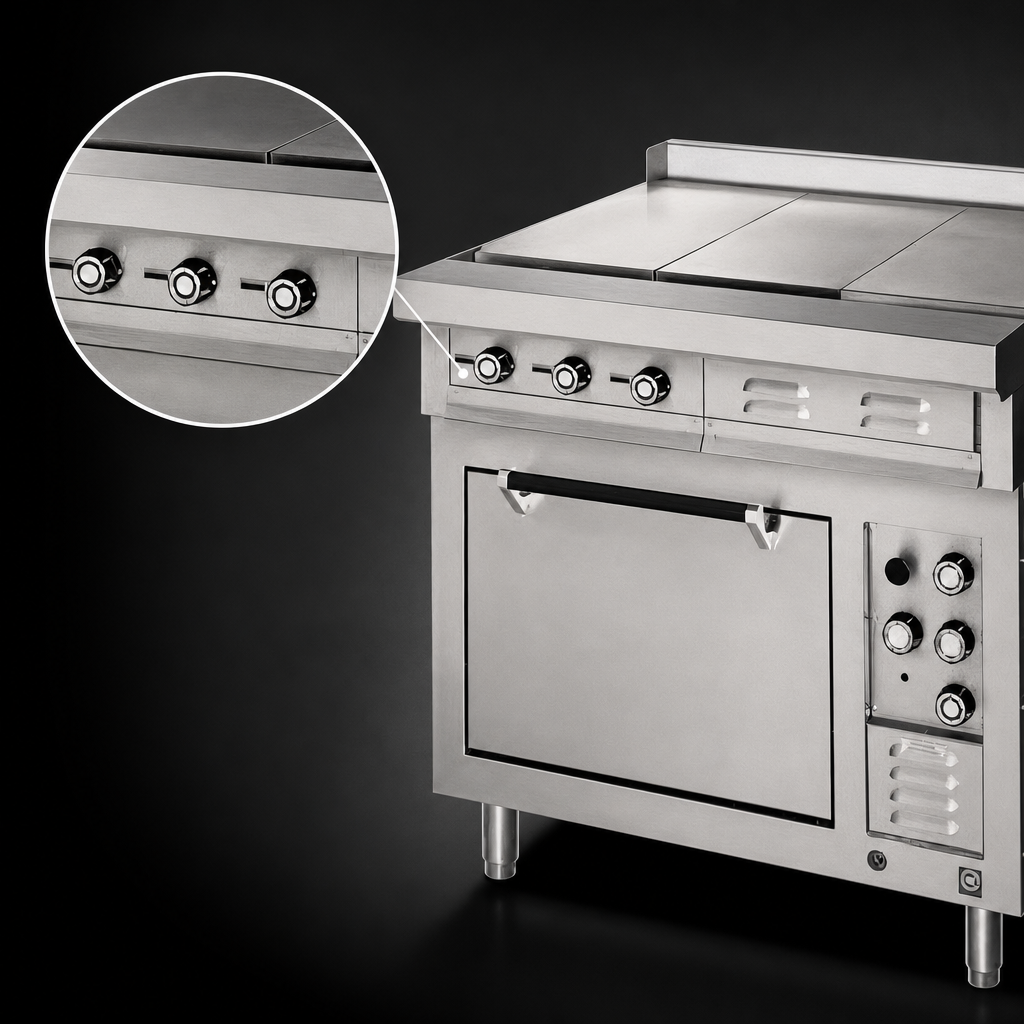

- Each hot top is governed by an independent 850 °F thermostat for pinpoint control and lightning-quick recovery.
- 21 kW total output (field-wired for 208, 240 or 480 V) conquers the toughest production schedules.
- Standard oven base (150-550 °F) fits one full-size 18" × 26" sheet pan and ships with a chrome-plated rack.
- Top & bottom element 3-heat switches plus a 60-minute timer with audible alarm.
- 2"-high vented stainless-steel stub back protects walls while allowing low-profile island installations.
- 3" of insulation, Incoloy-sheathed elements and a spring-assisted, latch-down door maximize efficiency and safety.
- All-stainless exterior with 6" adjustable legs for fast cleanup and perfect leveling.
- cULus & NSF listed; backed by a 1-year parts & labor warranty.
At-a-Glance Specifications
| Overall size (H × W × D) | 41.7" × 36.0" × 40.6" (1053 × 914 × 1031 mm) (with 6" legs & stub back) |
|---|---|
| Cooking surface | 3 × 12" hot tops, ¾" thick cast iron, thermostatically controlled to 850 °F |
| Oven capacity | 1 full-size (18" × 26") sheet pan, one chrome rack included |
| Oven temperature range | 150 - 550 °F (65 - 288 °C) |
| Input power | 21.0 kW |
| Electrical options |
208 V / 60 Hz / 1 ⁄ 3 φ – 66.7 A (3 φ) / 101 A (1 φ) 240 V / 60 Hz / 1 ⁄ 3 φ – 57.8 A (3 φ) / 87.5 A (1 φ) 480 V / 60 Hz / 3 φ – 28.9 A |
| Clearances | 4" (100 mm) sides & rear to combustibles |
| Shipping weight | Approx. 475 - 570 lb (216 - 259 kg) |
| Certifications | cULus, NSF |
| Warranty | 1 year parts & labor (U.S.) |
Need a convection oven base, thicker griddle plate or marine package? Ask us about custom configurations direct from Lang Manufacturing.
