Lang Manufacturing (Middleby) R36C-ATFM Lang® Marine Electric Ranges
Description

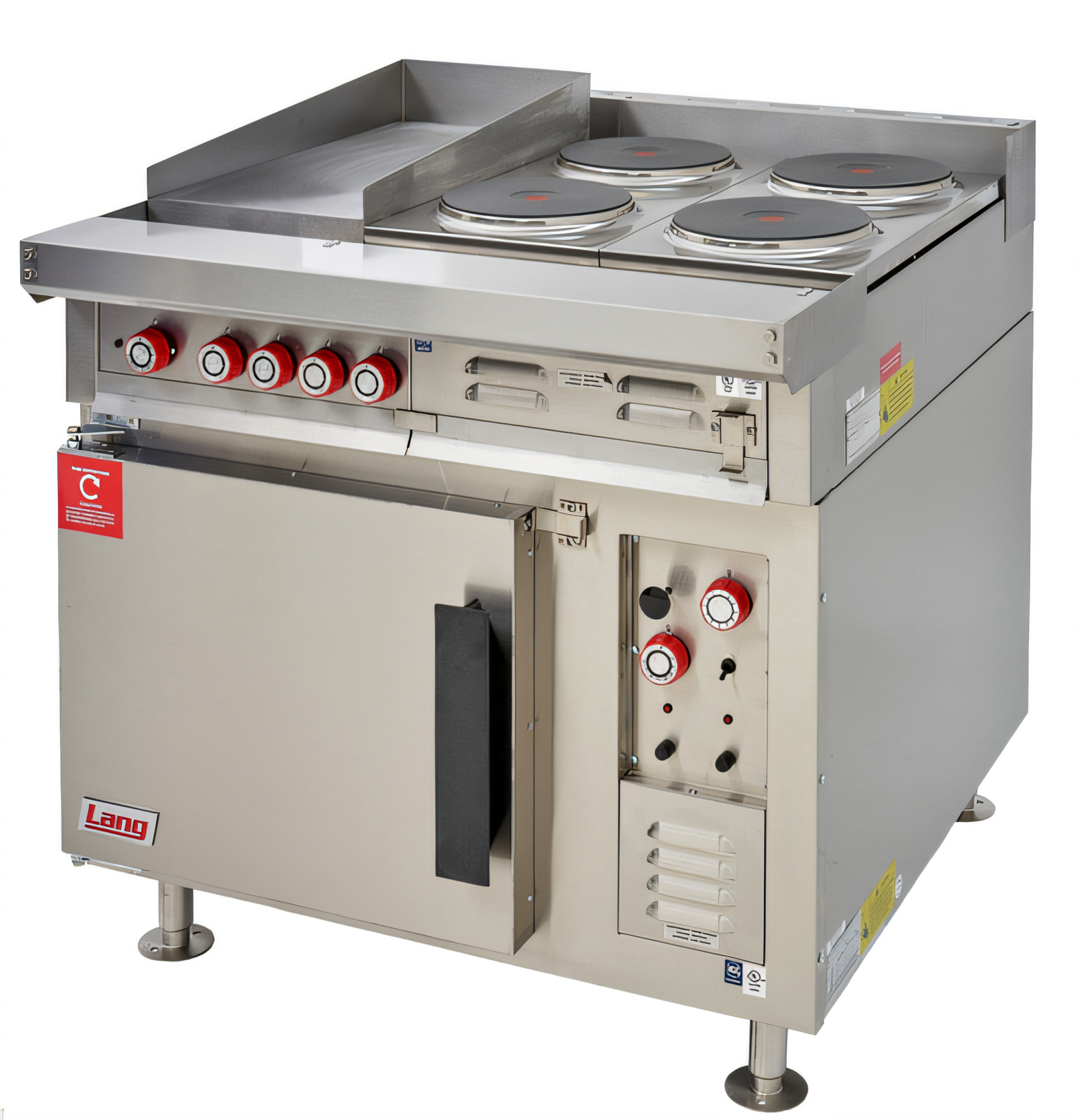

Lang® Marine 36" Heavy-Duty Electric Range w/ Convection Oven
Model R36C-ATFM – 4 French Plates + 12" Hot TopPurpose-built for demanding shipboard galleys, the Lang® Marine electric range packs a versatile five-element cooktop and a powerful convection oven into a rugged, bolt-down stainless steel body that fits through a 26" × 66" watertight hatch.
Key Advantages

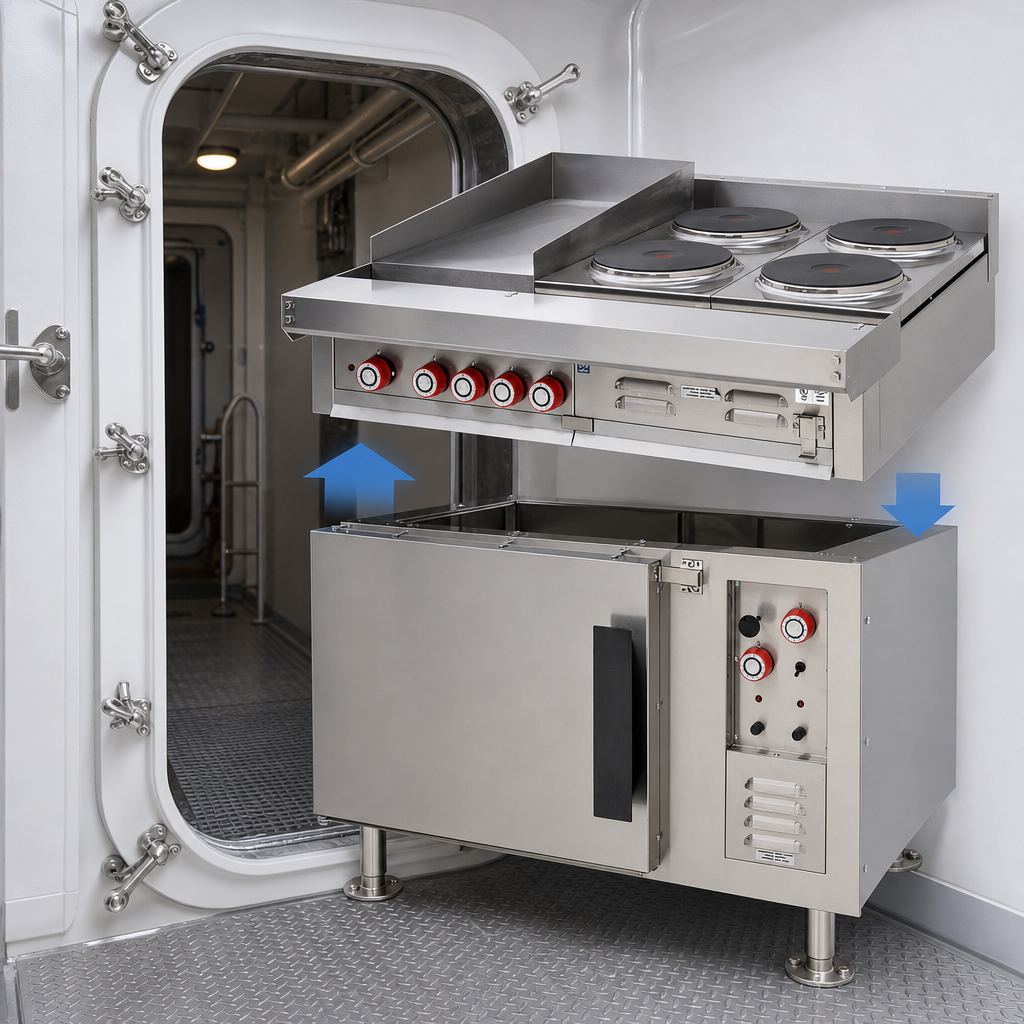

- Two-piece hatchable design for easier on-board installation.
- Cooktop versatility: (4) 8" French plates with six-heat switches + (1) 12" × 24" hot top with 850 °F snap-action thermostat.
- Convection oven holds up to six full-size (18" × 26") sheet pans; three racks included.
- Precise 150–450 °F oven thermostat and 60-minute timer with audible alarm.
- Marine safety package: full-width grab bar, stainless sea rail, flanged bolt-down legs & 2" vented stub back.
- Grease management system with 2-3/4" front trough, drain & spillage drawers for fast clean-up.

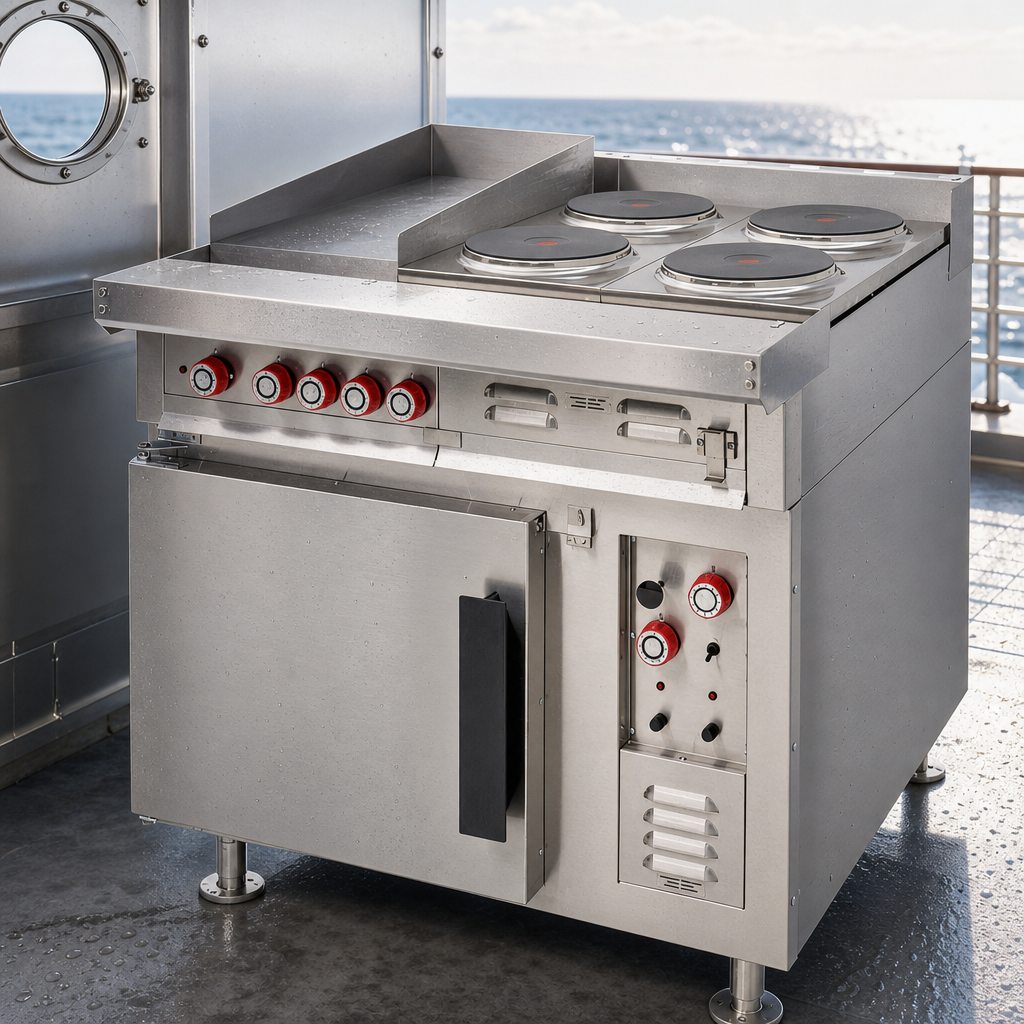

- Heavy-duty 430 SS exterior with 3" insulation and aluminized steel oven liner.
- UL Marine, NSF & cULus Classified for worldwide code compliance.
Cooktop Performance
- (4) 8" cast-iron French plates – six-heat switches deliver instant simmer-to-sear response.
- (1) 12" × 24" × 3/4" cast-iron hot top – thermostatically controlled to 850 °F for griddle-style sautéing or holding.
- Individual indicator lights keep operators informed at a glance.
Convection Oven Highlights
- 10" H × 24" W × 17" D cavity with six rack positions.
- Right-side 1/3 HP blower circulates air for even browning edge-to-edge.
- Incoloy-sheathed elements withstand constant vibration and corrosion.
- Left-hinged, positive-latch door stays shut in rough seas.
Technical Specifications
| Model | R36C-ATFM Marine |
|---|---|
| Overall Dimensions (H × W × D) | 41.7" × 36.0" × 40.6" (with 6" flanged legs) |
| Cooktop | (4) 8" French plates & (1) 12" × 24" hot top |
| Oven Type / Capacity | Convection; fits (6) full-size 18" × 26" sheet pans |
| Oven Racks | (3) supplied – 6 positions |
| Oven Controls | ON/OFF switch, 150–450 °F thermostat, 60-min timer, damper |
| Total Connected Load | 21.6 kW |
| Voltage Options | 208 V or 240 V, 1-/3-phase; 440/480 V 3-phase |
| Typical Amps (3-phase) | 69.2 A @ 208 V | 59.9 A @ 240 V | 29.5 A @ 480 V |
| Net / Shipping Weight | ≈ 425–520 lb / 475–570 lb |
| Construction | 430 SS exterior; aluminized steel oven; 3" insulation |
| Certifications | UL Marine, NSF, cULus Classified |
| Warranty | 1-year parts & labor (U.S.) |
Popular Factory Options
- Stainless steel oven liner
- Oven door de-energizer safety switch
- External serial number tag
- Grooved or 1" thick hot-top plate
- Six-pan rack kit
Installation must comply with local and marine codes and requires an approved ventilation hood. Refer to the included wiring diagram for complete electrical requirements.
