Lang Manufacturing (Middleby) R36C-ATEM Lang® Marine Electric Ranges
Description
Lang® Marine 36" Heavy-Duty Electric Range – Model R36C-ATEM
Six 8" French Plates | Convection Oven Base | UL Marine, NSF & cULus ClassifiedBuilt from the keel up for demanding galley service, the Lang Marine R36C-ATEM unites a powerful six-plate range with a high-capacity convection oven—housed in a two-piece, hatchable frame that passes through a 26" × 66" watertight hatch without a fight.
Why This Range Belongs in Your Galley

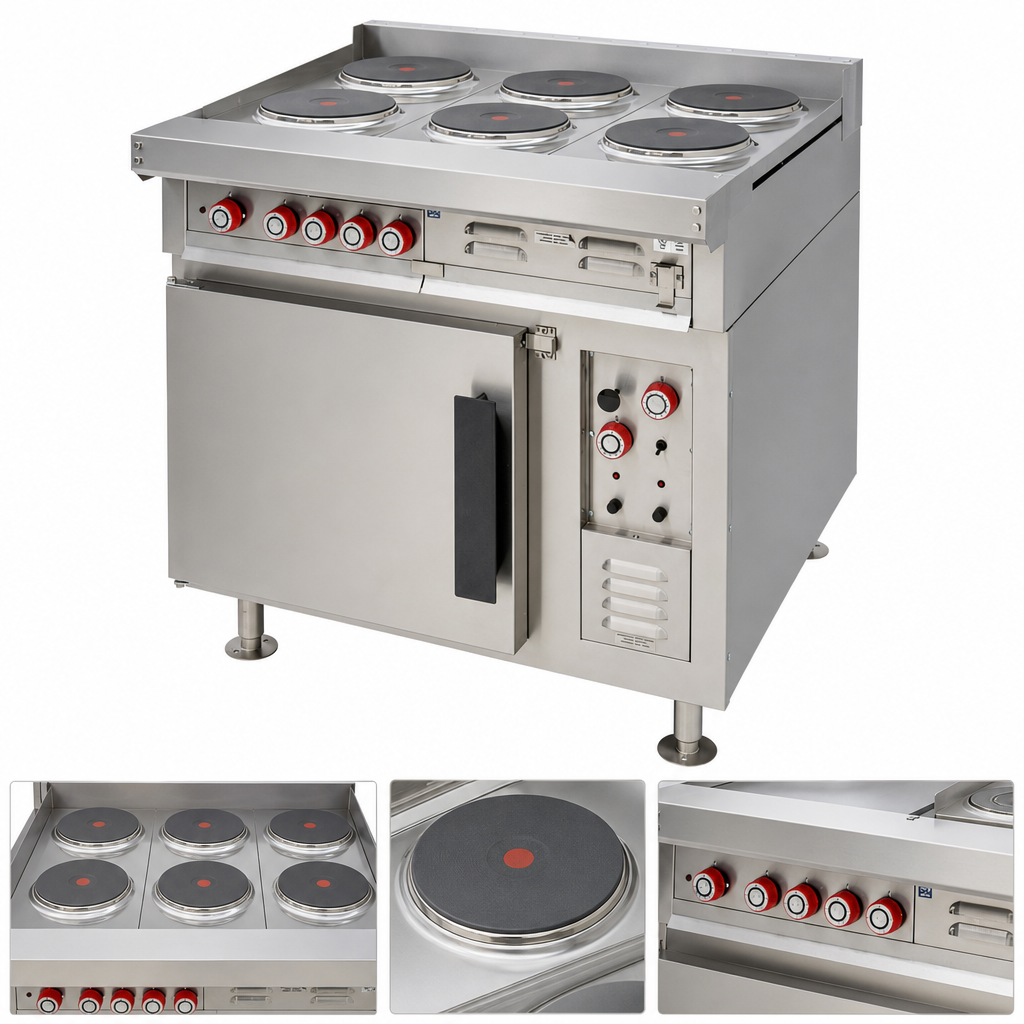

- Six 8" diameter French plates deliver fast, even heat across any pot or pan.
- Individual 6-heat switches on every plate for precise simmer-to-sear control.

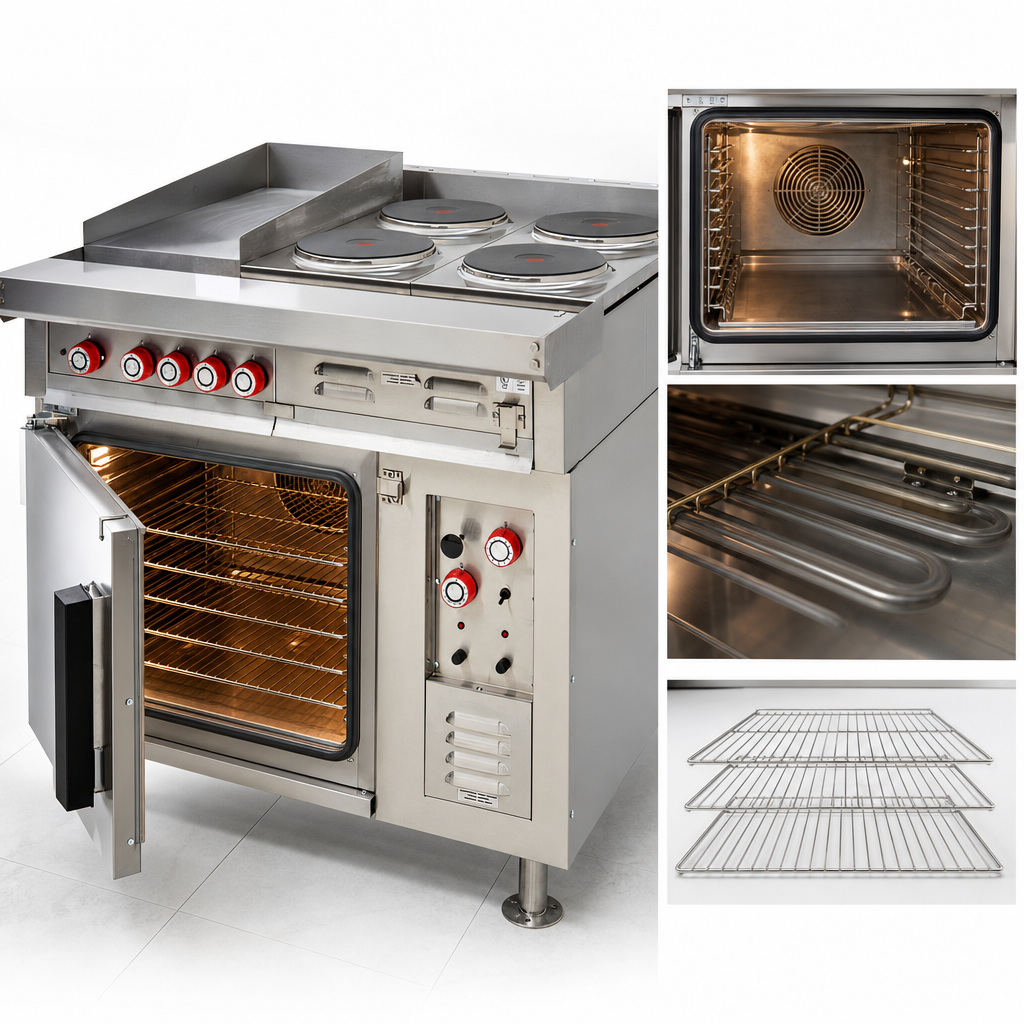

- 17" high convection oven holds up to six full-size (18" × 26") sheet pans; three heavy-duty racks included.
- 150–450 °F thermostat & 60-minute timer with audible alarm keep production on schedule.
- Marine-rated build: 430 SS exterior, sea rails, full-width grab bar & flanged bolt-down legs.
- Stub back (2") fits neatly under hoods and protects bulkheads.
- Hatchable two-piece design reduces installation time and labor costs.
- UL Marine, NSF and cULus approvals for worldwide acceptance and peace of mind.
Performance & Capacity
| Cooktop | 6 × 8" French plates (each with 6-heat switch) |
|---|---|
| Oven Type | Electric convection, left-hinged door with positive latch |
| Sheet-Pan Capacity | 6 full-size pans (18" × 26") |
| Oven Temperature Range | 150–450 °F (65–232 °C) |
| Timer | 0–60 minutes with end-of-cycle alarm |
| Total Input | 21.6 kW |
Built for the Sea
- Heavy-duty 430 stainless exterior with No. 4 finish—corrosion-resistant & easy to clean.
- 3" insulation on all six oven sides for cooler galley and higher efficiency.
- Aluminized steel oven liner (optional stainless upgrade).
- Incoloy-sheathed elements & 1/3 HP side-mounted blower for even bake results.
- 6" adjustable, flanged legs bolt securely to the deck.
Electrical Specifications
| Standard Voltages | 208 V or 240 V, 1 / 3-Phase 440 V or 480 V, 3-Phase |
|---|---|
| Total kW | 21.6 kW (18.2 kW @ 440 V) |
| Amps @ 208 V | 69.2 A (3-ph) | 103.8 A (1-ph) |
| Amps @ 240 V | 59.9 A (3-ph) | 90 A (1-ph) |
| Amps @ 480 V | 29.5 A (3-ph) |
| Connection Point | Bottom of unit; field-wired |
Dimensions & Shipping
| Overall (H × W × D) | 41.7" × 36" × 40.6" (1053 × 914 × 1031 mm) |
|---|---|
| Clearances | 4" (100 mm) sides & back to combustibles |
| Net Weight | Approx. 425–520 lb (193–236 kg) |
| Shipping Weight | Approx. 475–570 lb (216–259 kg) |
Need a CAD drawing, alternate voltage or spare parts? Contact us—our marine equipment specialists are ready to help.
Backed by Lang’s 2-year limited parts & labor warranty for Marine ranges.
