Lang Manufacturing (Middleby) | SKU:
R36C-ATD
Lang Manufacturing (Middleby) R36C-ATD Electric Ranges
$20,974.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Lang Manufacturing (Middleby) R36C-ATD Electric Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Lang Manufacturing (Middleby) R36C-ATD Electric Ranges
$20,974.00
Unit price
/
Unavailable
Description

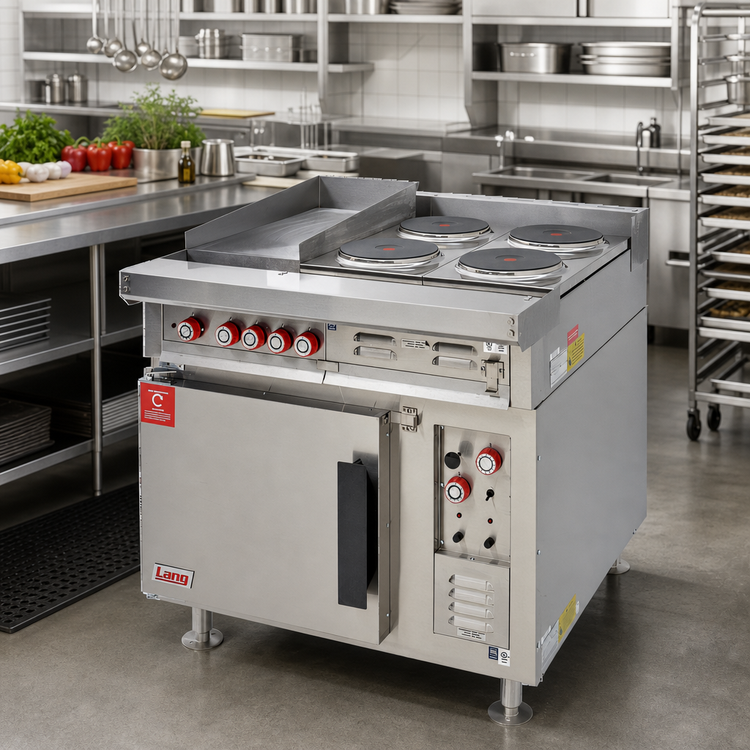

Lang 36" Heavy-Duty Electric Griddle Range w/ Convection Oven
Model R36C-ATD | 21.6 kW | cULus & NSF ListedBring the productivity of a full cook line to a single 36-inch footprint. Lang’s R36C-ATD couples a high-output thermostatic griddle with a six-pan convection oven, giving chefs the speed, consistency and rugged reliability demanded in today’s high-volume kitchens.
Why You’ll Love It

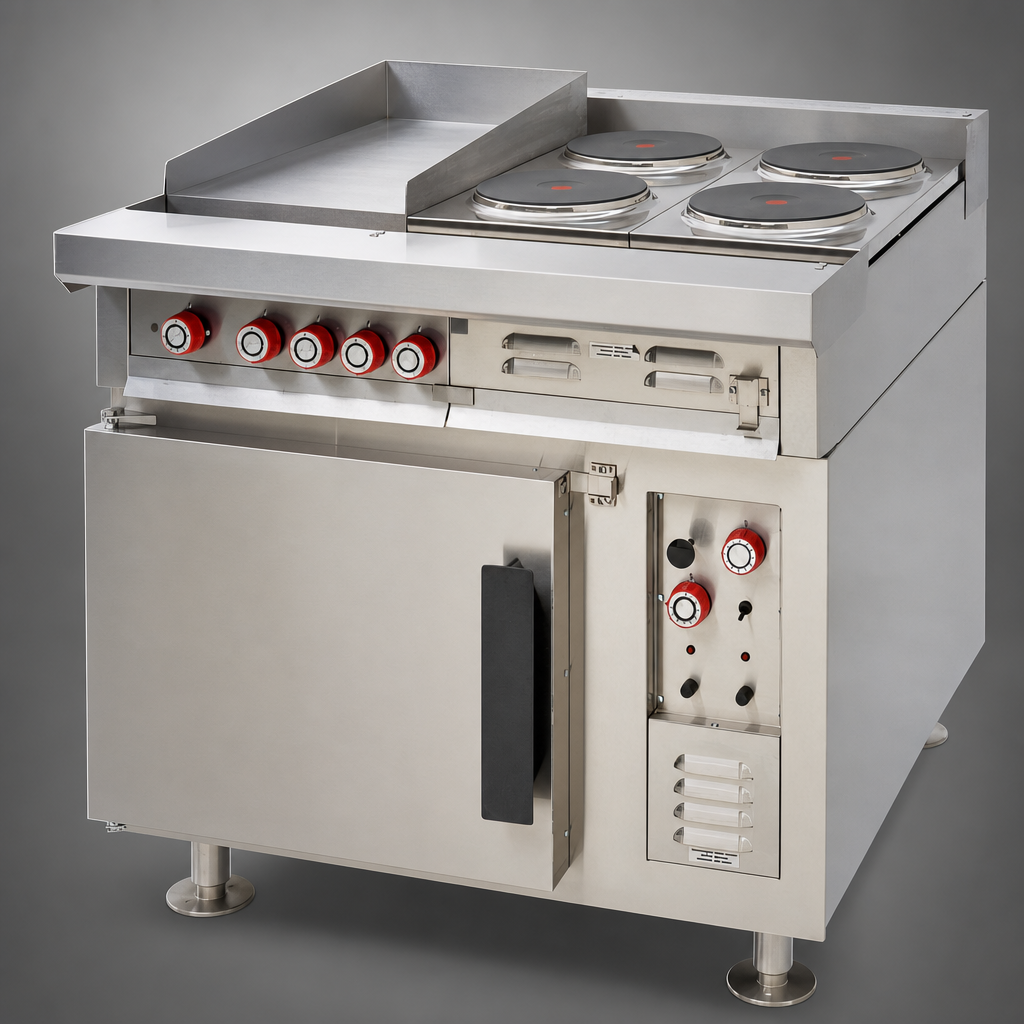

- Full-width 36" griddle – ½" thick steel plate distributes heat evenly and recovers fast during peak periods.

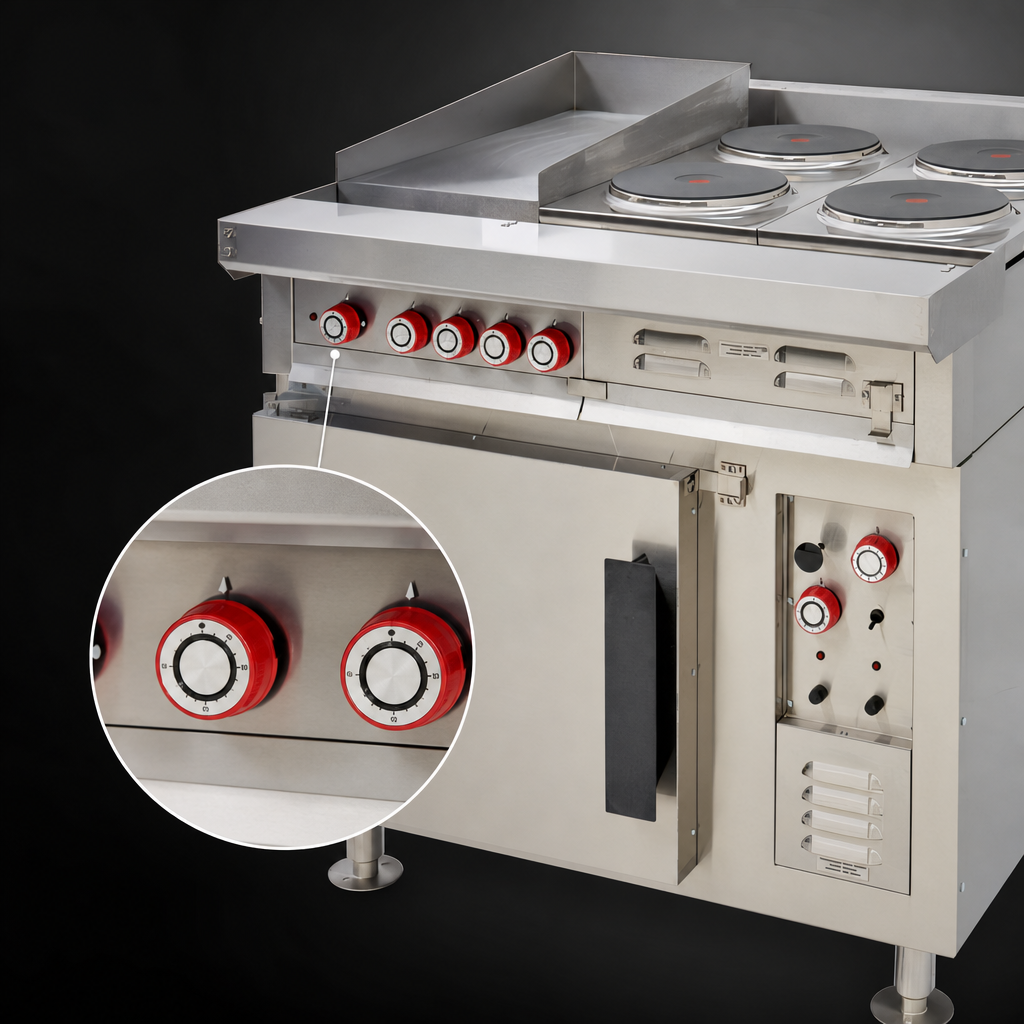

- Snap-action thermostats every 12" (175-450 °F) provide precise zone control and reduce temperature overshoot.
- High-performance convection oven – 6 rack positions, 3 chrome racks included; fits up to six 18" × 26" sheet pans.
- 150-450 °F oven thermostat & 60-minute timer for dependable, unattended roasting or baking.
- Easy clean-up – 2 ¾" wide grease trough, front-mounted grease drawer and spillage drawer keep the workspace tidy.
- Built to last – 430-series stainless steel exterior, incoloy sheathed elements and fully insulated oven cavity.
- Operator-friendly – 2" vented stainless steel stub back for flush-against-wall installs and 6" adjustable legs for perfect leveling.
- Code-ready power options – single- or three-phase 208 V/240 V or 3-phase 480 V connections.
Technical Specs
| Griddle size / plate | 36" W × 24" D, ½" thick steel |
|---|---|
| Griddle controls | Three snap-action thermostats, 175-450 °F (one per 12") |
| Oven type | Electric convection, rear-mounted blower |
| Oven capacity | 6 full-size (18" × 26") sheet pans on 6 positions (3 chrome racks included) |
| Oven temperature | 150-450 °F with 60-minute timer & audible alarm |
| Total input | 21.6 kW |
| Electrical options |
208 V / 60 Hz – 69.2 A (3 Ø) or 103.8 A (1 Ø) 240 V / 60 Hz – 59.9 A (3 Ø) or 90.0 A (1 Ø) 480 V / 60 Hz – 29.5 A (3 Ø) |
| Exterior material | 430 stainless steel with #4 finish |
| Overall dimensions | 41.7" H × 36.0" W × 40.6" D |
| Adjustable legs | 6" stainless steel |
| Certifications | cULus, NSF |
| Shipping weight | Approx. 475-570 lb (varies by voltage) |
Ideal For
- Short-order & casual dining kitchens needing speed and consistency
- University, hospital and corporate feeders where menu flexibility is key
- Food trucks or concessions upgrading to a single, heavy-duty workstation
Electrical installation required. This unit ships without cord or plug. Have a qualified electrician connect to a properly sized, grounded supply in accordance with local codes.
One-year parts & labor warranty included. Specification subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
Lang Manufacturing (Middleby)
Certifications
NSF, cULus
Height
32.0in
Width
36.0in
Depth
38.0in
Shipping Weight
525.0lbs
Exterior Finish
all stainless steel exterior
Base
(1) convection oven
Vent
backriser
Top
(1) griddle
Specifications
Heavy Duty Range, electric, 36"W griddle, 1/2" thick plate, snap action thermostatic controls, convection oven base with (6) rack positions and (3) racks, 150-450°F oven thermostat with 1-hour timer, 2" vented stainless steel stub back, 430 stainless steel exterior, 6" adjustable legs, 21.6kW, cULus, NSF
