Lang Manufacturing (Middleby)  |  Lang® Marine  |  SKU: R36C-ATCM

Lang Manufacturing (Middleby) R36C-ATCM Lang® Marine Electric Ranges

$23,096.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Warranty sheet
Related Searches
Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

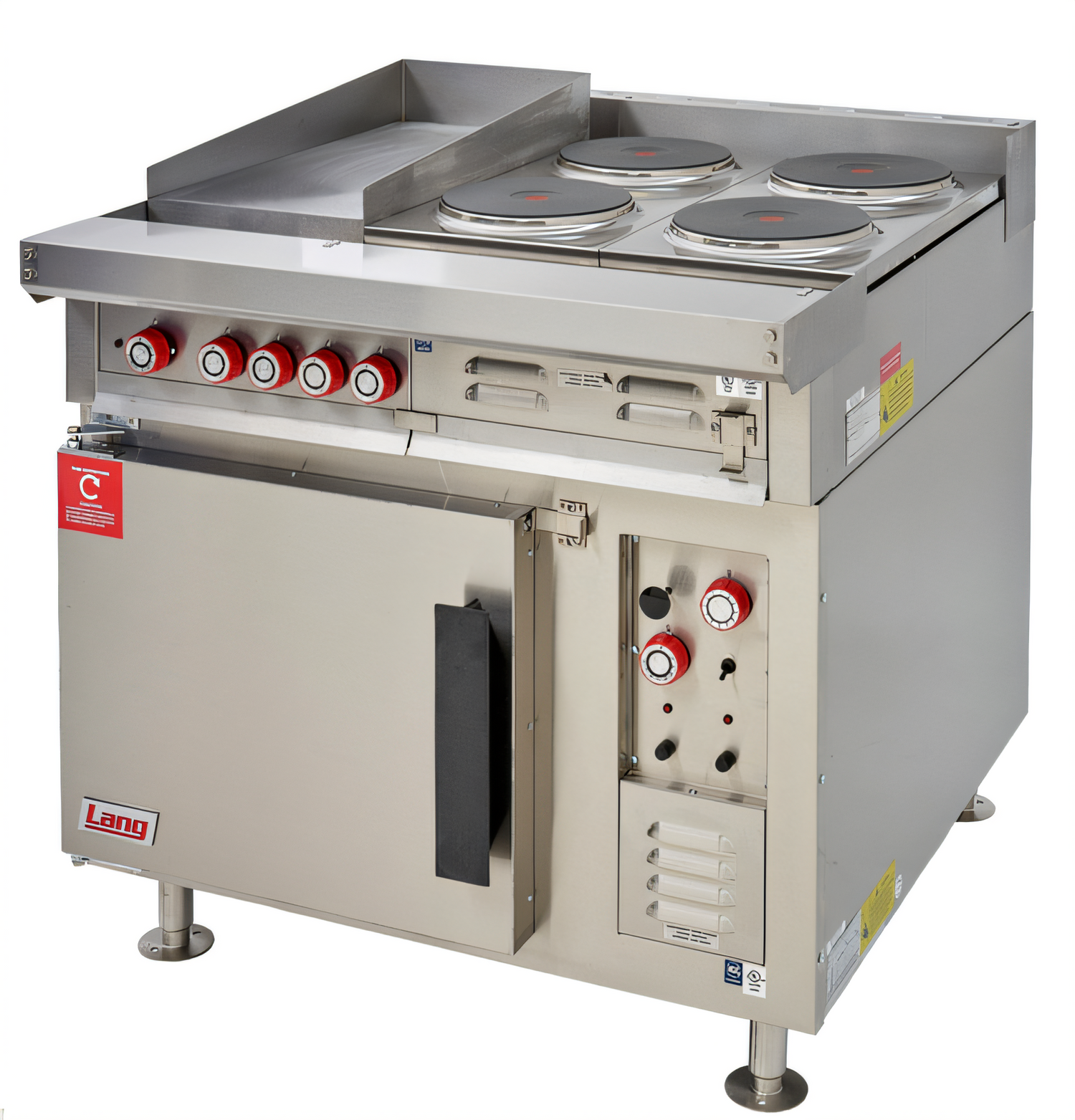

Lang® Marine Heavy-Duty Electric Range — 36" Wide

Model R36C-ATCM | 2 Hot Tops • 2 French Plates • Convection Oven Base

Engineered for blue-water durability, the Lang® Marine R36C-ATCM delivers restaurant-grade performance in a hatchable, bolt-down package that is UL Marine and NSF listed. Two 12" hot tops, two 8" French plates, and a high-capacity convection oven give shipboard chefs the versatility they need in a single 36" footprint.

Why This Range Stands Out

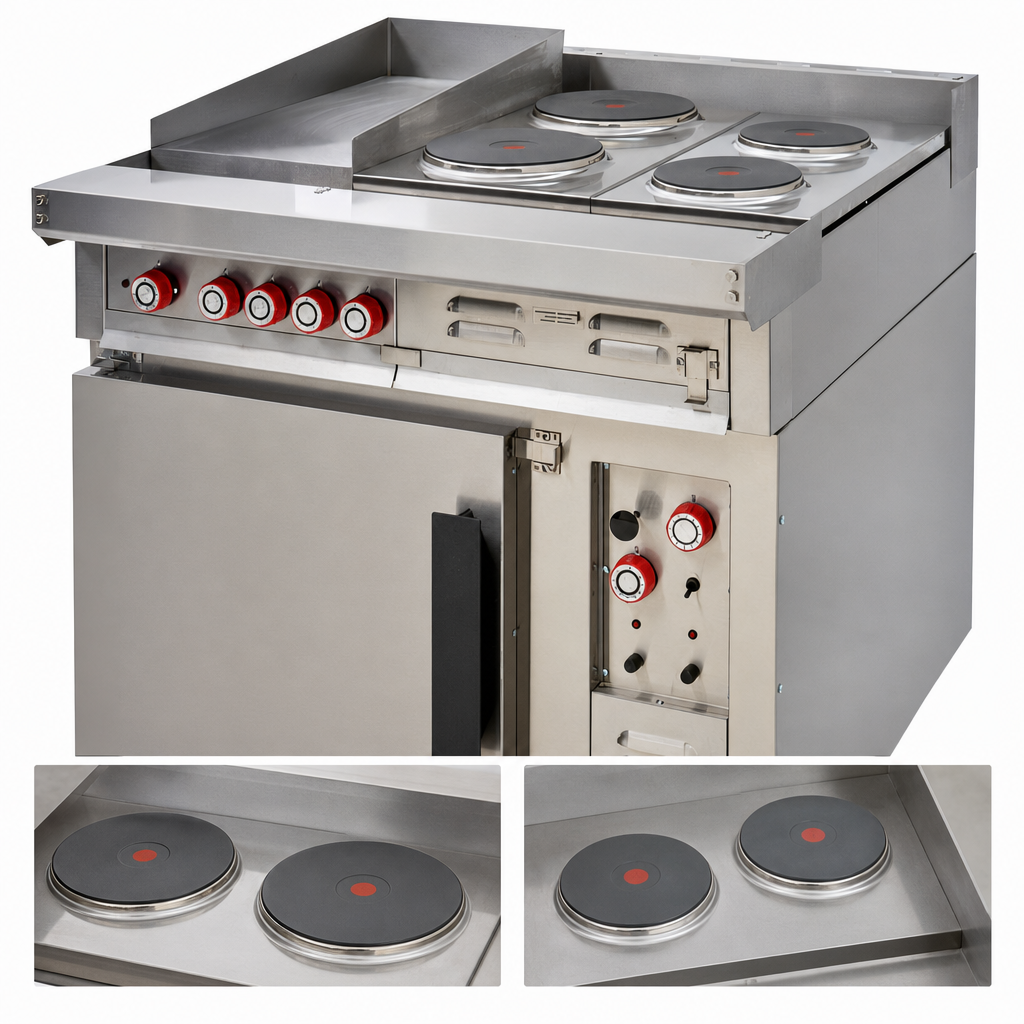

  • Four-zone cooktop: (2) 12" × 24" hot tops (¾" thick) + (2) 8" diameter French plates.
  • Independent controls:
    • 2 dedicated 850 °F thermostats for the hot tops.
    • 2 six-heat switches for the French plates.
  • Full-size convection oven holds up to six 18" × 26" sheet pans; three nickel-chrome racks included.
  • 150–450 °F thermostat & 60-minute timer with audible alarm for precise baking and roasting.
  • One-piece sea rail and full-width grab bar keep cookware secure in heavy seas.

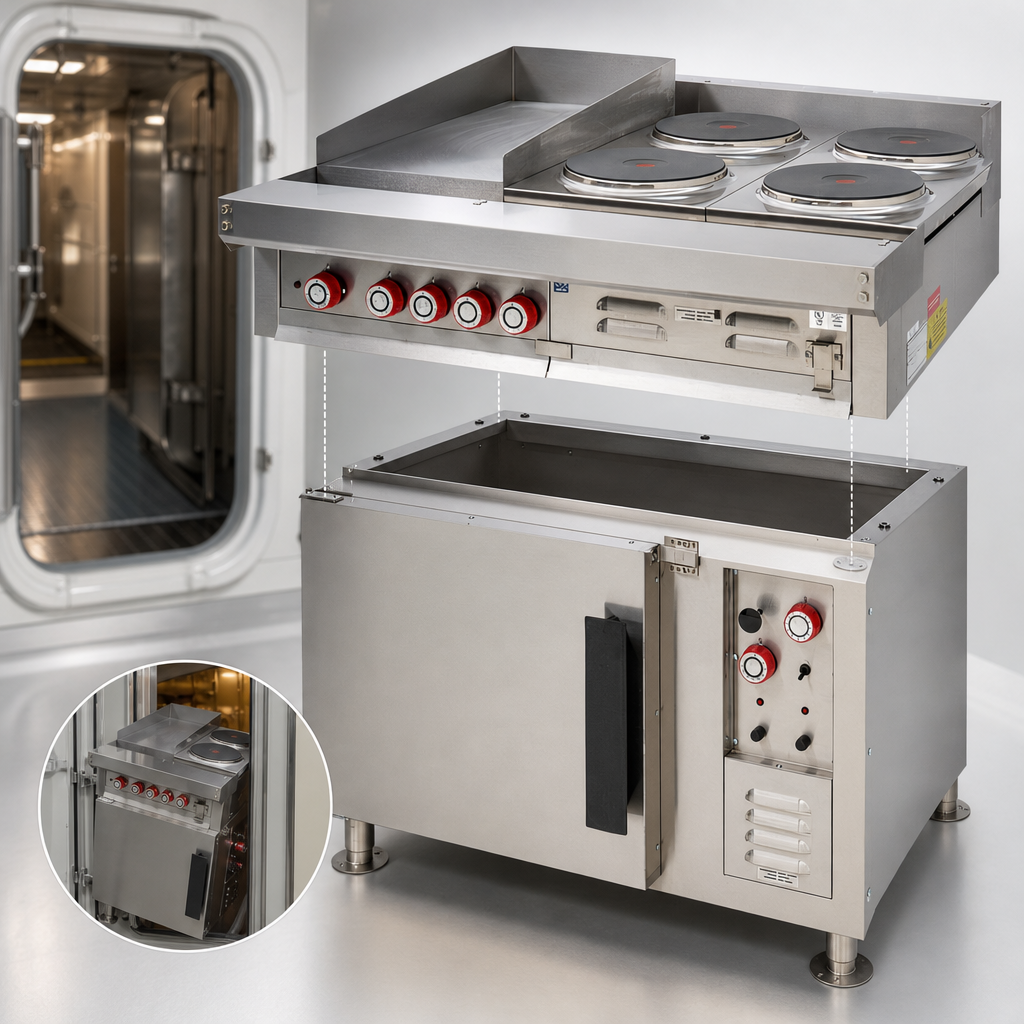

  • Modular two-piece design passes through a 26" × 66" watertight hatch for easy shipboard installation.
  • 2" vented stainless stub-back allows quick placement under existing hoods.
  • Flanged, bolt-down 6" legs meet marine code and prevent walking.

Built for the Open Sea

  • Heavy-gauge 430 stainless steel exterior with No. 4 marine finish resists corrosion and cleans fast.
  • Aluminized, 17"-high oven cavity with 3" high-temp insulation on all six sides.
  • Incoloy-sheathed heating elements & 1/3 HP blower for even, fast heat.
  • Full-width grease trough, drain, and removable spillage drawers accelerate cleanup.

Compliance & Peace of Mind

  • UL Marine Classified
  • NSF & cULus Listed
  • One-year parts & labor warranty (U.S. labor)

Technical Specifications

Overall size (H × W × D) 41.7" × 36.0" × 40.6" (1053 × 914 × 1031 mm)
Cooking surfaces (2) 12" × 24" hot tops, (2) 8" French plates
Oven cavity 10" × 24" × 17" (L × W × H) – fits 6 full-size sheet pans
Rack positions / racks supplied 6 / 3
Power input 21.6 kW total
Electrical options 208 V / 60 Hz / 1- or 3-phase
240 V / 60 Hz / 1- or 3-phase
440 V / 60 Hz / 3-phase (18.2 kW)
480 V / 60 Hz / 3-phase
Amperage (208 V) 103.8 A single-phase • 69.2 A three-phase
Clearances 4" (100 mm) sides & back to combustibles
Shipping weight Approx. 475–570 lb (216–259 kg)
Important: This range is factory-wired and must be hard-connected by a qualified marine electrician. Installation under an approved galley vent hood is required.

Need a custom griddle plate, stainless oven liner, or MIL-SPEC package? Contact us for factory options and lead times.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Brand_name

Lang® Marine

Certifications

NSF, cULus Classified, UL

Height

41.5in

Width

36.0in

Depth

40.6in

Shipping Weight

525.0lbs

Exterior Finish

all stainless steel exterior

Top

(2) hotplates / french plates, (2) 12" hot tops

Vent

backriser

Base

(1) convection oven

Specifications

Lang® Marine Heavy Duty Range, electric, 36"W, (2) 8" french plates & (2) 12" hot tops, convection oven base with (6) rack positions and (3) racks, 150-450°F oven thermostat with 1-hour timer, 2" vented stainless steel stub back, 430 stainless steel exterior, flanged bolt-down legs, grab bar, sea rail, 2-piece hatchable construction, UL Marine, NSF, cULus Classified
