Lang Manufacturing (Middleby) R36C-ATB Electric Ranges
Description
Lang 36" Heavy-Duty Electric Range – 3 Hot Tops & Convection Oven
Model R36C-ATBM | 21.6 kW | cULus & NSFBuilt for relentless commercial use, the Lang R36C-ATBM packs three independent cast-iron hot tops and a full-size convection oven into a compact 36" footprint. From high-heat searing to delicate baking, this all-electric workhorse delivers the precision, capacity and durability busy kitchens demand.
Key Features
- Three 12" × 24" × ¾" cast-iron hot tops create a seamless 36" surface—slide stock pots anywhere without lifting.
- Each hot top is independently regulated by an 850 °F thermostat for true multi-zone cooking.

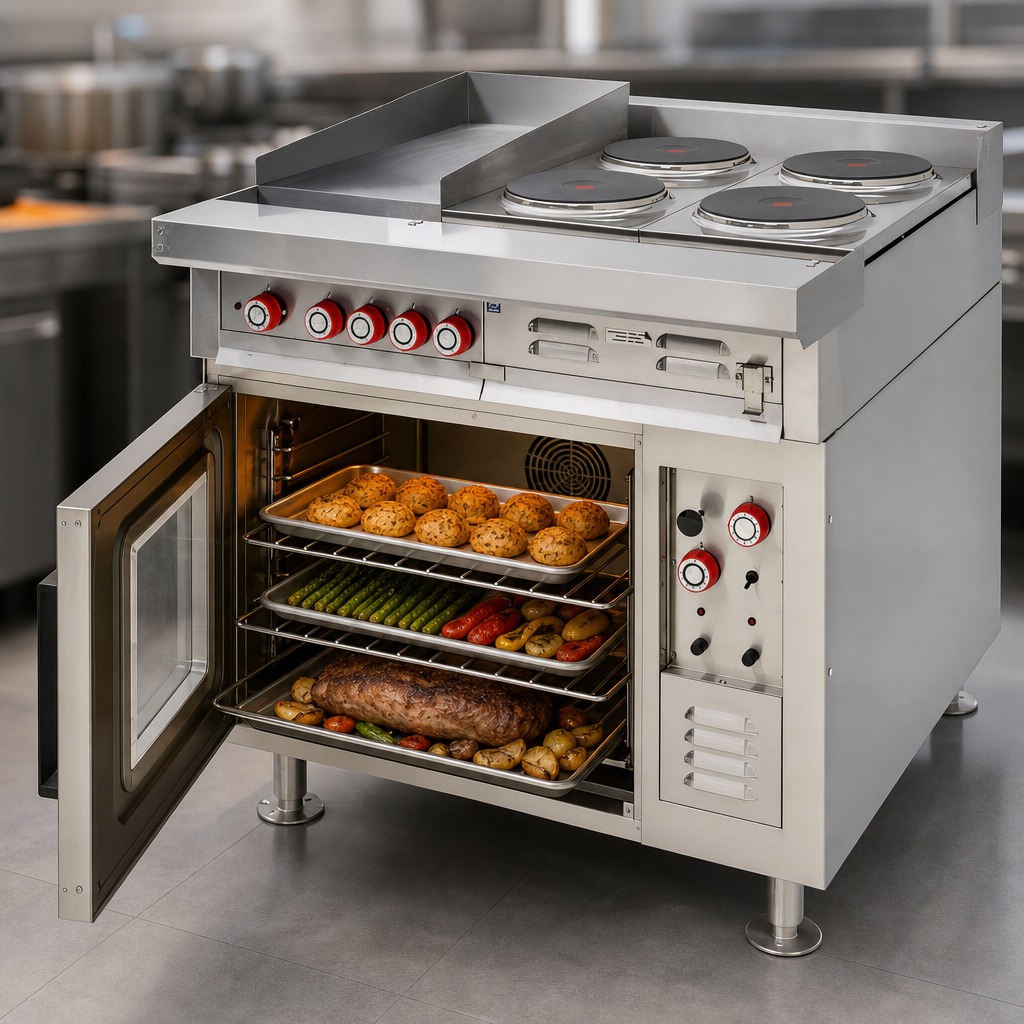

- High-performance convection oven accepts six full-size (18" × 26") sheet pans; three chrome racks included.
- Solid-state 150–450 °F oven thermostat with 60-minute timer and audible alarm.
- Right-side ⅓ HP blower guarantees even bake results and fast recovery.
- Rugged 430 series stainless steel exterior with easy-clean No. 4 finish.
- 2" vented stainless stub back protects walls while fitting under standard hoods.
- Fully insulated oven cavity (3" on all sides) boosts efficiency and keeps kitchens cooler.
- 6" adjustable stainless legs with bolt-down flange for rock-solid installation.
- Single-point electrical connection, 21.6 kW total load—208 V or 240 V, 1- or 3-phase.
Full Specifications
| Model | R36C-ATBM |
|---|---|
| Overall dimensions (W × D × H) | 36" × 40.6" × 41.7" (with 6" legs) |
| Cooking surface | (3) 12" cast-iron hot tops, ¾" thick |
| Hot-top controls | 3 independent thermostats, 150 °F – 850 °F |
| Oven type | Electric convection, rear-mounted blower |
| Oven temperature range | 150 °F – 450 °F |
| Timer | 0 – 60 min, audible alarm |
| Oven interior (W × D × H) | 24" × 17" × 10" |
| Rack positions / racks supplied | 6 / 3 chrome-plated racks |
| Total connected load | 21.6 kW |
| Voltage options | 208 V or 240 V, 1- or 3-phase | 440/480 V 3-phase available |
| Exterior material | 430 stainless steel |
| Backsplash | 2" vented stainless stub back |
| Legs | 6" adjustable stainless, bolt-down flange |
| Certifications | cULus, NSF |
| Shipping weight | Approx. 475 – 570 lb (varies with options) |
| Warranty | 1 year parts & labor |
Ideal For
- High-volume restaurants, hotels & resorts
- Institutional kitchens—schools, hospitals, correctional facilities
- Catering commissaries & production bakeries needing a space-saving powerhouse
Need additional accessories or custom factory options? Contact us for help configuring the perfect Lang range for your kitchen.
