Lang Manufacturing (Middleby) R36C-ATA Electric Ranges
Description

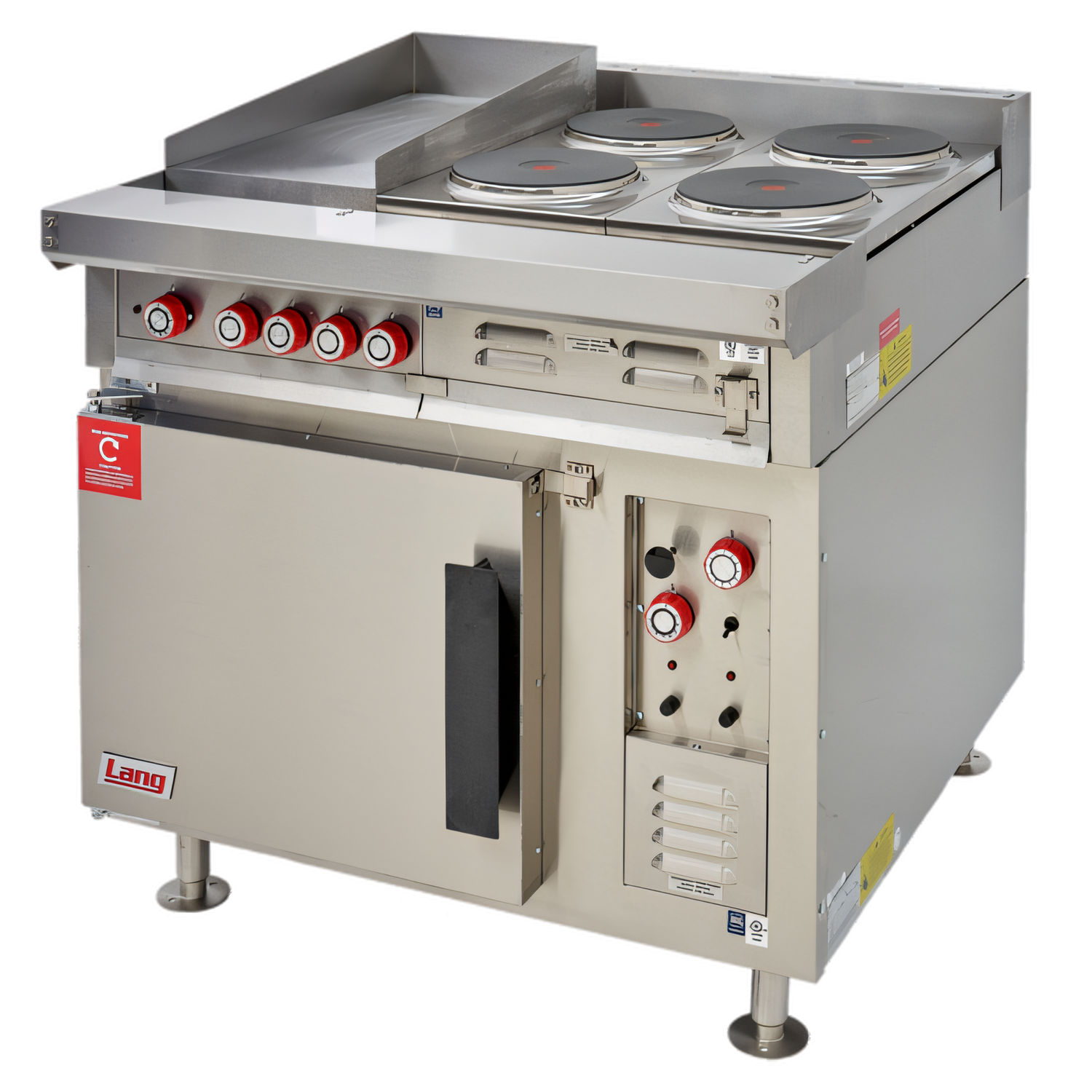

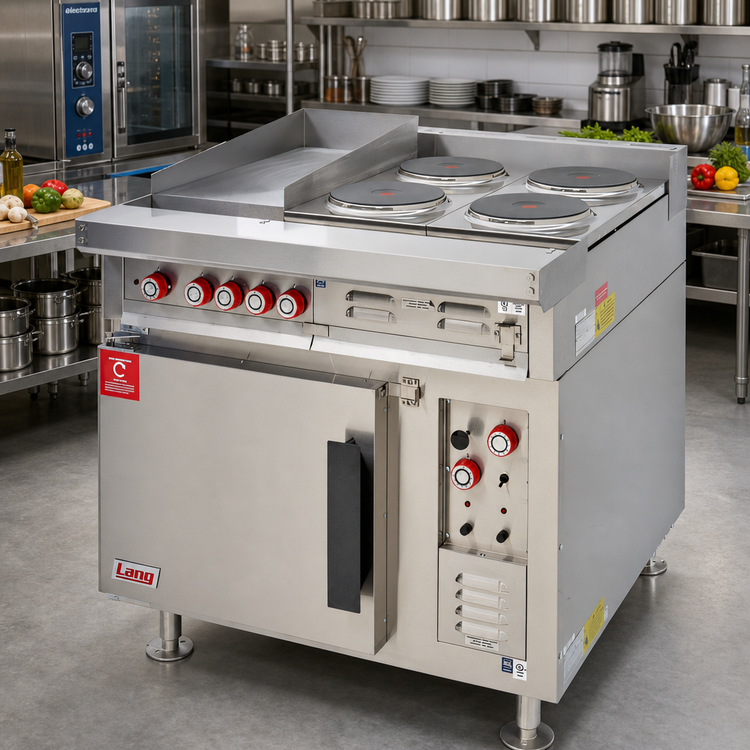

Lang 36" Heavy-Duty Electric Range – 24" Thermostatic Griddle & (2) 8" French Plates
Model R36C-AT – with built-in convection oven baseBuilt to keep pace with the busiest commercial kitchens, this 21.6 kW Lang range combines the versatility of a high-output griddle, two precision French plates and a full-size convection oven in one 36" footprint. Whether you’re searing, sautéing, or baking six full sheet pans at once, the R36C-AT delivers consistent results shift after shift.
Key Features & Benefits

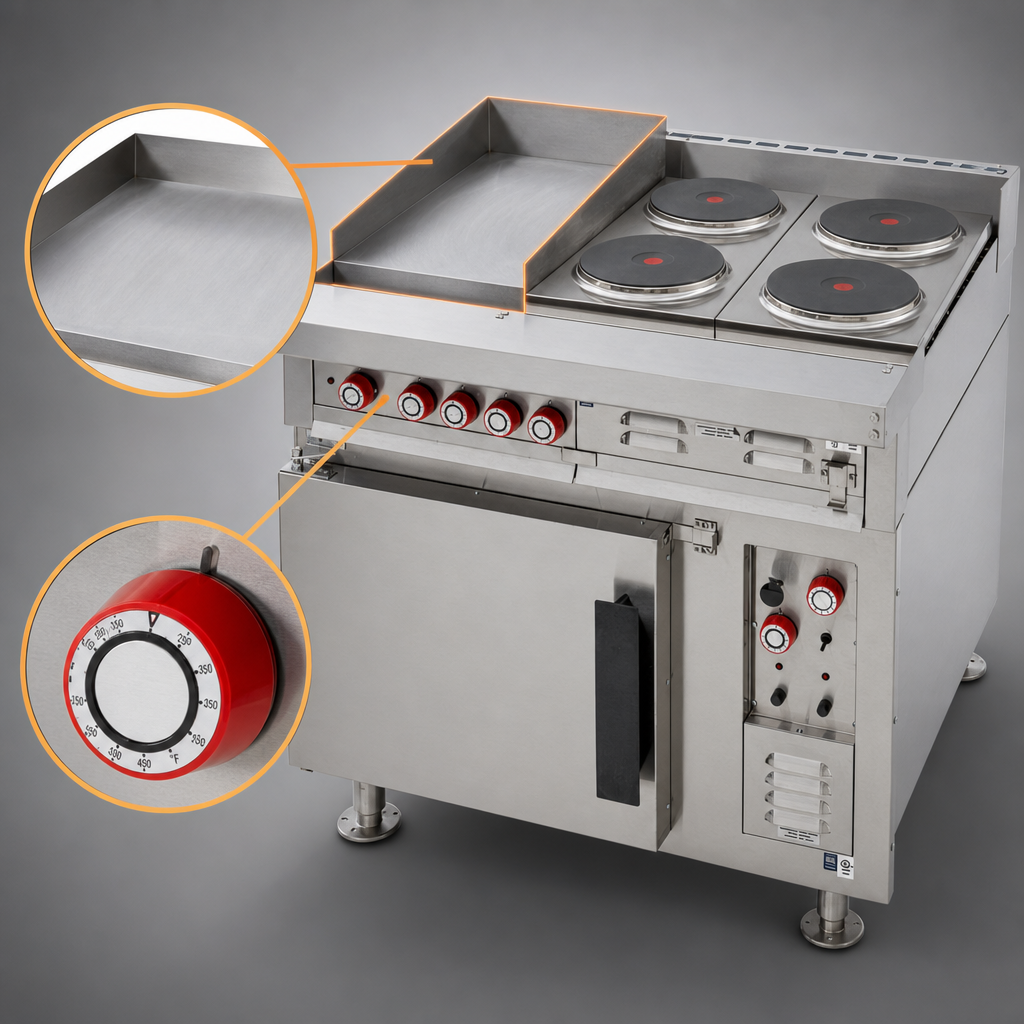

- 24" x 24" griddle, ½" thick steel plate for fast recovery and even heat.
- Snap-action thermostatic controls (one per 12") maintain set temps up to 450 °F.

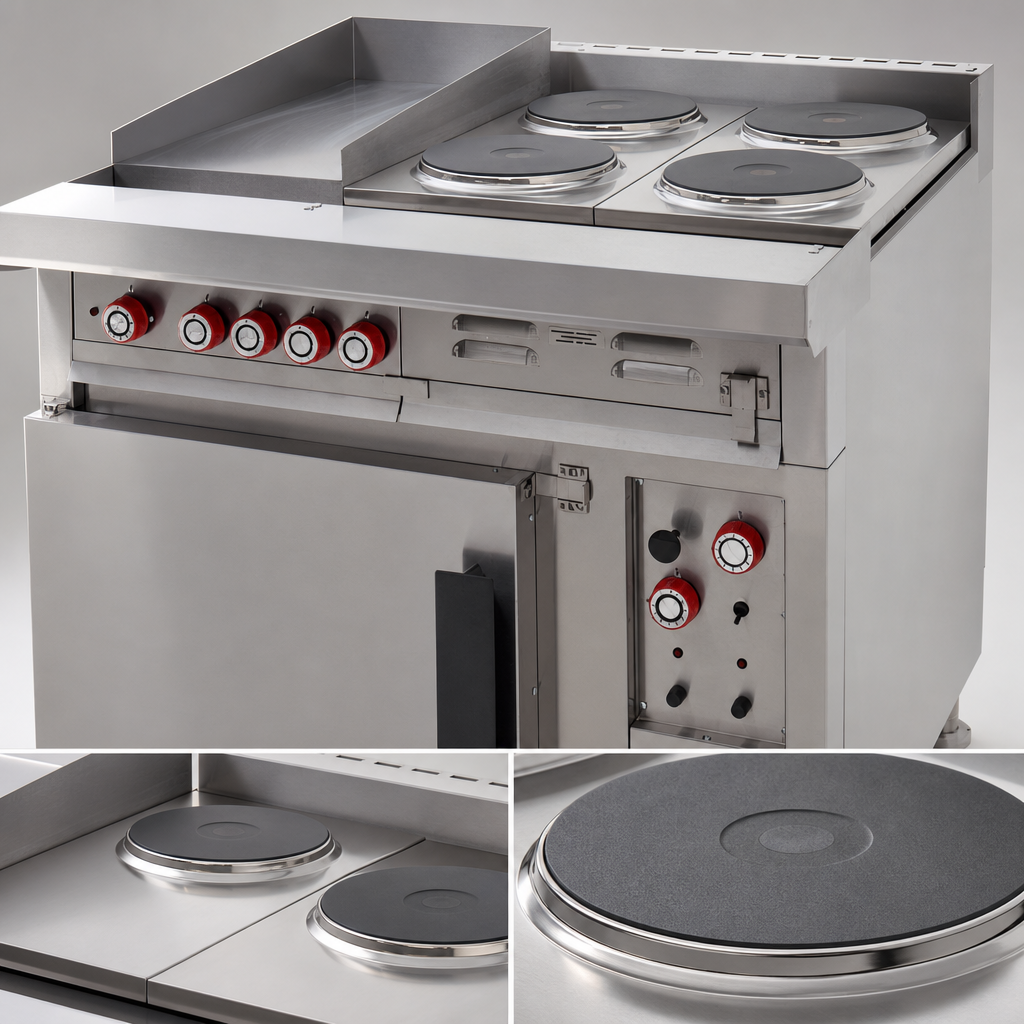

- (2) 8" diameter French plates with 6-position switches—ideal for stockpots & sauce pans.
- Forced-air convection oven holds six 18" x 26" sheet pans on six slide positions; three chrome racks included.
- 150-450 °F oven thermostat plus 60-minute timer for precise, repeatable baking.
- Incoloy-sheathed elements and dedicated blower ensure even, high-volume throughput.
- Durable 430 stainless steel exterior, 2" vented stub back, and 6" adjustable legs for easy cleaning & installation.
- Single-piece front grease trough with drain speeds daily clean-down.
- cULus & NSF listed for safety and sanitation.
At-a-Glance Specifications
| Cooking surface | 24" thermostatic griddle + (2) 8" French plates |
|---|---|
| Griddle plate | ½" thick steel, thermostatic 150-450 °F (snap-action) |
| French plates | 2.6 kW each, 6-heat switch control |
| Oven type / size | Convection, 10" H x 24" W x 17" D Fits (6) full-size sheet pans |
| Oven controls | Power switch, 150-450 °F thermostat, 60-min timer, damper |
| Total power | 21.6 kW @ 208 or 240 V (1 or 3 Φ) 18.2 kW @ 440 V • 21.6 kW @ 480 V (3 Φ) |
| Exterior dimensions | 36" W x 40.6" D x 41.7" H (with legs) |
| Construction | 430 stainless steel cabinet & front; 2" vented stub back |
| Rack positions / racks | 6 positions / 3 chrome racks supplied |
| Clearances* | 4" sides & rear (to combustibles) |
| Certifications | cULus, NSF |
*Installation under a properly sized vent hood and connection by a qualified electrician are required.
Why Choose Lang
- Reputation for rugged, long-life construction in high-volume environments.
- One-year parts & labor warranty backed by nationwide service network.
- Simplified daily maintenance with all-stainless exterior and removable grease drawers.
