Lang Manufacturing (Middleby) R30S-ATDM Lang® Marine Electric Ranges
Description

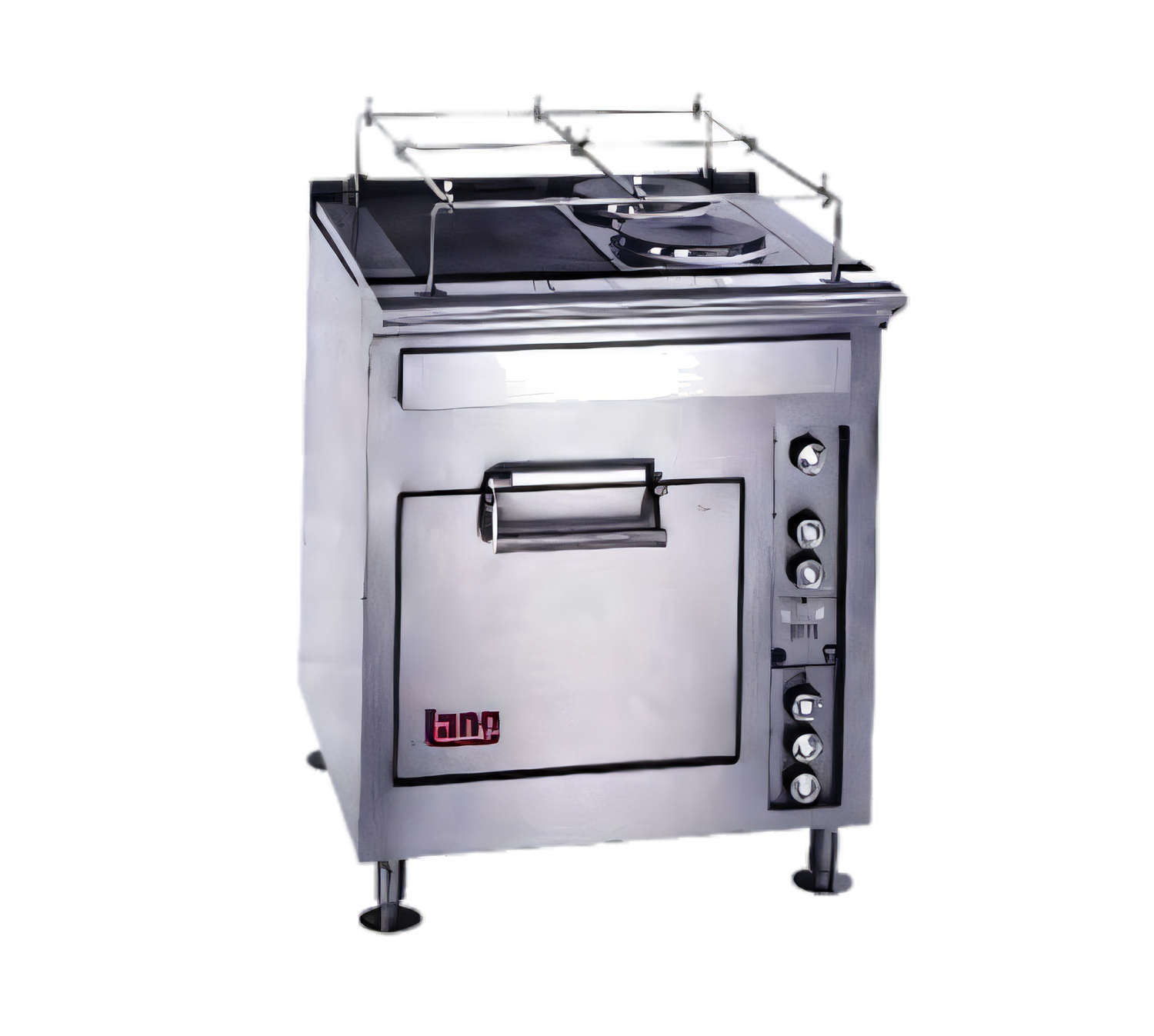

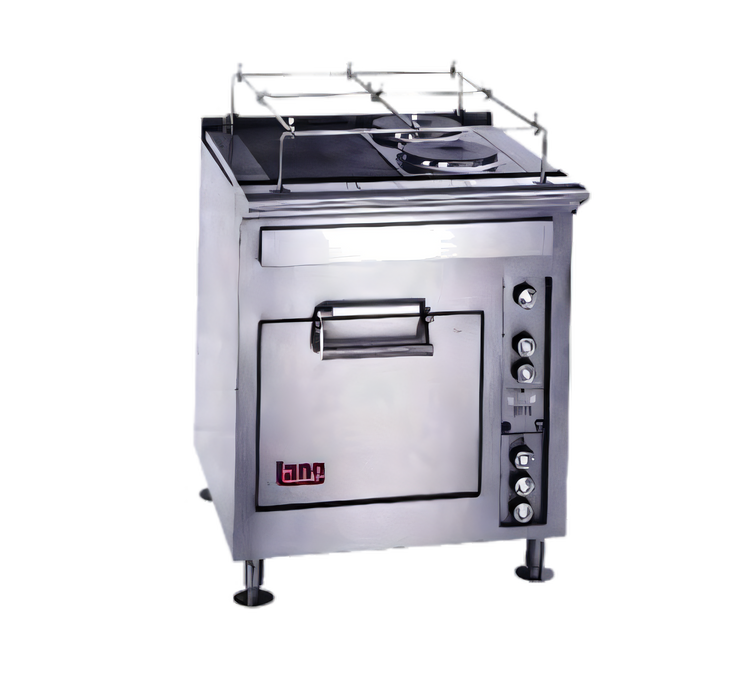

Lang® Marine 30" Electric Restaurant Range
Shipboard-rated range with griddle, French plates & standard ovenPurpose-built for the demanding conditions of galleys, offshore platforms and research vessels, the Lang® Marine Range packs a full-size cookline into a rugged 30" footprint. A heavy 18" snap-action griddle, two 8" French plates and a precise thermostatic oven give chefs everything they need to sear, sauté, simmer and bake—while marine-specific safeguards keep the crew and equipment secure at sea.
Why You’ll Love It
- Cooktop versatility – (1) 18" W x ¾" thick steel griddle for even, fast heat plus (2) cast-iron 8" French plates for pots & pans.
- Marine-ready safety – Flanged bolt-down legs, full-width sea rail & grab bar keep the range—and cookware—secure in heavy seas.
- Precision controls – Solid-state thermostats (150–450 °F) with 1-hour timer on both griddle and oven for consistent results batch after batch.
- Hatchable design – 2-piece construction slides through 26" watertight doors for easy onboard installation.
- Durable build – 430 stainless steel exterior, vented 2" stub back and snap-action controls rated for continuous commercial duty.
- Certified & backed – UL Marine listed, NSF approved and covered by Lang’s 2-year parts & labor warranty.
Standard Oven Performance
- Three rack positions; includes one heavy-duty oven rack.
- Even heating upper & lower elements for uniform baking and roasting.
- Quick preheat and fast recovery to keep up with high-volume service.
Technical Specifications
| Model | R30S-Marine (30" wide) |
|---|---|
| Overall dimensions (WxDxH) | 30" W x 34" D x 36" H (to cook surface) + 2" stub back |
| Cooktop configuration | (1) 18" W x ¾" griddle | (2) 8" French plates |
| Oven thermostat range | 150 °F – 450 °F solid-state, 1-hr timer |
| Total kW | 14.0 kW |
| Amps per line (3-phase) | 208 V: 37.5 A | 240 V: 32.5 A | 480 V: 16.3 A |
| Single-phase amps | 208 V: 67.3 A | 240 V: 58.3 A |
| Shipping weight | ≈370 lb (168 kg) |
| Construction | 430 S/S exterior, flanged legs, grab bar, sea rail, 2-piece hatchable body |
| Certifications | UL Marine, NSF |
| Warranty | 2 years parts & labor (Lang Marine Series) |
