Lang Manufacturing (Middleby)  |  SKU: R30S-ATD

Lang Manufacturing (Middleby) R30S-ATD Electric Ranges

$13,663.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Buying guide Installation & operation Middleby financial flyer Warranty sheet
Related Searches
Cut Resistant Gloves Kitchen Knives Smallwares

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Lang 30" Electric Restaurant Range – 18" Griddle & French Plates

Model R30S-ATD • 14 kW • cULus & NSF Listed

Combine a lightning-fast snap-action griddle, two versatile French plates and a rock-solid standard oven—all in only 30 inches of floor space. The Lang R30S-ATD is built from heavy-gauge stainless steel, insulated on six sides and mounted on easy-rolling casters to power through the most demanding restaurant, hotel or institutional kitchens.

Top-Side Versatility

  • 18" W × 24" D × ¾" thick steel griddle plate with snap-action temperature control for rapid recovery.
  • (2) 8" diameter cast-iron French plates—each independently controlled.
  • 2.75" full-width front grease trough, integral drain and removable spillage drawers keep the workspace clean.
  • 2" vented stainless steel stub back contains splatter without adding height.

Standard Oven Performance

  • Solid-state thermostat adjustable from 150-450 °F (65-232 °C).
  • 60-minute timer with audible alarm—ideal for precise baking, roasting or holding.
  • Aluminized steel cavity with (3) rack positions; (1) chrome rack included.
  • Heavy-duty, hinge-down door for easy loading and service access.

Built for the Long Haul

  • 430 stainless steel exterior resists dents, corrosion and daily wear.
  • All six sides fully insulated for greater efficiency and a cooler kitchen.
  • Factory-installed 4" swivel casters (front locking) simplify cleaning and relocation.
  • Proudly made in the USA; backed by a 2-year parts & labor warranty.

Technical Specifications

Model R30S-ATD

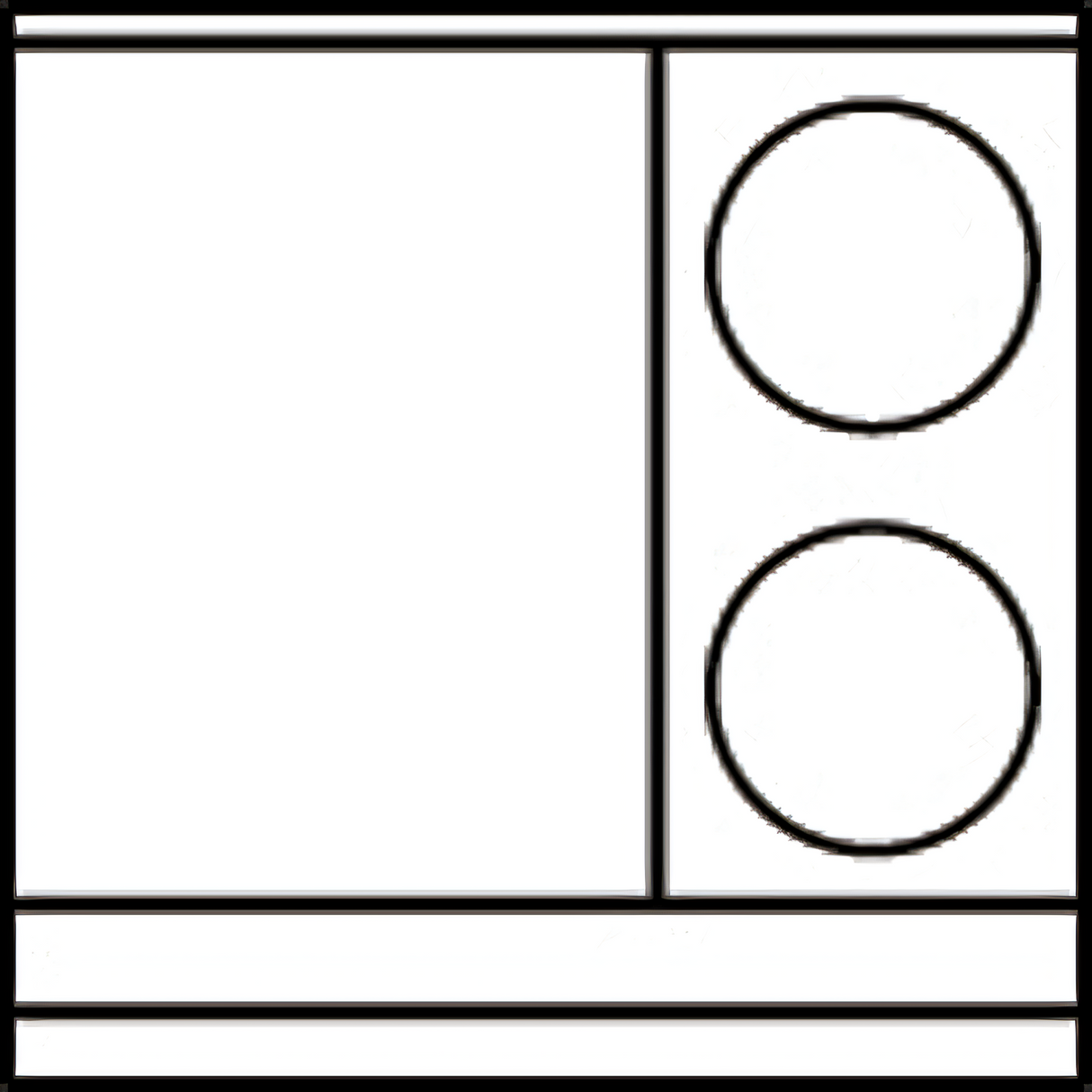

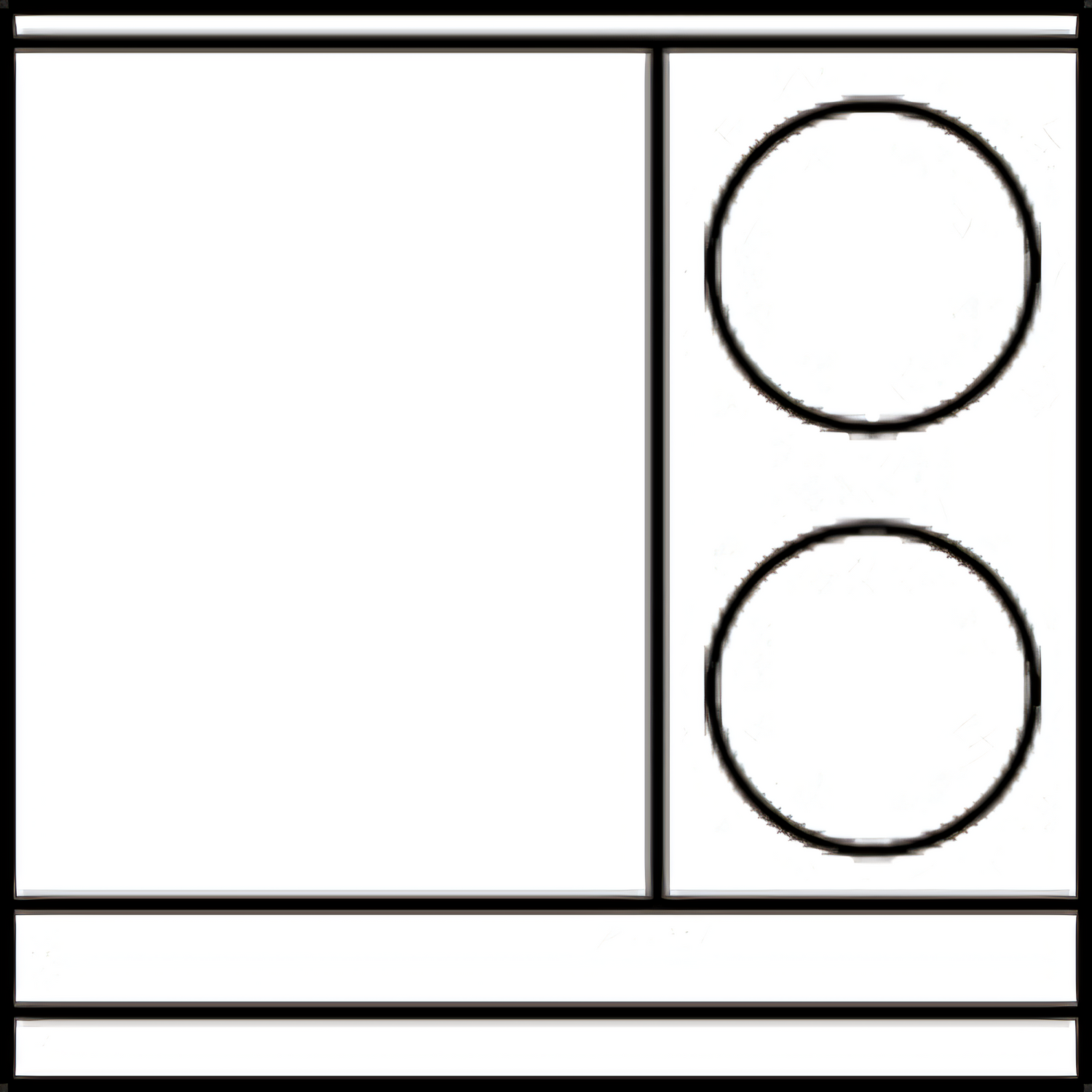

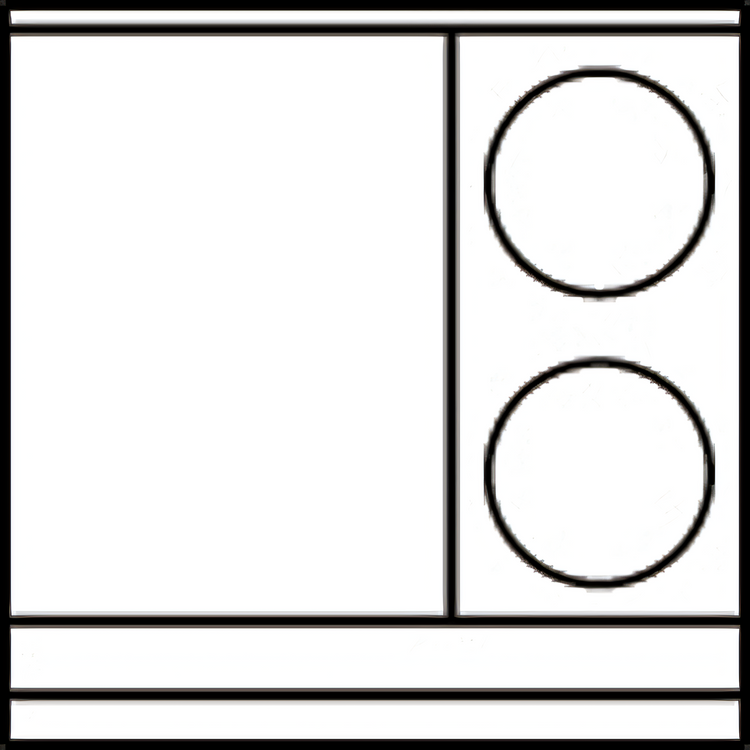

Cooktop (1) 18" × ¾" griddle, (2) 8" French plates
Oven Type Standard (aluminized steel)
Oven Capacity 3 rack positions / 1 chrome rack
Temp. Range 150-450 °F (solid-state)
Width 30" (762 mm)
Depth 30" (762 mm)
Height (with 4" casters) 38.2" (970 mm)
Total Load 14.0 kW
Electrical 208 / 240 V 1- or 3-phase (factory wired 3-phase); 480 V 3-phase optional
Typical Amp Draw 208 V 1Ø 67.3 A | 208 V 3Ø 41.7 A | 240 V 1Ø 58.3 A | 240 V 3Ø 36.1 A | 480 V 3Ø 18.1 A
Clearances 4" sides & rear
Weight Installed 270-310 lb (123-141 kg) • Shipping 320-412 lb (145-187 kg)
Certifications cULus, NSF
Warranty 2-year parts & labor

Specifications are subject to change without notice. Always consult the installation manual and local codes before connecting utilities.

Important: Unit ships wired for 3-phase service. 208 V or 240 V installations may be field-converted to single phase by a qualified electrician.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Certifications

NSF, cULus

Height

35.88in

Width

30.25in

Depth

28.88in

Shipping Weight

360.0lbs

Plate Thickness

.750" = 3/4"

Base

(1) standard oven

Vent

none

Exterior Finish

all stainless steel exterior

Top

(1) griddle, (2) hotplates / french plates

Specifications

Restaurant Range, electric, 30"W, (1) 18"W x 3/4" thick snap action griddle & (2) 8" french plates, standard oven base with (1) rack position and (1) rack, 150°-450°F solid state oven thermostat with 1-hour timer, 2" vented stainless steel stub back, 430 stainless steel exterior, 4" casters, 14.0kW, cULus, NSF
