Lang Manufacturing (Middleby) R30S-ATCM Lang® Marine Electric Ranges
Lang Manufacturing (Middleby) R30S-ATCM Lang® Marine Electric Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Lang Manufacturing (Middleby) R30S-ATCM Lang® Marine Electric Ranges
Description

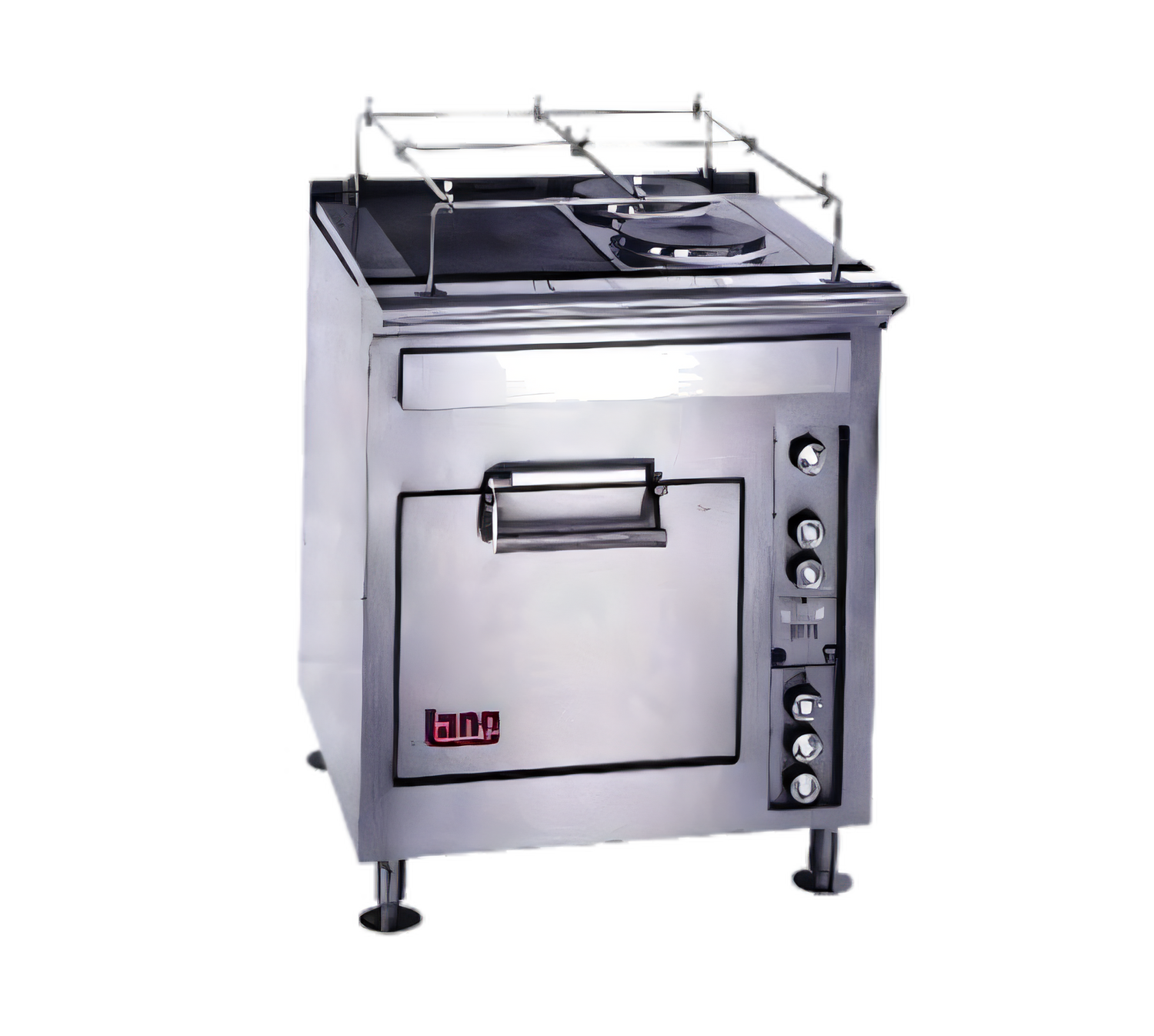

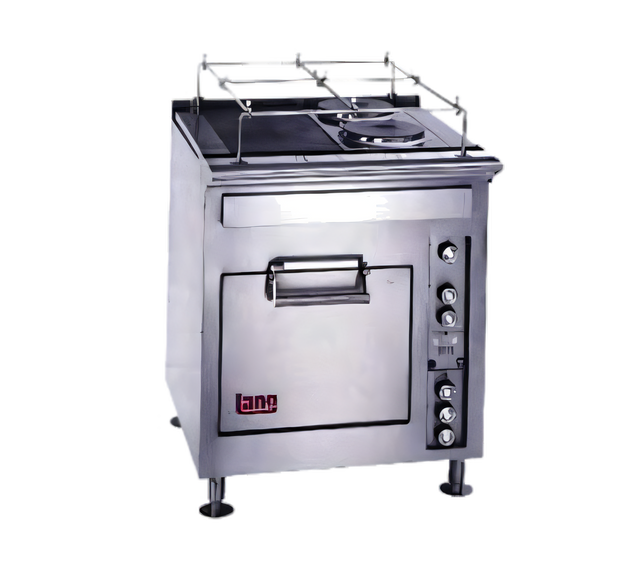

Lang® Marine 30" Electric Restaurant Range
Model R30S-M | 2 × 12" Hotplates • Standard Oven • UL Marine & NSFPurpose-built for demanding galleys, the Lang Marine 30" electric range delivers the rugged durability of 430 stainless steel with the precision of solid-state controls. Two powerful 12" hotplates handle everything from sauces to stockpots, while the full-size oven below turns out perfectly baked or roasted menu items—even in heavy seas.
Highlights
- Marine-ready construction: 2 piece “hatchable” body, flanged bolt-down legs, sea-rail & grab bar for safe operation underway.
- Dual 12" hotplates with independent thermostats—ideal for high-volume pots, pans & kettles.
- Standard oven offers three rack positions & includes one heavy-duty rack.
- 150–450°F solid-state thermostat + 60-minute timer for accurate, repeatable results.
- 2" vented stainless stub back protects surrounding surfaces and directs heat away from operators.
- All-electric, no open flame—perfect for vessels where gas is restricted.
- UL Marine & NSF listings meet USCG, SOLAS and food-safety requirements.
- Extended peace of mind: 2-year parts & labor warranty backed by Middleby.
Technical Specifications
| Overall width | 30 in (762 mm) |
|---|---|
| Hotplate configuration | (2) × 12" square hotplates |
| Oven rack positions / included racks | 3 positions / 1 rack |
| Oven temperature range | 150 – 450°F (66 – 232°C) |
| Total input | 14 kW |
| Electrical (3-phase amps) |
208 V: 37.5/41.7/37.5 A 240 V: 32.5/36.1/32.5 A 480 V: 16.3/18.1/16.3 A |
| Electrical (1-phase amps) | 208 V: 67.3 A | 240 V: 58.3 A |
| Exterior material | 430 stainless steel |
| Shipping weight | ≈ 370 lb (168 kg) |
| Certifications | UL Marine, NSF |
| Warranty | 2 years parts & labor |
Designed for Life at Sea
- Flanged bolt-down legs keep the range firmly secured to the deck.
- Sea rail & grab bar protect cookware and allow safe, steady movement.
- Two-piece body separates to fit through narrow companionways and hatches.
- Corrosion-resistant stainless exterior stands up to salt, humidity and daily wash-downs.
For maximum element life, always turn hotplates to LOW or OFF when not in use. Refer to the included installation & operation manual for full instructions.
