Lang Manufacturing (Middleby)  |  SKU: R30C-PTF

Lang Manufacturing (Middleby) R30C-PTF Electric Ranges

$18,869.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Buying guide Installation & operation Middleby financial flyer Warranty sheet
Related Searches
Cut Resistant Gloves Kitchen Knives Smallwares

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

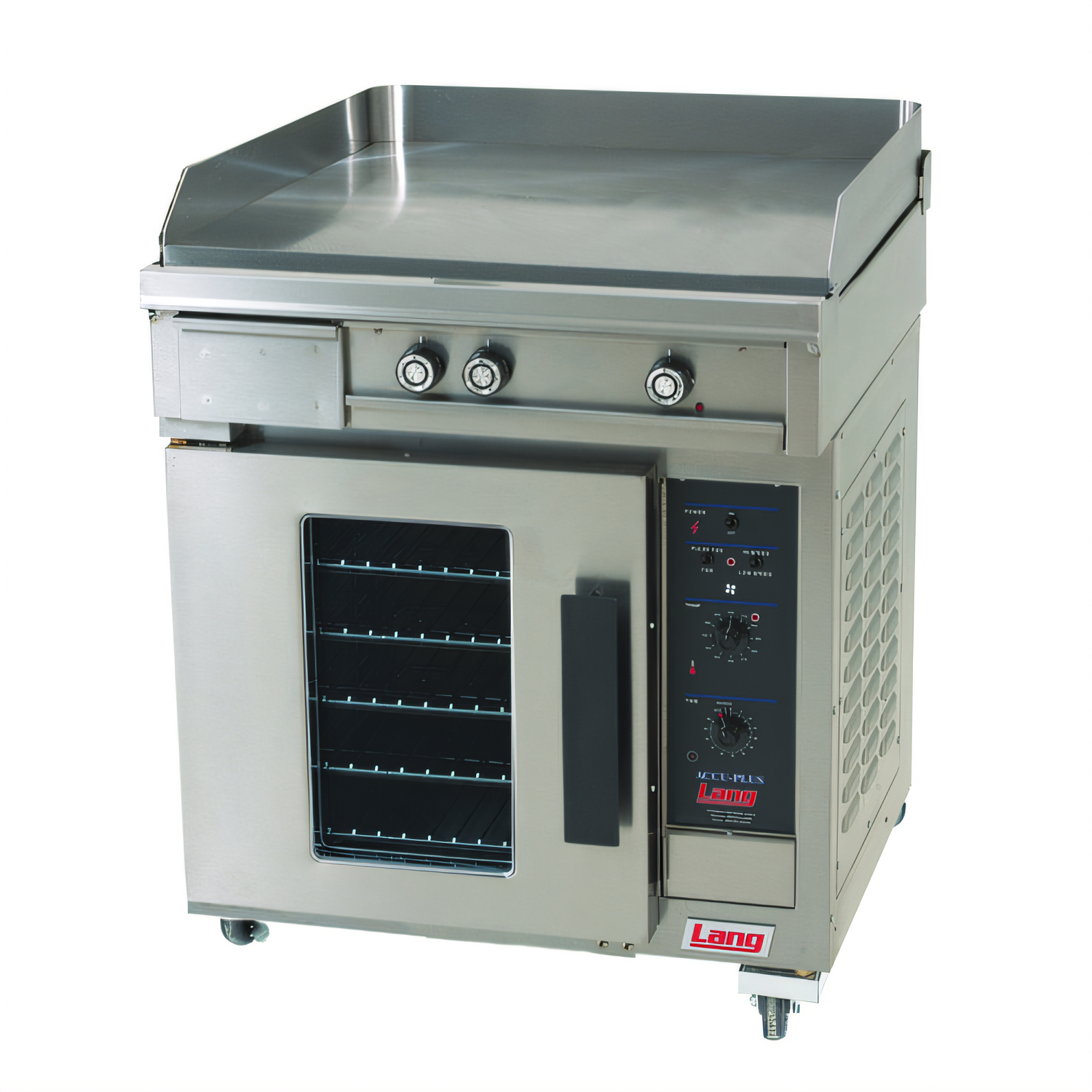

Lang 30" Electric Griddle Range with Convection Oven Base

Model R30C-APF | 19.8 kW | cULus & NSF Listed

Built for kitchens that demand unwavering performance in a compact footprint, the Lang R30C-APF combines a full-width snap-action griddle with a high-capacity convection oven. Programmable LCD controls, rugged 430 stainless steel construction and industry-leading evenness make this all-electric workhorse a smart investment for any professional line.

Why You’ll Love It
  • 30" × 24" × ¾" steel griddle – single-piece plate with snap-action thermostat delivers lightning-fast recovery and edge-to-edge heat.
  • 150–450 °F programmable LCD controls for both griddle and oven let you reproduce settings at the touch of a button.
  • Heavy-duty convection oven with 9 rack positions, 5 chrome racks, and a 2-speed fan (plus pulse) for uniform baking and roasting.
  • Grease management simplified: 2.75" front trough, generous drain and removable spillage drawers.
  • Six-sided insulation & 430 stainless interior/exterior keep heat where it belongs and stand up to daily punishment.
  • Mobility on demand: furnished with 4" locking casters and a low-profile 2" vented stainless stub back.
Specifications
Overall width 30" / 762 mm
Overall depth 30" / 762 mm
Height (incl. 4" casters) ≈ 32" / 813 mm
Griddle plate 30" W × 24" D × ¾" thick polished steel, snap-action control
Oven temperature range 150–450 °F (66–232 °C)
Rack positions / supplied 9 / 5 chrome racks
Fan speeds High • Low • Pulse
Electrical input 19.8 kW, factory-wired 3-phase
Voltage options 208 V or 240 V (3-ph or field-convertible 1-ph), 480 V 3-ph
Amp draw (3-ph) 57.6 A @ 208 V • 50 A @ 240 V • 25 A @ 480 V
Construction 430 stainless steel exterior & interior, 2" vented stub back
Casters 4" (front locking)
Certifications cULus, NSF, Made in USA
Warranty 2-year parts & labor (5-year on chrome griddle surface)
Installation Note: This unit draws up to 19.8 kW. A dedicated electrical connection installed by a licensed electrician is required. Follow all local codes.

Need flexible payment options? Ask about Middleby Equipment Financing for quick credit decisions and fixed monthly terms.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Certifications

NSF, cULus

Width

30.2in

Top

(1) griddle

Plate Thickness

.750" = 3/4"

Exterior Finish

all stainless steel exterior

Base

(1) convection oven

Vent

none

Specifications

Range, electric, 30"W, (1) 30"W x 3/4" thick Snap Action Griddle, convection oven base with (9) rack positions and (5) racks, 150-450°F programmable LCD controls, 2-speed fan with pulse capability, 2" vented stainless steel stub back, 430 stainless steel exterior & interior, 4" casters, 19.8kW, cULus, NSF
