Description

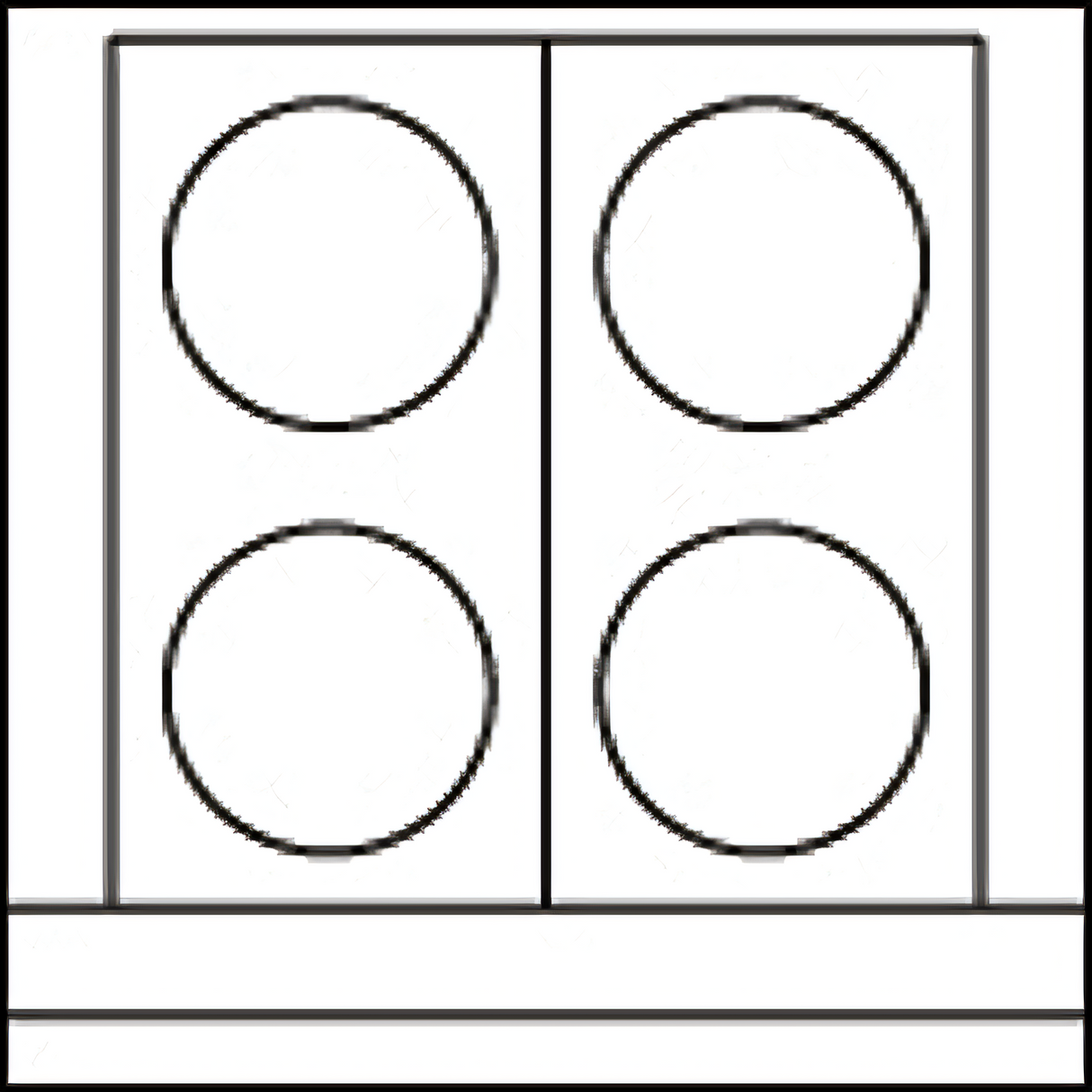

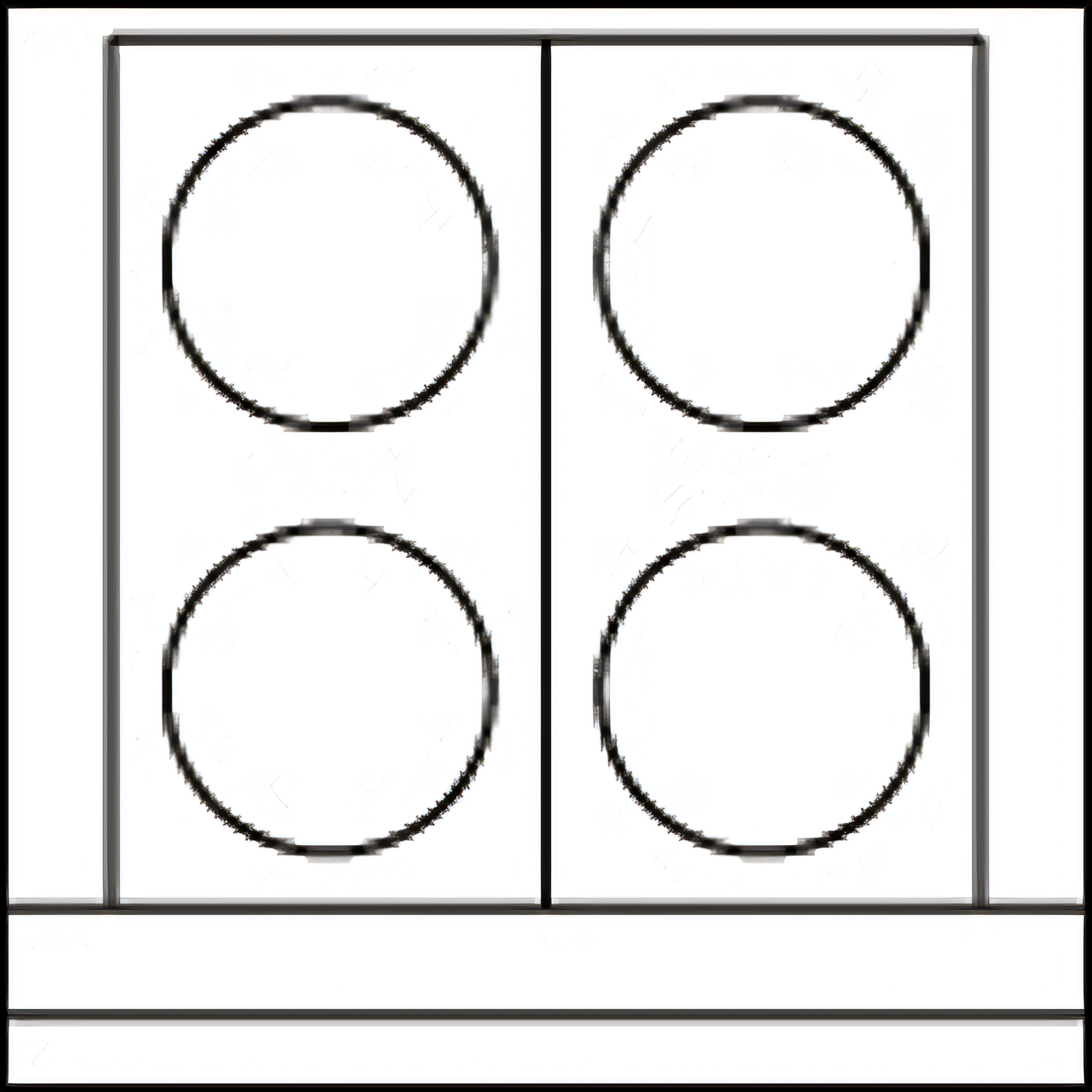

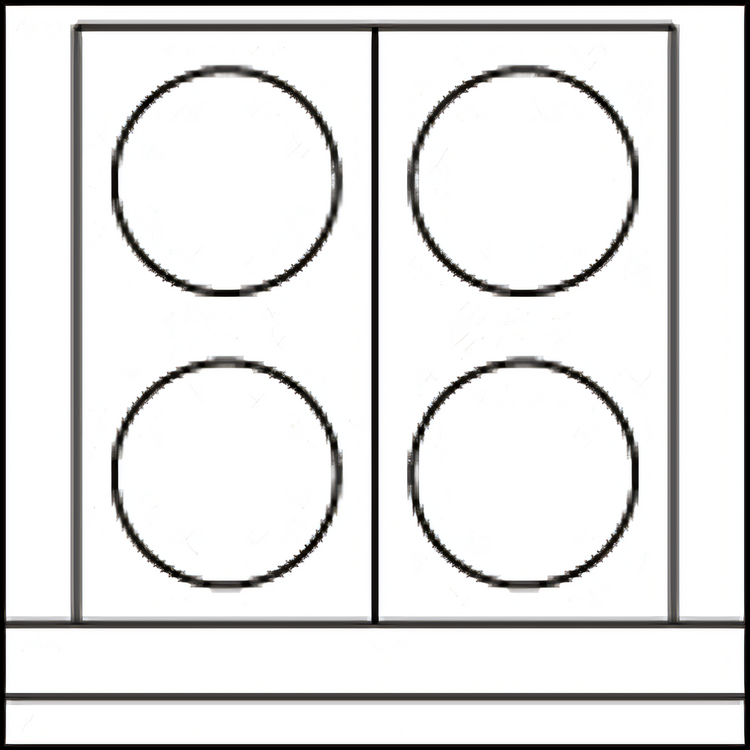

Lang 30" Electric Range with (4) 8" French Plates & Convection Oven
Model R30C-APA • Platinum (PT) One-Touch ControlsBring pro-level precision to any commercial kitchen with Lang Manufacturing’s 30" French-top electric range. Four heavy-duty 8" cast-iron French plates deliver even heat across the cooktop, while a high-performance convection oven handles five half-size sheet pans at once. Intuitive Platinum touch controls, a two-speed fan and rugged all-stainless construction make this the most versatile 30" footprint in its class.
Why You’ll Love It
- Four 8" French plates (3.6 kW each) with independent 850 °F thermostats for fast sear-to-simmer flexibility.
- Convection oven base with nine rack positions & five chrome racks standard.
- Wide 150 – 450 °F temperature range maintained to ±4 °F accuracy.
- Platinum (PT) one-touch LCD controller stores repeatable recipes and countdown timers.
- Two-speed fan with pulse mode for delicate baking or rapid roasting.
- 2" vented stainless steel stub back protects walls without adding height.
- Fully welded 430 stainless steel exterior & interior—easy to clean, built to last.
- Ships on 4" heavy-duty casters (front locking) for effortless service access.
- cULus & NSF listed; proudly Made in the USA.
Convection Oven Performance
- 19.8 kW power heats to set-point in minutes.
- Large double-pane viewing window & right-hinged door with magnetic closure.
- Removable rack slides for easy deep-cleaning.
- ON/OFF master switch plus dedicated fan HIGH/LOW selector.
Technical Specifications
Cooktop | (4) 8" Ø cast-iron French plates, independent controls |
---|---|
Oven Type / Capacity | Convection; (5) half-size pans on (5) racks, 9 positions |
Temperature Range | 150 °F – 450 °F (65 °C – 232 °C) |
Controls | Platinum PT solid-state LCD, programmable |
Exterior Dimensions (W × D × H) | 30" × 30" × 32" (with 4" casters) |
Electrical Input | 19.8 kW, 208 / 240 V, 3-phase (field convertible to 1-phase) |
Shipping Weight | 320 – 412 lb (145 – 187 kg) |
Construction | 430 stainless steel cabinet & oven interior; fully insulated |
Certifications | cULus, NSF |
Warranty | 2-year parts & labor (see Lang warranty statement) |
Electrical connection from bottom of unit. Minimum clearances: 4" sides & back. Ships fully assembled.
