Lang Manufacturing (Middleby) R30C-APF Electric Ranges
Description

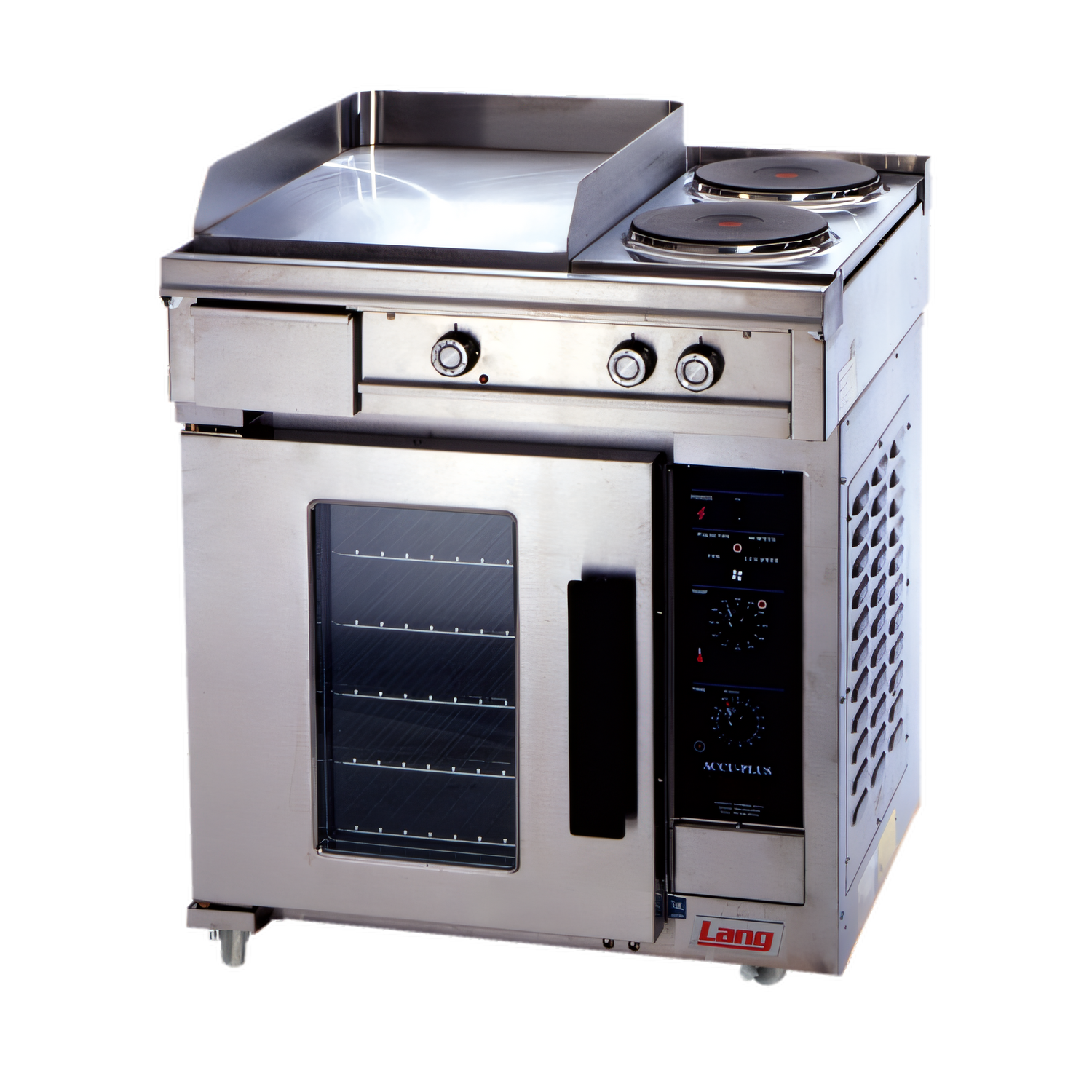

30" Electric Range w/ Snap-Action Griddle & Convection Oven
Lang Manufacturing • 19.8 kW • cULus & NSF ListedBuilt for kitchens that demand speed, consistency and durability, this all-electric 30″ range combines a full-width ¾″ thick snap-action griddle with a high-performance five-rack convection oven – all wrapped in heavy-gauge stainless steel and mounted on easy-rolling 4″ casters.
Why chefs love it
- True 30″ cooking surface – 30 × 24 in. griddle gives you 720 sq in. of searing real estate.
- Snap-action thermostat (200-450 °F) reacts instantly to load changes for even browning across the plate.
- Grease management made easy – 2.75″ wide front trough, drain, and removable spillage drawer keep the deck clean and safe.
- High-velocity convection oven – 150-450 °F solid-state control, two-speed fan, and pulse mode slash cook times and boost yields.
- Maximum capacity – 9-position rack slides & 5 chrome racks handle five 18″ × 26″ sheet pans at once.
- Rugged inside & out – 430 series stainless steel exterior and interior, fully insulated on six sides.
- Move it with ease – factory-installed 4″ swivel casters (front locking) simplify cleaning and service access.
- Made in the USA and backed by a 2-year warranty.
Technical specifications
| Overall width | 30 in. (762 mm) |
|---|---|
| Griddle plate | 30 × 24 in. × ¾ in. thick, snap-action controlled |
| Oven type / capacity | Convection, 5 full-size pan (18 × 26 in.) |
| Oven temperature range | 150 – 450 °F (solid-state control) + 60-min timer & alarm |
| Fan | 2-speed with pulse capability |
| Electrical input | 19.8 kW – 208 / 240 V 1 Ø or 3 Ø • 480 V 3 Ø available |
| Overall dimensions (HxDxW) | 38.2 × 30 × 30 in. (970 × 762 × 762 mm) |
| Shipping / installed weight | ≈ 320-412 lb / 270-310 lb (145-187 kg / 123-141 kg) |
| Certifications | cULus, NSF, Made in USA |
Standard construction
- 2″ vented stainless steel stub back & 1″ cook-top backstop
- Hinge-down, right-swing oven door with double-pane viewing window & magnetic closure
- ON/OFF master switch and simple knob-set controls
- Factory wired 3-phase; field convertible to single-phase (208/240 V)
- Grease trough, drain, and drawer all removable without tools
Warranty: 2 years parts & labor on the entire range.
See Lang Manufacturing’s full warranty statement for terms & exclusions.
