Lang Manufacturing (Middleby) R30C-APC Electric Ranges
Description

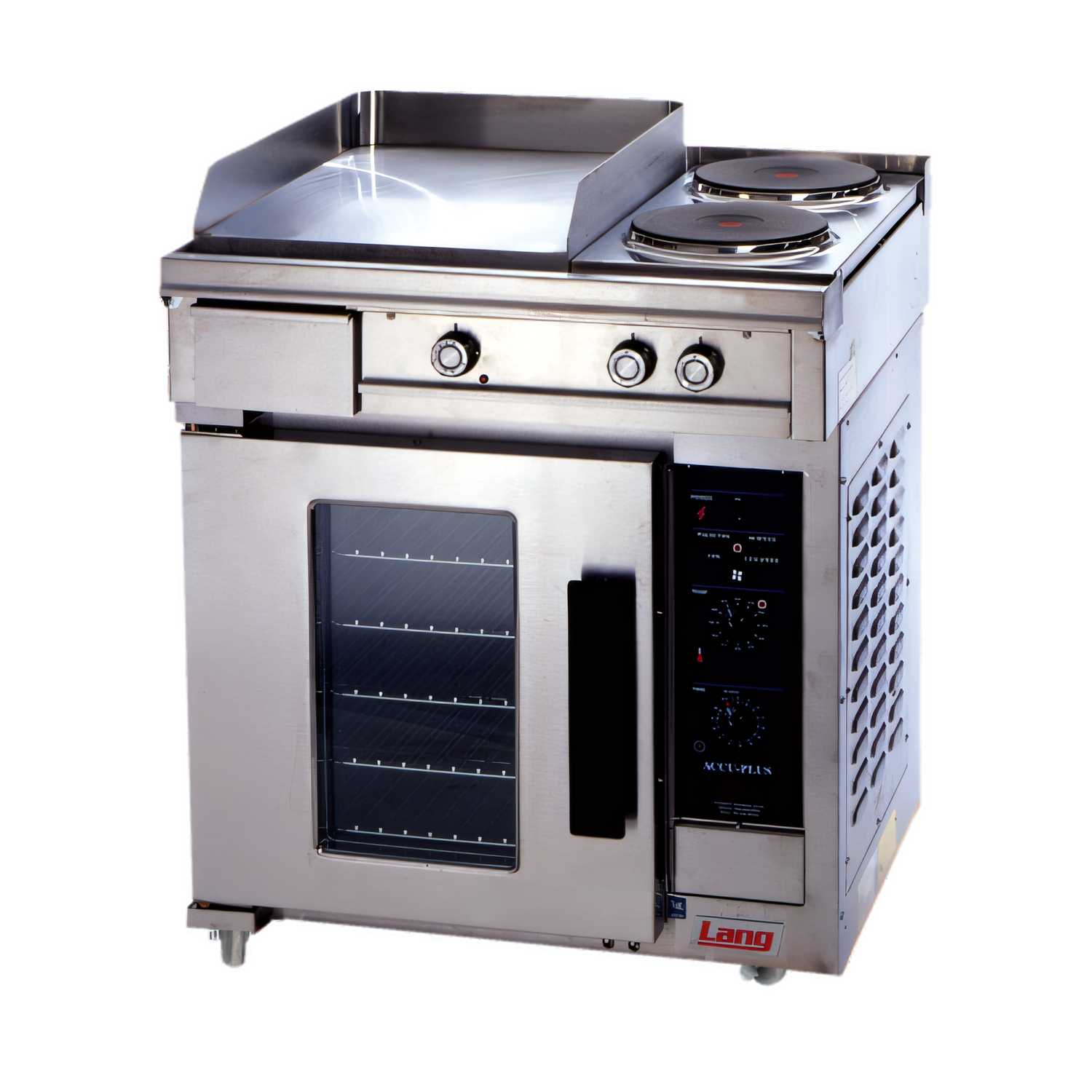

Lang 30" Electric Range with Two Hot Plates & Convection Oven Base
Model R30C-APC | 19.8 kW | NSF & cULus ListedBuilt for high-volume kitchens that demand versatility, the Lang R30C-APC combines two heavy-duty hot plates with a high-performance convection oven — all in a compact 30" footprint. Robust 430 stainless steel construction, precise solid-state controls and a smart grease-management system make this USA-made range a dependable workhorse shift after shift.
Highlights at a Glance
- (2) 12" × 24" × ¾" cast-iron hot plates, each controlled by an 850 °F thermostat.
- Convection oven base with solid-state temperature control (150-450 °F) and 60-minute timer with audible alarm.
- 2-speed fan (High / Low) plus pulse mode for even heat distribution on delicate bakes.
- Five chrome-plated racks on nine slide positions maximize batch flexibility.
- Fully welded 430 stainless steel exterior & interior, insulated on six sides for energy efficiency and a cooler kitchen.
- 2.75" full-front grease trough with drain to dual spillage drawers simplifies cleanup.
- 2" vented stub back and 1" cook-top back-stop contain splatter without interfering with low hoods or salamanders.
- 4" locking swivel casters included for easy pull-outs and routine maintenance.
- Made in the USA and protected by a two-year parts & labor warranty.
Cooktop Performance
| Hot plate size & material | (2) 12" × 24" × ¾" cast-iron plates |
|---|---|
| Heat control | Independent 3-heat switch per plate, up to 850 °F |
| Grease management | 2.75" front trough • Removable spillage drawers |
Convection Oven Specifications
| Interior material | 430 stainless steel, fully insulated |
|---|---|
| Capacity | Five half-size sheet pans (5 racks included, 9 positions) |
| Temperature range | 150 °F – 450 °F (solid-state control) |
| Timer | 1-hour with audible alarm |
| Fan system | 2 speeds + pulse capability |
| Door | Right-hinged, heavy-duty with double-pane tempered glass window & magnetic closure |
Utilities & Dimensions
| Overall size (W × D × H) | 30" × 30" × 38.2" (with 4" casters) |
|---|---|
| Electrical rating | 19.8 kW • Factory wired 3-phase • Field convertible to 1-phase (208 V / 240 V) |
| Amps @ 208 V | 95.2 A (1Ø) | 57.6 A (3Ø) |
| Amps @ 240 V | 82.5 A (1Ø) | 50.0 A (3Ø) |
| Amps @ 480 V | 25.0 A (3Ø) |
| Net / Ship weight | 270 – 310 lb / 320 – 412 lb |
| Listings | NSF • cULus • Made in USA |
