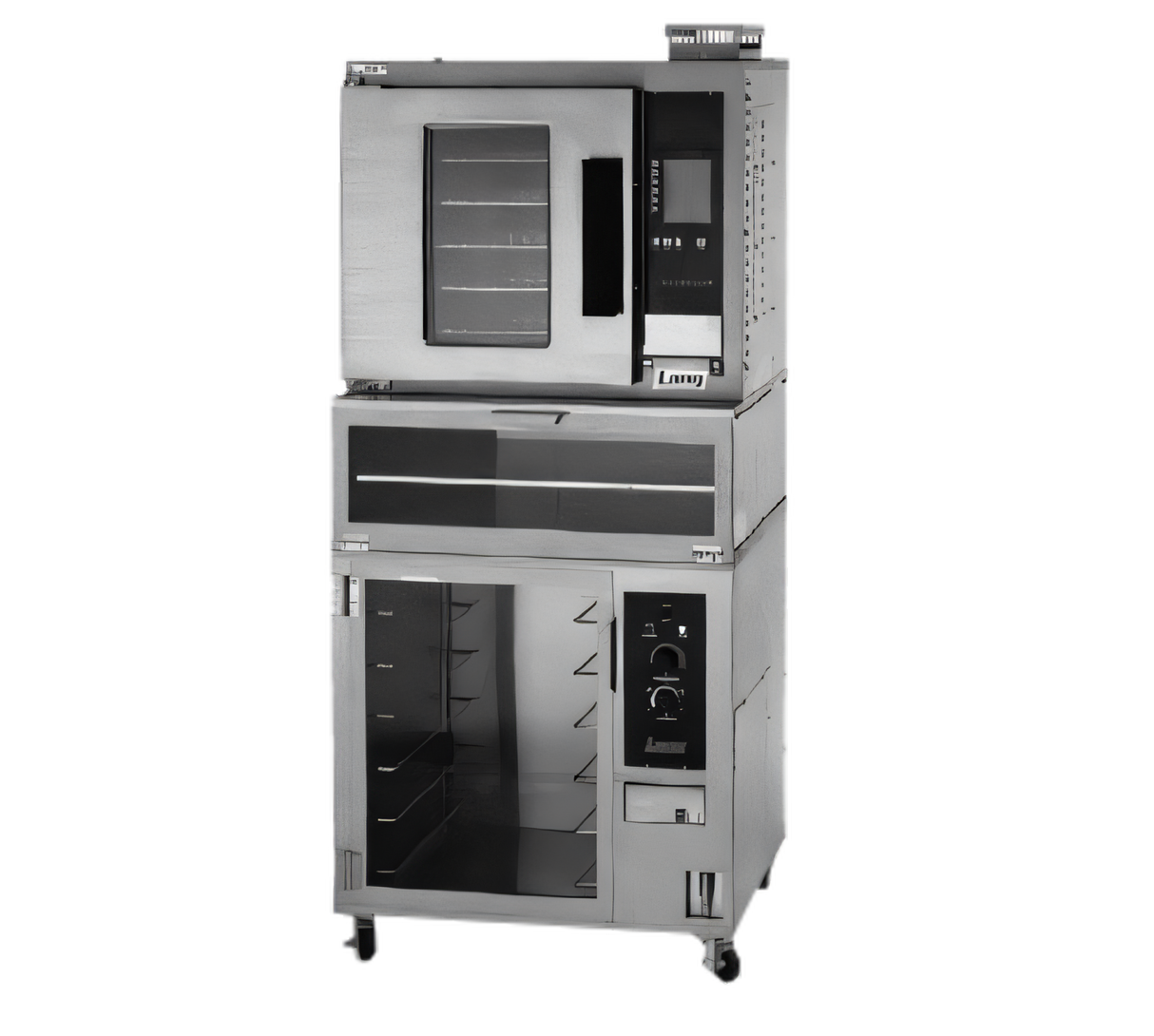

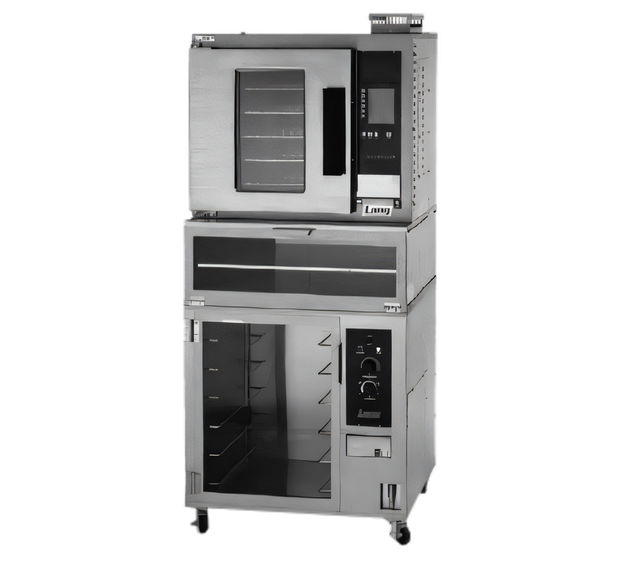

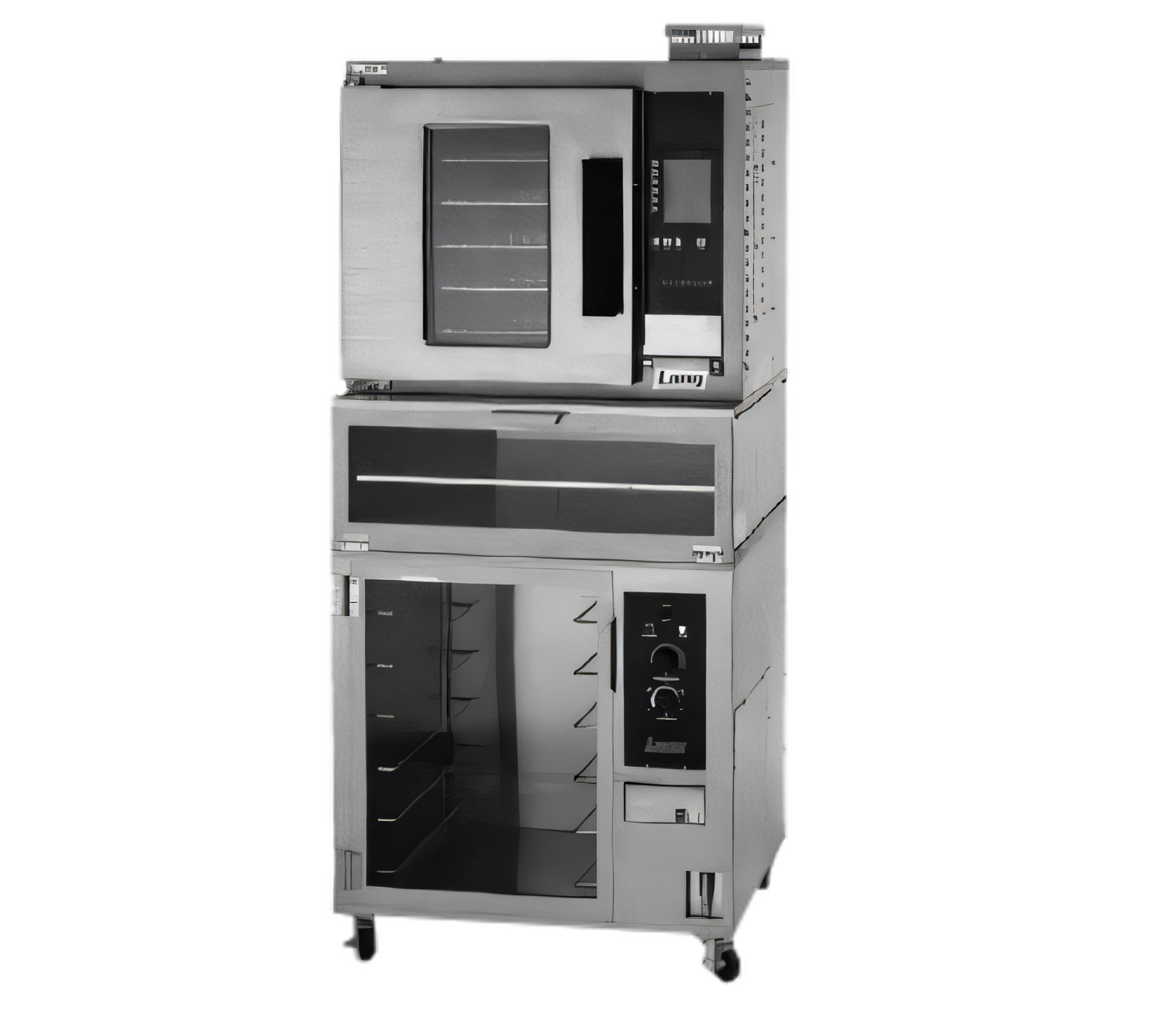

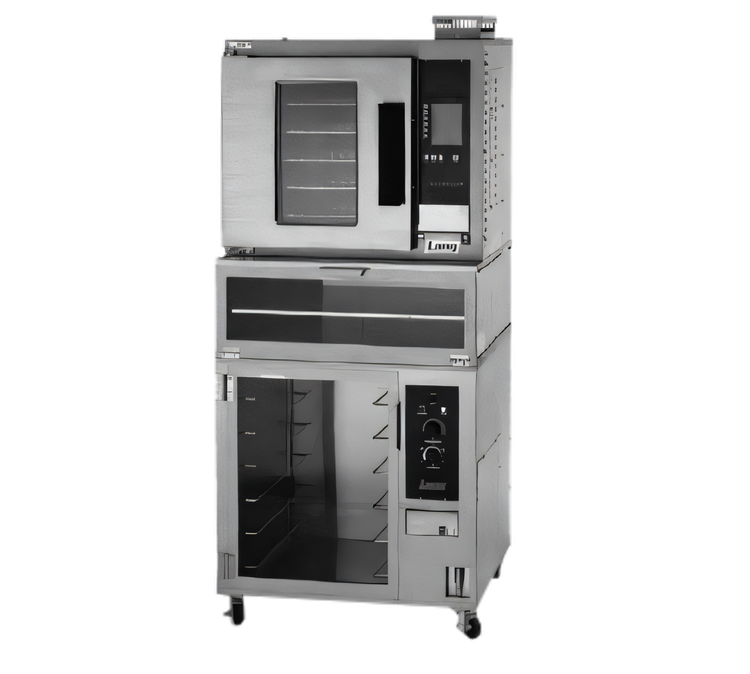

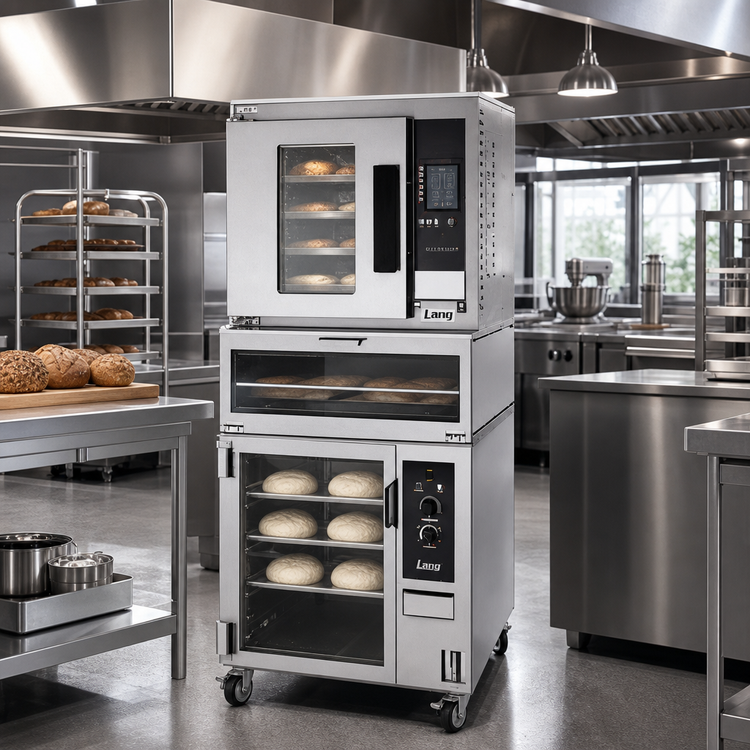

Lang Manufacturing (Middleby) MB-PT MicroBakery Convection Ovens

MicroBakery™ Half-Size Oven • Staging Cabinet • Proofer

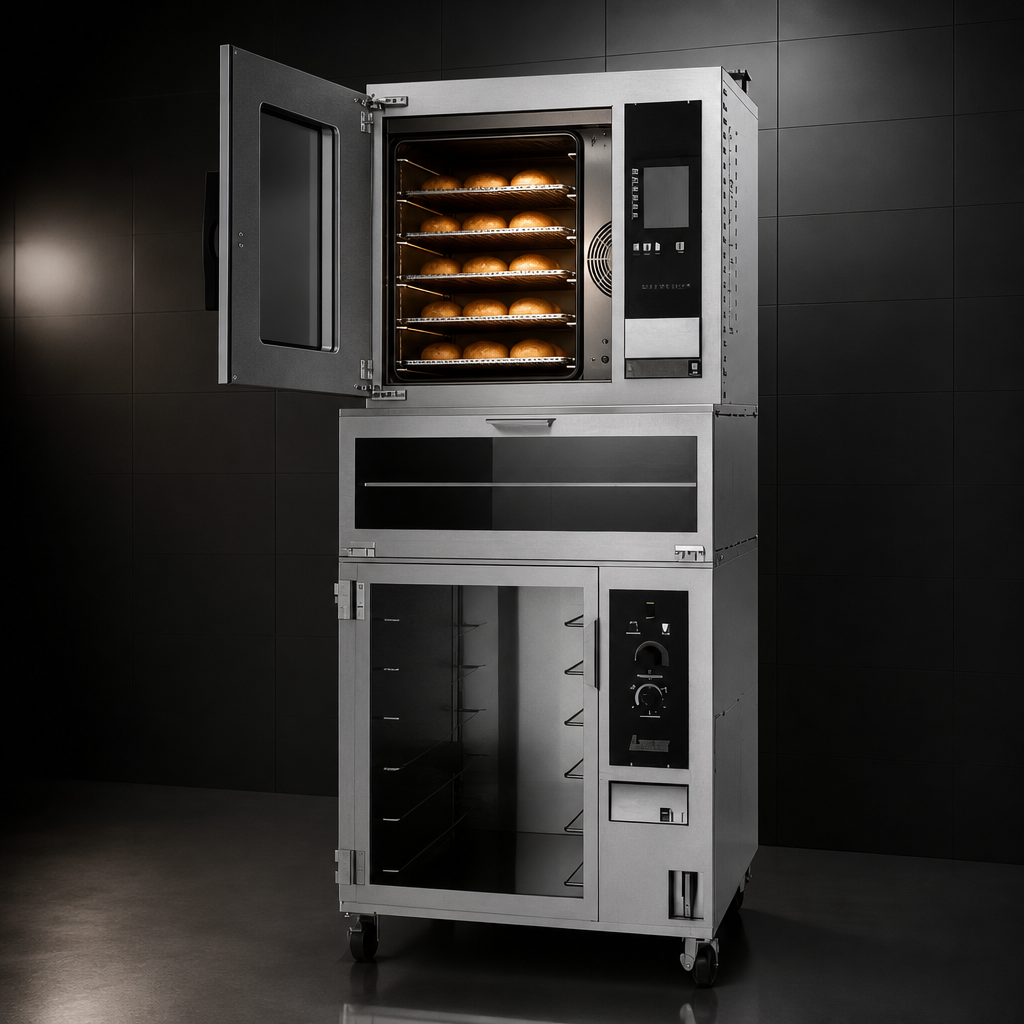

Bake, stage, and proof in a single footprint. The Lang MicroBakery™ combines a 5-pan Platinum-controlled convection oven, a non-heated 4-pan staging cabinet, and a 12-pan heated proofer—delivering full bakery production where floor space is at a premium.

Key benefits at a glance

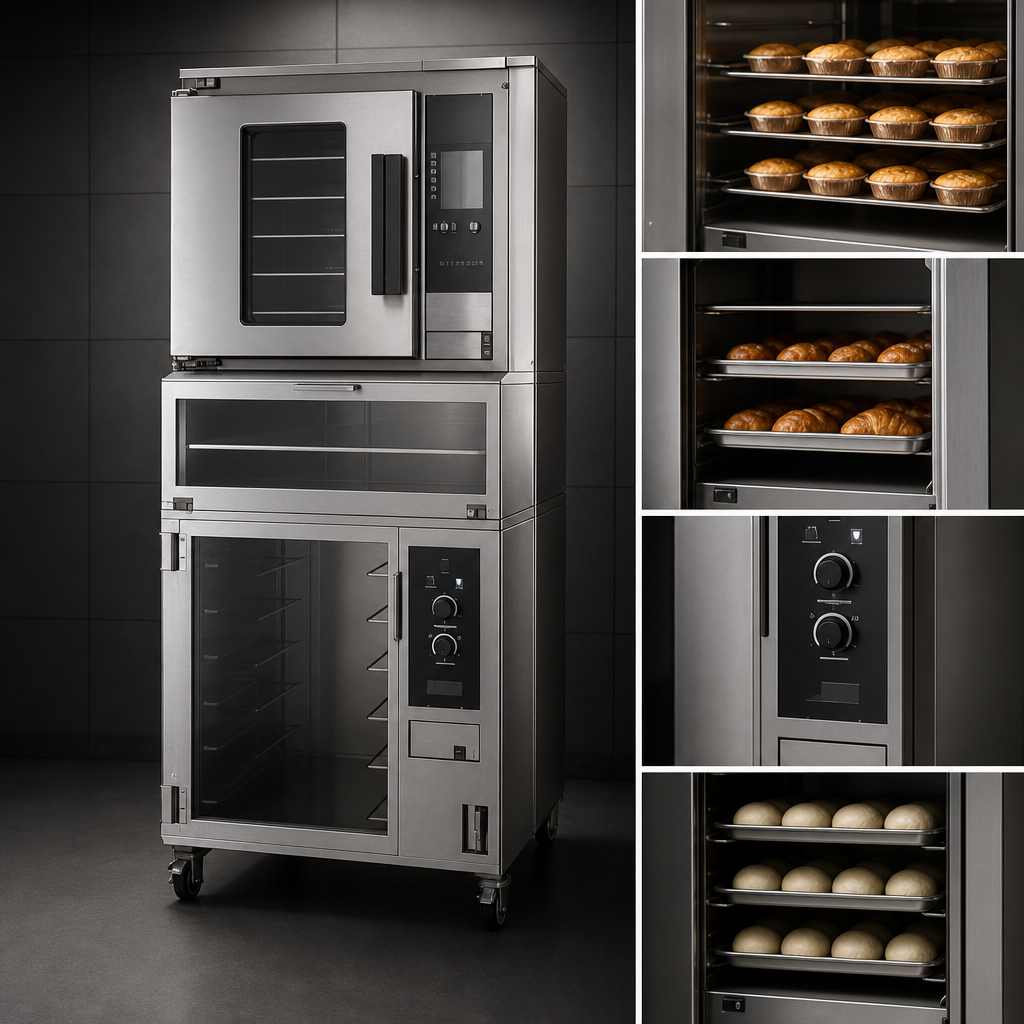

• Space-saving “baker’s center” — oven, holding, and proofing all stacked on a 30 in. (762 mm) wide footprint.
• Platinum touch-pad controls store up to 99 recipes, with multi-stage Cook-&-Hold programming and USB/PC link.
• 150 °F – 450 °F oven range with two-speed/blower-pulse fan for even colour and faster bake times.
• Proofer delivers 80 °F – 150 °F temperature and adjustable humidity for flawless dough rise.
• Heavy-duty 430 & 304 stainless steel construction; lifetime warranty on the oven door mechanism.
• Certified cETLus, cULus & NSF for worry-free code compliance.

Pan capacities

*Capacities based on 2-1/2 in (64 mm) deep pans.

Platinum control highlights

• Icon-driven, one-touch navigation—virtually no training required.
• 99 recipe storage with shelf compensation for perfect batch baking.
• Variable-rate pulse fan plus two-speed motor (high/low).
• Time, temperature & heat-loss adjustments built in.
• PC link lets you upload or back-up menus in seconds.

Built to last

• Full 430 series stainless exterior with #4 finish; fully enclosed back.
• 2 in (51 mm) high-density insulation on all six sides of the oven cavity.
• Heavy-duty hinged doors with large double-pane tempered-glass windows.
• Chrome-steel 9-position pan slides; (5) chrome-plated racks included.
• Field-reversible tempered-glass proofer door with magnetic seal.
• 6 × 2 in removable water pan and forced-air circulation for even proofing.
• 6 in adjustable legs standard; swap for swivel casters at no charge.

Technical specifications

Electrical data

6 ft (1.8 m) power cords supplied. Local codes may require installation under an approved vent hood.

Included & optional accessories

• (5) chrome oven racks & (1) removable water pan (included).
• 6″ adjustable legs (included) or 6″ swivel casters (no-charge option).
• Reversible oven & proofer doors (factory option).
• Extra oven pan racks, 480 V 3-phase oven, or 8′ cord set with NEMA L15-30P plug (options).
• Factory recipe upload for Platinum models (option).

Peace-of-mind warranty

2-year parts & labor coverage, plus a lifetime warranty on the oven door mechanism. Full warranty terms available upon request.
