Lang Manufacturing (Middleby)  |  Strato Series  |  SKU: GCODSD-APNCP

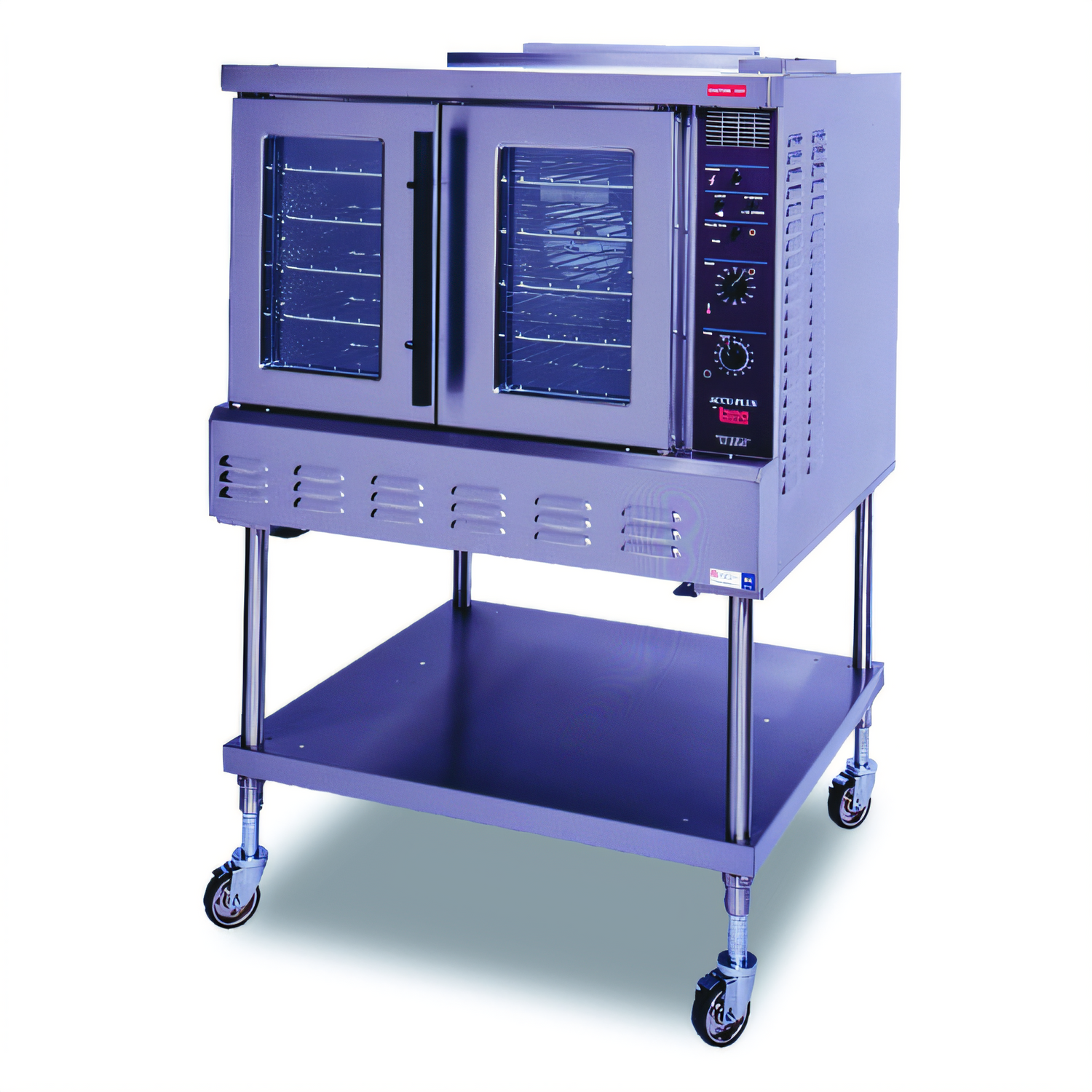

Lang Manufacturing (Middleby) GCODSD-APNCP Strato Series Convection Ovens

$13,946.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation & operation Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Strato Series™ Gas Convection Oven – Correctional Package

Model GCOD-AP1 | Single-Deck, Bakers Depth | Lang Manufacturing (Middleby)

Engineered for secure, high-volume environments, the Strato Series GCOD-AP1 delivers full-size performance with rock-solid reliability. A 60,000 BTU burner, precision solid-state controls and Lang’s signature simultaneously-opening doors guarantee fast, even bakes every time—while the factory-installed Correctional Package adds the extra security your operation demands.

Key Features & Benefits

  • 150 – 450°F solid-state thermostat accurate to ± 4°F for consistent results
  • High-power radial blower with two fan speeds & pulse mode for gentle or rapid air flow

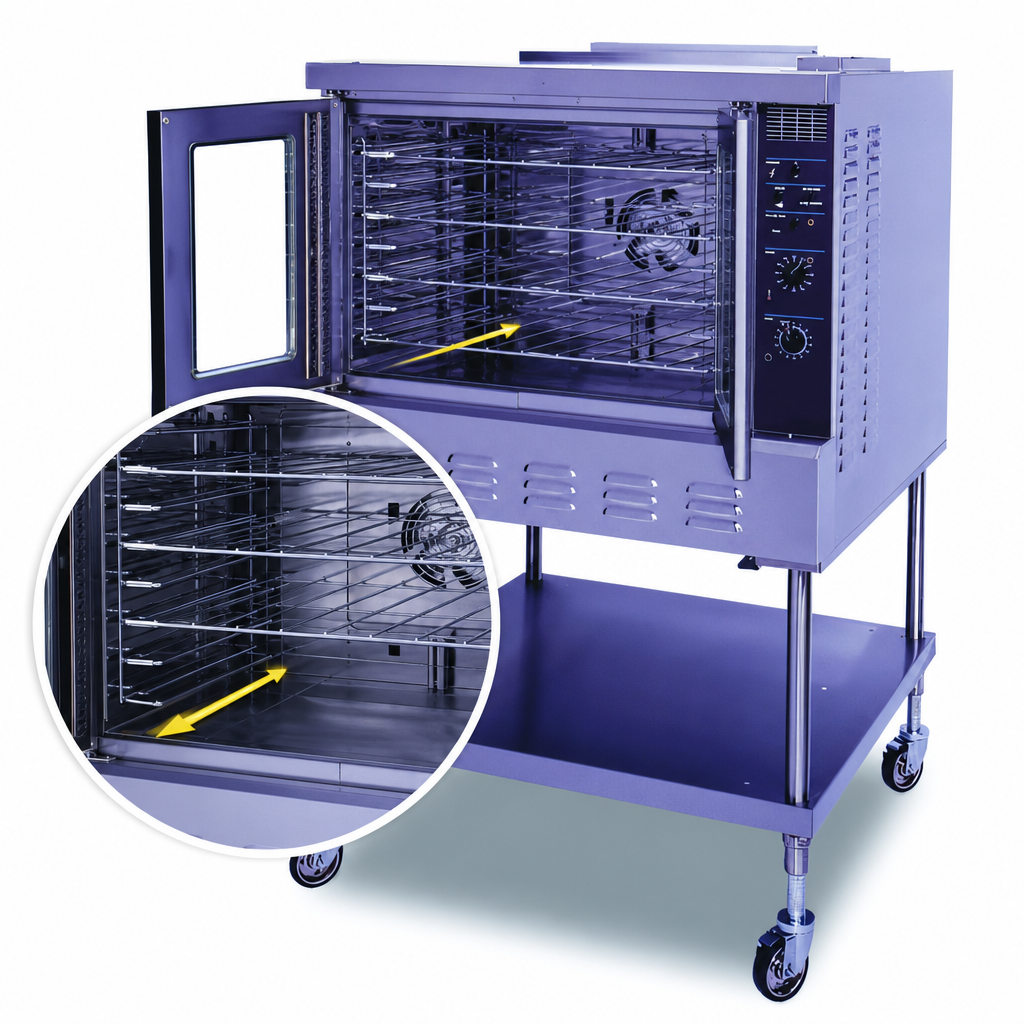

  • 11-position pan slides with 5 chrome racks included (fits 18" × 26" full-size sheet pans loaded either direction)
  • Simultaneously-opening, double-pane glass doors for quick loading & minimal heat loss
  • 430 stainless steel exterior & fully porcelainized extra-deep baking compartment
  • 2" thick insulation on all six sides maximizes energy efficiency and keeps kitchens cooler
  • Door interlock switch shuts the fan off automatically when doors open

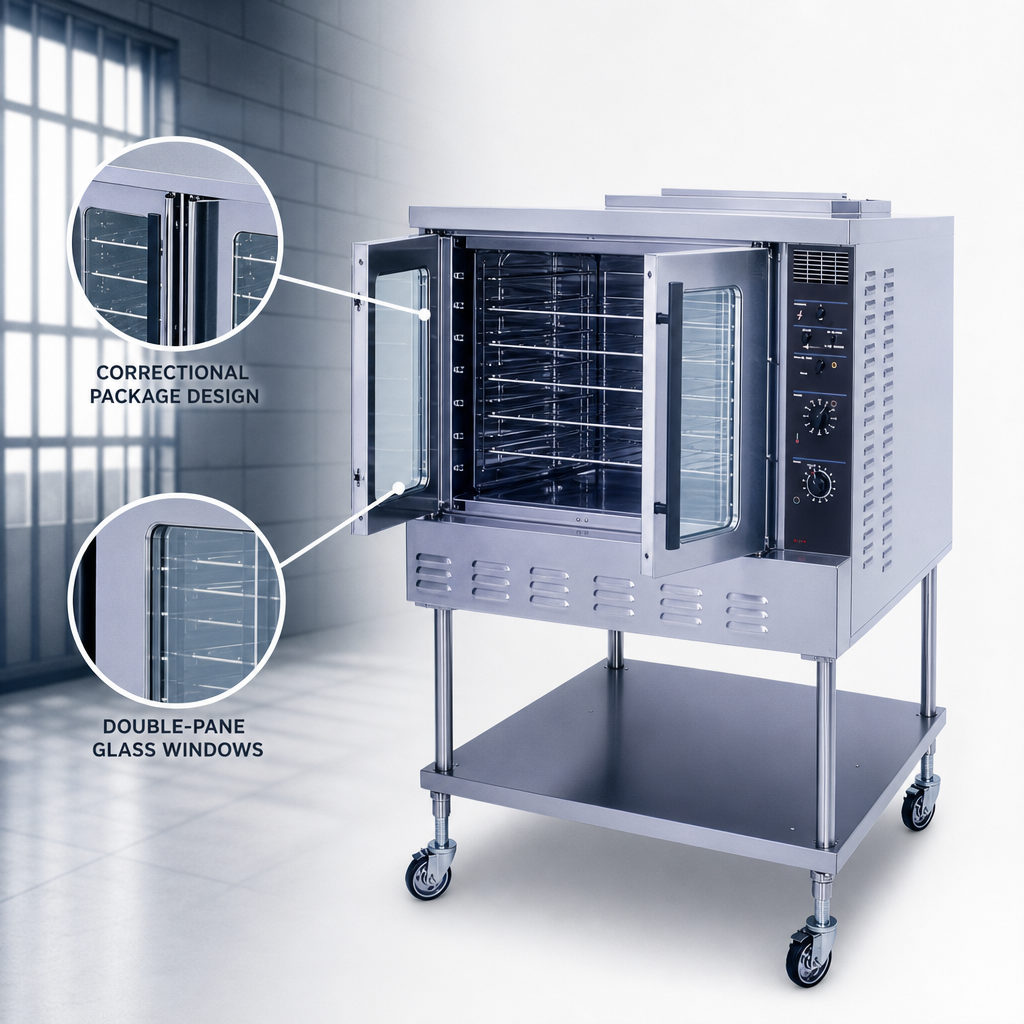

  • Correctional Package: tamper-resistant design elements for detention & institutional use
  • Made in the USA, cULus & NSF listed for peace of mind

Specifications

Fuel / Input Natural or LP gas, 60,000 BTU/hr
Electrical 120 V / 60 Hz / 1-phase, 7.1 A (0.5 kW) cord & plug supplied
Temperature Range 150 – 450°F (65 – 232°C)
Controls Solid-state dial thermostat & 60-min timer with continuous buzzer
Fan Two-speed, rear-mounted radial blower with pulse feature
Pan Capacity (18" × 26") Up to 7 per deck / 5 on included racks
Interior Dimensions Full-size bakers depth; porcelainized steel
Exterior Construction Heavy-duty 430 series stainless steel
Overall (W × D × H) 40.1" × 46.0" × 38.1" (1 019 × 1 168 × 964 mm) on 6" adjustable legs
Installed Weight Approx. 540 lb (245 kg)
Clearances 6" sides, back & bottom
Certifications cULus, NSF, Made in USA

Best-in-Class Warranty

  • 2 years parts & labor on the complete oven
  • Limited lifetime warranty on oven doors
  • Backed by Lang Manufacturing’s nationwide network of authorized service agents

Need a castered base, direct-vent connector or double-stack configuration? Ask us about factory options and accessories.

Installation Reminder: This appliance must be installed in accordance with local codes and by a qualified technician. A 1/2" NPT gas connection and a dedicated 120 V outlet are required.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Brand_name

Strato Series

Certifications

NSF, cULus, Made in USA

Height

38.0in

Width

40.0in

Depth

46.0in

Shipping Weight

580.0lbs

Base

legs not included

Exterior Finish

all stainless steel exterior

Deck Qty

1 deck

Interior Finish

porcelain interior

Control Type

thermostatic controls

Capacity per Compartment

5 pan capacity, per compartment

Type

standard

Size

deep/bakery size

Specifications

(Correctional Package) Strato Series™ Convection Oven, gas, bakers depth, 1-Deck, 150-450°F range solid state controls & timers, high power radial fan, 11 position pan slides, 5 racks, porcelainized interior, simultaneously opening doors with double pane glass windows, stainless steel exterior, 60,000 BTU, 120V/60/1-ph, 7.1 amps, .5kW, cULus, NSF, Made in USA
