Lang Manufacturing (Middleby)  |  Lang® Marine  |  SKU: ECOF-AT2M

Lang Manufacturing (Middleby) ECOF-AT2M Lang® Marine Convection Ovens

$38,271.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Lang® Marine Double-Deck Convection Oven – Type II, Size 1

Model Series: ECOx-AT2M | Military & Shipboard-Ready

Built to meet MIL-0-0043633E and Marine-cUL requirements, the Lang Marine 2-deck convection oven delivers commercial-grade baking power in the most demanding naval, offshore and expeditionary kitchens—while earning ENERGY STAR® efficiency credentials.

Why galleys choose Lang Marine

  • 10-pan production (5 full-size sheet pans per deck) keeps meal service on schedule.

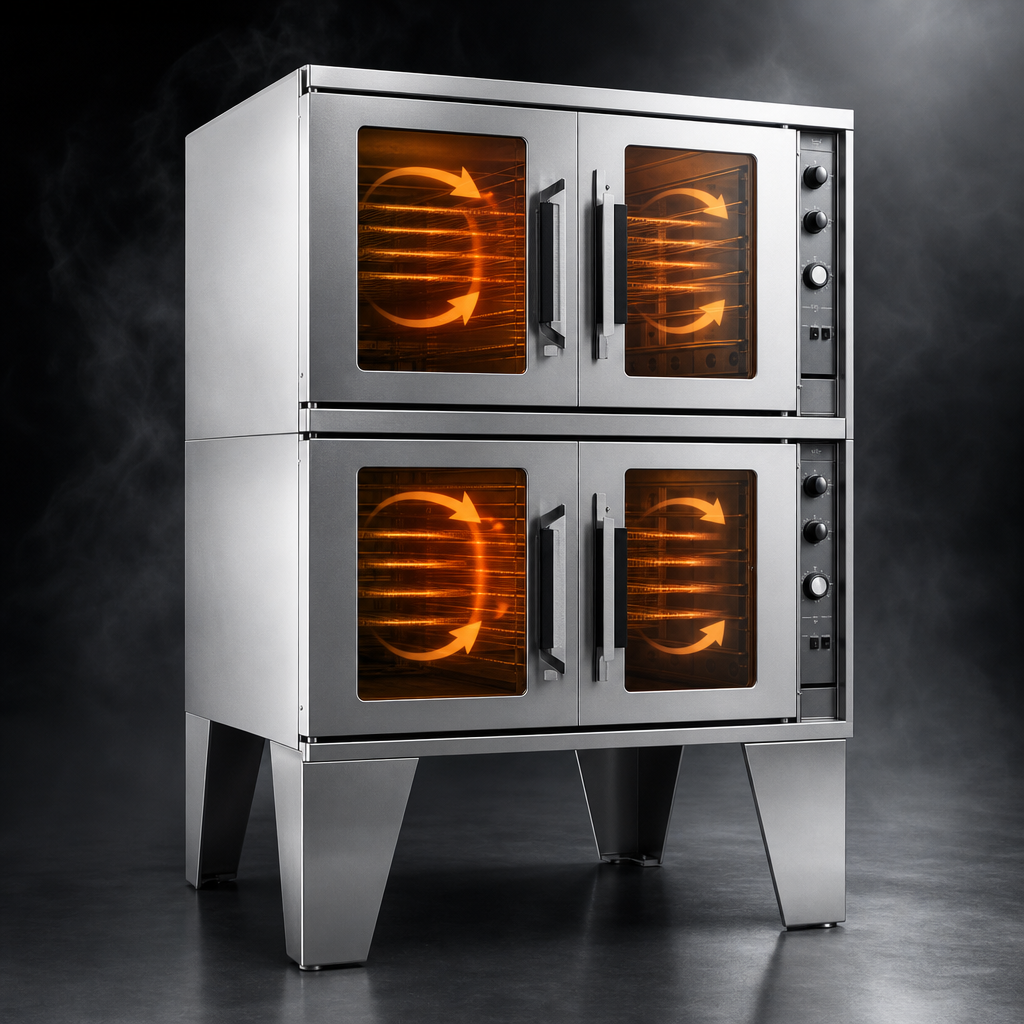

  • Dual 11.5 kW heat banks provide 150 – 450 °F bake/roast range.
  • Rear-mounted, 2-speed blower for even cooking and delicate bakery items.
  • Independent, heavy-duty doors with double-pane tempered windows, marine latches & swing stops.
  • 5-hour mechanical timer, dependable thermostat, oven light and HIGH/LOW fan switches—each deck has its own control set.
  • All-stainless 430 exterior with removable stainless liner and 2" insulation on all six sides.
  • 8-1/2" bolt-down legs and compact 26" x 66" hatchable sections for simplified shipboard installation.
  • Door interlock cuts power to elements and blower when a door is opened for maximum safety.
  • Meets NSF, Marine-cUL and ENERGY STAR® listings for performance & sanitation.

Technical specifications

Capacity 5 full-size (18" × 26") pans per deck, 10 total
Heating system Electric, 11.5 kW per deck (23.3 kW total)
Temperature range 150 °F – 450 °F (65 °C – 232 °C)
Fan motor Two-speed, rear-mounted blower
Controls (per deck) Thermostat, 5-hour timer, HIGH/LOW fan, oven light, power switch
Interior construction Removable stainless liner, chrome 10-position pan slides (5 wire racks included)
Exterior construction 430 stainless steel, marine door latches, swing stops, 8-1/2" angular bolt-down legs
Overall dimensions* 50.0" H × 38.0" W × 45.2" D (extra-deep)
–or– 50.0" H × 38.0" W × 38.2" D (standard depth)
Clearances 6" sides, back & floor (combustible surfaces)
Electrical 208 V, 60 Hz, 3-ph – 74.2 A
208 V, 60 Hz, 1-ph – 112.1 A
440 / 480 V, 60 Hz, 3-ph – 34.2 / 32.2 A
Approx. weight Actual: 780 – 820 lb (355 – 373 kg) depending on depth
Certifications MIL-0-0043633E, Marine-cUL, NSF, ENERGY STAR®
Warranty 2-year parts & labor (U.S.); lifetime door panels (excludes hardware)

*Dimensions shown include standard legs. Double-stack sections ship separately to pass through a 26" × 66" watertight hatch.

Made for the mission

  • Military specification MIL-0-0043633E qualified for land-based and naval shipboard use.
  • ENERGY STAR® rating lowers galley utility loads.
  • NSF & Marine-cUL listings meet global health and electrical codes.
Installation note: Double-deck units require two independent power connections. Always follow local marine electrical codes and Lang installation guidelines.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Brand_name

Lang® Marine

Certifications

NSF, ENERGY STAR

Height

58.5in

Width

38.0in

Depth

40.0in

Shipping Weight

780.0lbs

Energy Efficiency

ENERGY STAR®

Type

standard

Exterior Finish

all stainless steel exterior

Interior Finish

stainless steel interior

Deck Qty

2 decks

Base

stacked

Control Type

thermostatic controls

Size

deep/bakery size

Capacity per Compartment

5 pan capacity, per compartment

kW (per deck)

11.0 - 15.99 kW

Specifications

Lang® Marine Convection Oven, electric, 2-deck, Type II, Size 1, thermostat controls with 5 hour timer, 2-speed motor, independently open doors with double pane windows & door latches & stops, stainless steel interior & exterior, 8-1/2"H bolt-down legs, Mil spec & Naval shipboard appl., Marine-cUL, NSF, ENERGY STAR®
