Lang Manufacturing (Middleby) ECOF-AT1M Lang® Marine Convection Ovens
Description

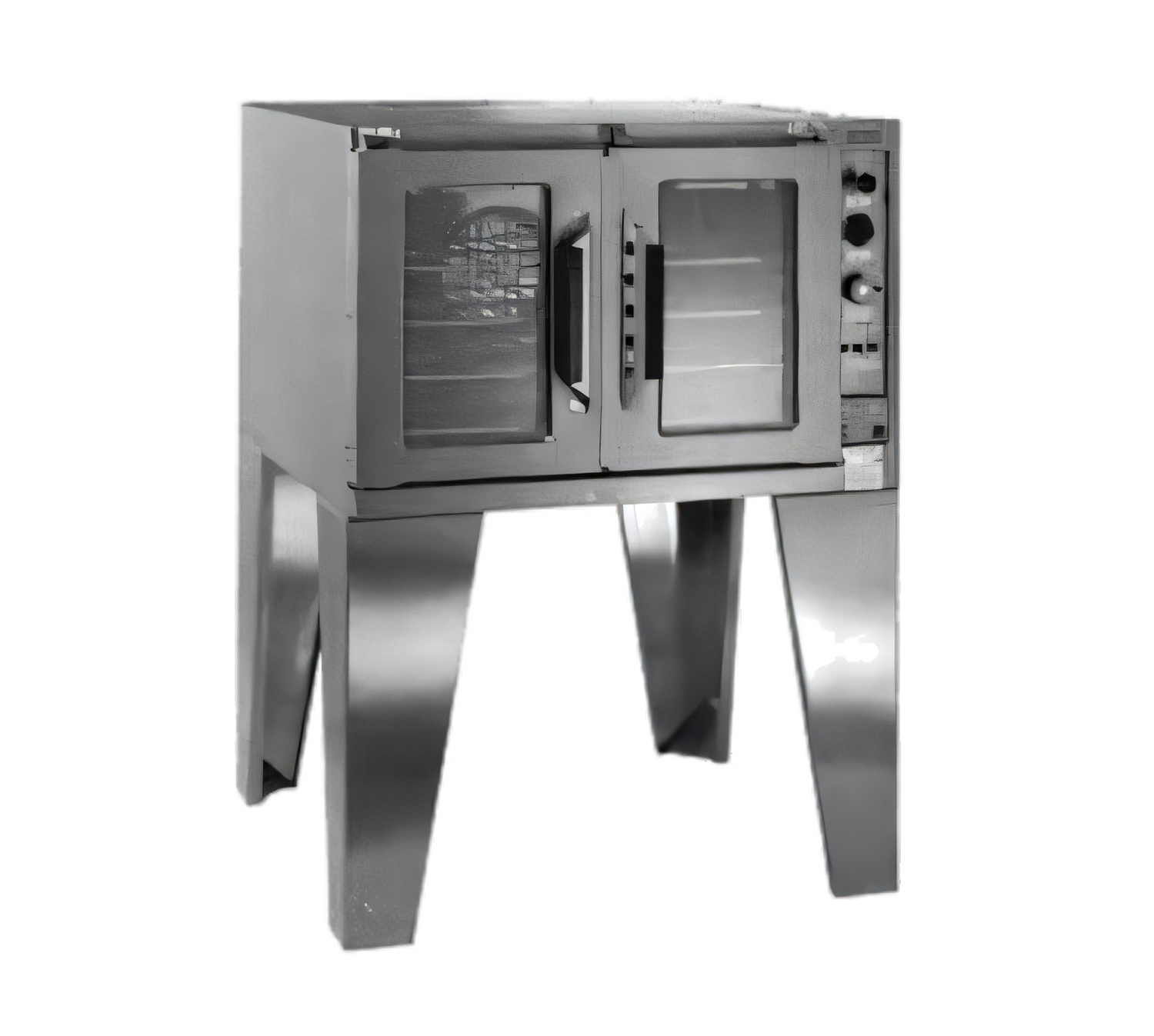

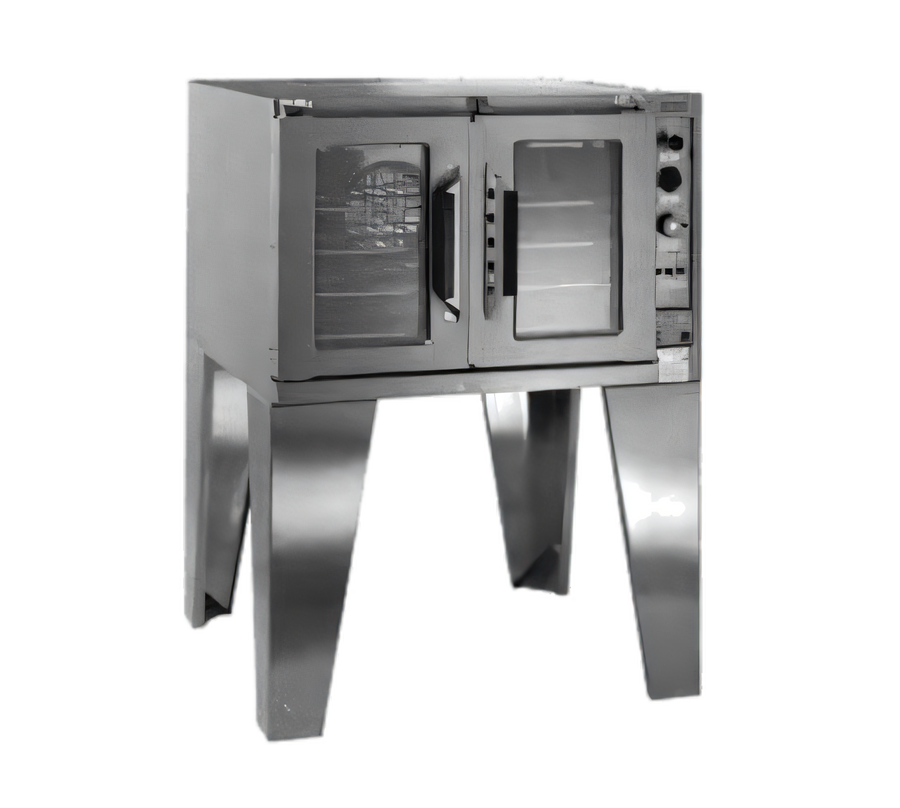

Lang® Marine Convection Oven – Single-Deck, Type 1 / Size 1
Built for shipboard duty. Engineered for perfect, energy-efficient bakes.
When galley space is tight but production demands are high, the Lang Marine single-deck convection oven delivers. Designed and certified for U.S. Naval and commercial marine applications, it combines rugged MIL-0-0043633E construction with ENERGY STAR® efficiency, so you can serve consistent, evenly-browned results anywhere your vessel sails.
Why you’ll love it
- Electric, 11.5 kW heat package reaches 150 – 450 °F fast and holds it rock-steady.
- 5-hour mechanical timer and dependable thermostat for set-and-sail accuracy.
- Rear-mounted blower with two-speed motor for gentle baking or high-velocity roasting.
- Independently opening doors with double-pane tempered-glass windows – check progress without dropping temperature.
- Marine-grade latches, swing stops and 27" bolt-down legs keep the oven secure in heavy seas.

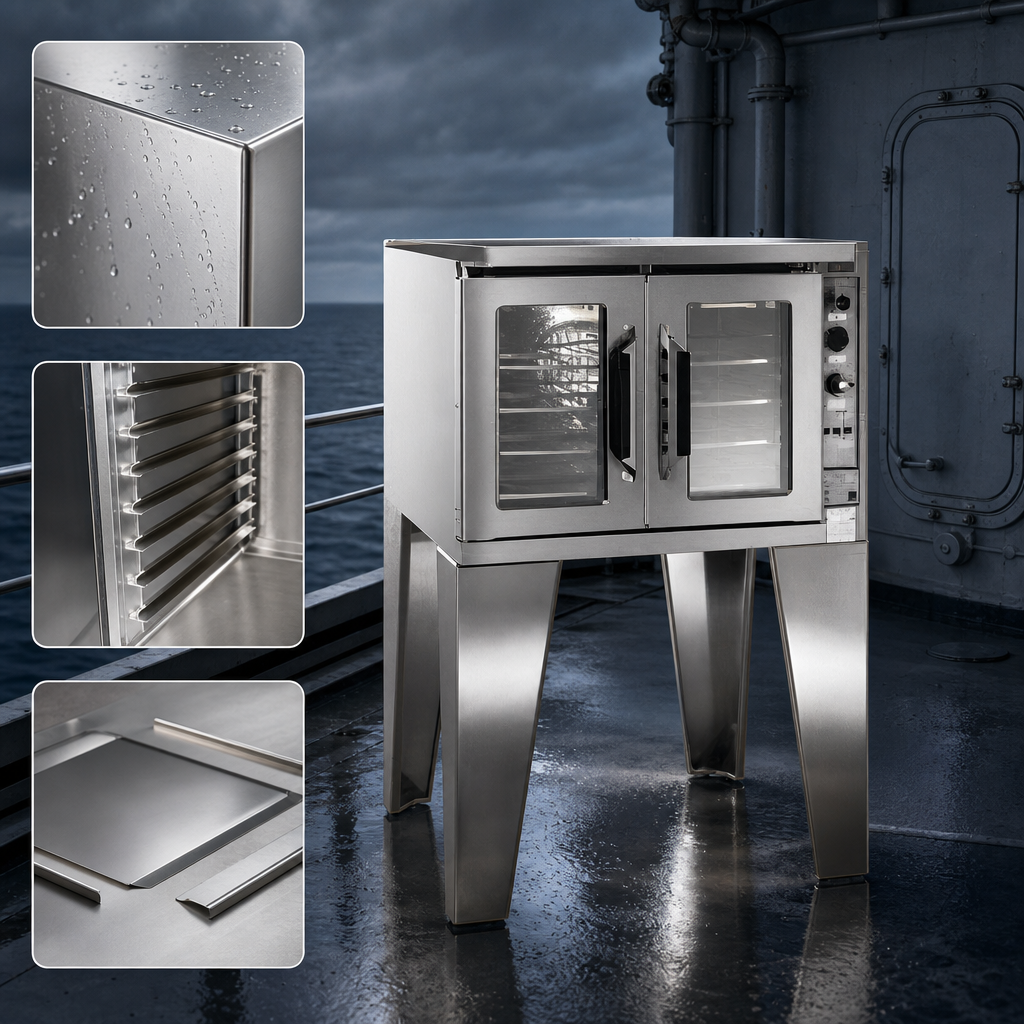

- Full stainless-steel interior & exterior and a removable liner make daily wash-downs quick.
- Hatchable design – passes through a 26" × 66" watertight hatch for easy onboard installation.
- Certified: Marine-cUL, NSF, MIL-0-0043633E & ENERGY STAR®.
At-a-glance specifications

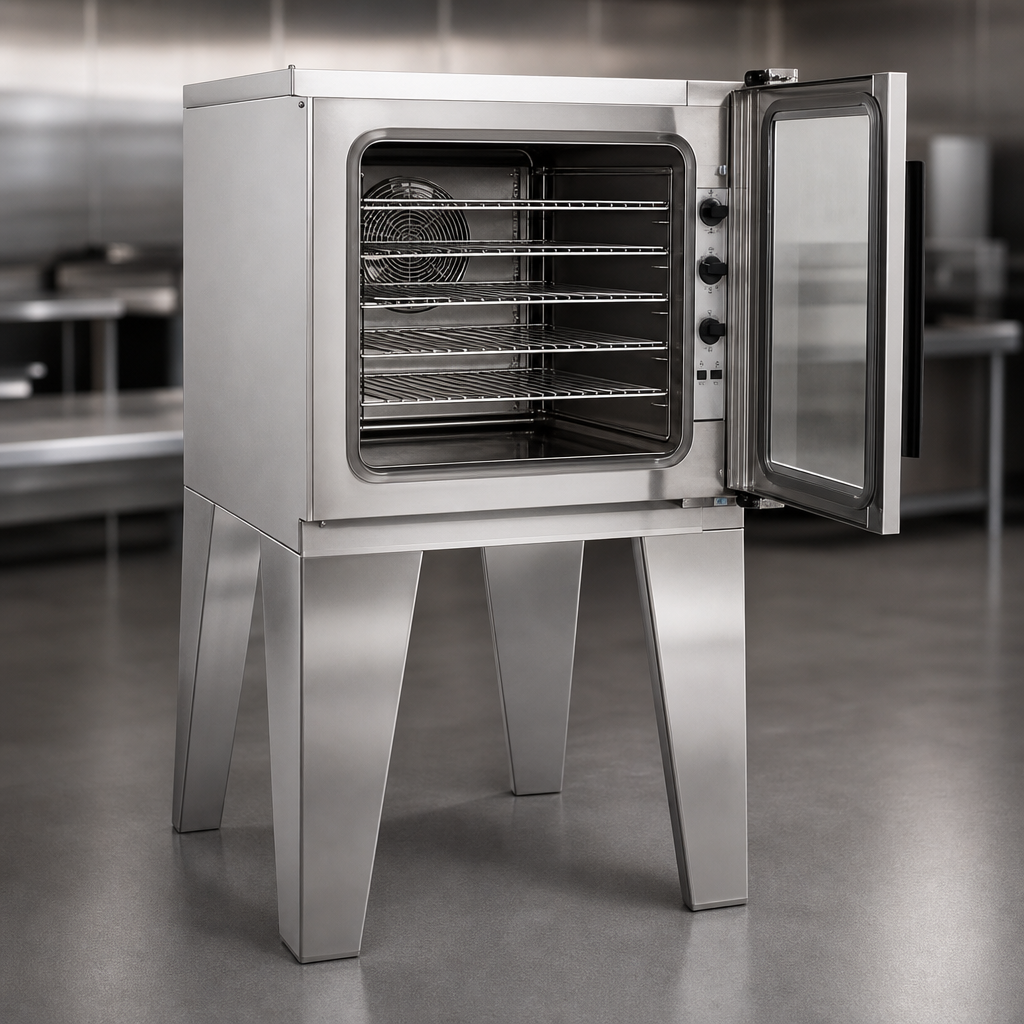

| Capacity | 5 full-size sheet pans (chrome 10-position slides, 5 racks included) |
|---|---|
| Decks | 1 (single-deck configuration) |
| Heat source | Electric – 11.5 kW total |
| Temperature range | 150 °F – 450 °F (65 °C – 232 °C) |
| Controls | Thermostat, 0-5 hr timer, HIGH/LOW fan switch, oven light & power switches |
| Blower motor | 2-speed, rear-mounted |
| External dimensions* | 25.0" H × 38.0" W × 38.2" D *Standard-depth Size 1. Extra-deep models are also available (45.2" D). |
| Electrical | 208 V 1 ph / 3 ph or 440–480 V 3 ph (hard-wired) |
| Ship weight | Approx. 410 lb (186 kg) |
| Certifications | Marine-cUL, NSF, MIL-0-0043633E, ENERGY STAR® |
| Warranty | 2 years parts & labor (Lang Marine) |
What’s included
- (5) chrome wire racks
- 27" stainless bolt-down legs
- Factory-installed marine door latches, stops & gasketed windows
- Owner’s manual & warranty registration card
Looking for additional depths, voltages or double-stack configurations? Contact our team and we’ll build the perfect Lang Marine package for your galley.
