Lang Manufacturing (Middleby) ECOF-AP2 Strato Series Convection Ovens

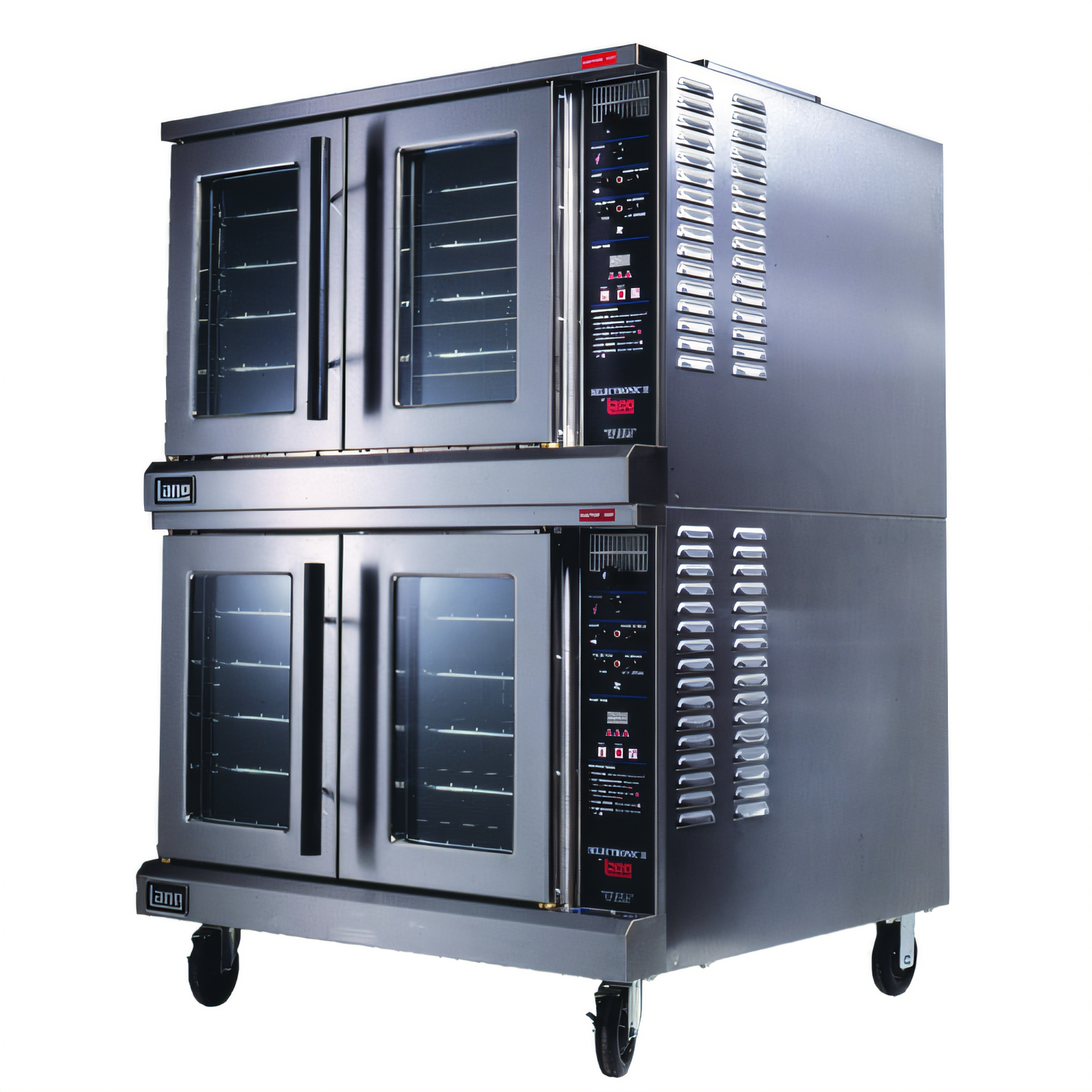

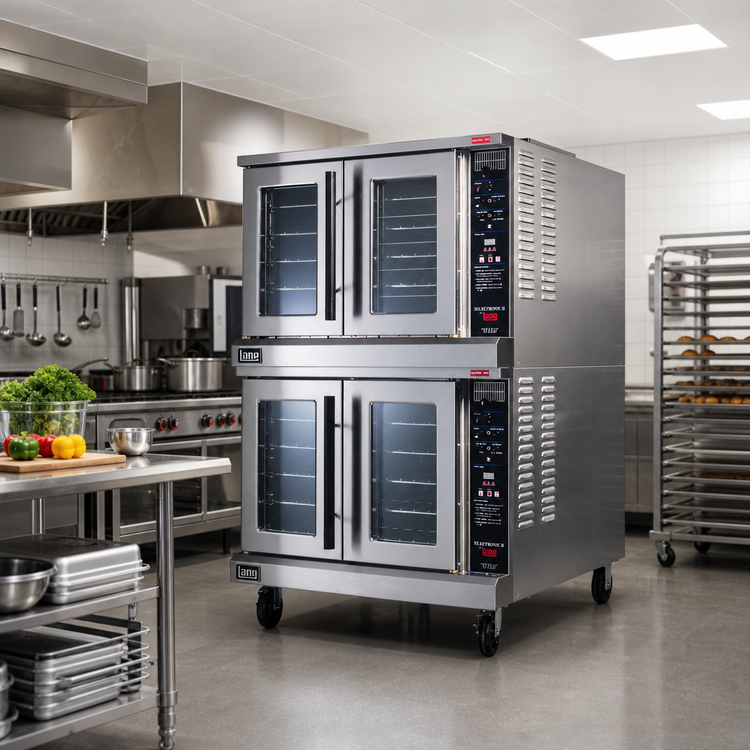

Lang Strato Series™ 2-Deck Electric Convection Oven
Model ECOF-AP2 • Solid-State ControlsWhen your kitchen’s reputation rides on perfectly baked, roasted or re-thermalized dishes, trust the heavy-duty Strato Series™ to deliver. Two full-size cavities, ENERGY STAR® efficiency and Lang’s legendary simultaneous doors make this “workhorse” the smart choice for high-volume restaurants, bakeries, schools and institutions.
Performance & Construction Highlights
- 11.7 kW heat per deck (23.3 kW total) reaches set temps fast and recovers quickly between loads
- 150 – 450 °F solid-state temperature control accurate to ±4 °F
- 1-hour timer with non-stop buzzer keeps you on schedule
- High-power 1/3 HP radial fan with HIGH/LOW speeds + pulse mode for delicate items
- Simultaneously opening doors with double-pane tempered glass—one-handed convenience, less heat loss

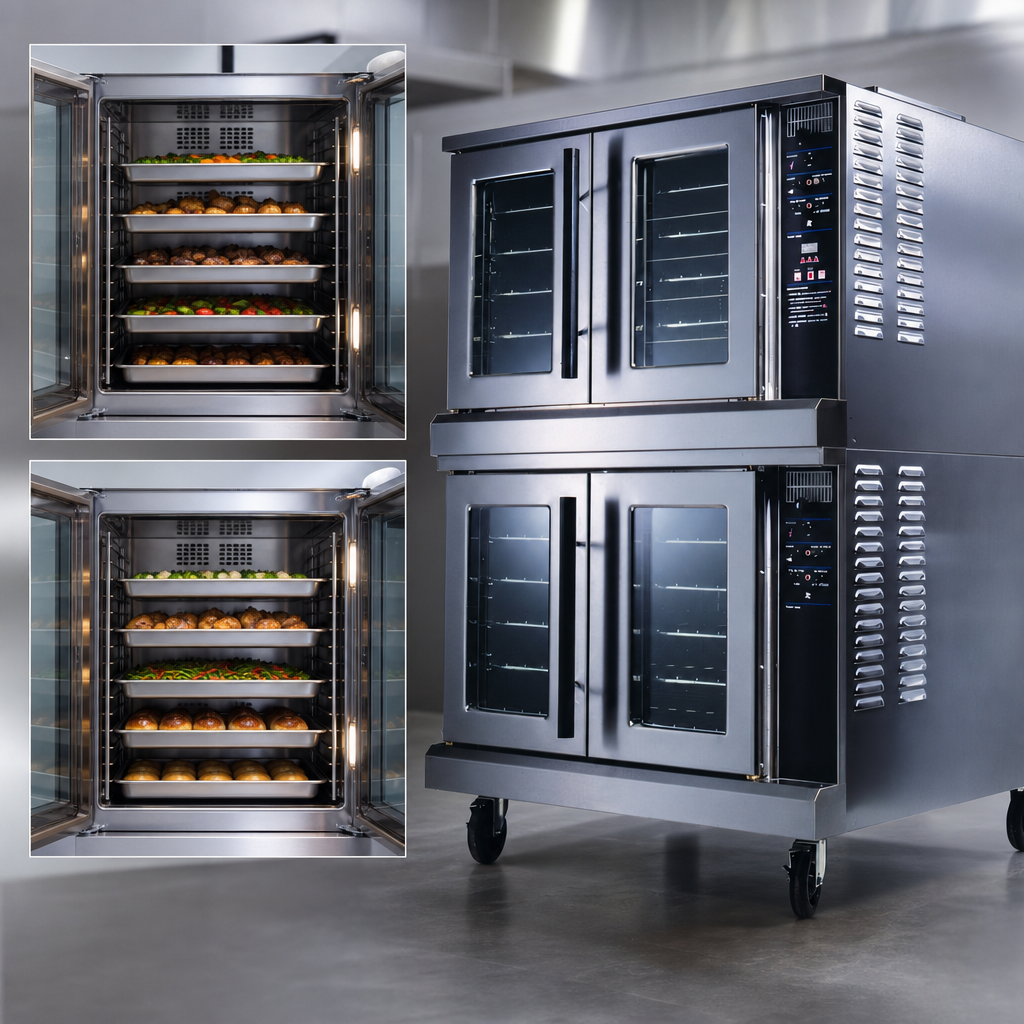

- 7 pan slides & 5 chrome-plated racks per cavity (10 total) fit full-size 18" × 26" sheet pans
- Porcelain-enamel on steel interiors & 2" insulation on all six sides for even, efficient baking
- Welded steel frame with stainless steel front, sides, top & legs built for years of service
- Interior lighting for easy product monitoring
- ENERGY STAR®, NSF & cULus listed – Made in the USA
At-a-Glance Specifications
| Decks / Capacity | 2 decks • 5 full-size sheet pans per deck (10 total) |
|---|---|
| Temperature Range | 150 °F – 450 °F (65 °C – 232 °C) |

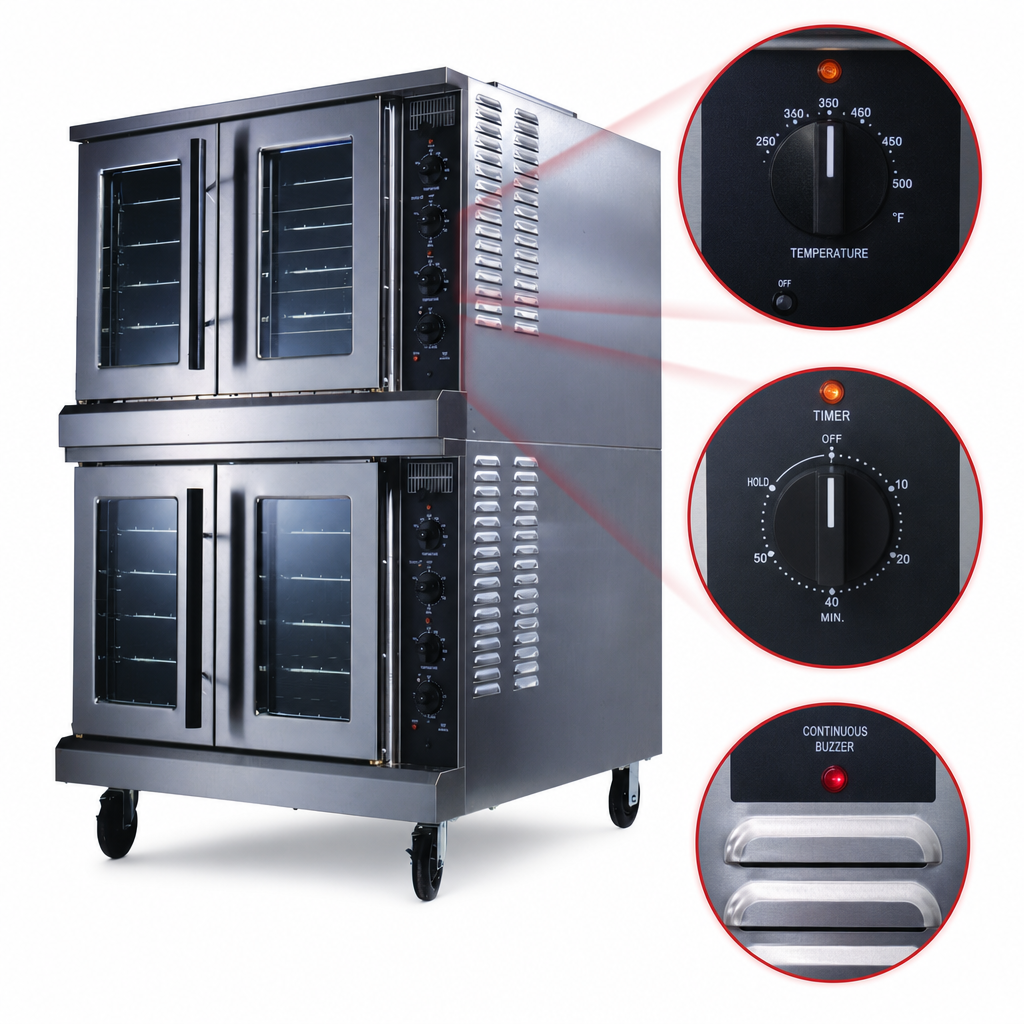

| Controls | Solid-state analog knobs, ±4 °F accuracy, 60-min timer, fan pulse switch, HIGH/LOW fan speeds |
| Heat Input | 23.3 kW total (11.7 kW per deck) |
| Voltage / Phase | Field-selectable 208 V or 240 V, 1- or 3-phase • Optional 480 V, 3-phase |
| Amps (208/240 V) | 112 A / 97 A (1-phase) | 74 A / 58 A (3-phase) |
| Fan Motor | 1/3 HP, 2-speed radial blower |
| Exterior Dimensions* | 40.2"W × 38.8"D × ≈60.9"H (102 cm × 99 cm × 155 cm with 6" legs) |
| Installed Weight | 780 lb (355 kg) |
| Certifications | ENERGY STAR® | NSF | cULus |
| Warranty | 2 years parts & labor • Limited lifetime on oven doors |
*Height shown reflects oven bodies plus factory 6" legs. See spec sheet for additional mounting options.
Popular Options & Accessories
- Direct vent connector
- Flue extension
- Cord & plug kits (208/240 V)
- 6" or 27" stands with rack slides
- Rigid or swivel casters with brakes
- 6" adjustable legs or flanged marine legs
Specifications are subject to change without notice. Refer to the owner’s manual and factory spec sheet before ordering or installing.
