Lang Manufacturing (Middleby)  |  Strato Series  |  SKU: ECOF-AP1

Lang Manufacturing (Middleby) ECOF-AP1 Strato Series Convection Ovens

$15,567.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Middleby financial flyer Instructions Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

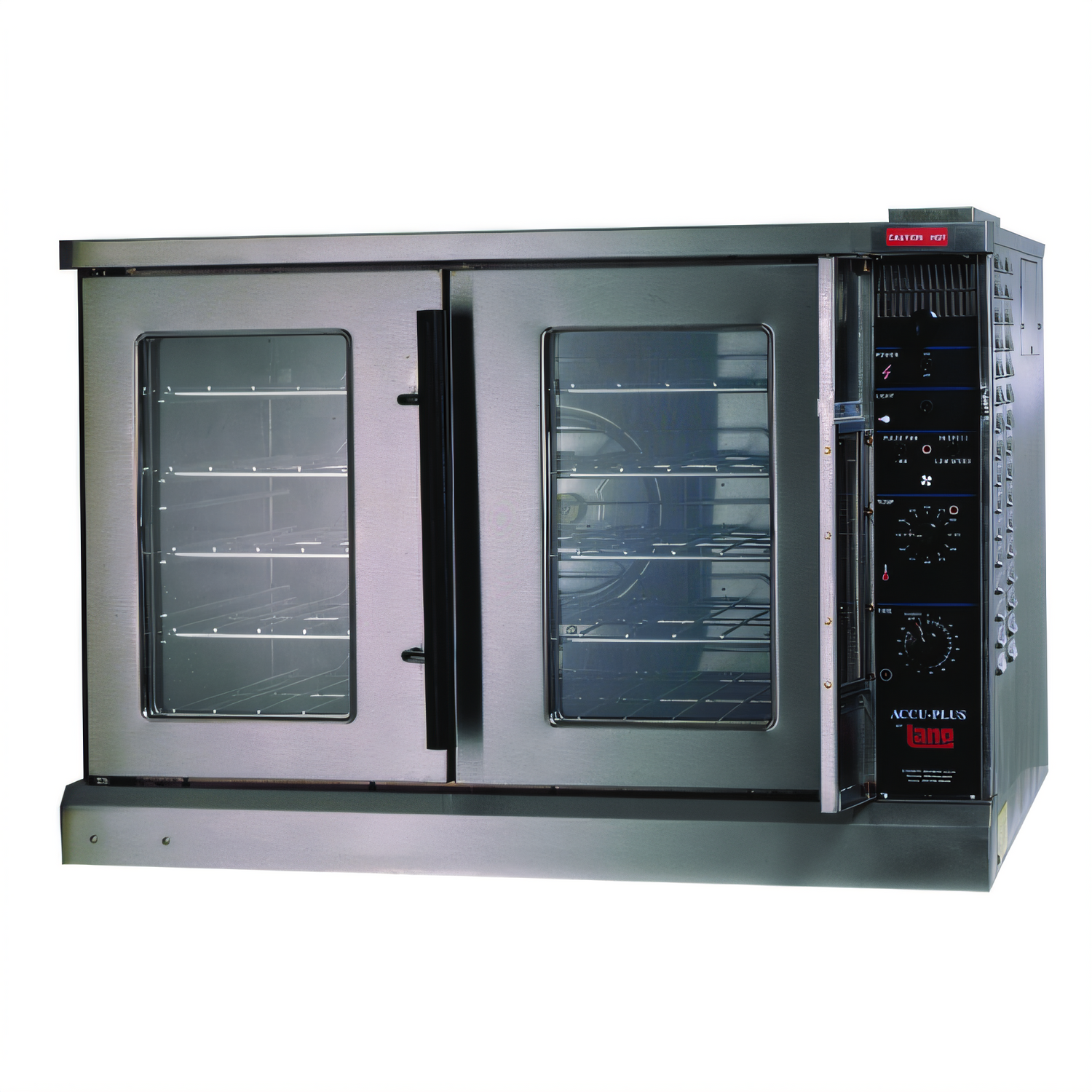

Strato Series™ Full-Size Electric Convection Oven

Single Deck • Solid-State Controls • Model ECOF-AP1

Built for kitchens that refuse to compromise, the Lang Strato Series™ ECOF-AP1 delivers consistent, high-volume baking, roasting, and re-thermalizing in a compact footprint—all while meeting the toughest ENERGY STAR® standards.

Top Advantages

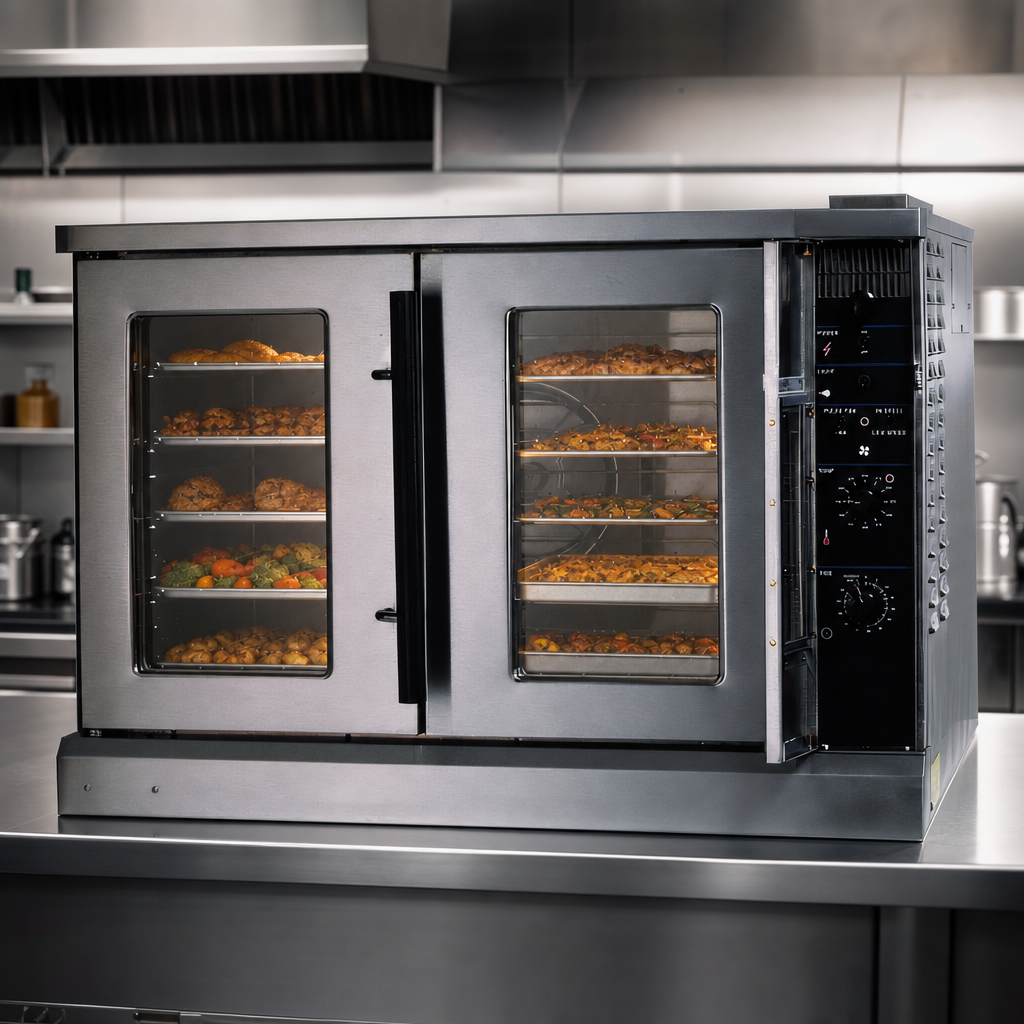

  • 150–450 °F solid-state thermostat accurate to ±4 °F for precision results
  • 11.7 kW high-performance heat with 1/3 HP 2-speed radial fan & pulse mode
  • Simultaneously operated doors with double-pane glass for one-hand loading
  • 5 chrome racks on 7 slide positions fit (5) full-size sheet pans or (10) hotel pans
  • Rugged stainless-steel exterior & porcelainized interior with 2" insulation
  • ENERGY STAR®, NSF & cULus listed — built and certified in the USA

Built for Daily Demands

  • Simple knob-set timer (0–60 min) with continuous-buzz end signal
  • HIGH/LOW fan speeds plus pulse-fan switch for delicate bakes
  • Bright interior lighting keeps product visible without door openings
  • Welded steel frame and lifetime-warrantied doors withstand heavy use

Key Specifications

Oven type Full-size convection, single deck

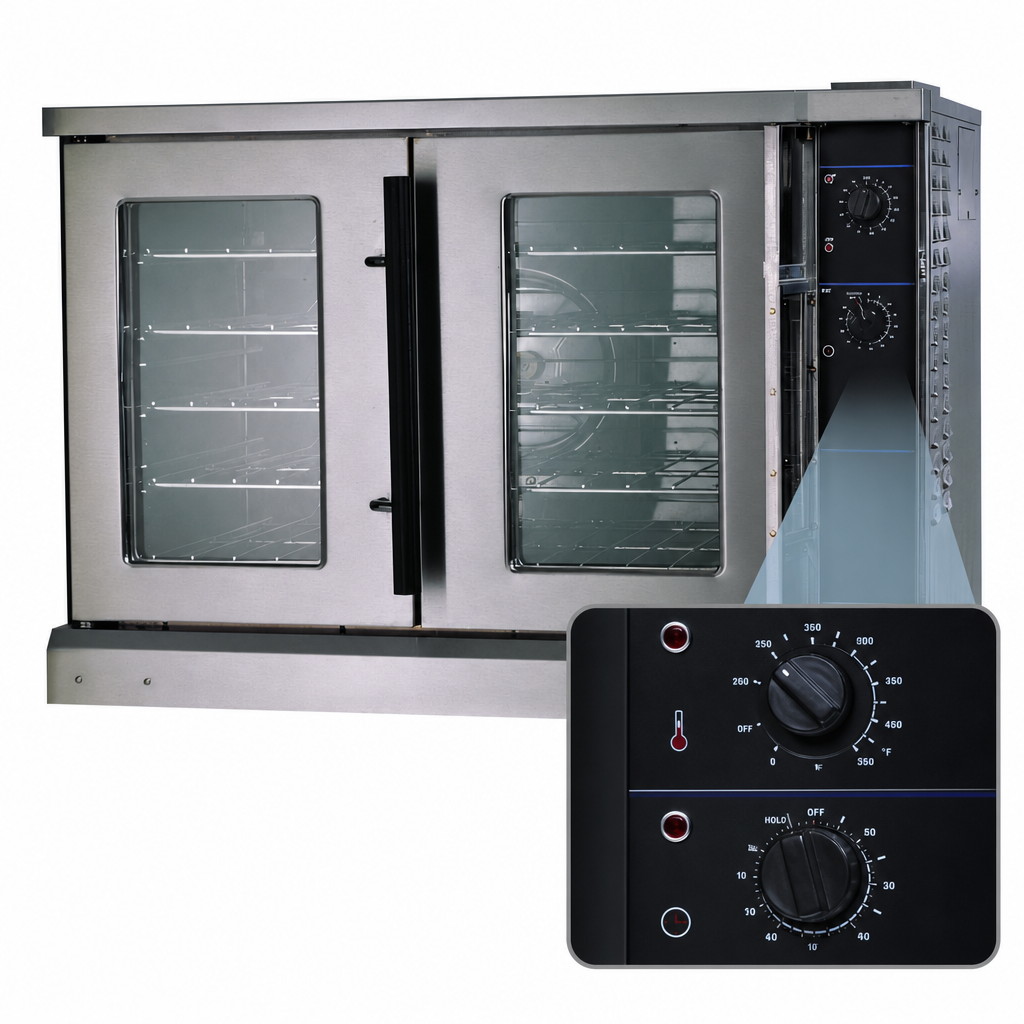

Control package Solid-state analog thermostat & 60-min timer
Temperature range 150 °F – 450 °F (66 °C – 232 °C)
Heat
(electric)		 11.7 kW
Fan Rear mounted 1/3 HP, 2-speed radial blower with pulse
Capacity (5) 18" x 26" sheet pans or (10) 12" x 20" x 2½" hotel pans
Rack positions / included 7 / 5 chrome racks
Interior Porcelain-coated steel, 2" insulation on all sides
Door design Simultaneous opening, double-pane tempered glass
Exterior Stainless steel front, sides, top & legs
Electrical Field-switchable 208 V or 240 V, 1- or 3-phase (optional 480 V, 3-phase)
208 V 1Ø 56.1 A / 3Ø 37.1 A  |   240 V 1Ø 48.6 A / 3Ø 28.8 A  |   480 V 3Ø 16.1 A
Dimensions 40.2" W × 38.8" D × 27.9" H (1021 × 986 × 708 mm)
Ship / installed weight 420 lb / 380 lb (191 kg / 173 kg)
Certifications ENERGY STAR®, NSF, cULus
Origin Made in USA

Popular Options & Accessories

  • Direct vent connector
  • Flue extension
  • Cord kit (208/240 V)
  • 6" or 27" stands, legs or casters

Warranty: 2 years parts & labor • Lifetime on oven doors (excludes hardware)

Installation Note: A licensed electrician must connect power and verify correct voltage/phase. Cord kit and stand are sold separately.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Brand_name

Strato Series

Certifications

NSF, cULus, Made in USA, ENERGY STAR

Height

27.9in

Width

40.0in

Depth

38.8in

Shipping Weight

420.0lbs

Exterior Finish

all stainless steel exterior

Size

full/standard size

Energy Efficiency

ENERGY STAR®

Type

standard

Interior Finish

porcelain interior

Deck Qty

1 deck

Capacity per Compartment

5 pan capacity, per compartment

kW (per deck)

11.0 - 15.99 kW

Base

legs not included

Control Type

solid state controls

Specifications

Strato Series™ Convection Oven, electric, 1-deck, 150-450°F range solid state controls & timer, high power radial fan, 7-position pan slides, 5 racks, porcelainized interior, simultaneously opening doors with double pane tempered glass windows, stainless steel exterior, 11.7kW, cULus, NSF, ENERGY STAR®, Made in USA
