Lang Manufacturing (Middleby) ECOD-AT2M Lang® Marine Convection Ovens
Description
Lang® Marine ECOD-AT2M Extra-Deep Double-Deck Electric Convection Oven
Built for Naval & Coast-Guard galleys • 23.3 kW total • ENERGY STAR® & Marine-cULEngineered to thrive in the world’s toughest kitchens, the Lang Marine ECOD-AT2M delivers full-size baking power in a rugged, ship-ready package that fits through a 26" × 66" watertight hatch. Two independent 11.7 kW ovens give you twice the capacity without sacrificing valuable deck space, while MIL-0-0043633E construction keeps your crew cooking— even when the seas aren’t calm.
Key Marine-Grade Advantages

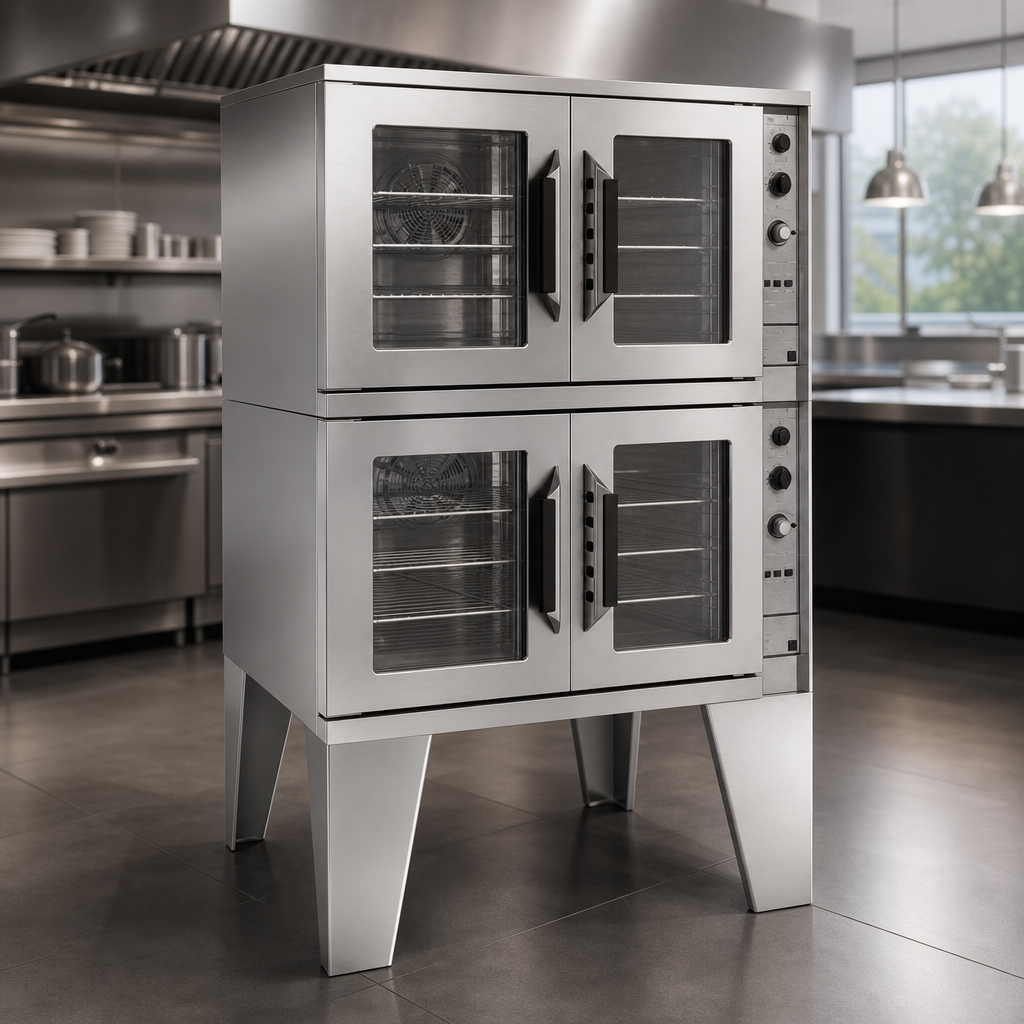

- Double-deck, extra-deep cavities hold 5 full-size (18" × 26") sheet pans per oven — ten total.
- Independently opening doors with double-pane tempered windows, heavy-duty marine latches & swing stops.
- Powerful rear-mounted blower with 2-speed motor for gentle or rapid airflow; door interlock cuts power when opened.
- Dependable 150–450 °F thermostat plus 5-hour mechanical timer, oven light switch, and HIGH/LOW fan selector.

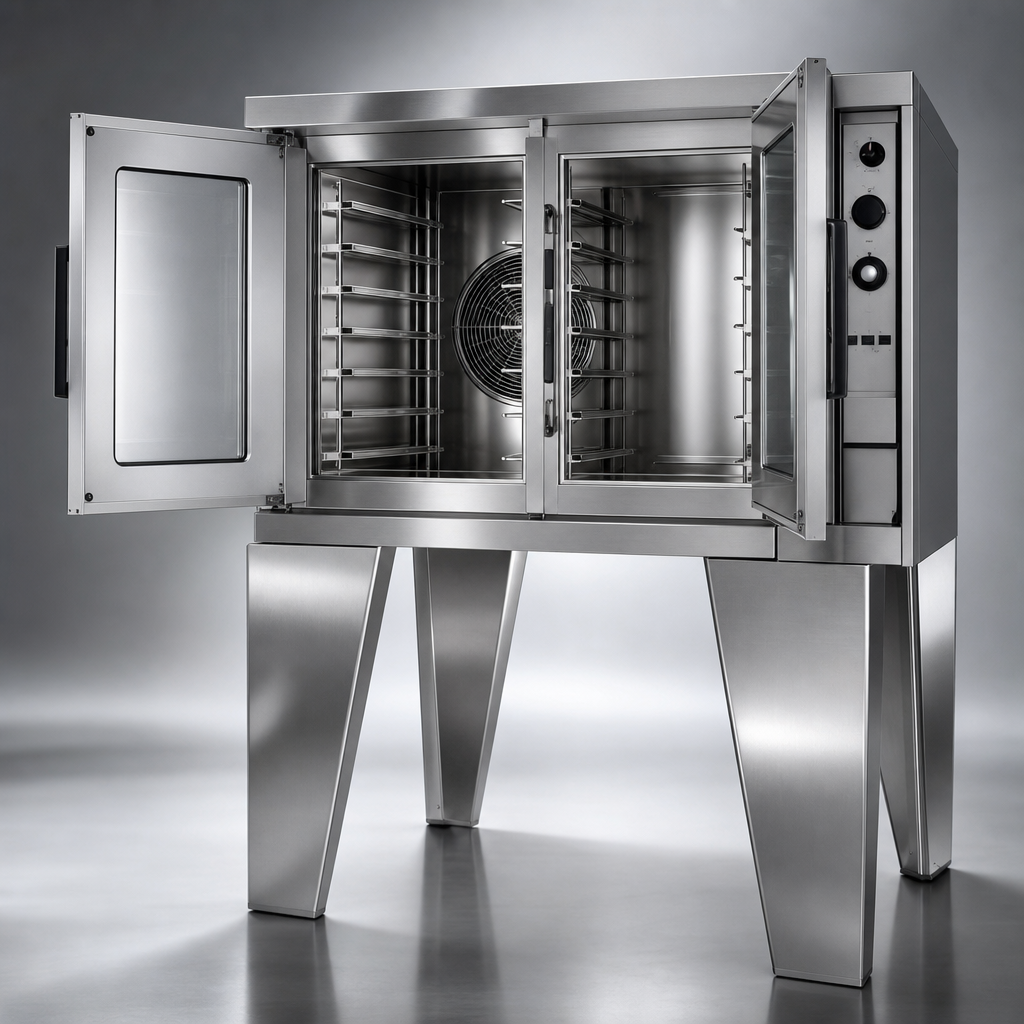

- All-stainless (430 series) exterior & removable liner, wrapped in 2" insulation for maximum heat retention.
- 8-½" angular bolt-down legs and stainless mounting hardware keep the oven secured at sea.
- Ships as two sections for easy passage through hatches; simple field stacking.
- Certified Marine-cUL, NSF & ENERGY STAR® for efficiency, safety, and sanitation.
Technical Specifications
| Model | ECOD-AT2M (Marine) |
|---|---|
| Decks / Heat | 2 decks • 11.7 kW each (23.3 kW total) |
| Pan Capacity | 5 pans per deck (10 total) – full-size, front-to-back loading |
| Temperature Range | 150 °F – 450 °F (66 °C – 232 °C) |
| Controls | Mechanical thermostat, 5-hour timer, power ON/OFF, fan speed HIGH/LOW, oven light |
| Fan System | Rear-mounted, 2-speed centrifugal blower |
| Electrical (per deck) | 208 V 1Ø/3Ø 37.1 A • 440 V 3Ø 17.1 A • 480 V 3Ø 16.1 A (two connections required) |
| Overall Dimensions | 50.0" H × 38.0" W × 45.2" D (127 cm × 97 cm × 115 cm) with standard legs |
| Shipping Weight | Approx. 870 lb / 395 kg |
| Construction | All-stainless interior & exterior, removable liner, 2" mineral fiber insulation |
| Standards | MIL-0-0043633E • Marine-cUL • NSF • ENERGY STAR® |
| Warranty | 2 years parts & labor (Lang Marine) |
What’s Included
- (10) chrome wire racks (5 per deck, 10-position slides)
- Stainless bolt-down legs & stacking hardware
- Factory-mounted interior lights
- Owner’s manual & warranty registration
