Lang Manufacturing (Middleby) ECOD-AT1M Lang® Marine Convection Ovens
Description

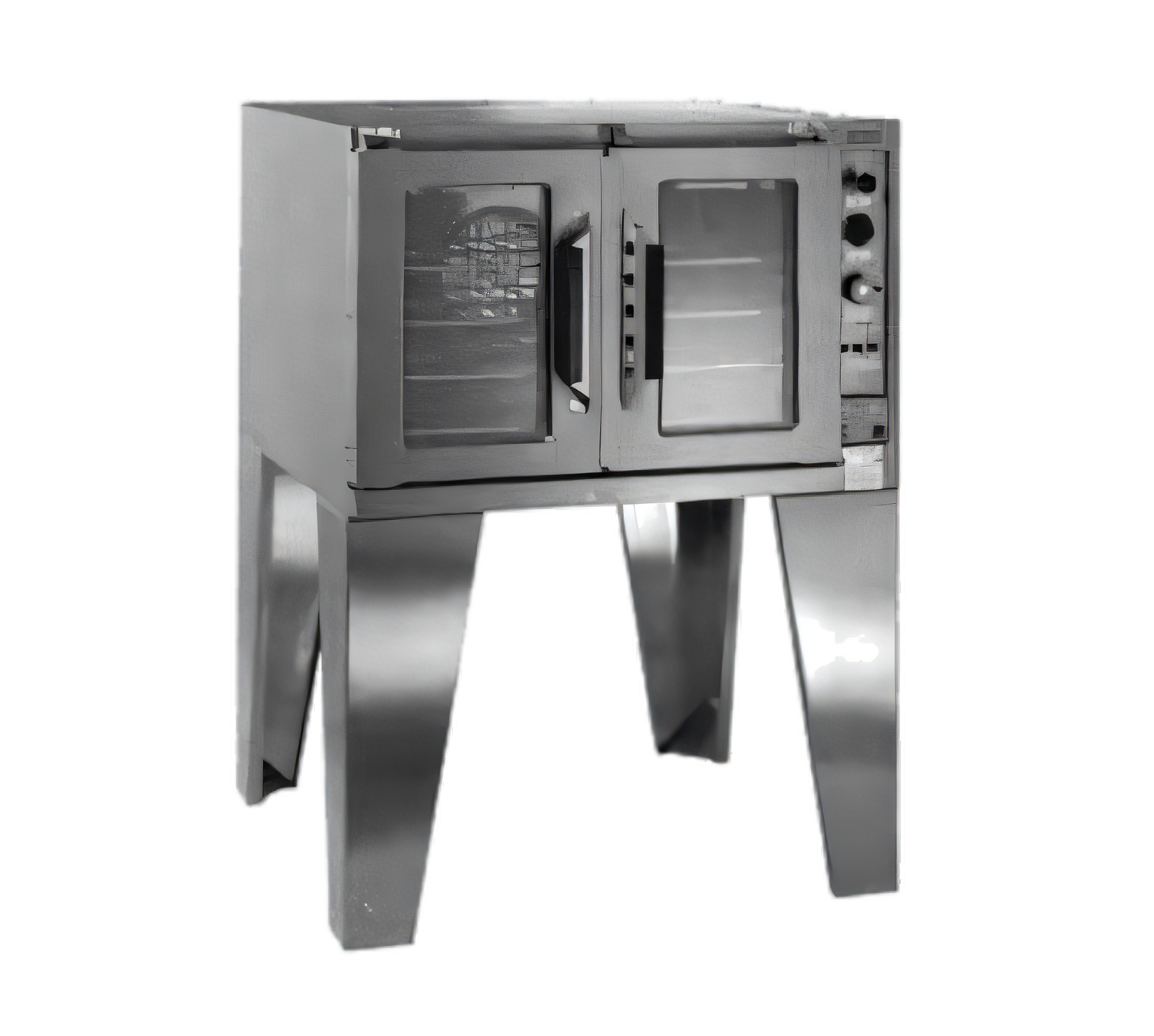

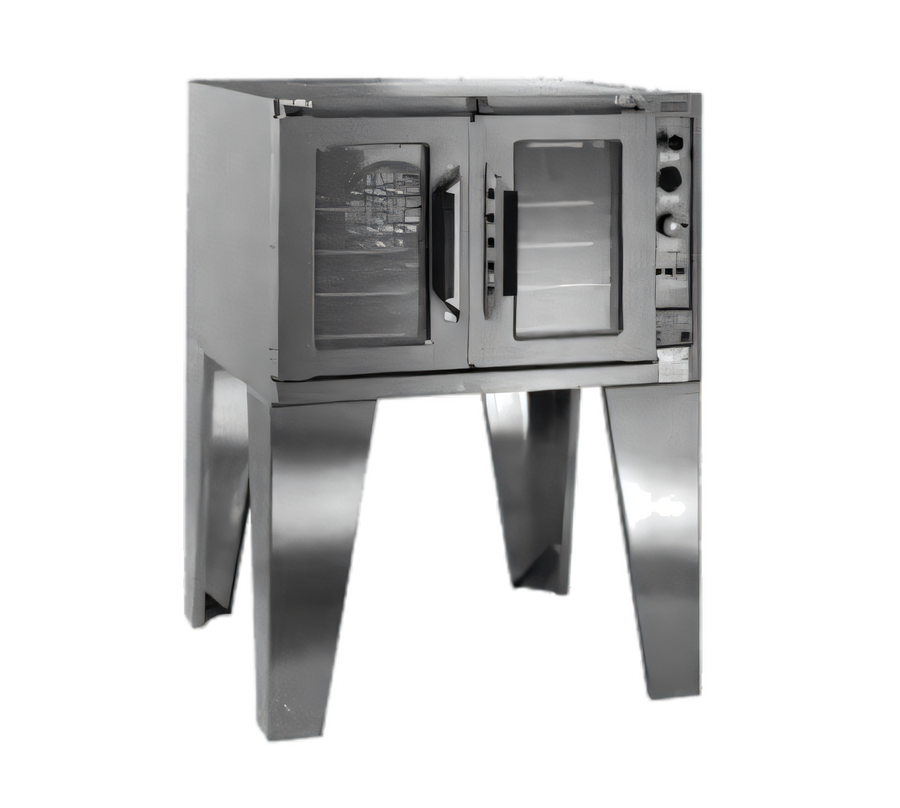

Lang® Marine Extra-Deep Electric Convection Oven — Single Deck
Model ECOD-AT1M | 11.7 kW | ENERGY STAR® CertifiedBuilt for the rigors of life at sea, the Lang® Marine ECOD-AT1M delivers even, high-volume baking and roasting in a compact, hatchable footprint that meets U.S. military and naval shipboard specifications. Heavy-duty stainless construction, marine-grade door hardware, and a two-speed convection system guarantee reliable performance in galleys big and small.
Key Features

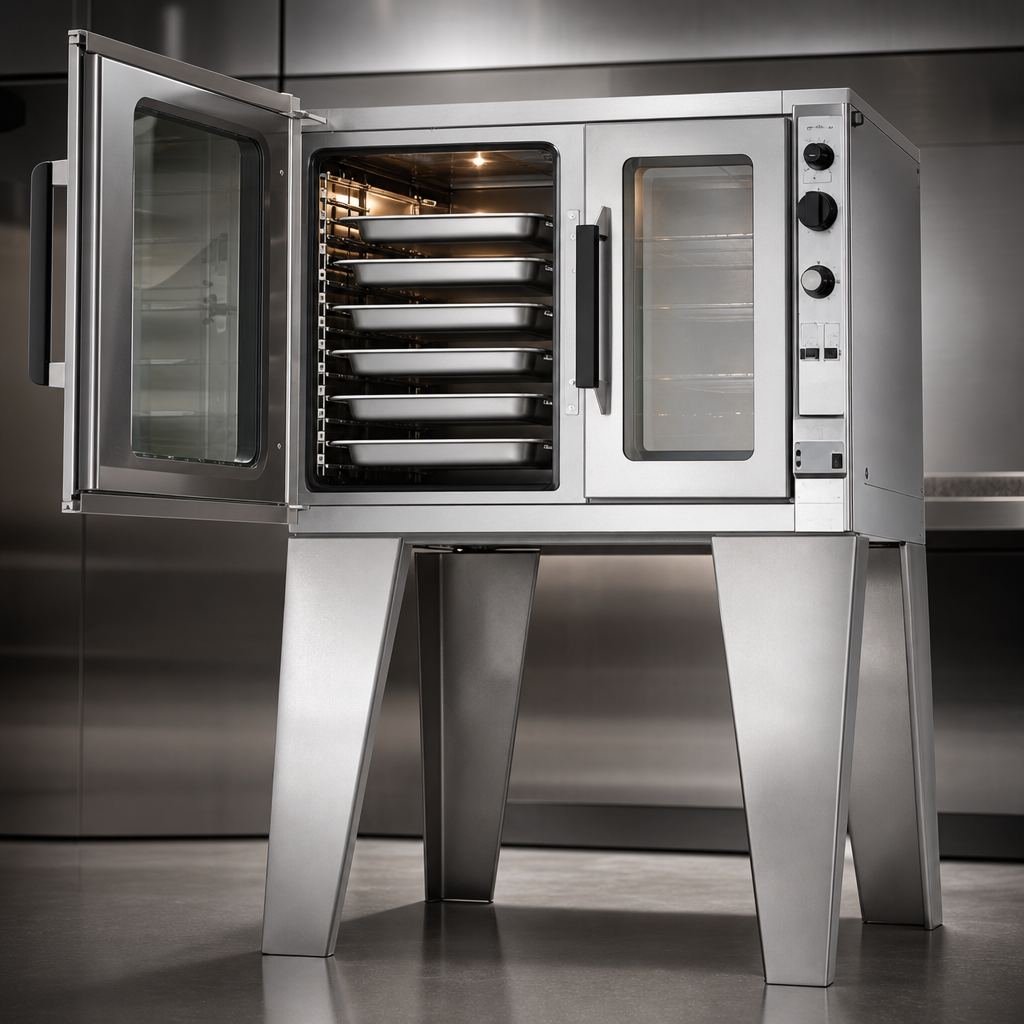

- Full-size, extra-deep cavity holds five 18" × 26" sheet pans on 10-position chrome slides.
- 11.7 kW electric heat with 150 – 450 °F thermostat and 5-hour mechanical timer.
- Rear-mounted blower with HIGH/LOW two-speed motor for delicate pastries or rapid roasting.
- Independent, heavy-duty double-pane doors with marine latches, swing stops & door interlock switches.
- All-stainless interior / exterior with 2" insulation on every side for maximum heat retention.
- 27" stainless bolt-down legs keep the oven firmly secured underway.
- Hatchable design—passes through a 26" × 66" watertight hatch for easy onboard installation.
- Certified Marine-cUL, NSF & ENERGY STAR®; complies with MIL 0-0043633E.
Performance & Capacity
| Pan capacity | 5 full-size (18" × 26") sheet pans |
|---|---|
| Temperature range | 150 °F – 450 °F (65 °C – 232 °C) |
| Heat output | 11.7 kW electric |
| Blower motor | Two-speed convection fan |
| Timer | 5-hour mechanical countdown |
| Interior lighting | Halogen inspection light (switchable) |
Marine-Ready Construction
- Corrosion-resistant 430 series stainless exterior.
- Removable stainless oven liner for fast wash-down cleaning.
- Double-pane tempered windows minimize heat loss & fogging.
- Door interlocks shut off elements & fan when doors open for safety.
- Meets MIL 0-0043633E for vibration, tilt & damage-control requirements.
Specifications
| Overall dimensions | 25.0" H × 38.0" W × 45.2" D (635 × 966 × 1148 mm) |
|---|---|
| Electrical – 1-Phase | 208 V / 37.1 A |
| Electrical – 3-Phase | 208 V / 56.1 A | 440 V / 17.1 A | 480 V / 16.1 A |
| Clearance | 6" (153 mm) sides & back from combustibles |
| Net weight | 380 lb (173 kg) |
| Shipping weight | 430 lb (195 kg) |
| Certifications | Marine-cUL, NSF, ENERGY STAR®, MIL 0-0043633E |
| Warranty | 2-year parts & labor (U.S. marine applications) |
Need a double-stack, standard-depth, or extra wire racks? Contact our team for custom configurations, quick quotes, and Middleby financing options.
