Lang Manufacturing (Middleby) ECOD-AP2 Strato Series Convection Ovens
Description

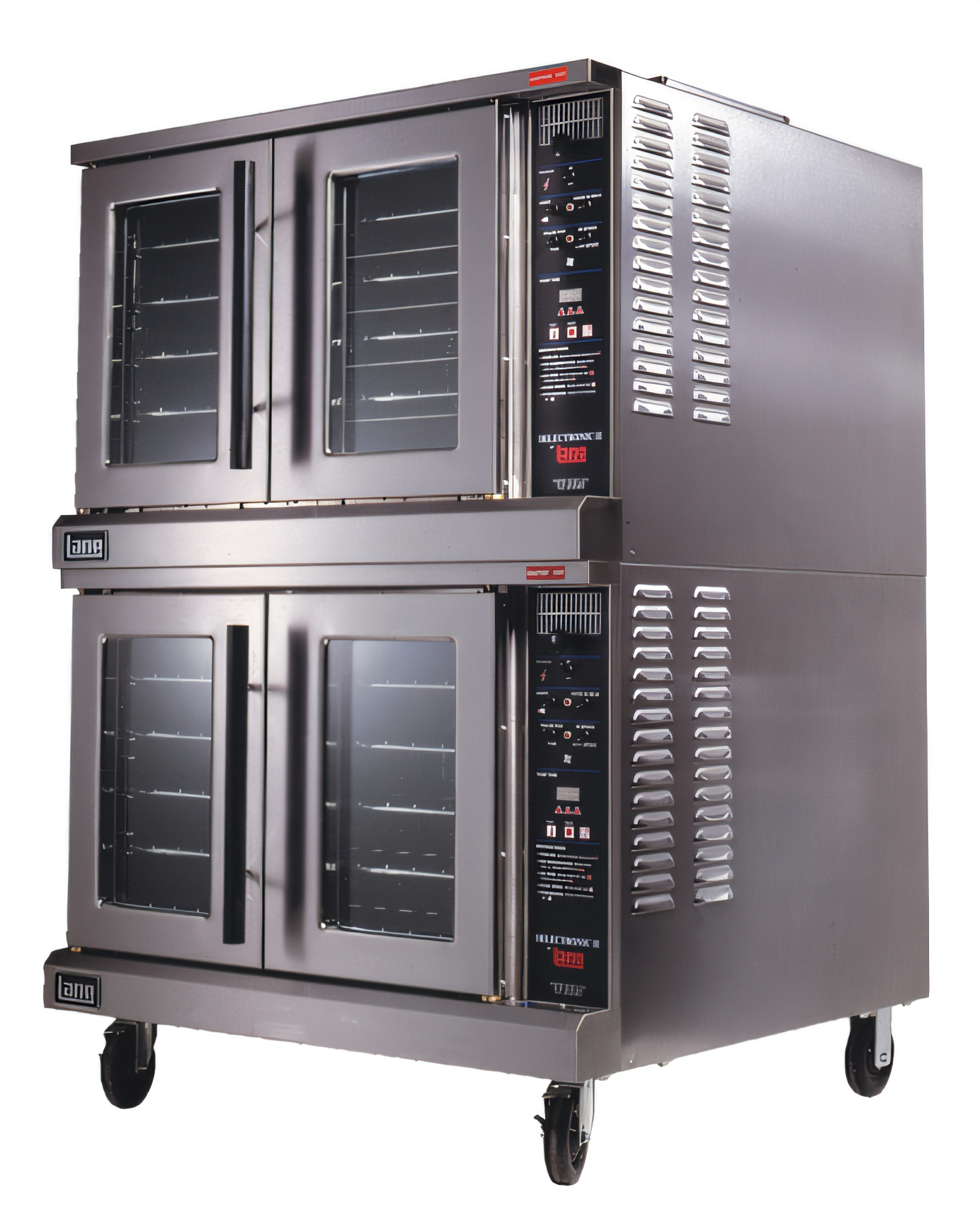

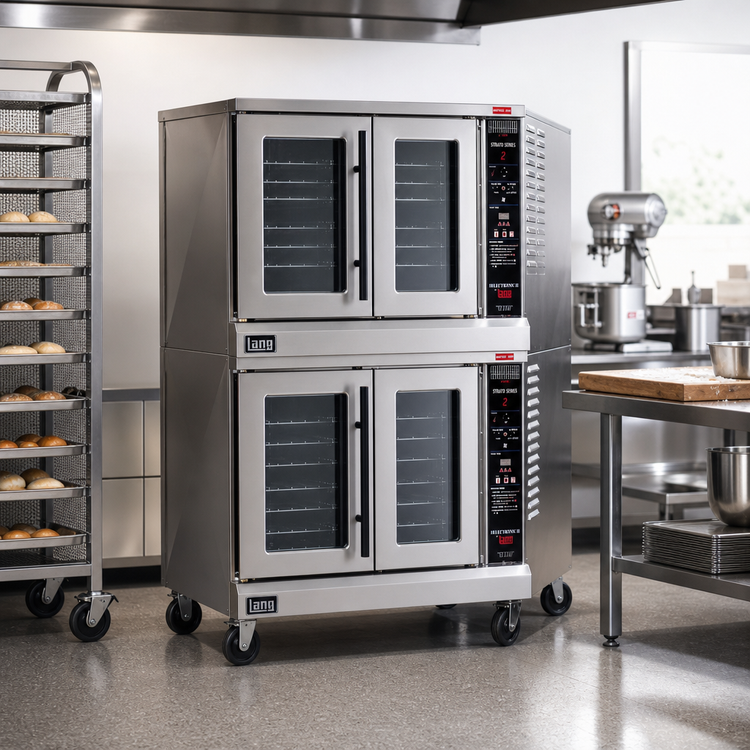

Lang Strato Series™ 2-Deck Electric Bakers-Depth Convection Oven
Model ECOD-AP2 • Full-Size • 23.3 kWBuilt for high-volume kitchens that won’t compromise on consistency, the Lang Strato Series™ ECOD-AP2 delivers two independent, extra-deep ovens in a single footprint. From artisan breads to delicate pastries, each deck circulates even, high-velocity heat for perfectly baked results—every single batch.
Key Features

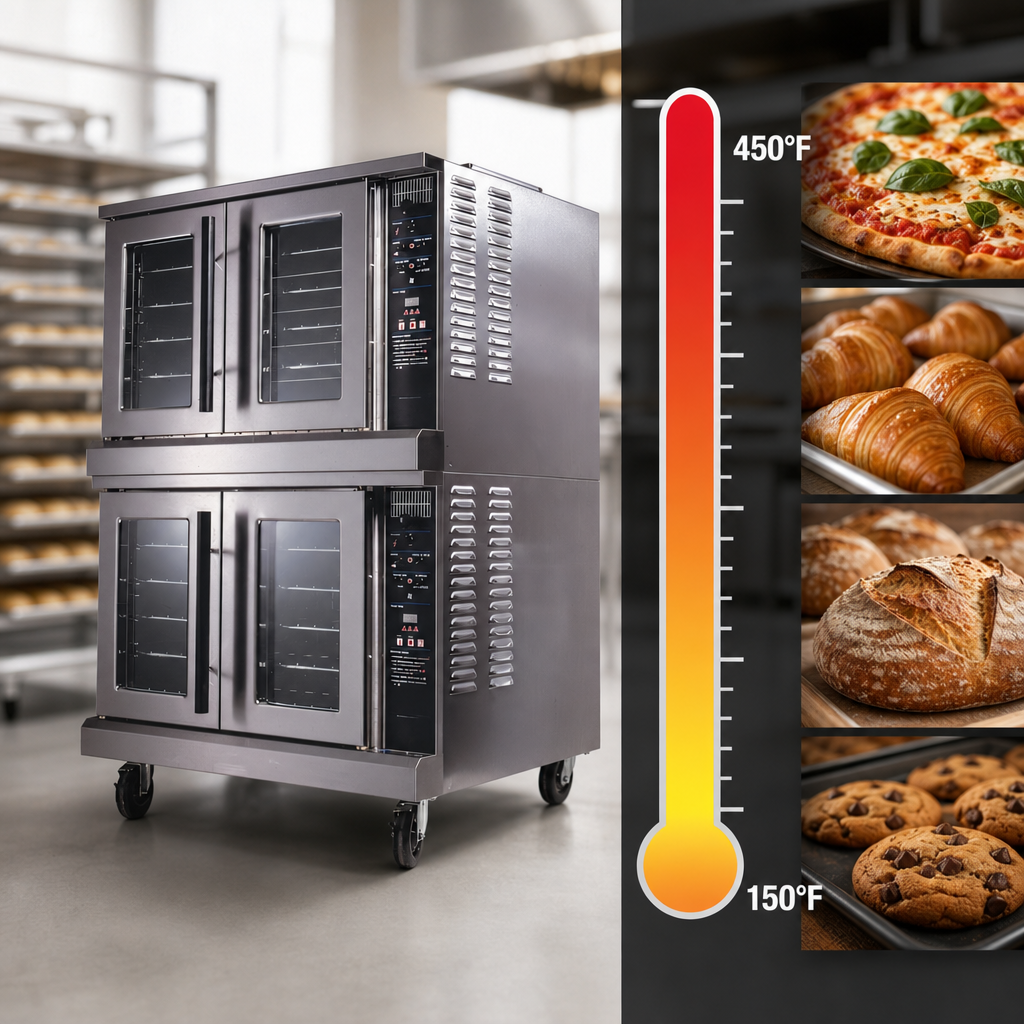

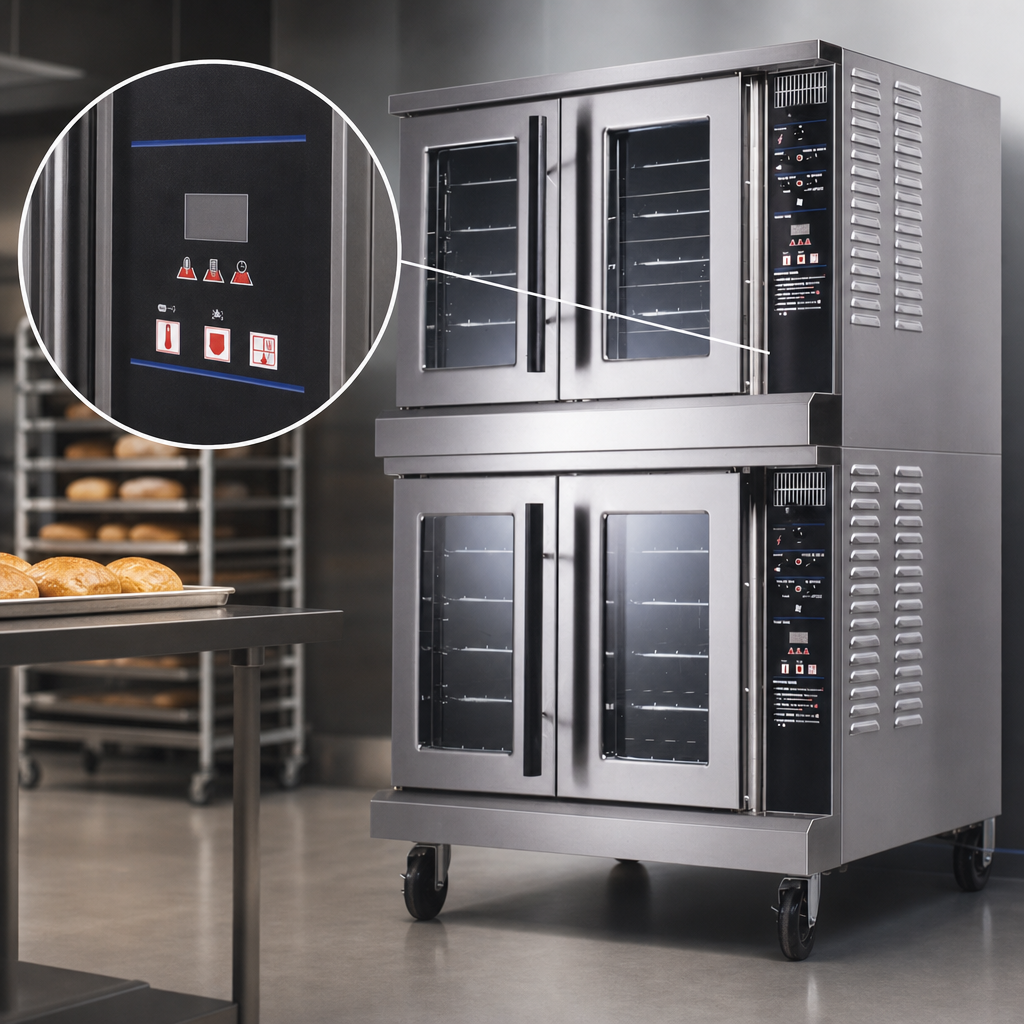

- Wide 150 – 450 °F solid-state temperature control accurate to ±4 °F
- Two decks, each with a powerful rear-mounted blower and two-speed (HIGH/LOW) plus pulse fan modes
- 1-hour mechanical timer with continuous buzzer
- Simultaneously opening doors with double-pane tempered-glass windows & door interlock switch
- 7-position pan slides & five chrome-plated wire racks per deck
- Extra-deep, fully porcelainized interiors for easy cleanup
- Heavy-duty 430 stainless-steel exterior & fully enclosed back
- 2″ high-density insulation on all six sides to keep heat in and energy costs down
- Adjustable 6″ legs standard; optional swivel-locking caster kit available
- cULus & NSF listed, proudly made in the USA
Why You’ll Love It
- Consistent Bakes: Radial airflow eliminates hot spots—even on full sheets.
- Speed & Volume: Bake up to 10 full-size sheet pans at once.
- Operator Friendly: Simple knob-set controls mean minimal training.
- Built to Last: Lifetime warranty on the oven doors & 2-year parts and labor coverage.
Pan Capacity Guide
| Pan Type | Per Deck | Total (2-Deck) |
|---|---|---|
| 18 × 26 in full-size sheet | 5 | 10 |
| 12 × 20 in 2½″-deep hotel | 10 | 20 |
Specifications
| Temperature Range | 150 – 450 °F (65 – 232 °C) |
|---|---|
| Decks / Chambers | 2 independent full-size bakers-depth ovens |
| Interior Dimensions (each) | 27.0″ W × 24.0″ H × 28.0″ D |
| Exterior Dimensions | 40.1″ W × 46.0″ D × 60.9″ H (with 6″ legs) |
| Controls | Solid-state thermostat • 1-hour timer • Two-speed + pulse fan switches |
| Electrical |
Site-changeable 208 V / 240 V, 1- or 3-phase Optional 480 V, 3-phase |
| Power | 23.3 kW |
| Maximum Amps |
208 V : 112 A (1 Ø) / 74 A (3 Ø) 240 V : 97 A (1 Ø) / 58 A (3 Ø) 480 V : 49 A (3 Ø) |
| Clearances | 6″ sides • 6″ back • 6″ bottom |
| Shipping / Installed Weight | 1,020 lb / 945 lb (463 kg / 430 kg) |
| Certifications | NSF • cULus • Made in USA |
| Warranty | 2 years parts & labor • Limited lifetime on doors |
Optional Accessories
- 6″ heavy-duty caster kit (2 rigid, 2 swivel with brake)
- Flue extension
- Direct vent connector
- 6″ flanged or adjustable legs
Specifications and availability are subject to change without notice. Always consult the installation manual and a qualified electrician prior to hookup.
