Lang Manufacturing (Middleby) ECOD-AP1 Strato Series Convection Ovens
Description

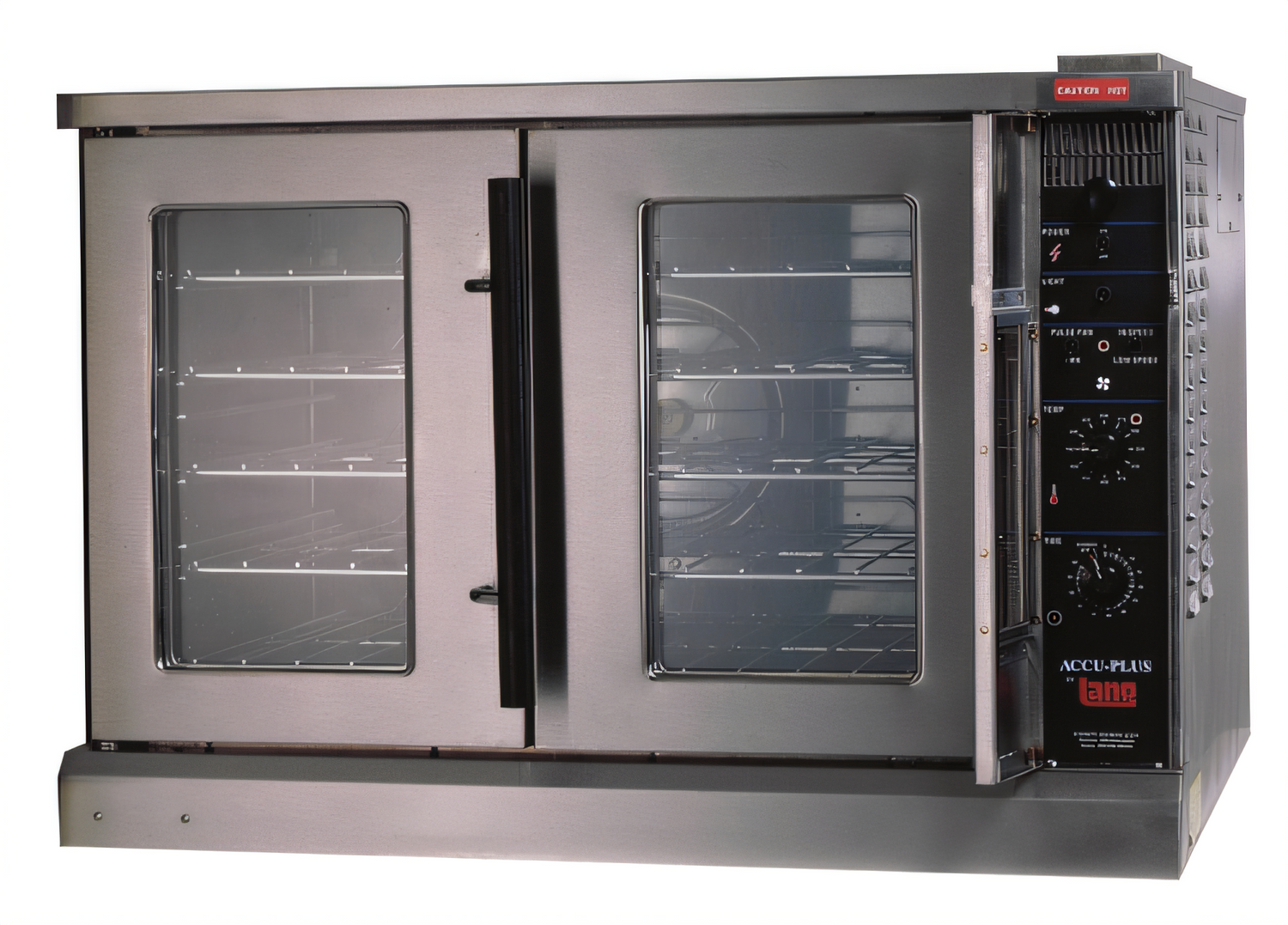

Lang Strato Series™ Electric Convection Oven – Bakers Depth (1-Deck)
Model ECOD-AP1 | 11.7 kW | cULus & NSF Listed | Made in USAPut dependable, bakery-quality results on the menu. The Strato Series™ ECOD-AP1 combines a powerful radial fan, precision solid-state controls and Lang’s legendary door-linkage design to move more product in less time—without moving your budget.
Why You’ll Love It

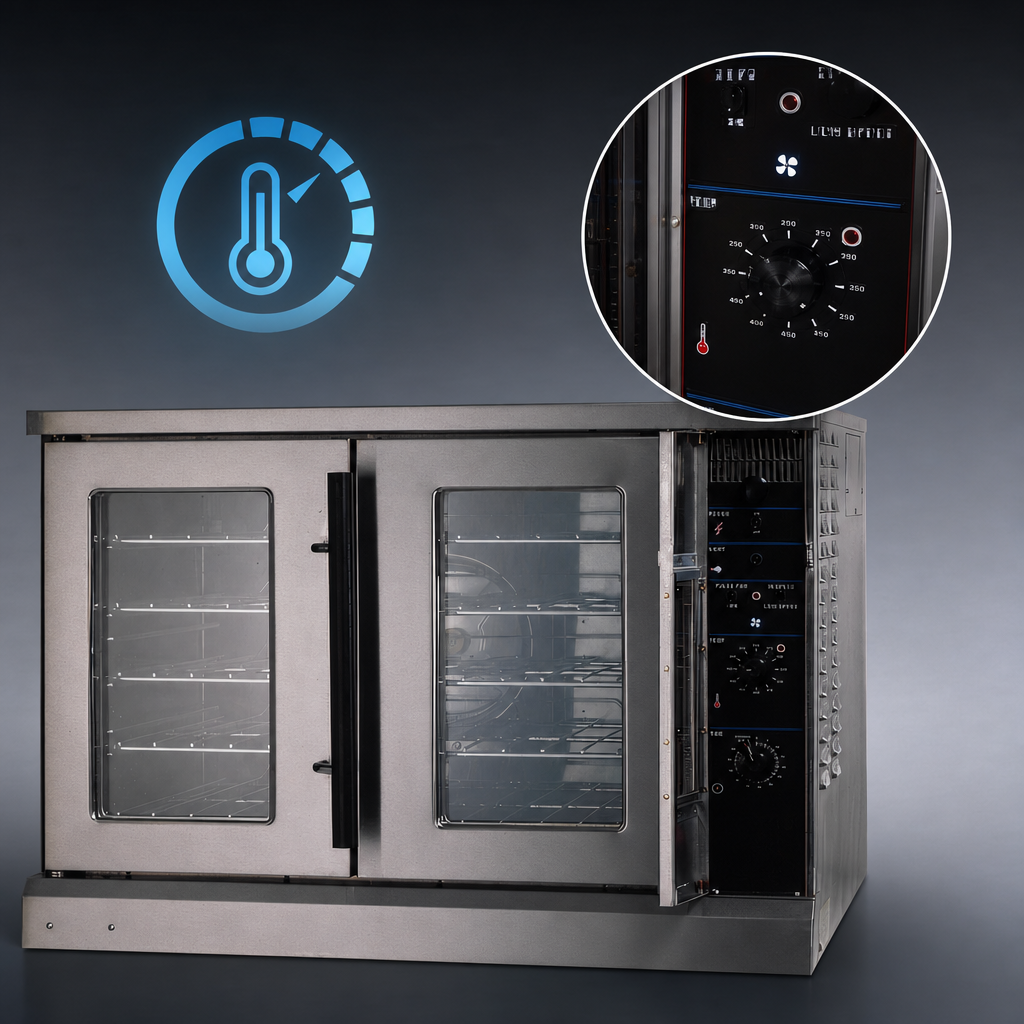

- 150 – 450 °F solid-state thermostat (±4 °F accuracy) with easy knob-set timer (1-hour, nonstop buzzer)

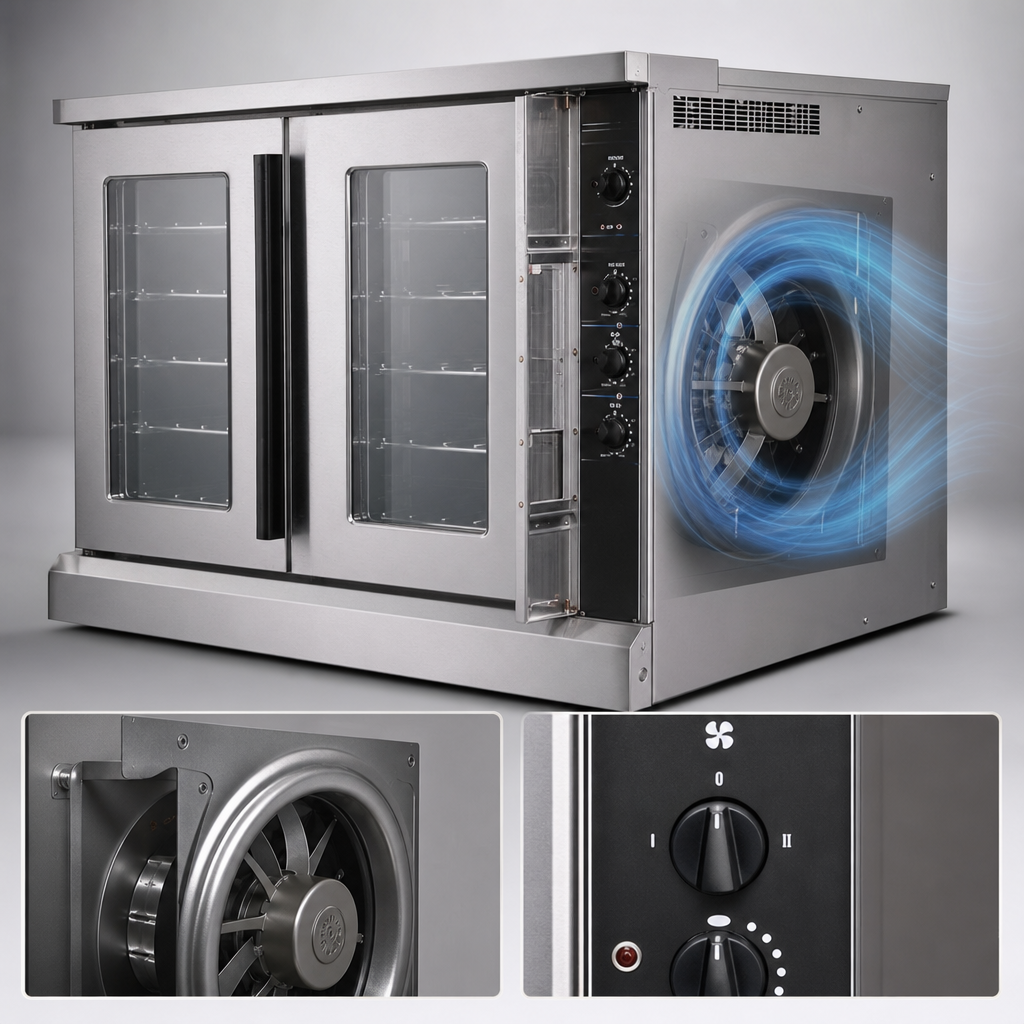

- High-power rear-mounted radial blower with two-speed + pulse modes for delicate or rapid bakes
- Bakers-depth cavity fits full-size 18 × 26 in sheet pans lengthwise or sideways
- 7-position pan slides; 5 chrome-plated wire racks included
- Simultaneously opening, heavy-duty doors with double-pane tempered-glass windows
- Door interlock switch stops fan when doors open for safer loading
- 2 in. of high-density insulation on all six sides for energy efficiency
- Rugged 430 series stainless-steel exterior; porcelainized steel interior cleans up fast
- Site-changeable dual voltage 208/240 V, 1- or 3-phase connection
- 6 in. adjustable legs standard (optional 6 in. casters available)
Bake, Roast & More
From artisan breads to hearty proteins, the Strato Series maintains uniform heat distribution so every rack turns out evenly browned, moist and flavorful. The pulse-fan feature periodically pauses airflow to prevent skin formation on delicate items like cheesecakes and meringues.
Specifications
| Model | ECOD-AP1 (single-deck) |
|---|---|
| Capacity | 5 full-size sheet pans on 7 positions |
| Temperature Range | 150 °F – 450 °F (65 °C – 232 °C) |
| Heat Input | 11.7 kW electric |
| Voltage | 208 V or 240 V, 1 Ø / 3 Ø (field convertible) |
| Amps (208 V) | 56.1 A (1 Ø) / 37.1 A (3 Ø) |
| Amps (240 V) | 48.6 A (1 Ø) / 28.8 A (3 Ø) |
| Exterior Dimensions (W × D × H) | 40.1 in × 46.0 in × 27.9 in (1,019 × 1,168 × 708 mm) |
| Clearances | 6 in sides, back & bottom |
| Net Weight | 460 lb (209 kg) |
| Construction | 430 SS exterior, porcelainized steel interior, double-pane glass doors |
| Certifications | cULus, NSF, Made in USA |
Pan Capacity Guide
| Pan Type | Rack Positions | Recommended Load |
|---|---|---|
| 18 × 26 in Full-Size Sheet | 7 | 5 pans |
| 12 × 20 in Hotel Pan (2 ½ in deep) | – | 10 pans |
Warranty & Support
- 2-year parts & labor coverage
- Limited lifetime warranty on oven doors
- Backed by Lang’s nationwide network of authorized service agencies
Specifications are subject to change without notice. Always consult the installation manual and local codes before ordering or installing.
