Lang Manufacturing (Middleby) DO54R1M Lang® Marine Deck Ovens
Description

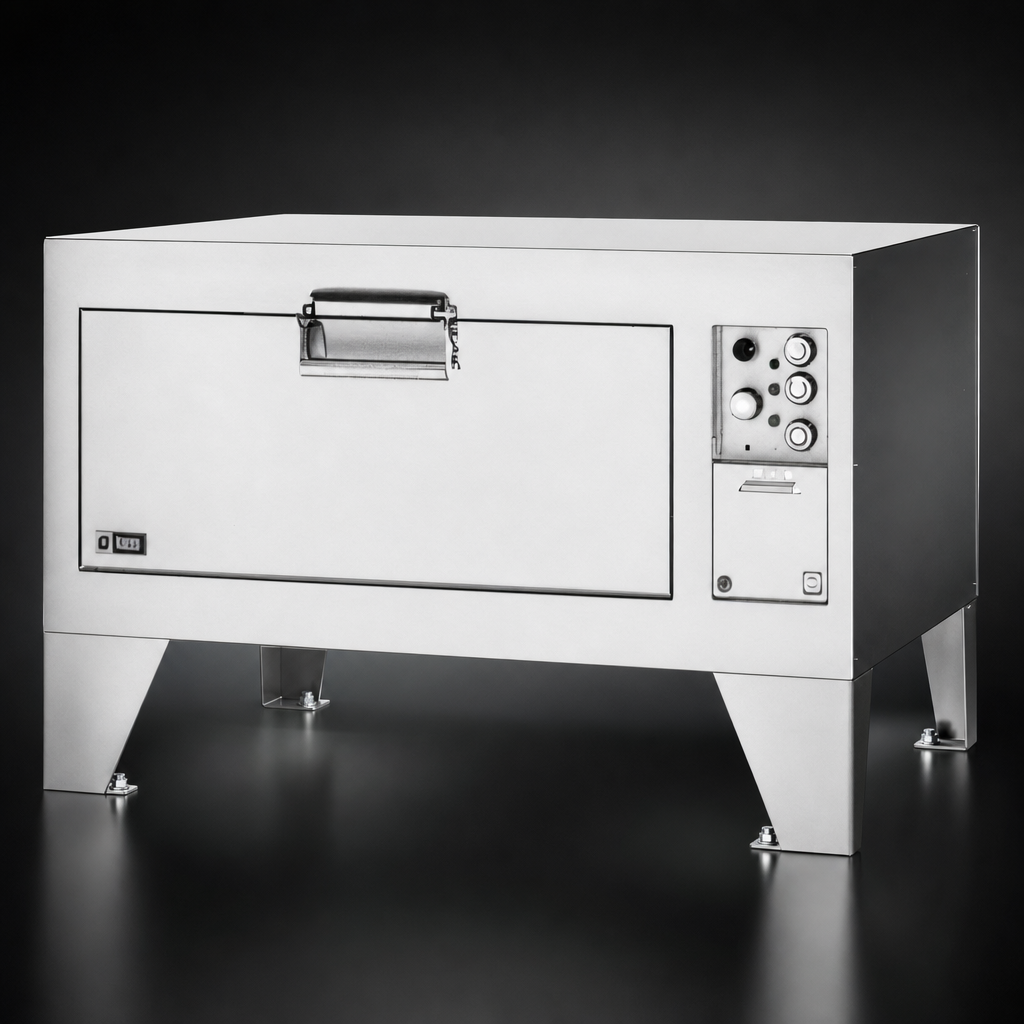

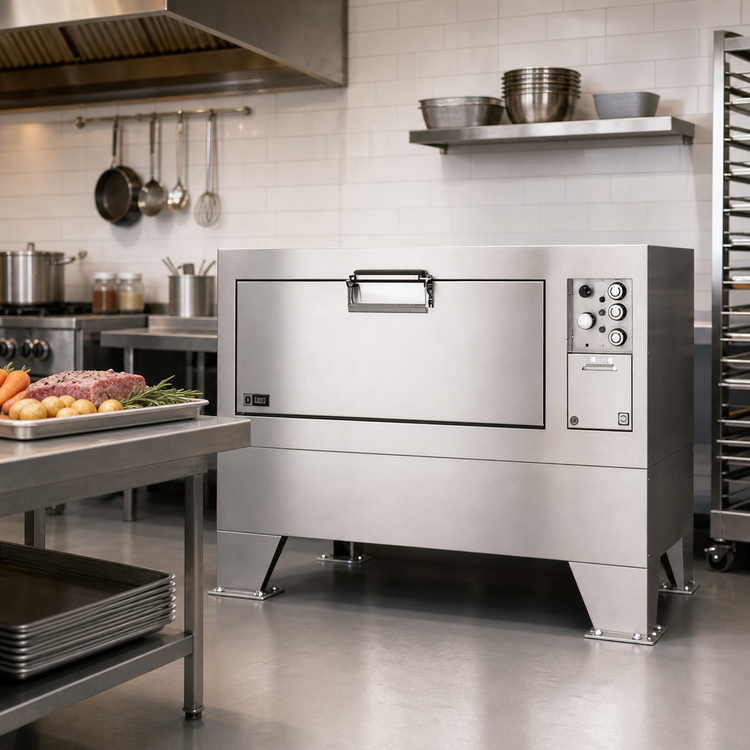

Lang® Marine Single-Deck Roast Oven
38 × 30 in. deck | 12 in. interior height | Electric 6 kWBuilt for life at sea and the pace of a busy galley, the Lang Marine Roast Oven bolts securely to the deck while delivering even, dependable heat for roasts, baked goods and re-therm work. Rugged marine-rated construction and simple, knob-driven controls keep your crew cooking—no matter the sea state.
Key advantages
- Marine-approved (cUL Marine) with 27 in. bolt-down stainless legs for rock-solid stability.
- 12 in. high cavity holds 2 full-size (18 × 26 in.) sheet pans or hotel pans with room to spare.

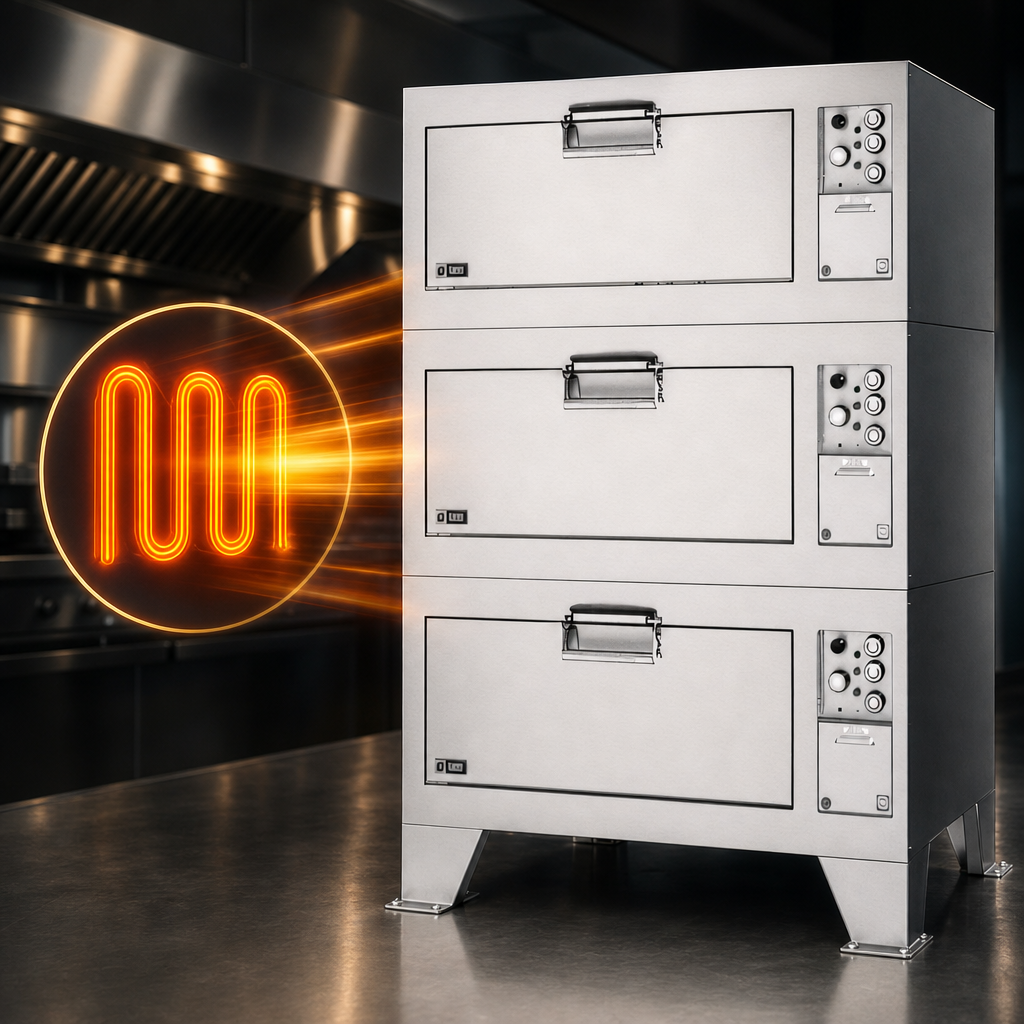

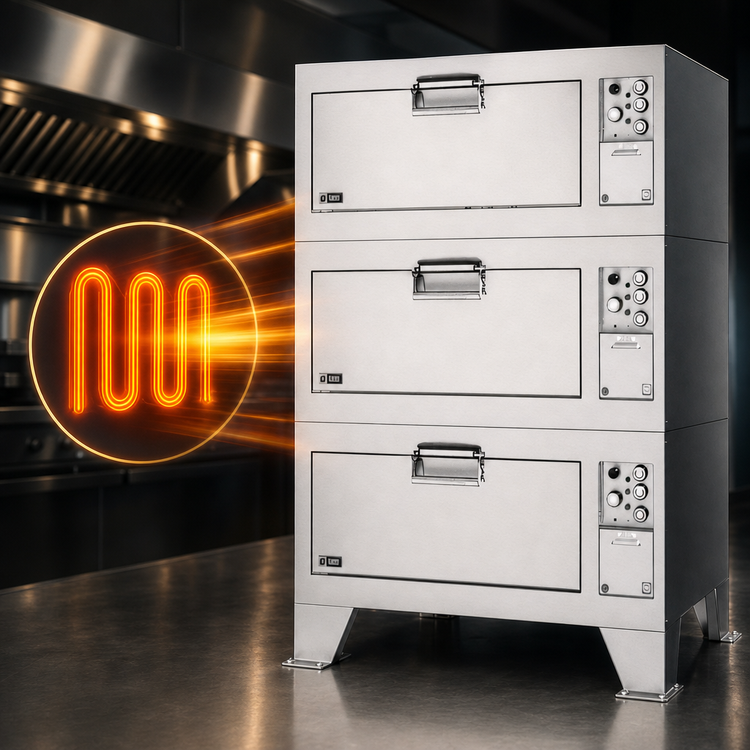

- 6 kW Incoloy-sheathed elements above and below the deck for rapid recovery and uniform browning.
- 3-heat selector (top only / bottom only / both) plus a 100-550 °F thermostat to fine-tune every recipe.
- Spring-loaded pull-down door doubles as a loading shelf and stays latched in heavy seas.
- Reinforced deck with raised edges resists warping; one heavy-duty chrome rack included.
- Fully insulated, aluminized steel cavity wrapped in 430 series stainless steel with No. 4 finish.
- Easy-service, right-side recessed control panel with 60-minute timer and manual vent rod.
- NSF-listed design cleans quickly to keep sanitation on point.
At-a-glance specifications
| Model | Lang Marine Deck-Type Roast Oven (single deck) |
|---|---|
| Interior capacity | 2 full-size sheet pans | 12 in. (305 mm) clear height |
| Interior dimensions | 38 in. W × 30 in. D × 12 in. H (965 × 762 × 305 mm) |
| Exterior footprint | 54 in. W × 36 in. D × ≈47 in. H including 27 in. legs (1372 × 915 × 1194 mm) |
| Power | 6 kW • 208 / 240 V 1- or 3-phase standard • 480 V 3-phase optional |
| Temperature range | 100 – 550 °F (38 – 288 °C) |
| Approx. weight | ≈ 390 lb (177 kg) |
| Certifications | Marine-cULus, NSF |
| Warranty | 2 years parts & labor (Lang Marine series) |
Installation notes
- Install under an approved ventilation hood on a non-combustible deck.
- Provide 2 in. (51 mm) clearance at sides and rear for service access and airflow.
- Electrical connection enters from the bottom of the unit.
- Unit ships fully assembled; have proper lifting equipment available.

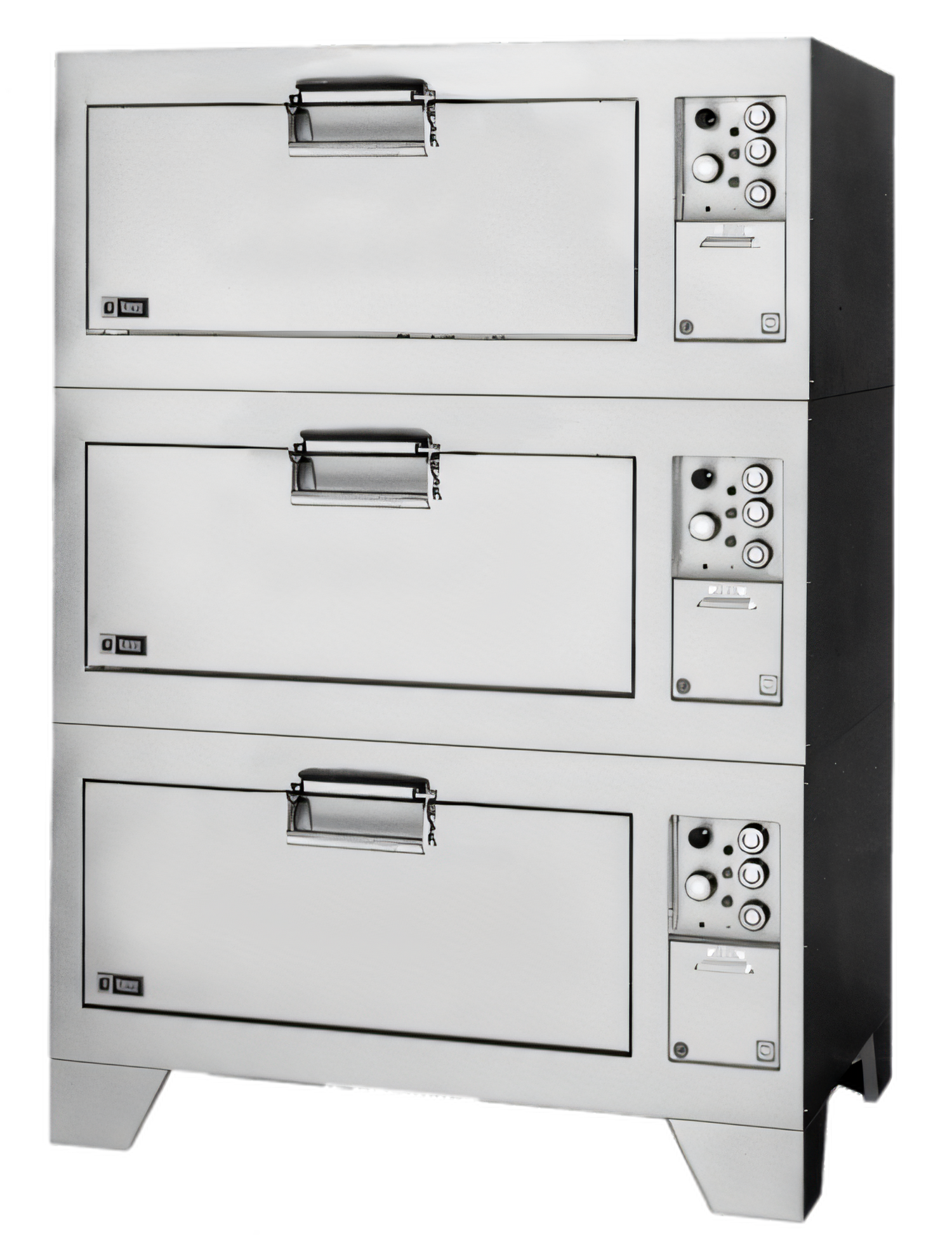

Growing galley? Stack up to three decks high with optional 16 in. or 6 in. leg kits (sold separately) without increasing your footprint.
