Lang Manufacturing (Middleby) DO54B1M Lang® Marine Deck Ovens
Description
Lang® Marine Single-Deck Bake Oven
Model DO54B1M • 6 kW Electric Marine Deck OvenEngineered for life at sea, the Lang Marine deck-type bake oven delivers full-size sheet-pan capacity, rock-solid stainless construction and precise top-and-bottom heat control — all secured to 27 inch bolt-down legs that keep your galley baking steadily in every sea state.
Key Features

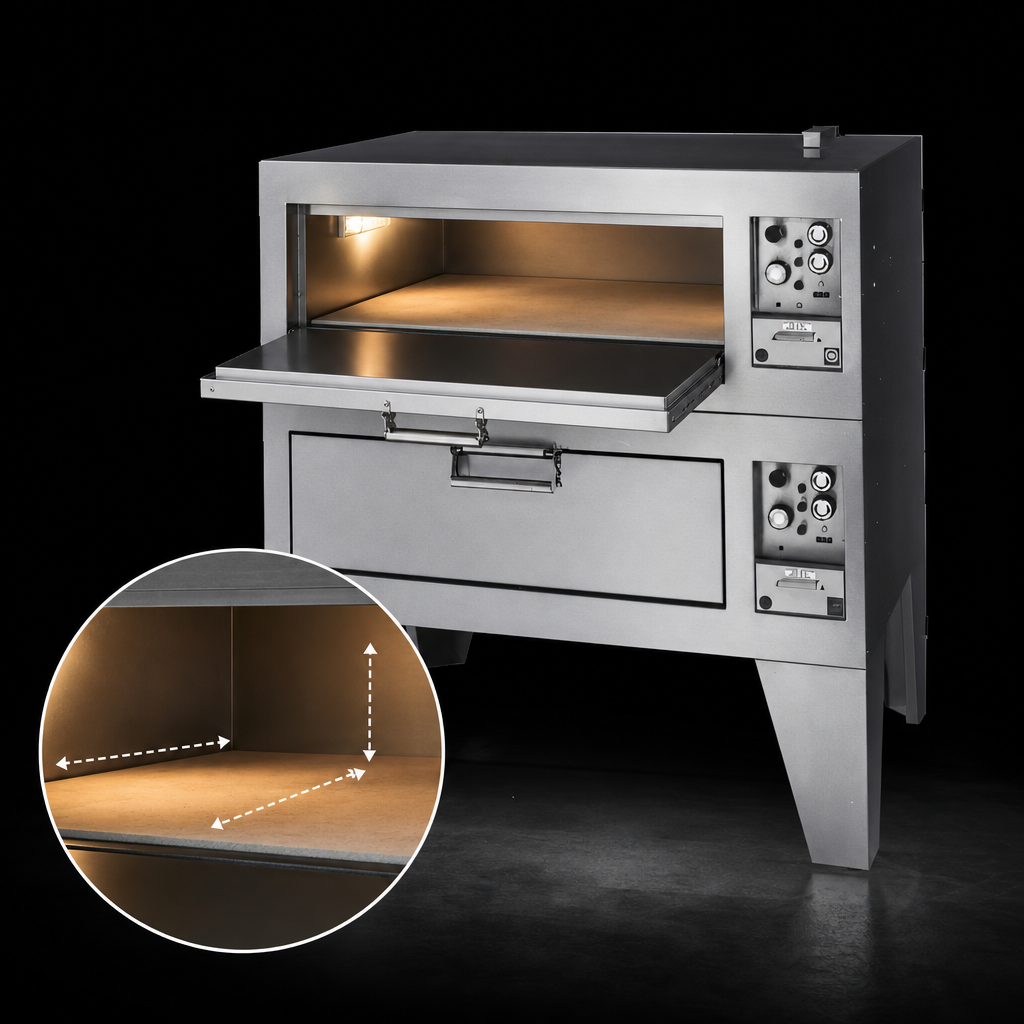

- 8 in (203 mm) high deck allows direct-on-deck or rack baking.
- Reinforced aluminized-steel baking deck with raised edges prevents warping.
- Incoloy-sheathed elements above and below deck; 3-heat selector (top / bottom / both).
- Knob-set thermostat from 100 °F – 550 °F (38 °C – 288 °C) plus 60-minute bell timer.
- Heavy-duty, spring-loaded marine door with positive-latch handle; door doubles as loading platform.
- 430 stainless-steel exterior with No. 4 finish — easy to clean & corrosion-resistant.
- Fully insulated on six sides for cooler galley and energy efficiency.
- 27 in (686 mm) marine bolt-down legs stabilize unit in rough seas.
- Marine-cUL listed & NSF certified for shipboard food-service safety.
Perfect For
- Ocean-going vessels & workboats
- Offshore platforms & rigs
- Military, research and coast-guard galleys
- Luxury yachts & expedition cruising
Specifications
| Cooking cavity (W × D × H) | 38" × 30" × 8" (965 × 762 × 203 mm) |
|---|---|
| Pan capacity | Two 18" × 26" full sheet pans |
| Exterior dimensions* | 54" W × 36" D × 51" H (1372 × 915 × 1296 mm) *Height includes 27" legs |

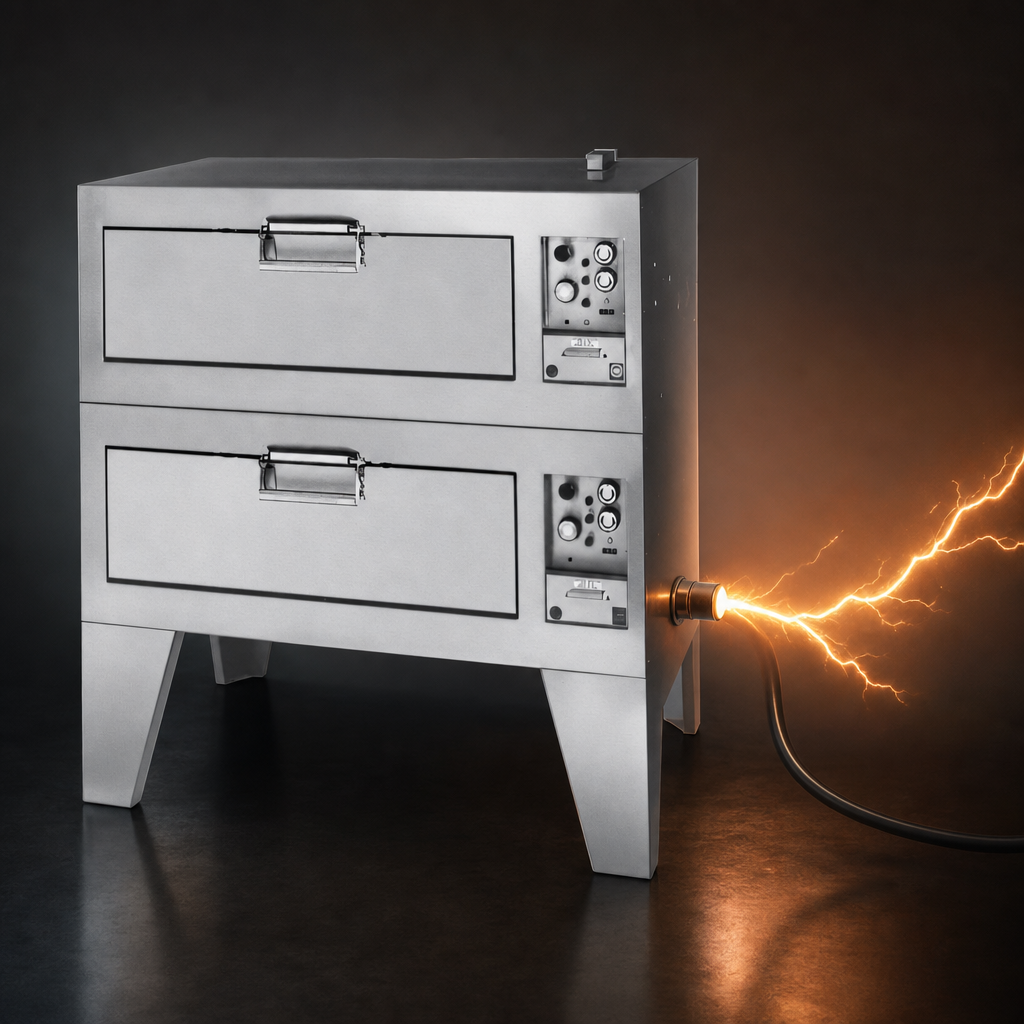

| Electrical rating | 6 kW, 208 / 240 V, 1- or 3-phase (480 V 3-phase optional) |
| Amps @ 240 V | 25 A (1-phase) or 25 A/line (3-phase) |
| Temperature range | 100 °F – 550 °F (38 °C – 288 °C) |
| Ship weight | 455 lb (206 kg) |
| Certifications | Marine-cUL, cULus, NSF |
| Warranty | 1 year parts & labor (U.S. & Canada) |
Need more capacity? Stack up to three decks high without increasing your footprint.
Included With Purchase
- (1) Heavy-duty chrome-plated wire rack
- 27" stainless marine bolt-down leg set
- Operator & installation manual
Outfit your galley with the reliability trusted by the world’s leading fleets — choose the Lang® Marine Single-Deck Bake Oven and bake with confidence anywhere on the water.
