Lang Manufacturing (Middleby)

Lang 24-Inch Gas Infrared Clamshell Griddle Hood, 50,000 BTU, 120V

SKU: CSG24
$15,827.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Shelving Gas Griddles Griddles & Flat Tops Lang Manufacturing (Middleby) Mounted Shelving New Arrivals Shelf Brackets & Supports Storage & Transport

Lang 24-Inch Gas Infrared Clamshell Griddle Hood, 50,000 BTU, 120V

Factory Mounted, Stainless Steel, 3-Inch Clearance

Add fast, two-sided infrared cooking to a compatible griddle with automatic on/off operation and a durable stainless steel hood.

  • 24-inch gas infrared clamshell hood designed for quick, high-output griddle cooking.
  • 50,000 BTU infrared elements brown proteins quickly and help lock in juices.
  • Instant-ON direct spark ignition activates when lowered and shuts off automatically when raised.
  • 3-inch preset clearance provides flexibility for different menu items.
  • Stainless steel hood, heat shields, and wire-form grid support durability and operator comfort.
  • Available in Natural Gas or Propane and requires 120V single-phase power.
  • Factory mounted on the selected Lang griddle at the time of purchase.

Overall Dimensions:

24.0"W x 37.1"D x 50.1"H

Product Weight:

220.0 lb

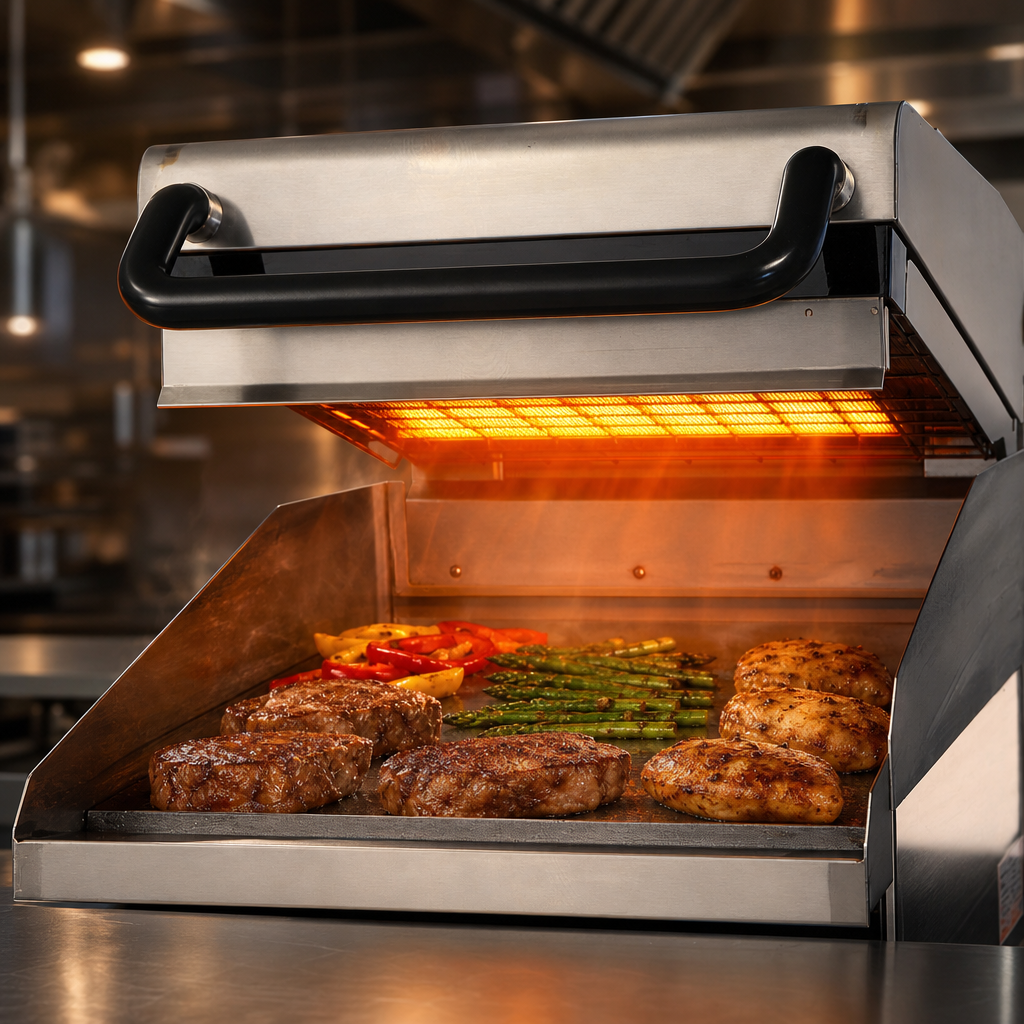

50,000 BTU Infrared Broiler

High-output gas infrared heating speeds cooking and browns proteins quickly.

Instant ON / Automatic OFF

Direct spark ignition activates when the hood is lowered and turns off when it is lifted.

3-Inch Preset Clearance

Maintains a consistent surface-to-surface gap for menu flexibility.

Stainless Steel Construction

Stainless steel hood, heat deflector, and splatter shields help improve durability and operator comfort.

Spring-Assisted Lift

Hinged, spring-assisted operation with a full-width cool-grip elastomer handle for easier lifting.

Modular Installation

Designed for factory mounting on compatible Lang griddles using the proper mounting bracket.

Fuel and Power Requirements

Available in Natural Gas or Propane and uses 120V, 60Hz, single-phase power.

Wire-Form Grid Protection

Stainless steel wire-form grid protects the infrared elements.

Type Clamshell Hood
Style Gas Infrared
BTU 50,000 BTU
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Watts 500 Watts
Amps 2.0 Amps
Gas Connection Size 1/2 Inch NPT
Material Stainless Steel
Country of Origin USA
Shipping Width 24 Inches
Shipping Depth 38 Inches
Shipping Height 51 Inches
Shipping Weight 220 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Buying guide PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It lowers onto the griddle to provide fast, two-sided infrared cooking, making it especially useful for proteins.
Yes. It features instant-ON when lowered and automatically turns off when raised.
It is available in Natural Gas or Propane.
The unit requires 120V, 60Hz, single-phase power at 2.0 amps.
It must be factory mounted on a compatible Lang griddle at the time of purchase.
The unit includes a one-year warranty for parts and labor.
